Pleiad EvoRecessed

Pleiad Evo is a downlight with good lighting properties designed for recessed installation in suspended ceilings. An efficient basic luminaire for general lighting with wide light distribution, 20° mechanical louvre and patented quick installation.

10.8 kg CO₂e 143 lm/W
Pleiad Evo

Pleiad EvoRecessed

Pleiad Evo is a downlight with good lighting properties designed for recessed installation in suspended ceilings. An efficient basic luminaire for general lighting with wide light distribution, 20° mechanical louvre and patented quick installation.

10.8 kg CO₂e 143 lm/W

Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings. A mounting plate must be used when mounting on soft tile ceilings. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. For detailed information, see the installation instructions.

Connection

For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).

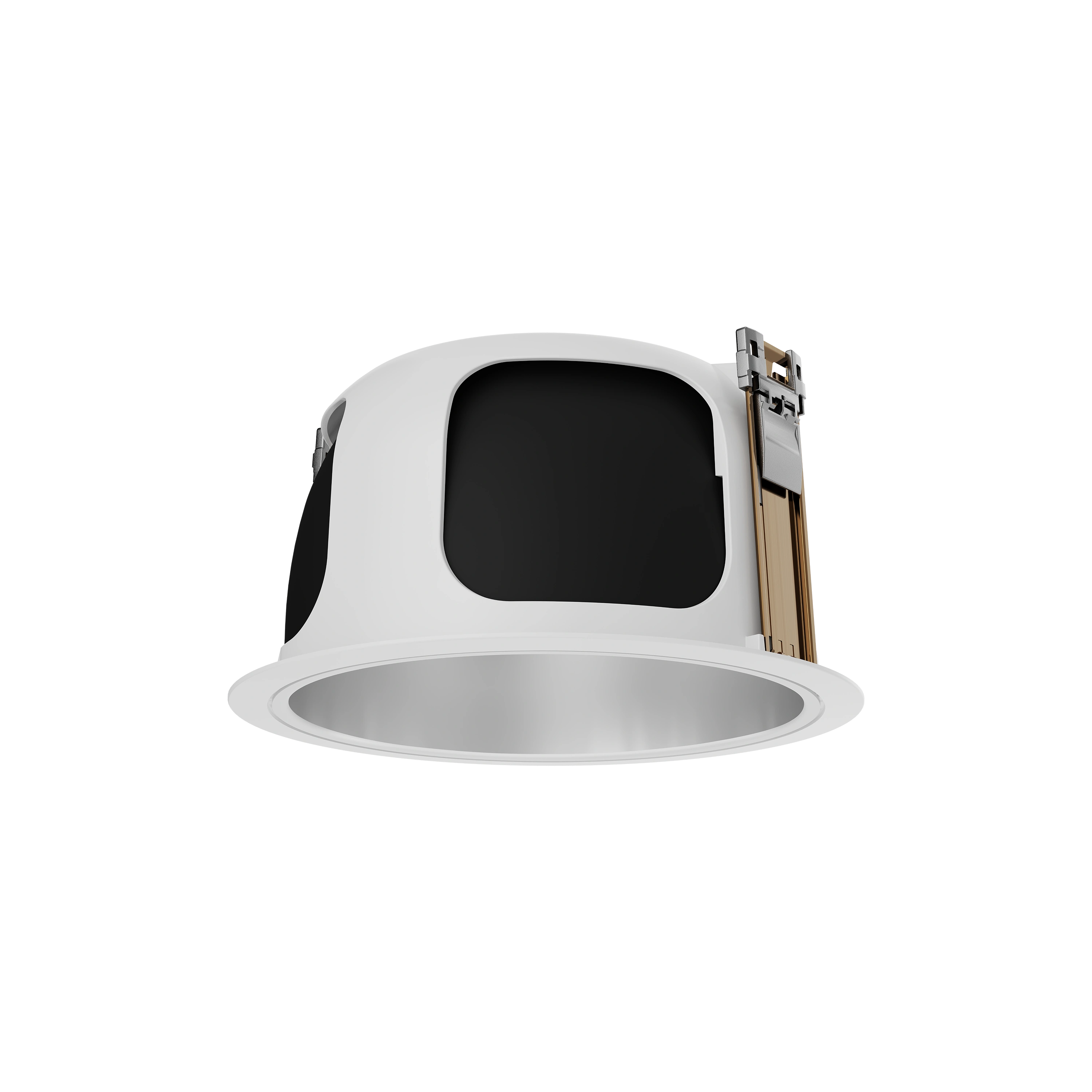

Design

Luminaire body and visible reflector ring in white (RAL 9003) PBT plastic.

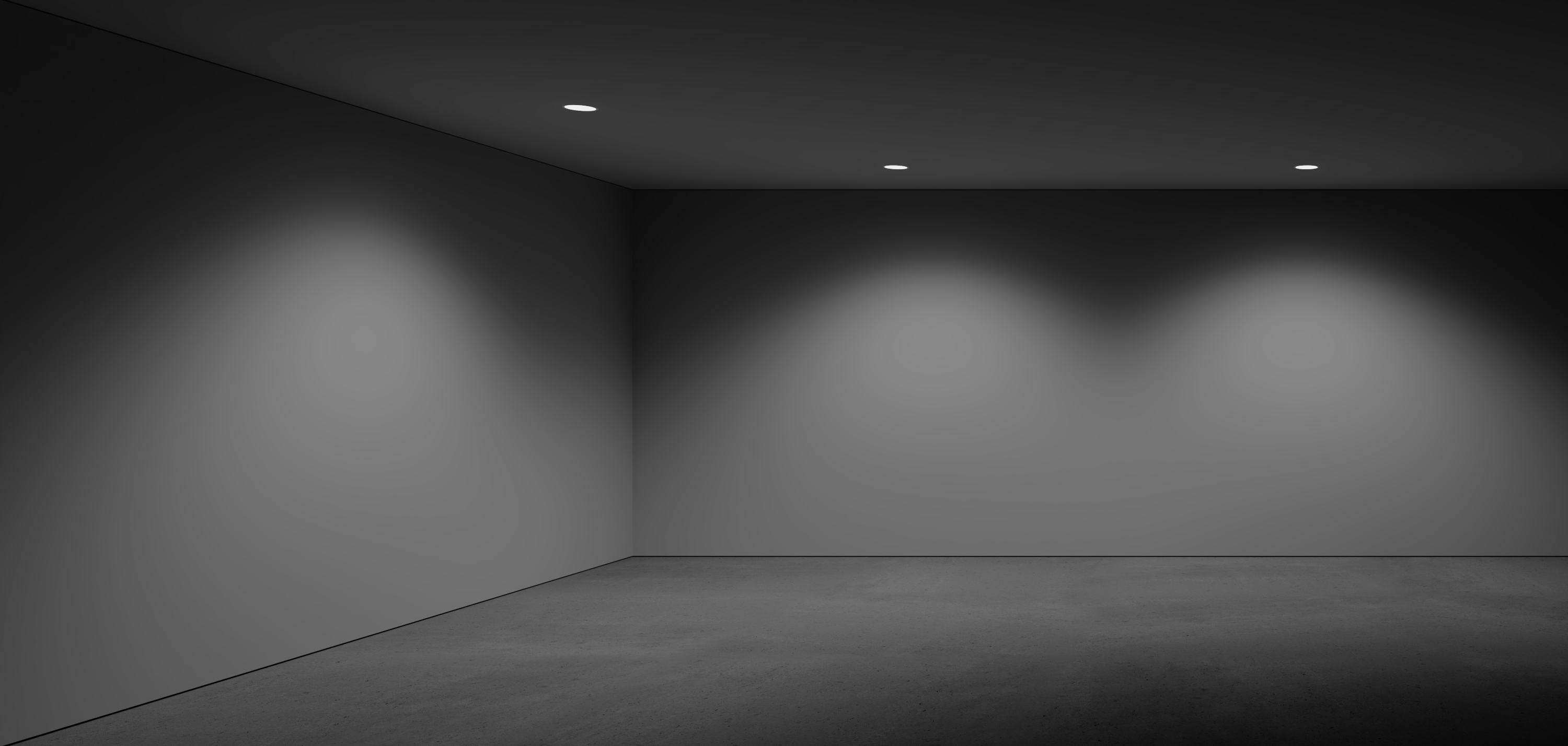

Light Distribution

Direct wide beam.

Light data

CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
1039-2217 lm
CLO:
50 000 h

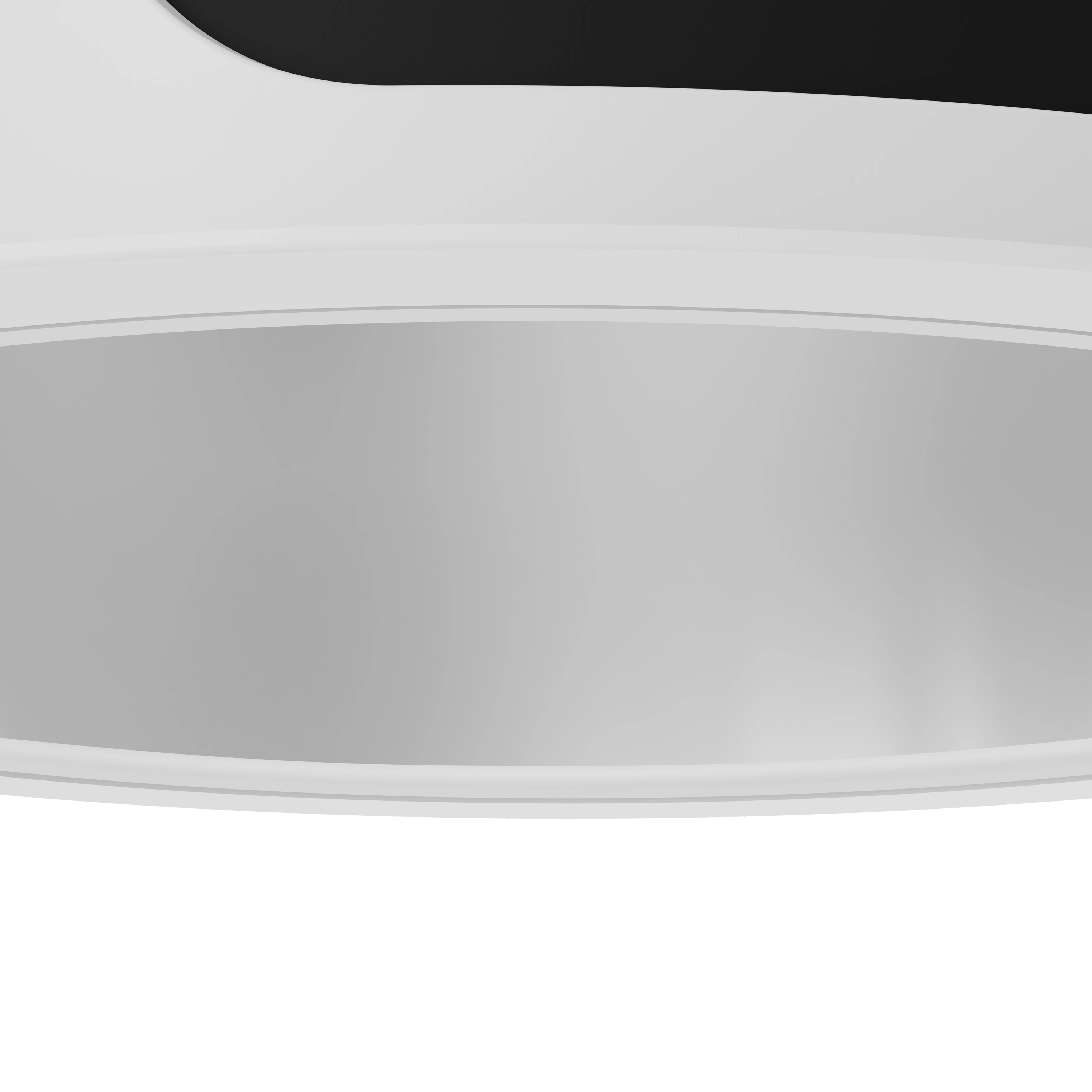

Optics

Reflector of high gloss or semi-matt anodised aluminium.

10.8kg CO₂e

(Based on 77442-529)

Climate impact (GWP fossil) A1–A3 based on results from the EPD.

Read more about EPD
EPD Icon Pleiad Evo recessed

No additional heat sink

The luminaire’s optimised design efficiently conducts heat away from the LED module, with the result that no separate heat sink is required. This solution saves materials and reduces the carbon footprint.

Twin Dual Driver

The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.

Made in Sweden

The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 188 of 188 Articles
Art.no. System Wattage Lumen output CCT, K Colour Diameter, mm Dimensions, mm Light distribution Reflector Light control Connection CLO time, h Miscellaneous Light data files Article PDF
77440 9 1167 3000 White 183 100 Wide Beam Specular
77440-111 9 1167 3000 White 183 100 Wide Beam Specular Wieland GST18i3 3-way male
77440-3 9 1167 3000 White 183 100 Wide Beam Specular Connection cable with plug, L=2.5 m
77440-340 9 1167 3000 White 183 100 Wide Beam Specular Wago Winsta 3-way male
77440-402 8 1053 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000
77440-519 9 1167 3000 White 183 100 Wide Beam Specular Ensto 3-way male
77440-520 8 1053 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000
77440-528 8 1053 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77440-529 8 1053 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000
77440T1L-402 17 1053 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 1L
77440T1L-520 17 1053 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77440T1L-528 17 1053 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77440T1L-529 17 1053 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77441 13 1722 3000 White 183 100 Wide Beam Specular
77441-111 13 1722 3000 White 183 100 Wide Beam Specular Wieland GST18i3 3-way male
77441-3 13 1722 3000 White 183 100 Wide Beam Specular Connection cable with plug, L=2.5 m
77441-340 13 1722 3000 White 183 100 Wide Beam Specular Wago Winsta 3-way male
77441-402 12 1550 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000
77441-519 13 1722 3000 White 183 100 Wide Beam Specular Ensto 3-way male
77441-520 12 1550 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000
77441-528 12 1550 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77441-529 12 1550 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000
77441T1L-402 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 1L
77441T1L-520 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77441T1L-528 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77441T1L-529 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77441T2L-402 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 2L
77441T2L-520 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77441T2L-528 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77441T2L-529 24 1550 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
77442 9 1152 3000 White 183 100 Wide Beam Matt
77442-111 9 1152 3000 White 183 100 Wide Beam Matt Wieland GST18i3 3-way male
77442-3 9 1152 3000 White 183 100 Wide Beam Matt Connection cable with plug, L=2.5 m
77442-340 9 1152 3000 White 183 100 Wide Beam Matt Wago Winsta 3-way male
77442-402 8 1039 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000
77442-519 9 1152 3000 White 183 100 Wide Beam Matt Ensto 3-way male
77442-520 8 1039 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000
77442-528 8 1039 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77442-529 8 1039 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000
77442T1L-402 17 1039 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 1L
77442T1L-520 17 1039 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77442T1L-528 17 1039 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77442T1L-529 17 1039 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77443 13 1772 3000 White 183 100 Wide Beam Matt
77443-111 13 1772 3000 White 183 100 Wide Beam Matt Wieland GST18i3 3-way male
77443-3 13 1772 3000 White 183 100 Wide Beam Matt Connection cable with plug, L=2.5 m
77443-340 13 1772 3000 White 183 100 Wide Beam Matt Wago Winsta 3-way male
77443-402 12 1595 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000
77443-519 13 1772 3000 White 183 100 Wide Beam Matt Ensto 3-way male
77443-520 12 1595 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000
77443-528 12 1595 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77443-529 12 1595 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000
77443T1L-402 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 1L
77443T1L-520 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77443T1L-528 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77443T1L-529 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77443T2L-402 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 2L
77443T2L-520 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77443T2L-528 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77443T2L-529 24 1595 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
77444 9 1201 4000 White 183 100 Wide Beam Specular
77444-111 9 1201 4000 White 183 100 Wide Beam Specular Wieland GST18i3 3-way male
77444-3 9 1201 4000 White 183 100 Wide Beam Specular Connection cable with plug, L=2.5 m
77444-340 9 1201 4000 White 183 100 Wide Beam Specular Wago Winsta 3-way male
77444-402 8 1083 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000
77444-519 9 1201 4000 White 183 100 Wide Beam Specular Ensto 3-way male
77444-520 8 1083 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000
77444-528 8 1083 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77444-529 8 1083 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000
77444T1L-402 17 1083 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 1L
77444T1L-520 17 1083 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77444T1L-528 17 1083 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77444T1L-529 17 1083 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77445 13 1848 4000 White 183 100 Wide Beam Specular
77445-111 13 1848 4000 White 183 100 Wide Beam Specular Wieland GST18i3 3-way male
77445-3 13 1848 4000 White 183 100 Wide Beam Specular Connection cable with plug, L=2.5 m
77445-340 13 1848 4000 White 183 100 Wide Beam Specular Wago Winsta 3-way male
77445-402 12 1663 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000
77445-519 13 1848 4000 White 183 100 Wide Beam Specular Ensto 3-way male
77445-520 12 1663 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000
77445-528 12 1663 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77445-529 12 1663 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000
77445T1L-402 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 1L
77445T1L-520 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77445T1L-528 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77445T1L-529 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77445T2L-402 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 2L
77445T2L-520 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77445T2L-528 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77445T2L-529 24 1663 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
77446 9 1185 4000 White 183 100 Wide Beam Matt
77446-111 9 1185 4000 White 183 100 Wide Beam Matt Wieland GST18i3 3-way male
77446-3 9 1185 4000 White 183 100 Wide Beam Matt Connection cable with plug, L=2.5 m
77446-340 9 1185 4000 White 183 100 Wide Beam Matt Wago Winsta 3-way male
77446-402 8 1068 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000
77446-519 9 1185 4000 White 183 100 Wide Beam Matt Ensto 3-way male
77446-520 8 1068 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000
77446-528 8 1068 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77446-529 8 1068 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000
77446T1L-402 17 1068 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 1L
77446T1L-520 17 1068 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77446T1L-528 17 1068 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77446T1L-529 17 1068 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77447 13 1823 4000 White 183 100 Wide Beam Matt
77447-111 13 1823 4000 White 183 100 Wide Beam Matt Wieland GST18i3 3-way male
77447-3 13 1823 4000 White 183 100 Wide Beam Matt Connection cable with plug, L=2.5 m
77447-340 13 1823 4000 White 183 100 Wide Beam Matt Wago Winsta 3-way male
77447-402 14 1641 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000
77447-519 13 1823 4000 White 183 100 Wide Beam Matt Ensto 3-way male
77447-520 14 1641 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000
77447-528 14 1641 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77447-529 14 1641 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000
77447T1L-402 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 1L
77447T1L-520 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77447T1L-528 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77447T1L-529 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77447T2L-402 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 2L
77447T2L-520 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77447T2L-528 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77447T2L-529 24 1641 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
77483 15 2155 3000 White 183 100 Wide Beam Specular
77483-111 15 2155 3000 White 183 100 Wide Beam Specular Wieland GST18i3 3-way male
77483-3 15 2155 3000 White 183 100 Wide Beam Specular Connection cable with plug, L=2.5 m
77483-340 15 2155 3000 White 183 100 Wide Beam Specular Wago Winsta 3-way male
77483-402 14 1940 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000
77483-519 15 2155 3000 White 183 100 Wide Beam Specular Ensto 3-way male
77483-520 14 1940 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000
77483-528 14 1940 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77483-529 14 1940 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000
77483T1L-402 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 1L
77483T1L-520 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77483T1L-528 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77483T1L-529 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77483T2L-402 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 2L
77483T2L-520 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77483T2L-528 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77483T2L-529 28 1940 (x2) 3000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
77484 15 2127 3000 White 183 100 Wide Beam Matt
77484-111 15 2127 3000 White 183 100 Wide Beam Matt Wieland GST18i3 3-way male
77484-3 15 2127 3000 White 183 100 Wide Beam Matt Connection cable with plug, L=2.5 m
77484-340 15 2127 3000 White 183 100 Wide Beam Matt Wago Winsta 3-way male
77484-402 14 1914 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000
77484-519 15 2127 3000 White 183 100 Wide Beam Matt Ensto 3-way male
77484-520 14 1914 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000
77484-528 14 1914 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77484-529 14 1914 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000
77484T1L-402 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 1L
77484T1L-520 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77484T1L-528 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77484T1L-529 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77484T2L-402 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 2L
77484T2L-520 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77484T2L-528 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77484T2L-529 28 1914 (x2) 3000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
77488 15 2217 4000 White 183 100 Wide Beam Specular
77488-111 15 2217 4000 White 183 100 Wide Beam Specular Wieland GST18i3 3-way male
77488-3 15 2217 4000 White 183 100 Wide Beam Specular Connection cable with plug, L=2.5 m
77488-340 15 2217 4000 White 183 100 Wide Beam Specular Wago Winsta 3-way male
77488-402 14 1996 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000
77488-519 15 2217 4000 White 183 100 Wide Beam Specular Ensto 3-way male
77488-520 14 1996 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000
77488-528 14 1996 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77488-529 14 1996 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000
77488T1L-402 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 1L
77488T1L-520 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77488T1L-528 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77488T1L-529 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77488T2L-402 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse 50000 Twin 2L
77488T2L-520 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77488T2L-528 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77488T2L-529 28 1996 (x2) 4000 White 183 100 Wide Beam Specular DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
77489 15 2188 4000 White 183 100 Wide Beam Matt
77489-111 15 2188 4000 White 183 100 Wide Beam Matt Wieland GST18i3 3-way male
77489-3 15 2188 4000 White 183 100 Wide Beam Matt Connection cable with plug, L=2.5 m
77489-340 15 2188 4000 White 183 100 Wide Beam Matt Wago Winsta 3-way male
77489-402 14 1969 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000
77489-519 15 2188 White 183 100 Wide Beam Matt Ensto 3-way male
77489-520 14 1969 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000
77489-528 14 1969 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000
77489-529 14 1969 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000
77489T1L-402 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 1L
77489T1L-520 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
77489T1L-528 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
77489T1L-529 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
77489T2L-402 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse 50000 Twin 2L
77489T2L-520 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Ensto 5-way male 50000 Twin 2L
77489T2L-528 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 2L
77489T2L-529 28 1969 (x2) 4000 White 183 100 Wide Beam Matt DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 2L
Showing 42 of 42 Accessories
Name Description Art.no. Article PDF
Cover plate opal IP 54 Ø 165 mm, white (RAL 9016) 41860
Cover plate clear IP 64 Ø 165 mm, matt aluminium 41848
Cover plate clear IP 64 Ø 165 mm, grey (RAL 7040) 41844
Mounting plate Mounting plate 625 with deflector. Adapted for downlights with recess dimensions Ø 165 41933
Cover plate Delta IP 20 Ø 165 mm, white (RAL 9016) 42031
Edge ring II Ø 165 mm, white (RAL 9016), height 11 mm, external diameter 199 mm. 41900
Edge ring III Ø 165 mm, white (RAL 9016), height 9 mm, external diameter 195 mm. 41920
Cilindriq rills Ø 165 mm, white (RAL 9016) 41935
Edge ring II Ø 165 mm, grey (RAL 7040), height 11 mm, external diameter 199 mm. 41904
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
WAGO T-connector WAGO T-Connector, 3-way, white 91067
Wieland T-connector Wieland 5-way T-connector 91026
Cover plate opal IP 54 Ø 165 mm, grey (RAL 7040) 41864
Recess panel Ø 165 mm 41775
Ringlight Ø 165 mm, blasted glass 41754
Edge ring II Ø 165 mm, matt aluminium, height 12 mm, external diameter 200 mm. 41908
Edge ring III Ø 165 mm, grey (RAL 7040), height 9 mm, external diameter 195 mm. 41924
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. 92788
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. 92787
no-image placeholder Ensto connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92785
no-image placeholder Ensto connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92786
Cover plate Delta IP 20 Ø 165 mm, grey (RAL 7040) 42035
Edge ring III Ø 165 mm, matt aluminium, height 10 mm, external diameter 196 mm. 41928
Mounting plate and support bars 600 mm 41958
Cover plate Delta IP 20 Ø 165 mm, matt aluminium 42039
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
Mounting plate Mounting plate 41956
Sloping ceiling cylinder Sloping ceiling cylinder, Ø 165 41638
Wieland T-connector Wieland 3-way T-connector 91025
Mounting plate Mounting plate HB. Adapted for downlights with recess dimensions Ø 165. For 38 mm support rail. 41655
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
Edge ring II Ø 165 mm, black (RAL 9005 G10), height 11 mm, external diameter 199 mm. 41139
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Ensto T-connector Ensto T-connector 3-way, white 92783
Ensto T-connector Ensto T-connector 5-way, grey 92784
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793
Retrofit kit Retrofit kit Ø 165–270 mm 41339
Ice Ø 165 41315
Cover plate clear IP 64 Ø 165 mm, white (RAL 9016) 41840
Mounting plate Mounting plate 600 with deflector. Adapted for downlights with recess dimensions Ø 165 41932
Cover plate opal IP 54 Ø 165 mm, matt aluminium 41868
External Organic Response sensor excl. PSU. External Organic Response G3 Sensor excl. PSU. External sensor excl. PSU. 86519

Downloads

Pleiad Evo recessed

Documents

Open PDF
Open PDF
Open PDF

3D Models

Manuals

Open PDF
Reference case

Smart Lighting at Humlegården Origo

Creating inspiring workspaces for the future

Read more
Reference case

Bol head office

Smarter buildings for future business

Read more
Reference case

Unilever Foods Innovation Center 'Hive'

One of the world's most sustainable buildings

Read more
Reference case

Hospital Nova

Sustainable and cost-effective lighting in a modern hospital

Read more
Reference case

Carpe Diem Dementia Village

Healthcare centre of the year

Read more
Reference case

Fyrstikkalleen

Focus on sustainable design

Read more
Reference case

PostNL

First logistics company with BREEAM certification

Read more
Reference case

Town Hall Zuidplas Nieuwerkerk aan den IJssel

Where daylight and artificial light work together

Read more
Reference case

HumanTotalCare

The right light for an optimal WELL Building Standard

Read more
Reference case

Bodegraven City Hall

Lighting control from a human perspective

Read more
Return to top
