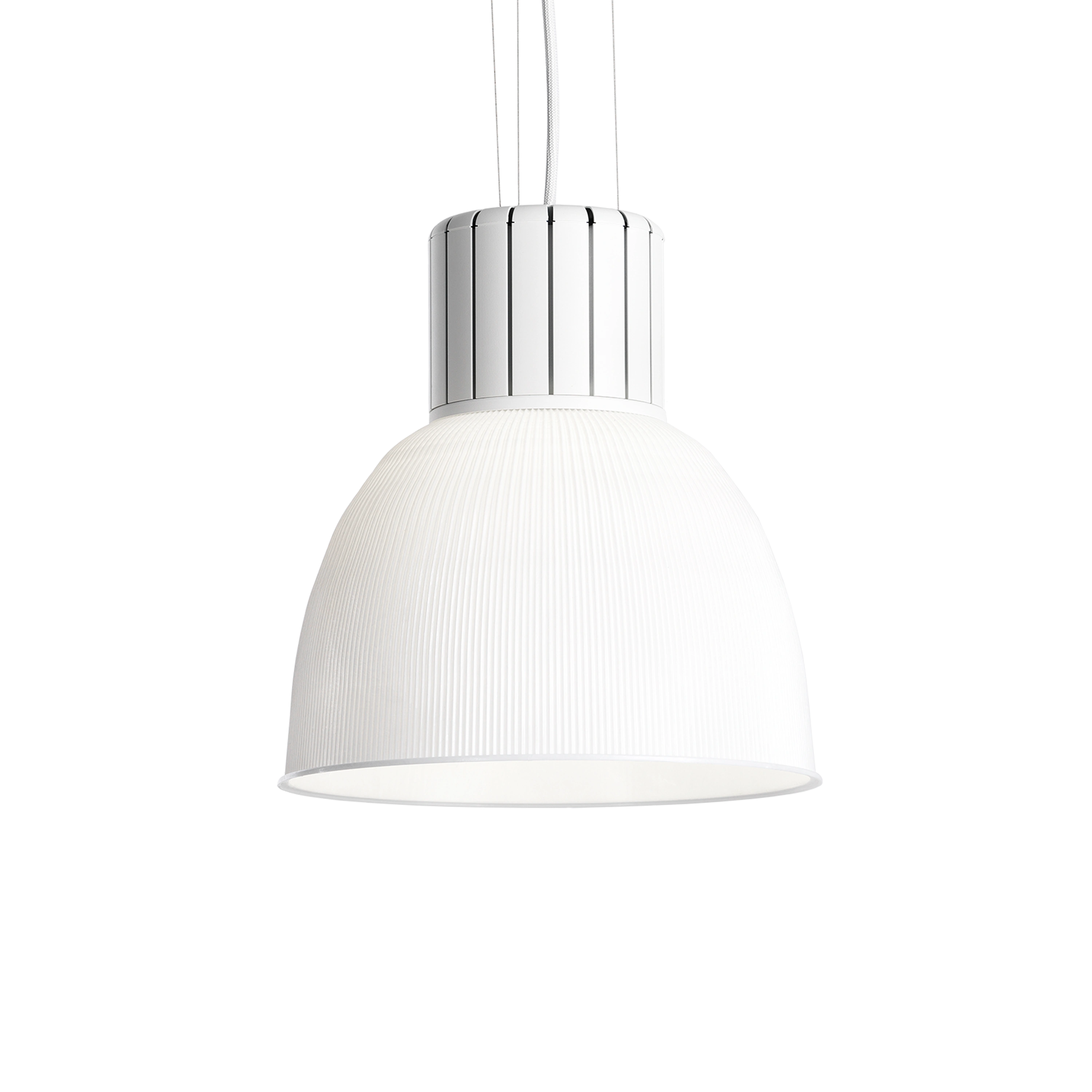

Dino OpalPendant
Dino is a family of pendant luminaires in a wide variety of expressions. The basis is a light engine that can be fitted with many different shades that are easy to change. Dino Opal has a linear prismatic opal reflector.
Dino OpalPendant
Dino is a family of pendant luminaires in a wide variety of expressions. The basis is a light engine that can be fitted with many different shades that are easy to change. Dino Opal has a linear prismatic opal reflector.
Installation
Two-point wire pendant. Supplied with ceiling cup. For detailed information, see the installation instructions.
See installation video – Installation clipsConnection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x2 mm² in ceiling cup. 1-phase through-wiring possible. Surface-mounted mains cable possible 180°. Wire length 4 m. The luminaire is supplied with a 4 m fabric-covered mains cable, 5x0.75 mm².
Design
Luminaire body made of extruded aluminium. White (RAL 9016) structured lacquer. Opal acrylic reflector. White, plastic ceiling cup. Design by PetterssonRudberg.
Light Distribution
Direct.
Light data
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diameter, mm | Dimensions, mm | Light control | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|
| 53816-402 | 24 | 2801 | 3000 | White | 410 | 427 | DALI/Phase-pulse |
|
|
| 53817-402 | 24 | 2980 | 4000 | White | 410 | 427 | DALI/Phase-pulse |
|
|
| 53818-402 | 57 | 6106 | 3000 | White | 410 | 427 | DALI/Phase-pulse |
|
|
| 53819-402 | 57 | 6496 | 4000 | White | 410 | 427 | DALI/Phase-pulse |
|
|
| 53824-402 | 80 | 8918 | 3000 | White | 410 | 427 | DALI/Phase-pulse |
|
|
| 53825-402 | 80 | 9728 | 4000 | White | 410 | 427 | DALI/Phase-pulse |
|
