Kaskad Wallwasher

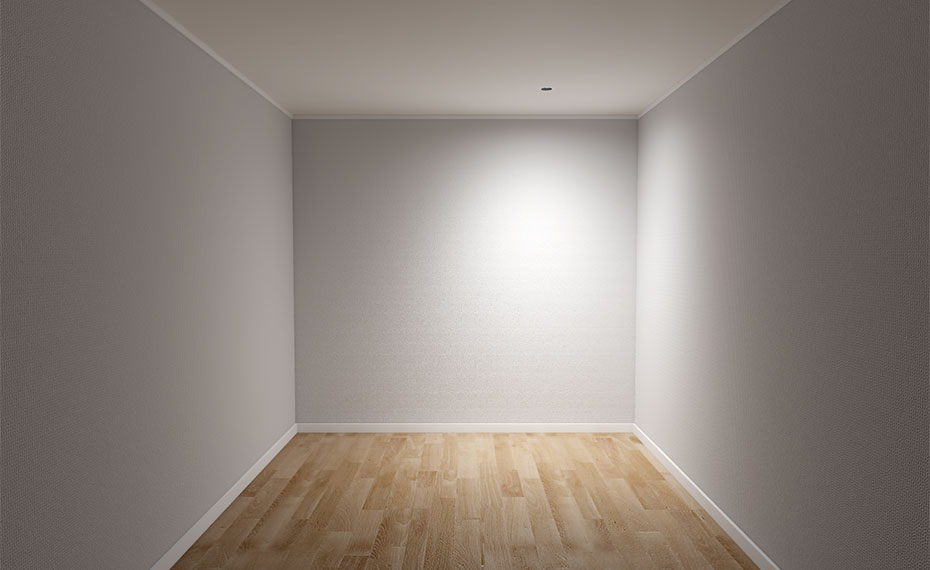

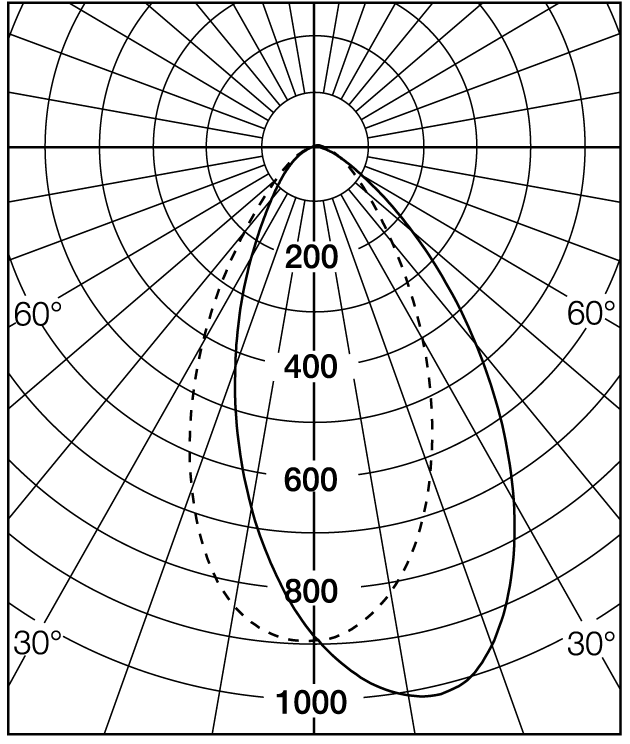

A small, recessed downlight with asymmetric light distribution in three colour temperatures and two outputs for illuminating vertical surfaces.

Installation

Recessed mounting in unventilated or ventilated suspended ceilings. Assembly springs for quick assembly included. Separate ballast box for flexible installation. An assembly plate must be used when mounting on soft tile ceilings Do not cover with insulation. For detailed information, please refer to the installation instructions.

Connection

Connections are made to the independent LED driver. The luminaire is delivered with interconnecting cable.

Design

Luminaire body and visible edge ring of sheet steel in white (RAL 9016) or black (RAL 9005) structured enamel. Heatsink in black enamelled aluminium.

Louvre

Specular reflector in anodised aluminium. Diffusing frosted glass raised within the reflector above structured enamelled black baffle.

Miscellaneous

IP 44 under suspended ceiling, IP 20 above suspended ceilings.
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.
For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.

Kaskad

Kaskad is an elegant lighting solution ideal for front-of-house environments such as lounges, hotel lobbies and entrance halls. The distinct trim ring, combined with the black baffle, creates an architecturally exciting solution...

More about the family Kaskad

Document

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Mounting plate Mounting plate for soft tile ceiling, Ø 110 41964
