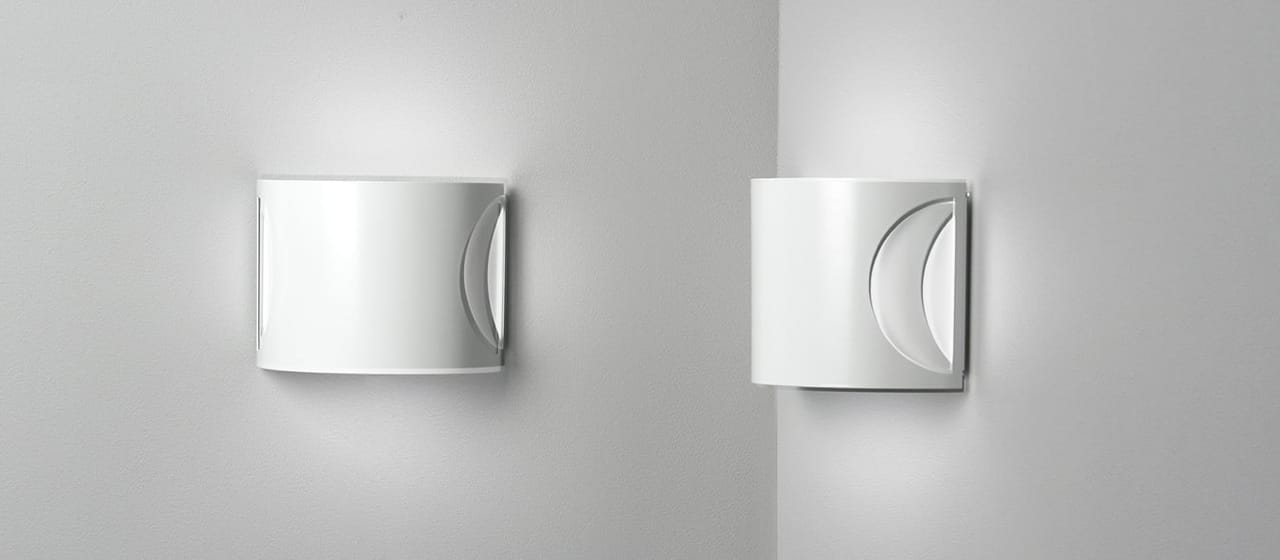

64945-402 Beetle

Light distribution

Indirect

Colour

White

Lumen output

603

lm/W

55

CCT, K

3000K

CRI

80

SDCM

3

Melanopic DER

0.470

Lumen maintenance 50 000 h

L94

Lumen maintenance 75 000 h

L91

Lumen maintenance 100 000 h

L89

Lumen maintenance L80 B50, h

100000

Lumen maintenance L90 B50, h

90000

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI/Phase-pulse

Driver brand

Helvar

Power on last level

Yes

Switch control, max no.

30

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

System Wattage

11

Stand by W

0.5

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

27

MCB B16A

45

MCB C10A

46

MCB C16A

75

THD, %

7

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.95

Width, mm

200

Height, mm

150

Weight, kg

1.3
