58630 Aizing
Documents
Specification
100920Design
Installation
3-phase track
Light distribution
Direct
Colour
White
Light data & performance
Lumen output
2648
lm/W
142
CCT, K
3000
CRI
90
Lumen maintenance 35 000 h
L93
Lumen maintenance 50 000 h
L90
Lumen maintenance 75 000 h
L85
Lumen maintenance 100 000 h
L81
LED driver, h/max failure %
50000/10
Controls & connectivity
Light control
On/off
Driver brand
Vlinca
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
50, 60
Protective class
2
IP rating
20
System Wattage
19
Min. ambient temperature, °C
-20
Max. ambient temperature, °C
25
MCB B10A, pcs
21
MCB B16A
35
MCB C10A
36
MCB C16A
58
THD, %
14
Power factor, 100 %
0.94
Dimensions
Length, mm
921
Width, mm
45
Height, mm
85
Weight, kg
1.4
Dimensions
Light distribution
Aizing

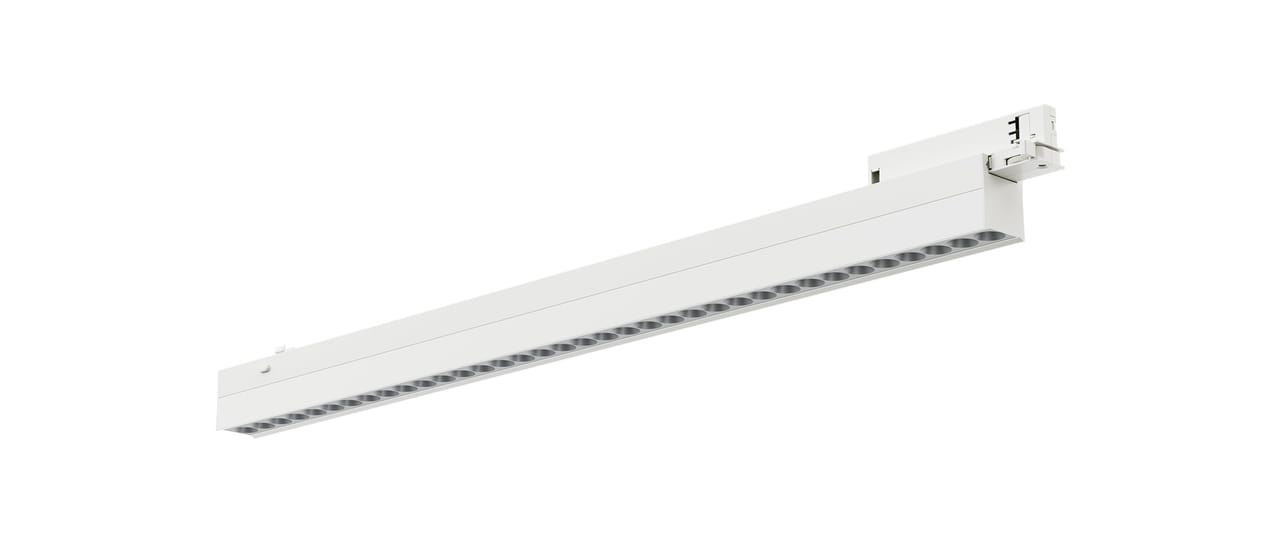

Azing is a linear luminaire with very good light comfort. It is mounted along the rail and seamlessly follows its bottom edge, giving the application a neat, minimalist look.
The luminaire is 900 mm long and provides good...
More about the family Aizing
