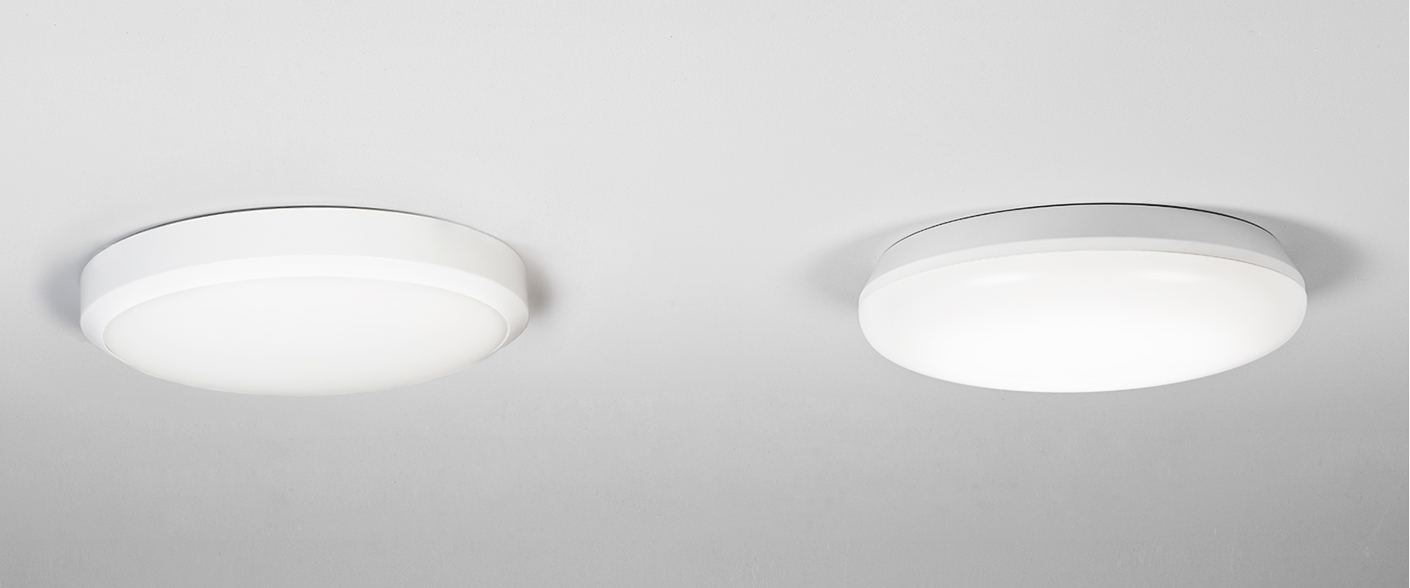

Discovery Evo

An effective all-round luminaire with IP 44 that satisfies needs in more demanding environments. An elegant design and a space-creating lighting pattern for stairwells, corridors, kitchens, bathrooms and cellars.

Montage

Four securing holes. For recess or surface mounting on ceilings or walls. Brackets for recessed installation ordered separately, please see accessories. There are holes for a surface mounted installation socket.
The luminaire must not be covered with insulation. For further details please refer to the assembly instructions.

Connexion

230 V integrated LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Cable entry at rear or via knockouts for surface mounting, through wiring 0° or 180°.

Design

Luminaire body of polycarbonate and diffuser of opal polycarbonate.

Éclairage de secours

Decentralised emergency lighting luminaire, 3 h, with self-test AT4 and the possibility to connect a monitoring system based on communication via DALI. The system is not dependent on a DALI system being connected or in operation. Emergency lighting luminaires can be supplemented with sensor on request.

Modulation de l’éclairage

e-Sense BrightSwitch – PIR sensors with lux threshold. Presence control on/off. Absence dimming high/low available on request.
e-Sense Detect – microwave sensors with lux threshold. Presence control on/off via relay or high/low, alternatively high/low/off via DALI.
e-Sense Move – microwave sensors with lux threshold. Presence control high/low/off. All luminaires have master/slave functionality with RF communications.

Accessories

Anti-ligature casing in white enamelled aluminium. Supplied with safety screws (tamper-proof torx) IK10, IP 55. Outdoor casing in lacquered aluminium, IK10, IP 55 with the possibility of a surface mounted mains cable.

Media

Outdoor accessory.

Discovery wall mounted.

e-Sense Move – How it works

Discovery

Discovery

Avec Fagerhult, c'est encore plus facile de faire des choix durables pour votre solution d'éclairage. En effet, nous avons retravaillé notre luminaire Discovery (qui remplace le précédent Discovery EVO): le plastique lui même...

Plus sur la famille Discovery

Document

Descriptif

Chargement...

Filtre

Nom Description Art.no.
Nom Description Art.no.
Télécommande de e-Sense BrightSwitchRemote control86359
Télécommande de e-Sense MoveRemote control e-Sense Move DALI86305
Bague d’encastrement IP44Recess rings including spring clips for recess mounting IP4492656
