Wallwing
5550 Wallwing 5550

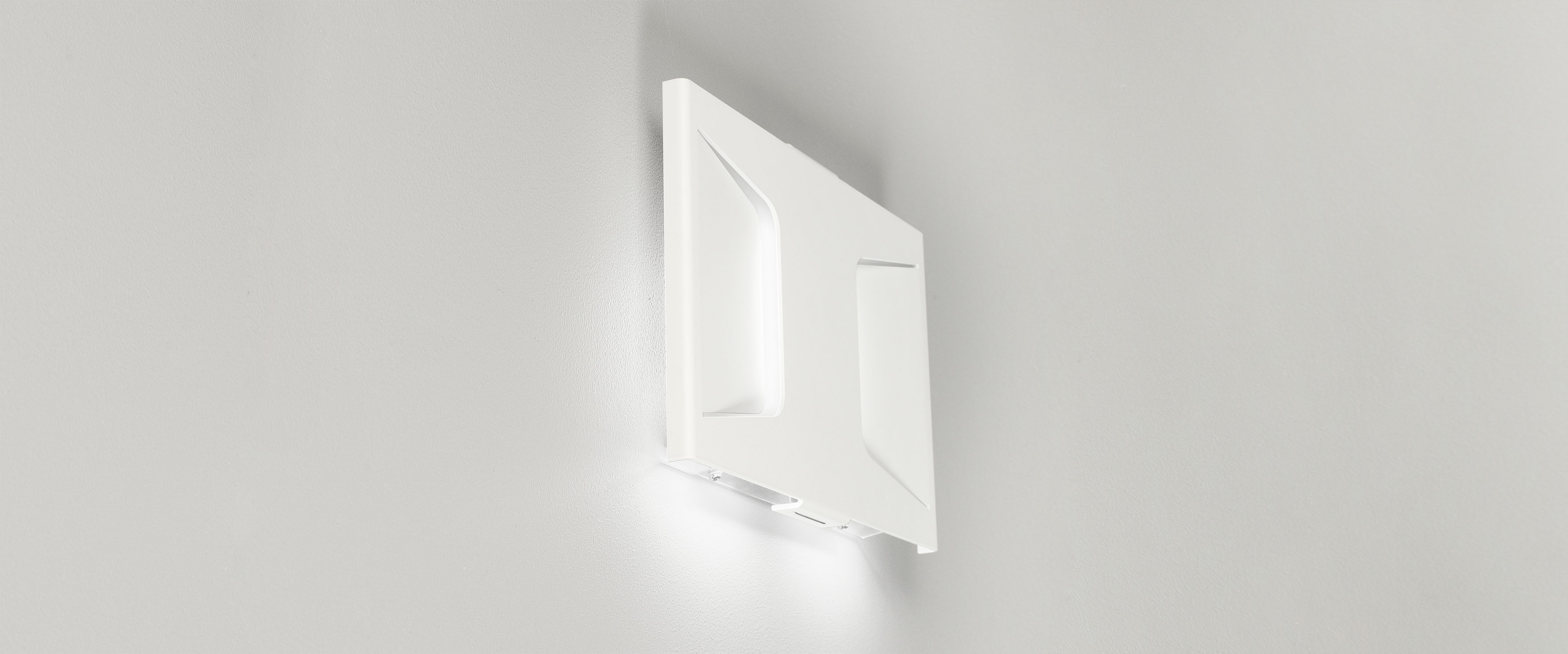

A wall luminaire in two configurations that distributes light downwards/outwards. The distinct design and the small dimensions make Wallwing a good choice for corridors.
Installation
Four securing holes.
Connection
Connection via 230 V, in- built LED driver. Snap-in terminal block 5x2.5 mm²; through-wiring possible. Cable entry at the rear of the luminaire or surface-mounted mains cable from above.
Design
Luminaire body in aluminium. Shade in matt white 3 mm laser-cut aluminium sheet. Diffuser in opal acrylic.
Designed by
Ola Granlund and Leif Igelström.
Miscellaneous
Letters and numbers can be engraved onto the shade upon request.
Media

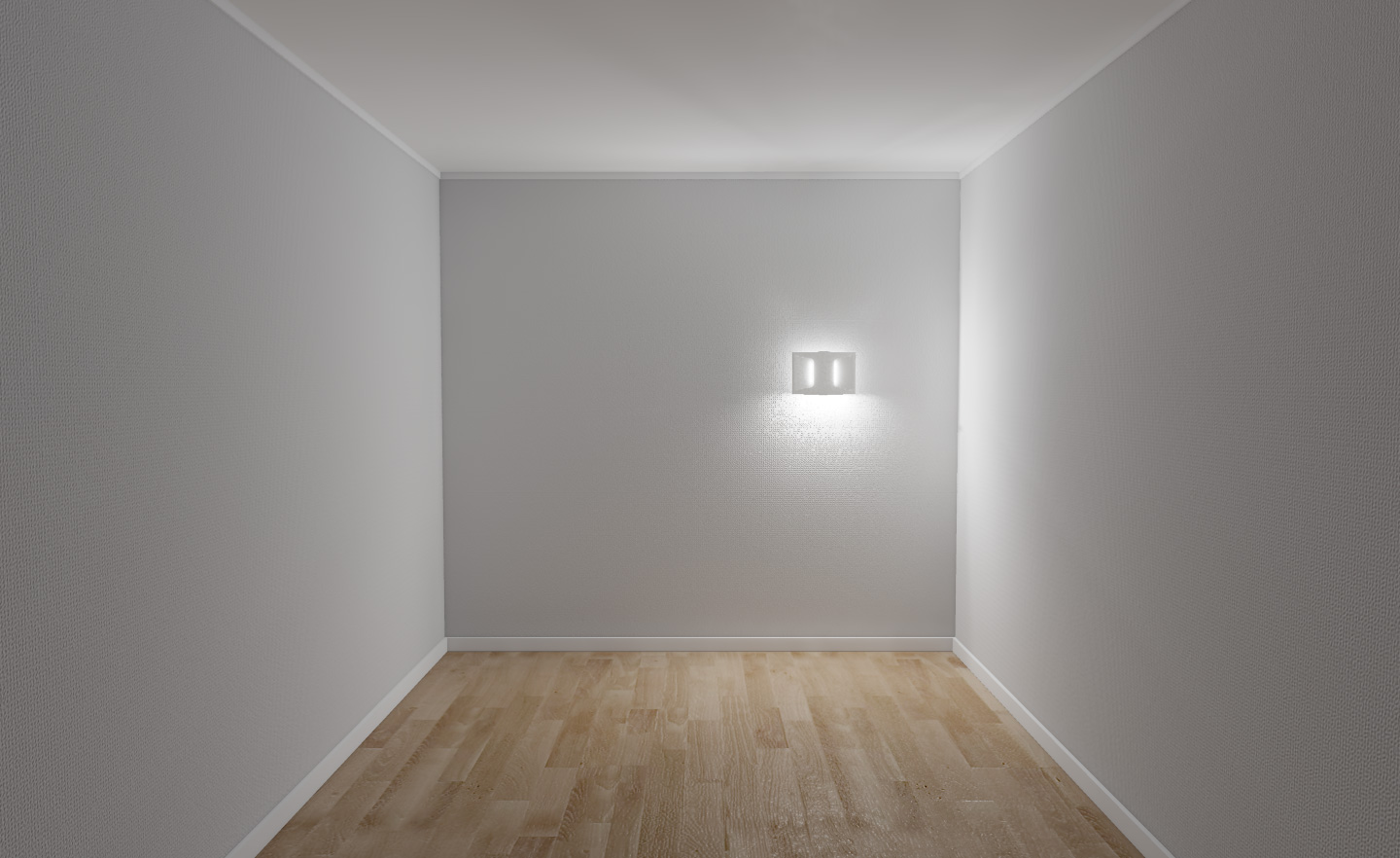

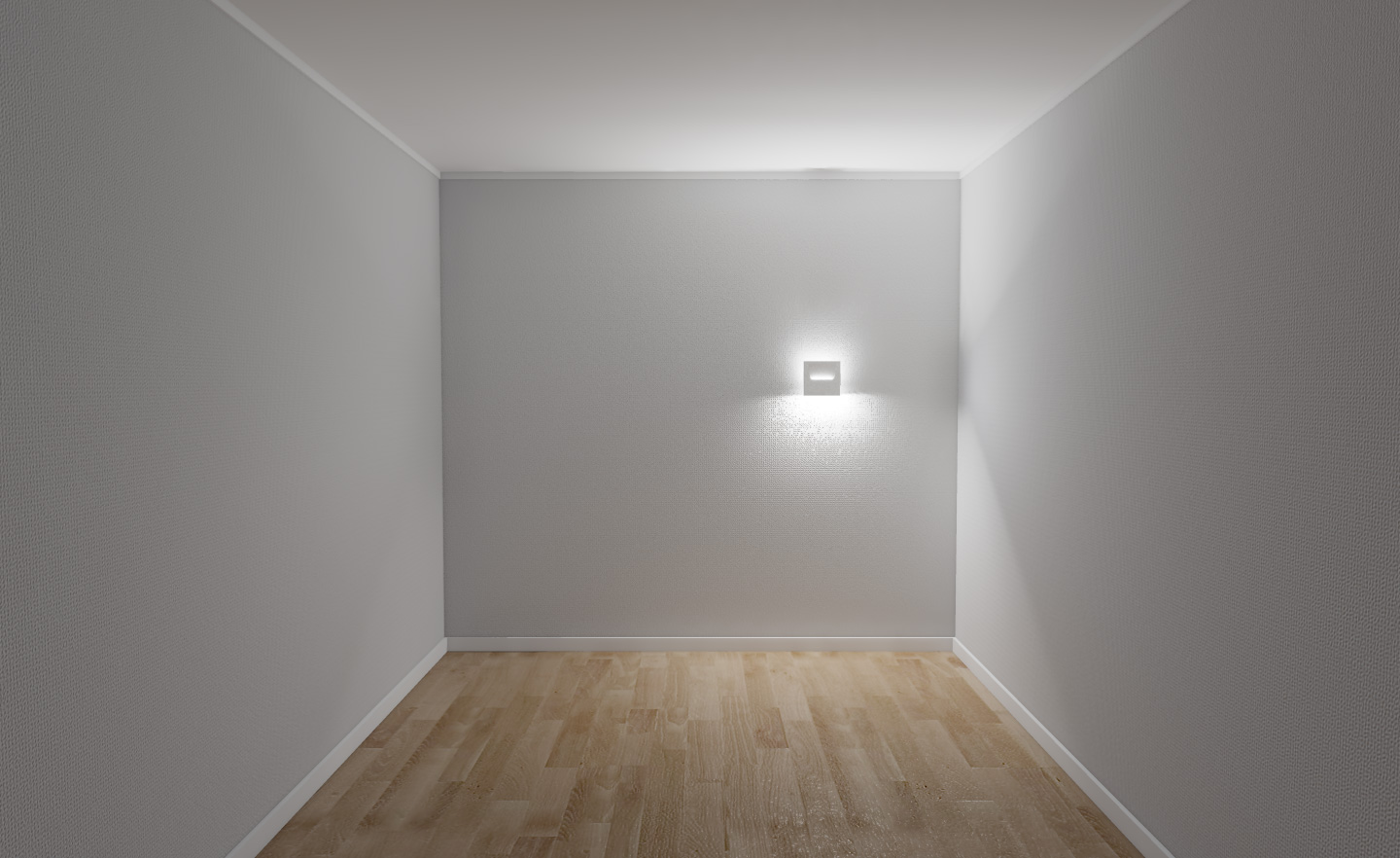

Most of the light is directed towards the floor. The luminaire also distributes light in and around the shade.

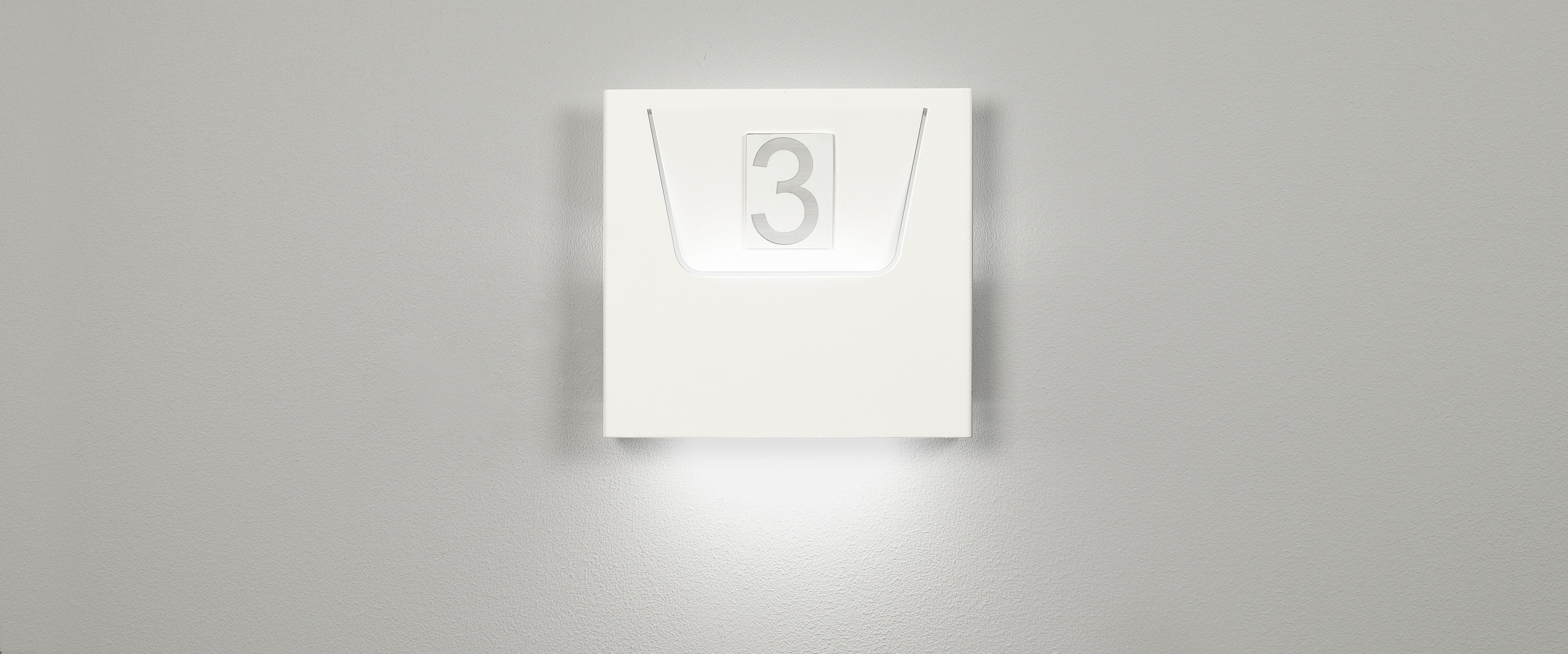

Letters and numbers can be engraved on the shade on request.
Wallwing
Wallwing is a discreet luminaire which enhances the spatial experience in general areas such as corridors and stairwells.
The minimalist, flat design offers the dual functionality of increasing the ambient light levels with a...
