Gaudi Linear

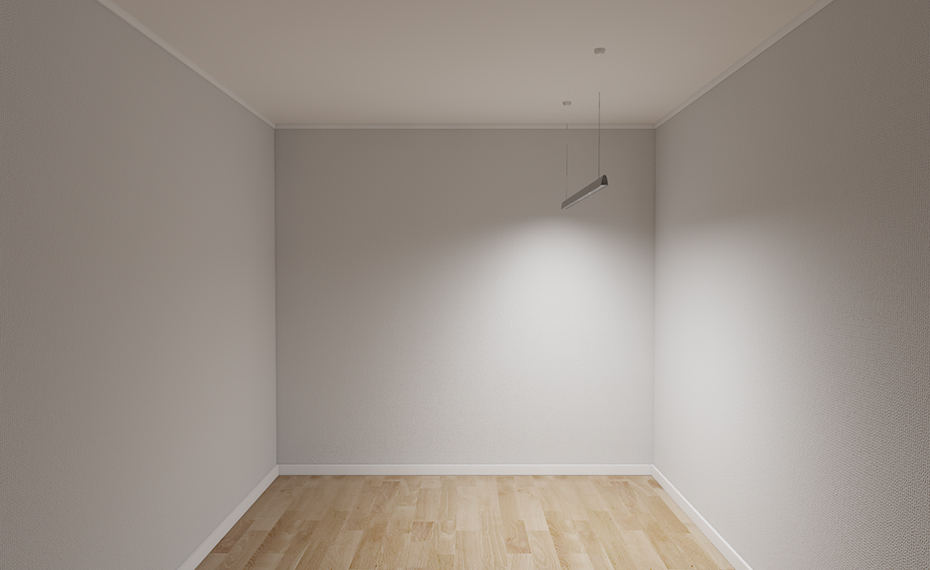

A suspended luminaire with minimal dimensions and opal louvres. Inspired by classical architectural shapes for guest reception offices and conference areas.


Wire suspension. Ceiling bracket, friction lock and wire L=1.5 m, included with the luminaire.


The luminaire is supplied with transparent mains cable 3x0.75 mm² and ceiling cup with snap-in terminal block 3x2.5 mm². L=1.5 m. Surface mounted mains cable possible.


Body and cover of extruded aluminium, cast end-caps. White (RAL 9016) structured or black (RAL 9005) structured finish. Diffuser of opal acrylic.


Dimming via DALI/Phase-pulse control as standard or by external switch.



With Gaudi new technology meets timeless elegance. A suspended luminaire inspired by classical architectural principles and developed based on LED technology.

The LED light source provides a unique opportunity to produce...

More about the family Gaudi



Filter Effect, W Lumen output CCT, K Colour Length, mm Light control Effect, W Lumen output CCT, K Colour Length, mm Light control
54509 28 1835 4000 White 1500 DALI/Phase-pulse
54510 28 1835 4000 Black 1500 DALI/Phase-pulse
54511 28 1835 3000 White 1500 DALI/Phase-pulse
54512 28 1835 3000 Black 1500 DALI/Phase-pulse


Name Description
Name Description Art.No.
Ceiling bracket in chrome with wireWire suspension with ceiling bracket in chrome, L=1.5 m/pair91696
