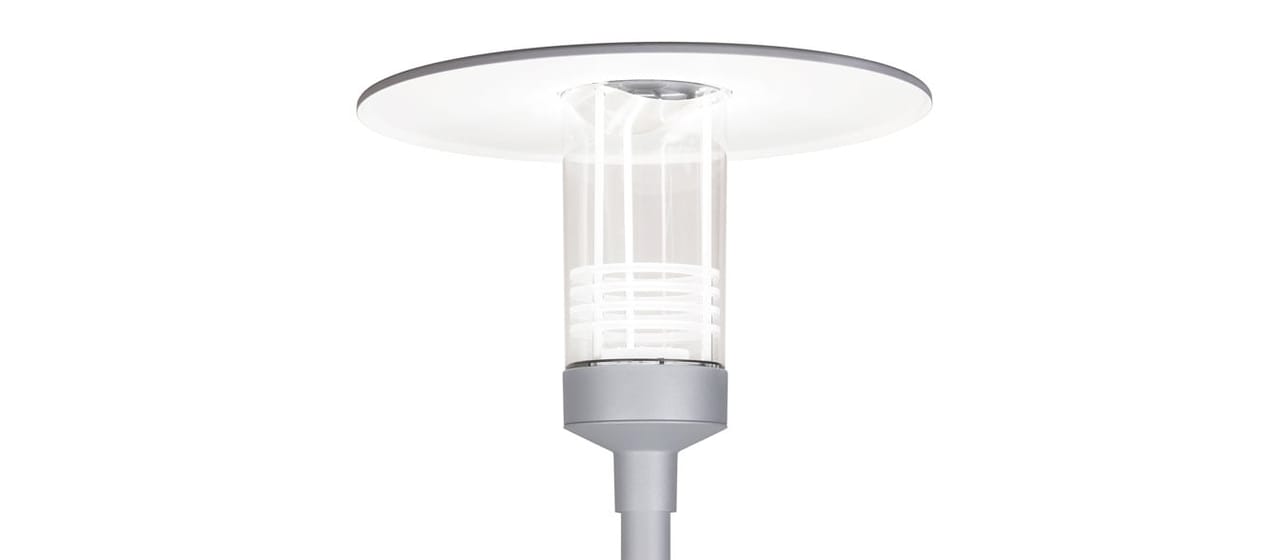

305041-463 Vivita with decor ring/shade
Documents
Specification
13602Design
Light distribution
Asymmetrical
Colour
Alu grey
RAL
9006
Light data & performance
Lumen output
3054
CLO function active
Yes
CLO time, h
100000
lm/W
99
Light source colour
830
CCT, K
3000
CRI
80
SDCM
3
Lumen maintenance 100 000 h
L100
Lumen maintenance L100 B50, h
100000
LED driver, h/max failure %
100000/10
Energy class, LED module
E
Controls & connectivity
Light control
Night dimming 2
Driver brand
Philips
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
50, 60
Protective class
1
IP rating
66
IK rating
10
Start W
31
End W
33
Average W
32
Stand by W
0.4
Min. ambient temperature, °C
-40
Max. ambient temperature, °C
25
MCB B10A, pcs
11
MCB B16A
18
MCB C10A
18
MCB C16A
30
THD, %
8
Surge protection CM, kV/kA
10
Surge protection DM, kV/kA
6
Power factor, 100 %
0.98
Power factor, 20 %
0.78
Projected wind area, m2
0.100
Dimensions
Height, mm
543
Diamater, mm
720
Weight, kg
8.6
Dimensions
Light distribution
Vivita & Verda
Contemporary and classic takes on park lighting
Vivita and Verda are a luminaire family with a shared advanced technical solution and carefully designed proportions and finish for a classic or contemporary appearance.
With its ...
More about the family Vivita & Verda
