Skywalker

Suspended office luminaire with direct/indirect light distribution, minimal dimensions and unique design. The Beta Opti Nano louvre provides high efficiency and optimal light comfort without multiple shadows.

Installation

Wire suspension. Height adjustment of the wire via friction locks in the luminaire. Wire suspension to be orderd separately, see accessories.

Connection

For connection with 230 V built-in LED driver. Supplied with 1.5 m transparent cable.

Design

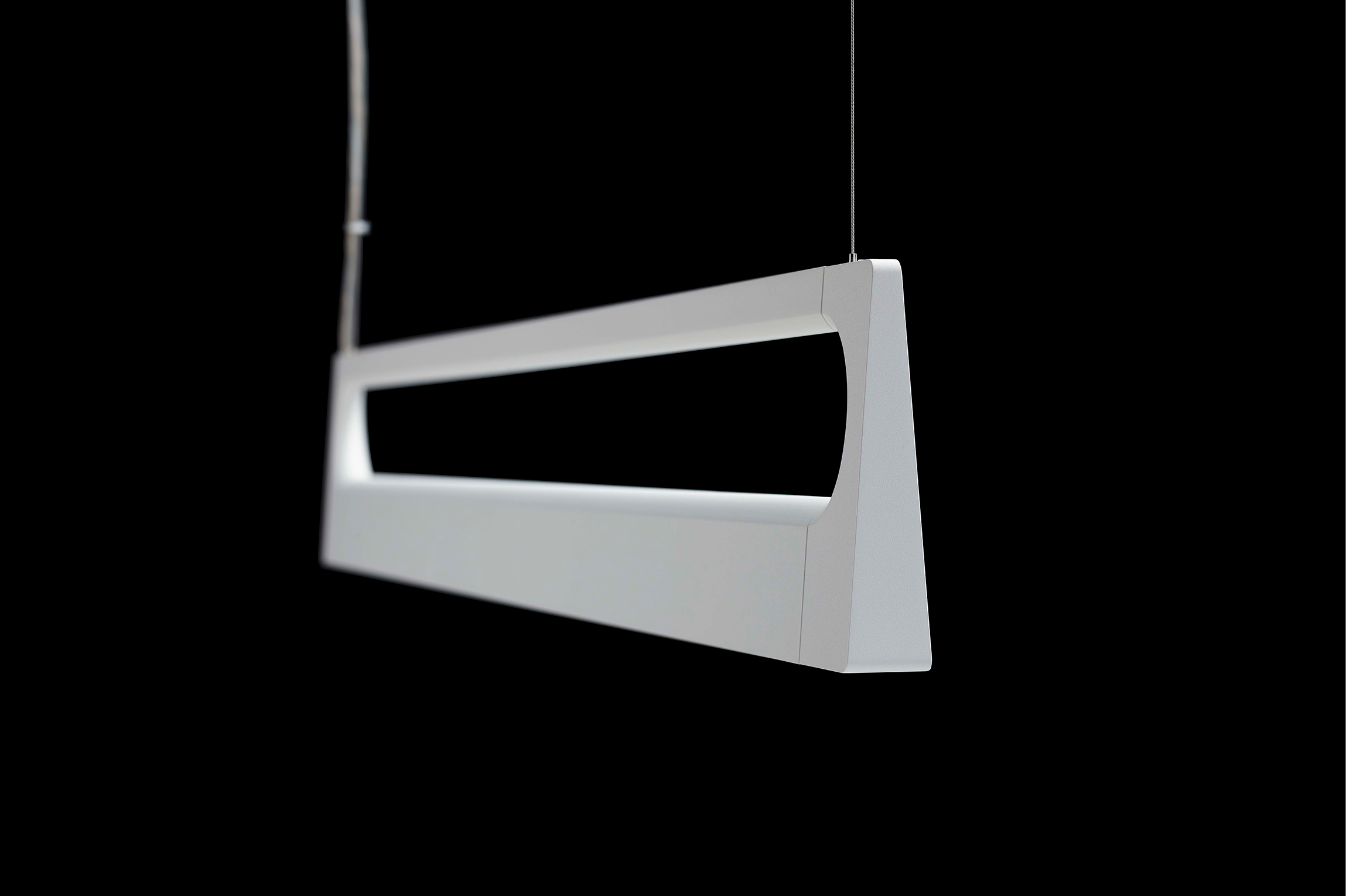

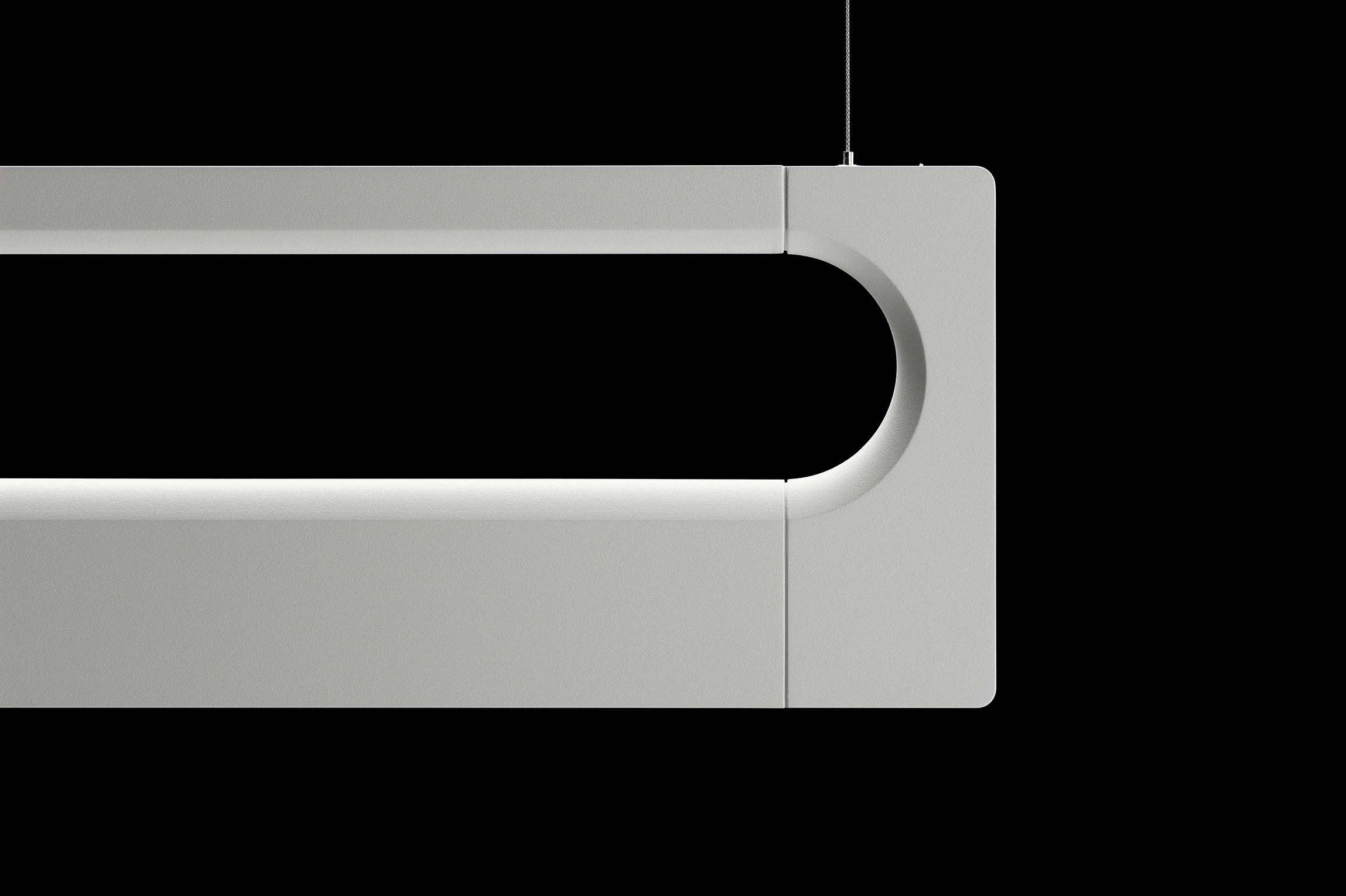

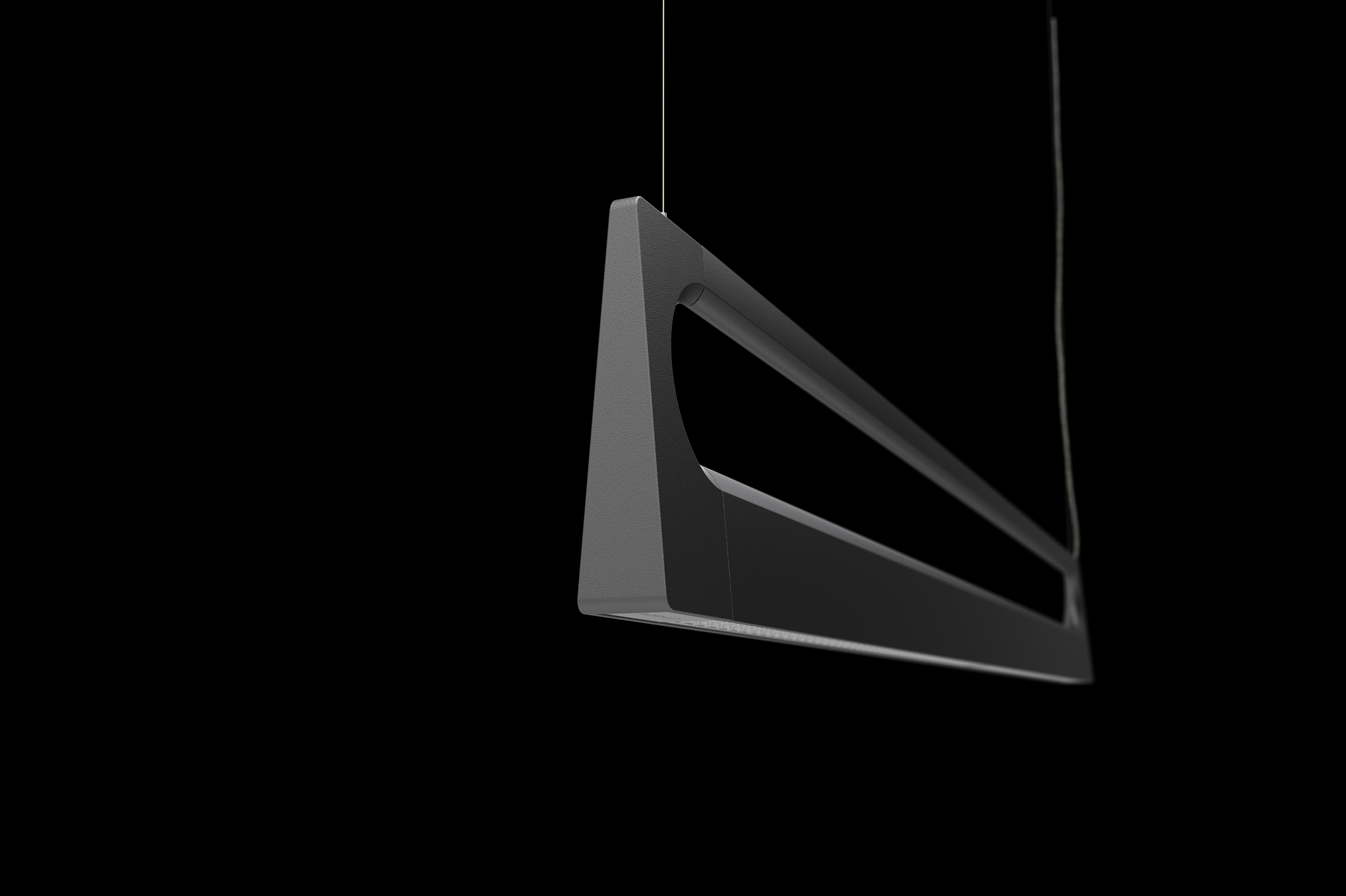

Luminaire body in extruded aluminium and end caps in cast metal. Black (RAL 9005) or white (RAL 9016) structure enamel. The top is covered by an active film which generates a broad light pattern and acts as a dust cover.

Louvre

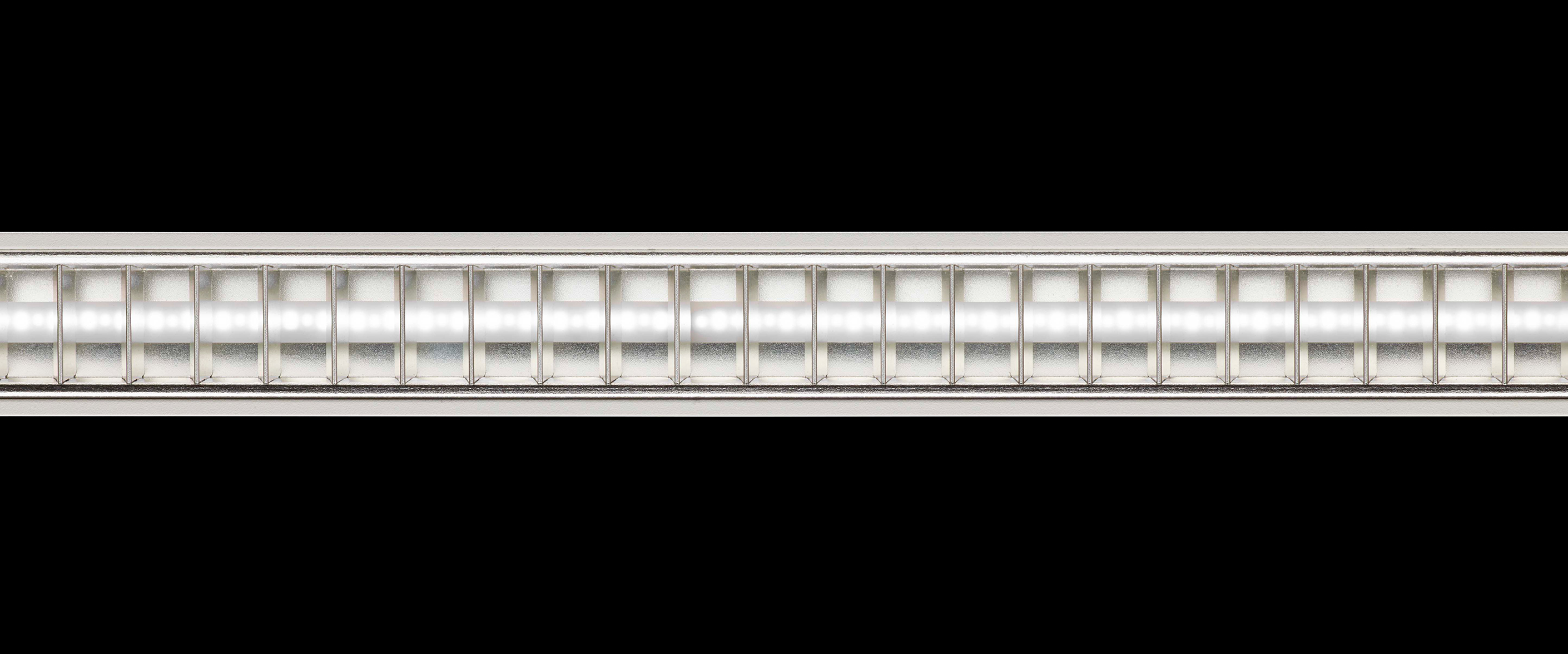

Beta Opti Nano – side and cross blades in satin matt, metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the diodes and multiple shadows.

Dimming

CLO (Constant Light Output) and DALI/phase pulse control as standard.
e-Sense Active – PIR sensor with presence and daylight control via DALI.
e-Sense Tune – PIR sensor with presence, daylight control. Tunable White and dynamic light. Controlled with Bluetooth unit. RF communications for slaves.

Designed by

Above.

Miscellaneous

Luminaires with Tunable White (2700-6500 K) are equipped with DALI device Type 8 driver and are listed as 4000 K in the table.
EU Design Registration No. 4678779.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Skywalker

Skywalker takes the minimalist concept to new levels with its optimised technology packaged in an elegant vertical form. Skywalker is a product of innovation and modern thinking, a willingness to realize a vision. In order to...

More about the family Skywalker

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light distribution Light control CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light distribution Light control CLO function on Miscellaneous
16070-402 43 4971 3000 White 1270 Beta Opti 40/60 DALI/Phase-pulse Yes
16070-474 43 4971 3000 White 1270 Beta Opti 40/60 DALI/Phase-pulse Yes 2 pull dim
16070-533 43 4971 3000 White 1270 Beta Opti 40/60 e-Sense Organic Yes
16070-538 43 4971 3000 White 1270 Beta Opti 40/60 e-Sense Active Yes 1 pull dim
16070-539 43 4971 3000 White 1270 Beta Opti 40/60 e-Sense Active Yes
16071-402 40 4971 4000 White 1270 Beta Opti 40/60 DALI/Phase-pulse Yes
16071-474 40 4971 4000 White 1270 Beta Opti 40/60 Phase-pulse Yes 2 pull dim
16071-533 40 4971 4000 White 1270 Beta Opti 40/60 e-Sense Organic Yes
16071-538 40 4971 4000 White 1270 Beta Opti 40/60 e-Sense Active Yes 1 pull dim
16071-539 40 4971 4000 White 1270 Beta Opti 40/60 e-Sense Active Yes
16072 49 4885 White 1270 Beta Opti 40/60 Yes
16072-477 50 4885 White 1270 Beta Opti 40/60 e-Sense Tune master Yes Tunable White
16073-402 49 4936 3000 Black 1270 Beta Opti 40/60 DALI/Phase-pulse Yes
16073-474 49 4936 3000 Black 1270 Beta Opti 40/60 Phase-pulse Yes 2 pull dim
16073-533 49 4936 3000 Black 1270 Beta Opti 40/60 e-Sense Organic Yes
16073-538 49 4936 3000 Black 1270 Beta Opti 40/60 e-Sense Active Yes 1 pull dim
16073-539 49 4936 3000 Black 1270 Beta Opti 40/60 e-Sense Active Yes
16074-402 46 4936 4000 Black 1270 Beta Opti 40/60 DALI/Phase-pulse Yes
16074-474 46 4936 4000 Black 1270 Beta Opti 40/60 Phase-pulse Yes 2 pull dim
16074-533 46 4936 4000 Black 1270 Beta Opti 40/60 e-Sense Organic Yes
16074-538 46 4936 4000 Black 1270 Beta Opti 40/60 e-Sense Active Yes 1 pull dim
16074-539 46 4936 4000 Black 1270 Beta Opti 40/60 e-Sense Active Yes
16075 57 4820 Black 1270 Beta Opti 40/60 Yes
16075-477 58 4820 Black 1270 Beta Opti 40/60 e-Sense Tune master Yes Tunable White
16076-402 47 5590 3000 White 1270 Beta Opti 30/70 DALI/Phase-pulse Yes
16076-474 47 5590 3000 White 1270 Beta Opti 30/70 Phase-pulse Yes 2 pull dim
16076-538 47 5590 3000 White 1270 Beta Opti 30/70 e-Sense Active Yes 1 pull dim
16076-539 47 5590 3000 White 1270 Beta Opti 30/70 e-Sense Active Yes
16077-402 45 5590 4000 White 1270 Beta Opti 30/70 DALI/Phase-pulse Yes
16077-474 45 5590 4000 White 1270 Beta Opti 30/70 Phase-pulse Yes 2 pull dim
16077-538 45 5590 4000 White 1270 Beta Opti 30/70 e-Sense Active Yes 1 pull dim
16077-539 45 5590 4000 White 1270 Beta Opti 30/70 e-Sense Active Yes
16079-402 57 5531 3000 Black 1270 Beta Opti 30/70 DALI/Phase-pulse Yes
16079-474 57 5531 3000 Black 1270 Beta Opti 30/70 Phase-pulse Yes 2 pull dim
16079-538 57 5531 3000 Black 1270 Beta Opti 30/70 e-Sense Active Yes 1 pull dim
16079-539 57 5531 3000 Black 1270 Beta Opti 30/70 e-Sense Active Yes
16080-402 53 5531 4000 Black 1270 Beta Opti 30/70 DALI/Phase-pulse Yes
16080-474 53 5531 4000 Black 1270 Beta Opti 30/70 Phase-pulse Yes 2 pull dim
16080-538 53 5531 4000 Black 1270 Beta Opti 30/70 e-Sense Active Yes 1 pull dim
16080-539 53 5531 4000 Black 1270 Beta Opti 30/70 e-Sense Active Yes

Filter

Name Description Art.no.
Name Description Art.no.
Wire suspension for support railsWire suspension for support rails 90015, 90016, 90017, 94052, 94067, 9406891426
Wire suspension for continuous installation Large round ceiling cup for T-bars 25 mm/each96385
Wire suspension for continuous installation Large square ceiling cup for T-bars 25 mm/each96373
Wire suspension for continuous installation Small round ceiling cup/each96382
Wire suspension for continuous installation Large square ceiling cup/each96371
Wire suspension for continuous installation Small round ceiling cup for T-bars 25 mm/each96384
Wire suspension for continuous installation Small square ceiling cup for T-bars 25 mm/each96372
Wire suspension for continuous installation Small square ceiling cup/each96370
Wire suspension for continuous installation Large round ceiling cup/each96383
Ceiling bracket in chrome with wireWire suspension with ceiling bracket in chrome, L=1.5 m/pair91696

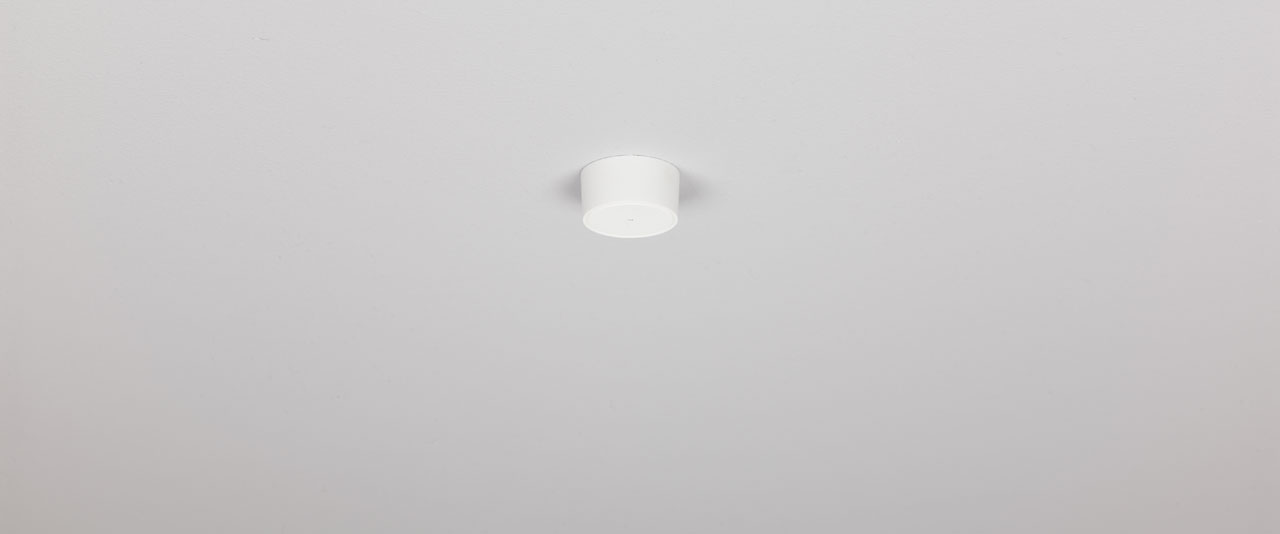

Ceiling cupLarge round ceiling cup without wire/each96394

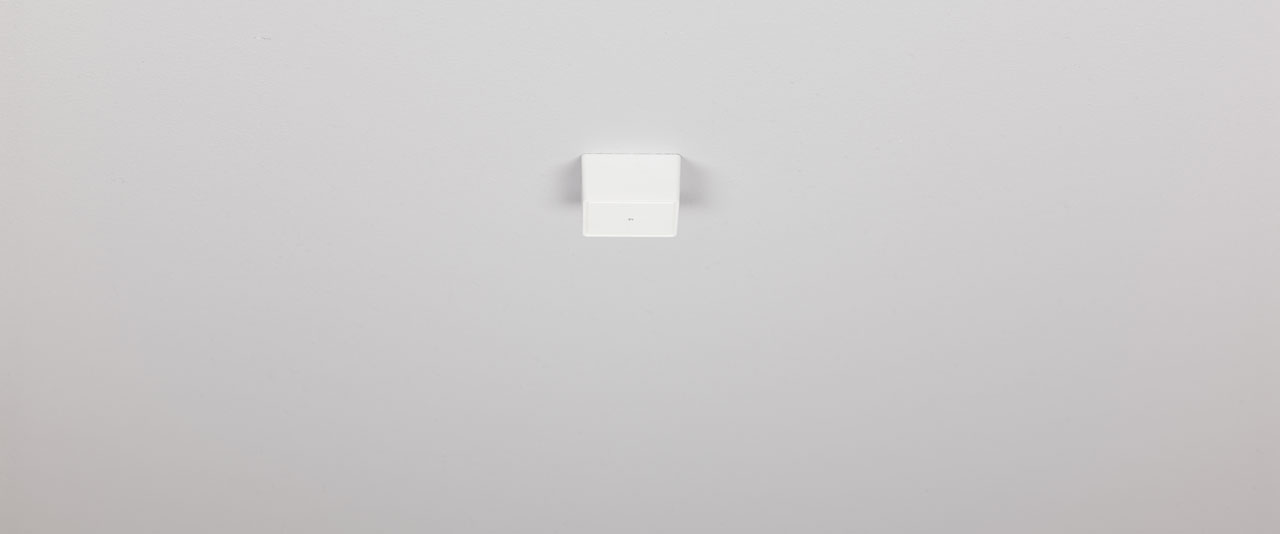

Ceiling cupLarge square ceiling cup without wire/each96398
Ceiling cupLarge square ceiling cup without wire for T-bars 25 mm/each96399

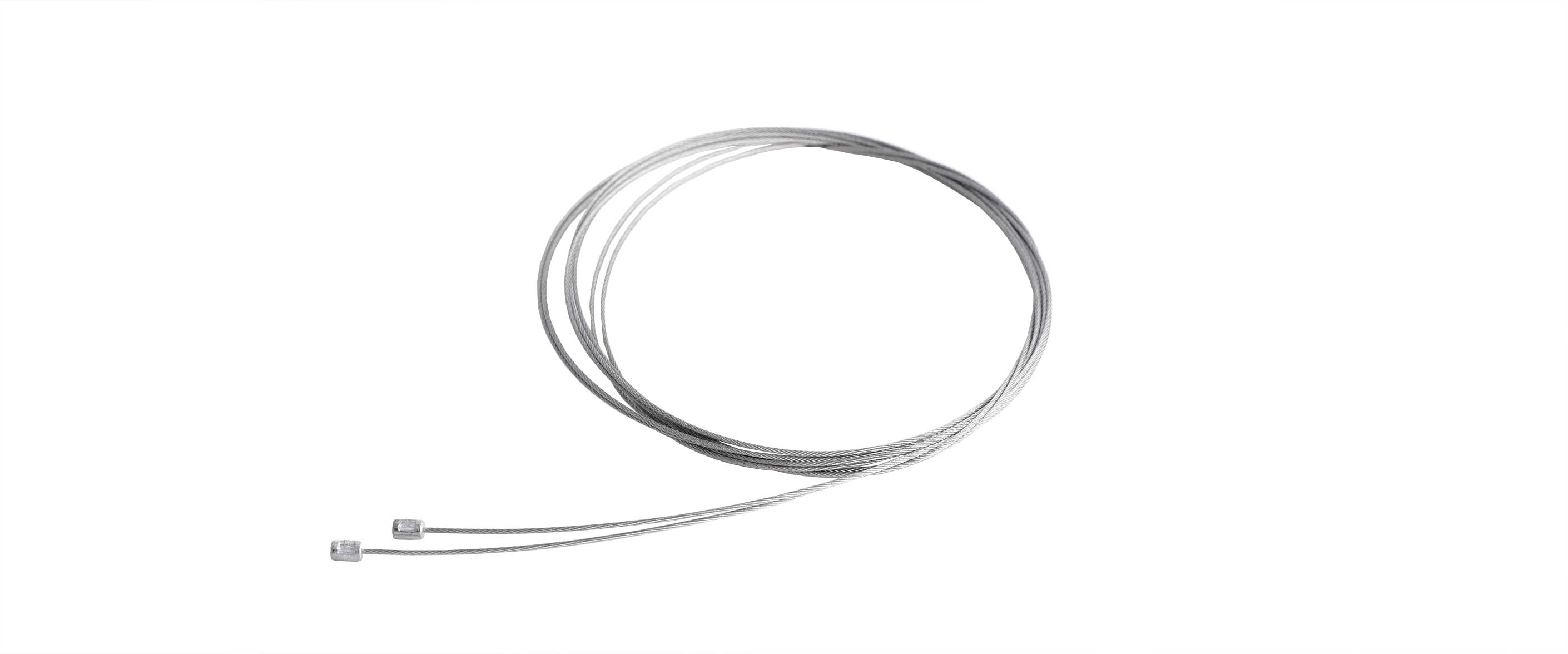

WireWire with ball, 1.5 m/pair91425
Remote controlRemote control 86415
Programming remote control e-Sense ActiveProgramming remote control 86414
e-Sense Organic G3 I/O boxI/O box with potential-free relay for controlling external units.86413
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, recessed, 1 m cable86407
e-Sense Organic G3 IoT GatewayGateway for connection to e-Sense Organic Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors.86296
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, suspended, 1 m cable86408
External sensor incl. DALI PSU e-Sense Organic G3Extern sensor incl. DALI PSU, tube installation 1 m cable. Tube not included.86409
External sensor incl. DALI PSU e-Sense Organic G3Extern sensor incl. DALI PSU, tube installation 3.2 m cable. Tube not included.86412
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, suspended, 3.2 m cable86411
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, recessed, 3.2 m cable86410
