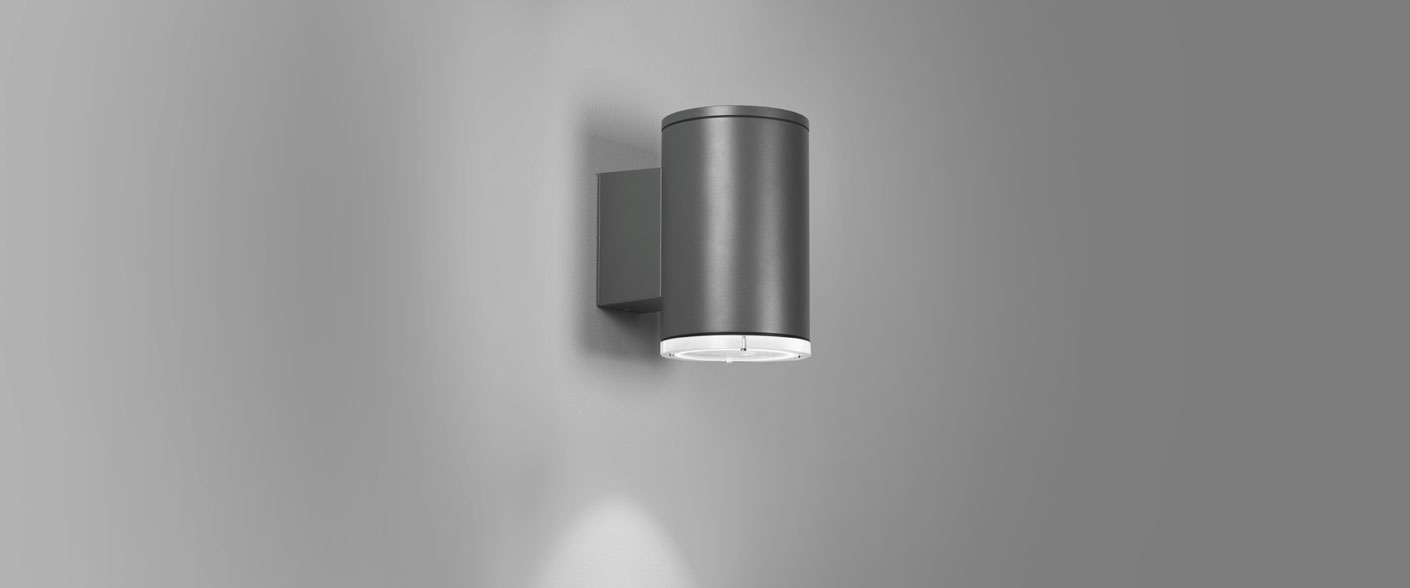

Rondo G2 Visual wall

A robust wall luminaire with medium or wide beam in a classic cylindrical design. Partly screen printed acrylic glass adds a subtle design element. CLO for output consistency as standard.

Installation

Luminaire for wall mounting.

Connection

Connection block 4x2.5 mm² in wall bracket. Through-wiring possible. Surface mounted cable from the top via knock-out. For connection from behind, see measurement drawing.

Design

Body and wall bracket of extruded aluminium. Partly screen printed acrylic glass.

Reflector

Reflector of anodised aluminium.

Light distribution

Wide and medium beam angle.

Designed by

Wilma Daemen.

Standard colour

Anthracite grey (Gris 900 Sablé). Alu-grey (RAL 9006) or black (RAL 9005) on request.

Miscellaneous

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Rondo G2

A timeless design make Rondo a perfect choice for lighting around commercial buildings, school playgrounds, along park roads and adjacent to parks. Rondo G2 has been developed exclusively for LED, with a focus on energy and...

More about the family Rondo G2

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Light distribution Light control CLO function on Protection class
Art.no. Effect, W Lumen output CCT, K Colour Light distribution Light control CLO function on Protection class
302093 17 1340 3000 Anthracite grey Medium Beam Yes 2
302093-461 17 1340 3000 Anthracite grey Medium Beam DALI Yes 2
302094 23 2000 3000 Anthracite grey Wide Beam Yes 2
302094-461 23 2000 3000 Anthracite grey Wide Beam DALI Yes 2
302095 23 2000 3000 Anthracite grey Medium Beam Yes 2
302095-461 23 2000 3000 Anthracite grey Medium Beam DALI Yes 2
302099 17 1340 4000 Anthracite grey Medium Beam Yes 2
302099-461 17 1340 4000 Anthracite grey Medium Beam DALI Yes 2
302100 23 2000 4000 Anthracite grey Wide Beam Yes 2
302100-461 23 2000 4000 Anthracite grey Wide Beam DALI Yes 2
302101 23 2000 4000 Anthracite grey Medium Beam Yes 2
302101-461 23 2000 4000 Anthracite grey Medium Beam DALI Yes 2
