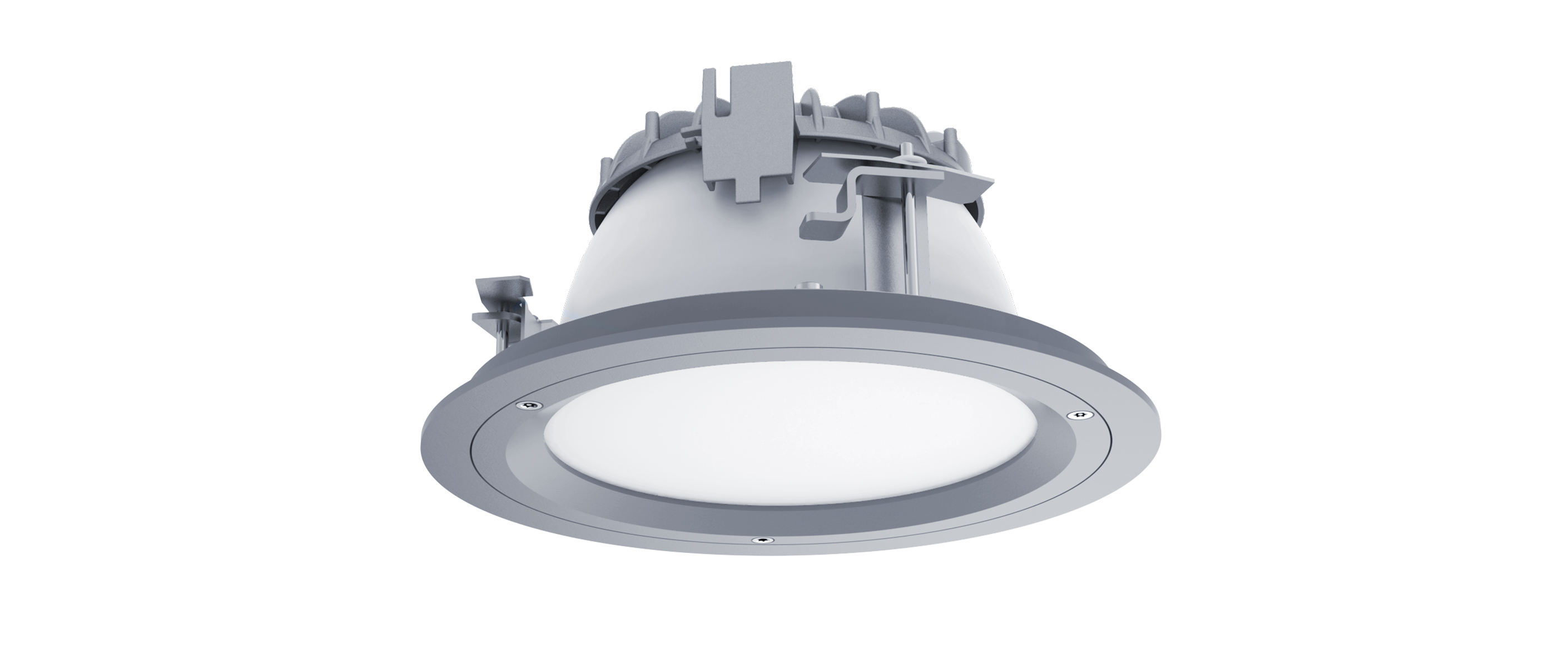

Pleiad G4 Robust

Downlight with protection class IK 10 for increased security. The reflector ring is fastened with a safety screw to prevent access and dismantling.

Installation

Recessed mounting in unventilated or ventilated suspended ceilings. Separate driver and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings, see accessories. For detailed information, see the installation instructions.

Connection

Connection in separate driver box. Snap-in terminal block 3x1.5 mmm² (x2), onward connection possible. 5x1.5 mm² (x2) when dimming. Can also be supplied with chassis mounted snap-in connector in the ballast where a T-splitter or mains cable and plug are possible. The luminaire body and driver are interconnected with a snap-in connector.

Design

Luminaire body in cast aluminium. Two-part visible edge ring in aluminium. The luminaire has durable PETG plates in the light openings between the rings. The luminaire and the edge rings are locked using tamper-proof torx screws.

Reflector

Reflector of metallised aluminium. Lens of clear acrylic.

Miscellaneous

IK 10. IP 64 under a suspended ceiling, IP 20 above a suspended ceiling. Luminaire body Class III. The supplied driver must be connected to the protective earth. Luminaires with Tunable White (2700 – 6500 K) are equipped with driver DALI Device type 8. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Pleiad G4

Pleiad G4 is the latest evolution of Fagerhult's classic downlight series. Even more efficient. Even better visual comfort. Even quicker to install. Pleiad G4 simplifies and streamlines advanced lighting planning for entire...

More about the family Pleiad G4

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K CRI Diameter, mm Reflector Light distribution Light control Connection CLO function on
Art.no. Effect, W Lumen output CCT, K CRI Diameter, mm Reflector Light distribution Light control Connection CLO function on
73109 10 1158 3000 80 230 Matt Wide Beam
73109-111 10 1158 3000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73109-3 10 1158 3000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73109-340 10 1158 3000 80 230 Matt Wide Beam Wago Winsta 3-way male
73109-402 9 1042 3000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73109-519 10 1158 3000 80 230 Matt Wide Beam Ensto 3-way male
73109-520 9 1042 3000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73109-528 9 1042 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73109-529 9 1042 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73110 10 1245 4000 80 230 Matt Wide Beam
73110-111 10 1245 4000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73110-3 10 1245 4000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73110-340 10 1245 4000 80 230 Matt Wide Beam Wago Winsta 3-way male
73110-402 9 1120 4000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73110-519 10 1245 4000 80 230 Matt Wide Beam Ensto 3-way male
73110-520 9 1120 4000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73110-528 9 1120 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73110-529 9 1120 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73111 21 2093 3000 80 230 Matt Wide Beam
73111-111 21 2093 3000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73111-3 21 2093 3000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73111-340 21 2093 3000 80 230 Matt Wide Beam Wago Winsta 3-way male
73111-402 18 1883 3000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73111-519 21 2093 3000 80 230 Matt Wide Beam Ensto 3-way male
73111-520 18 1883 3000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73111-528 18 1883 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73111-529 18 1883 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73112 21 2250 4000 80 230 Matt Wide Beam
73112-111 21 2250 4000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73112-3 21 2250 4000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73112-340 21 2250 4000 80 230 Matt Wide Beam Wago Winsta 3-way male
73112-402 18 2025 4000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73112-519 21 2250 4000 80 230 Matt Wide Beam Ensto 3-way male
73112-520 18 2025 4000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73112-528 18 2025 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73112-529 18 2025 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73113 14 1542 3000 80 230 Matt Wide Beam
73113-111 14 1542 3000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73113-3 14 1542 3000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73113-340 14 1542 3000 80 230 Matt Wide Beam Wago Winsta 3-way male
73113-402 12 1388 3000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73113-519 14 1542 3000 80 230 Matt Wide Beam Ensto 3-way male
73113-520 12 1388 3000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73113-528 12 1388 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73113-529 12 1388 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73114 14 1658 4000 80 230 Matt Wide Beam
73114-111 14 1658 4000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73114-3 14 1658 4000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73114-340 14 1658 4000 80 230 Matt Wide Beam Wago Winsta 3-way male
73114-402 12 1492 4000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73114-519 14 1658 4000 80 230 Matt Wide Beam Ensto 3-way male
73114-520 12 1492 4000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73114-528 12 1492 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73114-529 12 1492 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73118 30 3240 3000 80 230 Matt Wide Beam
73118-111 30 3240 3000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73118-3 30 3240 3000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73118-340 30 3240 3000 80 230 Matt Wide Beam Wago Winsta 3-way male
73118-402 26 2916 3000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73118-519 30 3240 3000 80 230 Matt Wide Beam Ensto 3-way male
73118-520 26 2916 3000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73118-528 26 2916 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73118-529 26 2916 3000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73119 30 3484 4000 80 230 Matt Wide Beam
73119-111 30 3484 4000 80 230 Matt Wide Beam Wieland GST18i3 3-way male
73119-3 30 3484 4000 80 230 Matt Wide Beam Connection cable with plug, L=2.5 m
73119-340 30 3484 4000 80 230 Matt Wide Beam Wago Winsta 3-way male
73119-402 26 3136 4000 80 230 Matt Wide Beam DALI/Phase-pulse Yes
73119-519 30 3484 4000 80 230 Matt Wide Beam Ensto 3-way male
73119-520 26 3136 4000 80 230 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73119-528 26 3136 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73119-529 26 3136 4000 80 230 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes

Filter

Name Description Art.no.
Name Description Art.no.
Wieland T-connectorWieland 5-way T-connector91026
Wieland T-connectorWieland 3-way T-connector91025
Mounting plateMounting plate41956
WAGO connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.91244
WAGO connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.91243
Wieland connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.92793
WAGO T-connectorWAGO T-Connector, 3-way, white91067
WAGO T-connectorWAGO T-connector, 5-way, 2 locking levers, blue88228
Wieland connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.92799
Cover plate IP 21Cover plate IP 21, Ø16541060
