Pleiad Compact G3

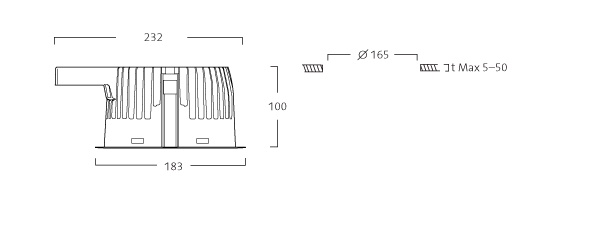

A compact downlight with a height of just 100 mm for suspended ceilings with limited space above the ceiling. Despite its low-profile design, Pleiad Compact G3 has a mechanical louvre at 25°.

Installation

Recessed mounting in unventilated or ventilated ceilings. Separate ballast and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings. The luminaire must not be covered with insulation. For further details please refer to the assembly instructions on our website.

Connection

Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.

Design

Luminaire body in black cast aluminium. Visible reflector ring in white PC plastic (RAL 9003).

Reflector

Reflector in either specular or matt anodised aluminium. Specular metallised Advanced Anti-Glare Control ring above the LED module. Mechanical shielding 25°.

Miscellaneous

The luminaire is supplied with dust protection over the light opening. Enclosure class IP 44 under suspended ceilings and IP 20 above suspended ceilings. Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.

For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.



CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Assembly spring clamped in position.

Pleiad G3

Pleiad G3 is the third generation of Fagerhult's successful downlight range - now equipped with LED. In common with its predecessors, the focus was placed upon perfect light treatment, quick installation and efficiency. In G3...

More about the family Pleiad G3

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Diameter, mm Reflector Colour Light distribution Light control Connection SDCM CLO function on
Art.no. Effect, W Lumen output CCT, K Diameter, mm Reflector Colour Light distribution Light control Connection SDCM CLO function on
77930 9 959 3000 183 Specular White Wide Beam 3
77930-111 9 959 3000 183 Specular White Wide Beam Wieland GST18i3 3-way male 3
77930-3 9 959 3000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77930-340 9 959 3000 183 Specular White Wide Beam Wago Winsta 3-way male 3
77930-402 8.5 863 3000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77930-519 9 959 3000 183 Specular White Wide Beam Ensto 3-way male 3
77930-520 8.5 863 3000 183 Specular White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77930-528 8.5 863 3000 183 Specular White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77930-529 8.5 863 3000 183 Specular White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77931 9 950 3000 183 Matt White Wide Beam 3
77931-111 9 950 3000 183 Matt White Wide Beam Wieland GST18i3 3-way male 3
77931-3 9 950 3000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77931-340 9 950 3000 183 Matt White Wide Beam Wago Winsta 3-way male 3
77931-402 8.5 855 3000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77931-519 9 950 3000 183 Matt White Wide Beam Ensto 3-way male 3
77931-520 8.5 855 3000 183 Matt White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77931-528 8.5 855 3000 183 Matt White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77931-529 8.5 855 3000 183 Matt White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77932 9 1023 4000 183 Specular White Wide Beam 3
77932-111 9 1023 4000 183 Specular White Wide Beam Wieland GST18i3 3-way male 3
77932-3 9 1023 4000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77932-340 9 1023 4000 183 Specular White Wide Beam Wago Winsta 3-way male 3
77932-402 8.5 921 4000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77932-519 9 1023 4000 183 Specular White Wide Beam Ensto 3-way male 3
77932-520 8.5 921 4000 183 Specular White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77932-528 8.5 921 4000 183 Specular White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77932-529 8.5 921 4000 183 Specular White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77933 9 1014 4000 183 Matt White Wide Beam 3
77933-111 9 1014 4000 183 Matt White Wide Beam Wieland GST18i3 3-way male 3
77933-3 9 1014 4000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77933-340 9 1014 4000 183 Matt White Wide Beam Wago Winsta 3-way male 3
77933-402 8.5 913 4000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77933-519 9 1014 4000 183 Matt White Wide Beam Ensto 3-way male 3
77933-520 8.5 913 4000 183 Matt White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77933-528 8.5 913 4000 183 Matt White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77933-529 8.5 913 4000 183 Matt White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77935 18 1786 3000 183 Specular White Wide Beam 3
77935-111 18 1786 3000 183 Specular White Wide Beam Wieland GST18i3 3-way male 3
77935-3 18 1786 3000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77935-340 18 1786 3000 183 Specular White Wide Beam Wago Winsta 3-way male 3
77935-402 17 1607 3000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77935-519 18 1786 3000 183 Specular White Wide Beam Ensto 3-way male 3
77935-520 17 1607 3000 183 Specular White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77935-528 17 1607 3000 183 Specular White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77935-529 17 1607 3000 183 Specular White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77936 18 1800 3000 183 Matt White Wide Beam 3
77936-111 18 1800 3000 183 Matt White Wide Beam Wieland GST18i3 3-way male 3
77936-3 18 1800 3000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77936-340 18 1800 3000 183 Matt White Wide Beam Wago Winsta 3-way male 3
77936-402 17 1620 3000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77936-519 18 1800 3000 183 Matt White Wide Beam Ensto 3-way male 3
77936-520 17 1620 3000 183 Matt White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77936-528 17 1620 3000 183 Matt White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77936-529 17 1620 3000 183 Matt White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77937 17 1762 4000 183 Specular White Wide Beam 3
77937-111 17 1762 4000 183 Specular White Wide Beam Wieland GST18i3 3-way male 3
77937-3 17 1762 4000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77937-340 17 1762 4000 183 Specular White Wide Beam Wago Winsta 3-way male 3
77937-402 15 1586 4000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77937-519 17 1762 4000 183 Specular White Wide Beam Ensto 3-way male 3
77937-520 15 1586 4000 183 Specular White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77937-528 15 1586 4000 183 Specular White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77937-529 15 1586 4000 183 Specular White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77938 17 1780 4000 183 Matt White Wide Beam 3
77938-111 17 1780 4000 183 Matt White Wide Beam Wieland GST18i3 3-way male 3
77938-3 17 1780 4000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77938-340 17 1780 4000 183 Matt White Wide Beam Wago Winsta 3-way male 3
77938-402 15 1602 4000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77938-519 17 1780 4000 183 Matt White Wide Beam Ensto 3-way male 3
77938-520 15 1602 4000 183 Matt White Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77938-528 15 1602 4000 183 Matt White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77938-529 15 1602 4000 183 Matt White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
