Optilume ceiling

A workplace luminaire for ceiling mounting. Available in several lengths, outputs and colours, the Beta Opti louvre ensures high efficiency and optimal light comfort.

Installation

Surface mounted.

Connection

5-way snap-in terminal block at one end of the luminaire. The luminaire is equipped with an access hole for cabling on the top next to the terminal block. Knockouts at each end for surface mounted mains cable. Luminaires for through-wiring are equipped with a through-wiring cable (5x1.5 mm²) and a snap-in connection in each end-cap.

Design

Luminaire body in extruded aluminium and end-caps in cast metal. Black (RAL 9005), white (RAL 9016) structure enamel or champagne smooth matt enamel finish. Cover plate over the terminal block in metallised aluminium.

Louvre

Beta Opti – double parabolic reflector louvre with satin matt metallised aluminium side and cross-blades with an integrated opal film that minimises the risk of uncomfortable glare from the diodes.

Dimming

CLO (Constant Light Output) and DALI/phase pulse control as standard.

Designed by

Ola Granlund, Leif Igelström and Morgan Ferm.

Miscellaneous

The LEDs are protected against contact.
Ra (CRI) 90 on request.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Optilume

Every detail of Optilume’s design is oriented towards the accuracy and precision of the integration between surfaces and materials, where the louvre is a key element of the overall expression. The groove creates the impression...

More about the family Optilume

Document

Specification

Filter

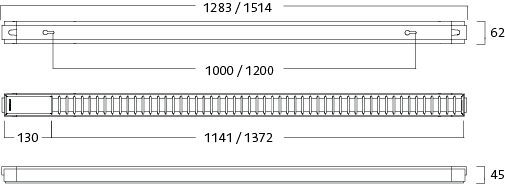

Art.no. Effect, W Lumen output CCT, K Colour Module Length, mm Width, mm Height, mm Light distribution Light control CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K Colour Module Length, mm Width, mm Height, mm Light distribution Light control CLO function on Miscellaneous
15220-402 30 3593 3000 White 1200 1283 62 45 Direct DALI/Phase-pulse Yes
15221-402 30 3782 4000 White 1200 1283 62 45 Direct DALI/Phase-pulse Yes
15222-402 30 3593 3000 Black 1200 1283 62 45 Direct DALI/Phase-pulse Yes
15223-402 30 3782 4000 Black 1200 1283 62 45 Direct DALI/Phase-pulse Yes
15224-402 30 3593 3000 Champagne 1200 1283 62 45 Direct DALI/Phase-pulse Yes
15225-402 30 3782 4000 Champagne 1200 1283 62 45 Direct DALI/Phase-pulse Yes
15226-402 38 4442 3000 White 1500 1514 62 45 Direct DALI/Phase-pulse Yes
15227-402 38 4676 4000 White 1500 1514 62 45 Direct DALI/Phase-pulse Yes
15228-402 38 4442 3000 Black 1500 1514 62 45 Direct DALI/Phase-pulse Yes
15229-402 38 4676 4000 Black 1500 1514 62 45 Direct DALI/Phase-pulse Yes
15230-402 38 4442 3000 Champagne 1500 1514 62 45 Direct DALI/Phase-pulse Yes
15231-402 38 4676 4000 Champagne 1500 1514 62 45 Direct DALI/Phase-pulse Yes
15274-402 30 3593 3000 1200 1283 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15275-402 30 3782 4000 1200 1283 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15276-402 30 3593 3000 1200 1283 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15277-402 30 3782 4000 1200 1283 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15278-402 30 3593 3000 1200 1283 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15279-402 30 3782 4000 1200 1283 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15280-402 38 4442 3000 1500 1514 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15281-402 38 4676 4000 1500 1514 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15282-402 38 4442 3000 1500 1514 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15283-402 38 4676 4000 1500 1514 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15284-402 38 4442 3000 1500 1514 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
15285-402 38 4676 4000 1500 1514 62 45 DALI/Phase-pulse Yes Through-wiring 5x1.5 mm²
