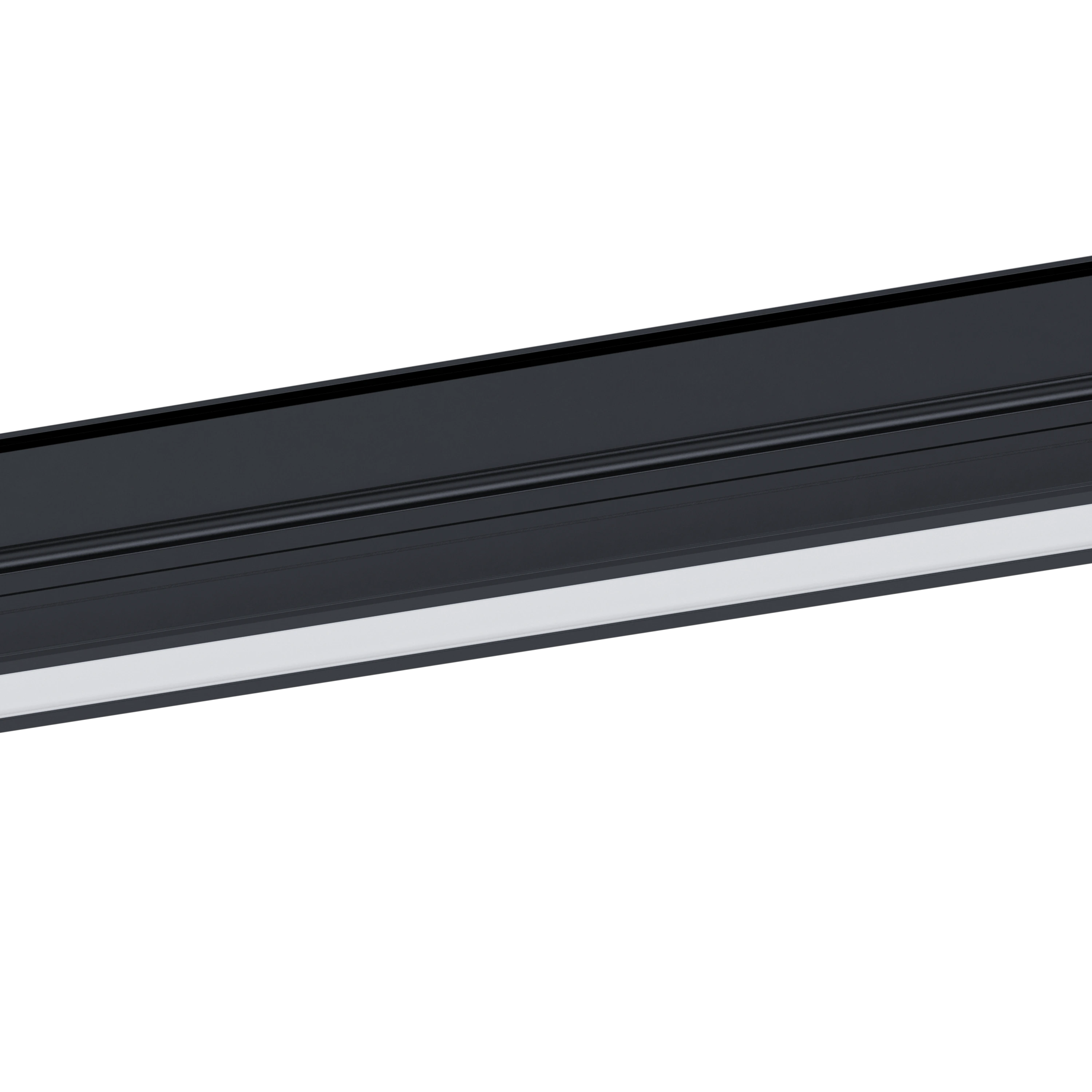

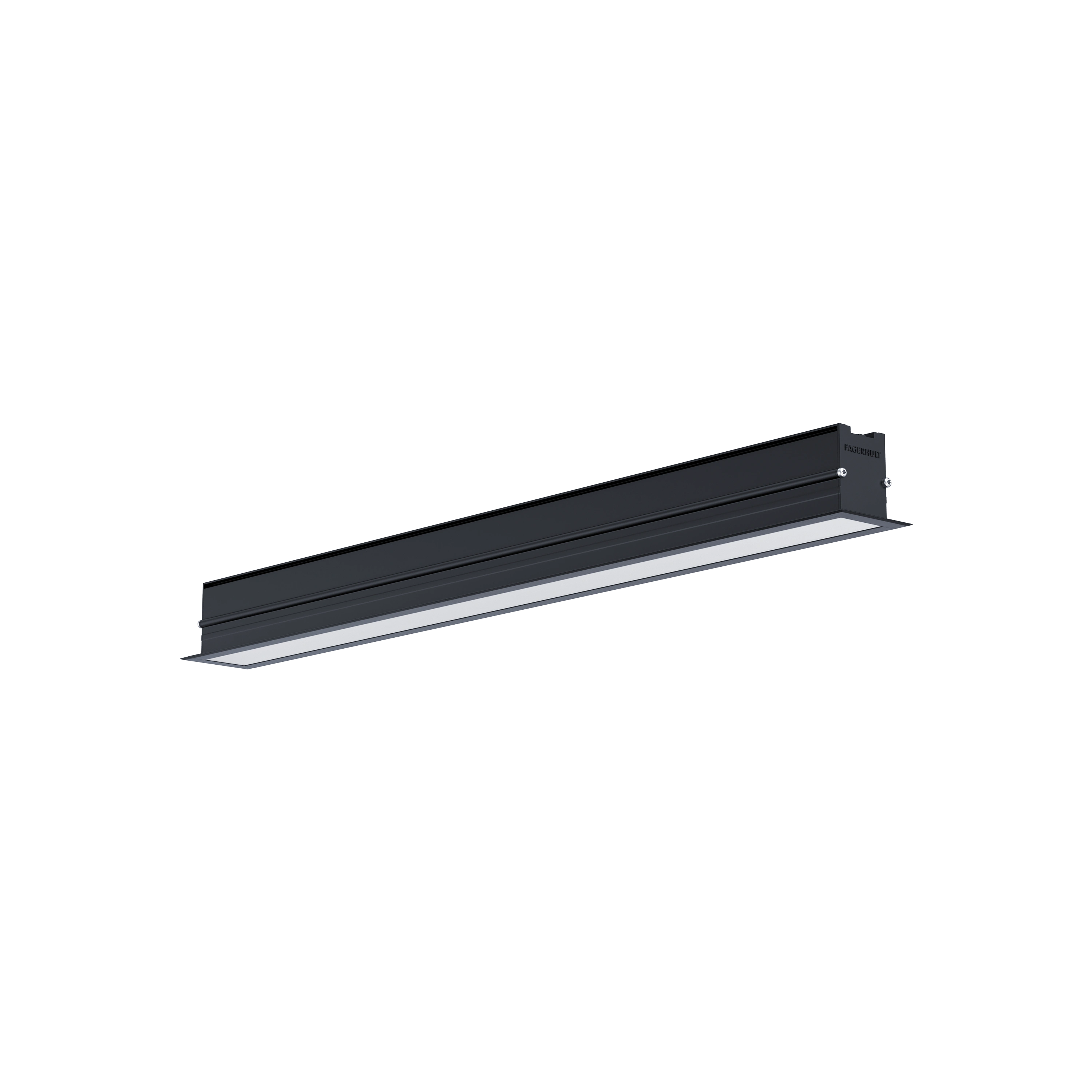

Notor 36 recessed

A recessed luminaire for installation in suspended ceilings. Opal or Beta Opti Nano louvre. Single or series installation.

Adapt and optimise Notor 36 by using Fagerhult Configure. For example, choose from CRI, colour temperatures, optics, luminous flux, various accessories, and connection options. In Fagerhult Configure it’s also possible to create system configurations. All of your choices are saved in a product datasheet, which you can download together with unique light data files. The articles listed below are examples.

Installation

Recessed installation in suspended ceilings. Unventilated or ventilated ceilings. For installation in suspended ceilings with visible T-bars, VTB (24 mm) or one-piece suspended ceilings.

Connection

For permanent connection with 230 V; built-in LED ballast in luminaire. Single and Start luminaires in systems are equipped with 1.5 m connection cable 5 x 0.75 mm². System units are equipped with a change-over cable (5 x 1.5 mm²) and a quick-connector between the luminaire units. Use Configure for options on the type of connection cable.

Design

Frame painted in white (RAL 9016), silver (RAL 7035 metallic) or black (RAL 9005). Endcaps included in Start/Single luminaires.

Louvre

Opal – opal plate in frosted acrylic (PMMA).
Beta Opti Nano – side and cross blades in satin matte, metallised aluminium with an integrated opal surface that minimises the risk of uncomfortable glare from the LEDs and multiple shadows.

Light distribution

Direct.

Dimming

CLO (Constant Light Output) and DALI/phase pulse control as standard. CLO means that the luminaire provides the same amount of light for the duration of its service life.

Accessories

Installation and additional components are ordered separately or selected in Configure.

LED-information

The LEDs are protected from contact.

Miscellaneous

NOTE! Do not combine Low Lumen (LL) and High Lumen (HL) luminaires in a series installation.

Notor 36

Notor 36, a luminaire with a square profile and a Scandinavian design style. Only 36x36 mm, it blends into the background and enables you to create both symmetry and creative patterns. An obvious choice when you want to...

More about the family Notor 36

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Configure single Configure system

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Mounting bracketMounting bracket Notor 36, for VTB-ceilings/each.92750
Mounting bracketMounting brackets Notor 36, for fixed ceilings/each.92751
