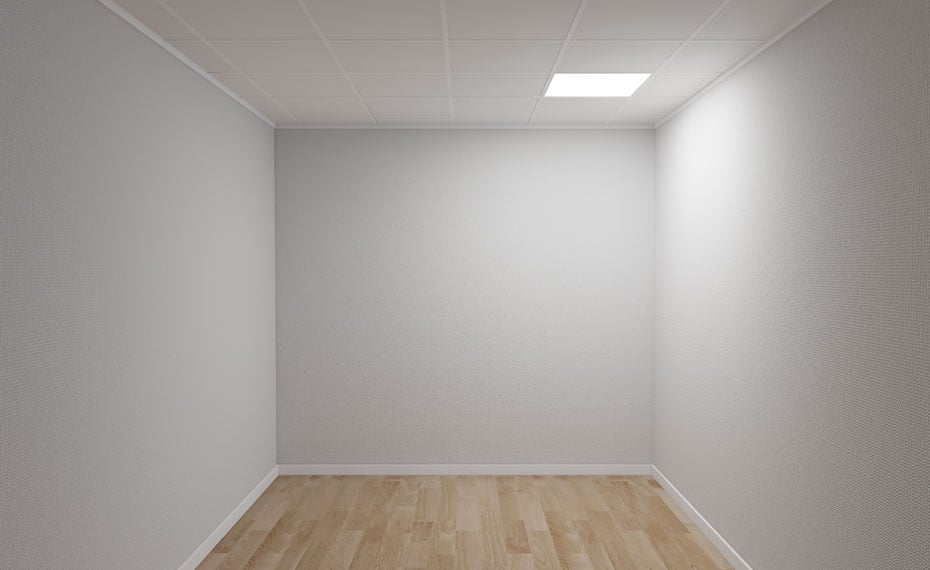

Multilume Slim Opal

A recessed general luminaire in various sizes for most types of suspended ceilings. Opal louvres that follow the ceiling surface provide a stylish and discrete feel. Recessed depth 23 mm.

Installation

Recessed mounting in ventilated or unventilated suspended ceilings. Two optional designs.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm.

HB – for suspended ceiling with concealed T-bars/D-edge, symmetrical attachment of ceiling boards (20–22 mm thick).

Connection

Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.

Design

Luminaire body of white enamelled sheet steel (RAL 9016).

Louvre

Opal plate in frosted UV stabil polystyrene.

Miscellaneous

Enclosure class IP 44 under suspended ceilings and IP 20 above suspended ceilings.
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Multilume

Multilume is Fagerhult’s extensive family of LED luminaires for recessed mounting. Multilume’s balanced work and general lighting delivers excellent light ergonomics, constantly updated with the latest in LED technology....

More about the family Multilume

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on
Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on
23195 36 4065 3000 80 300x1200 VTB
23195-111 36 4065 3000 80 300x1200 VTB Wieland GST18i3 3-way male
23195-3 36 4065 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23195-340 36 4065 3000 80 300x1200 VTB Wago Winsta 3-way male
23195-402 33 3659 3000 80 300x1200 VTB DALI/Phase-pulse Yes
23195-519 36 4065 3000 80 300x1200 VTB Ensto 3-way male
23195-520 33 3659 3000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23195-528 33 3659 3000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23195-529 33 3659 3000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23196 36 4279 4000 80 300x1200 VTB
23196-111 36 4279 4000 80 300x1200 VTB Wieland GST18i3 3-way male
23196-3 36 4279 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23196-340 36 4279 4000 80 300x1200 VTB Wago Winsta 3-way male
23196-402 33 3851 4000 80 300x1200 VTB DALI/Phase-pulse Yes
23196-519 36 4279 4000 80 300x1200 VTB Ensto 3-way male
23196-520 33 3851 4000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23196-528 33 3851 4000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23196-529 33 3851 4000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23199 30 4037 3000 80 600x600 HB
23199-111 30 4037 3000 80 600x600 HB Wieland GST18i3 3-way male
23199-3 30 4037 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23199-340 30 4037 3000 80 600x600 HB Wago Winsta 3-way male
23199-402 27 3633 3000 80 600x600 HB DALI/Phase-pulse Yes
23199-519 30 4037 3000 80 600x600 HB Ensto 3-way male
23199-520 27 3633 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23199-528 27 3633 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23199-529 27 3633 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23200 30 4249 4000 80 600x600 HB
23200-111 30 4249 4000 80 600x600 HB Wieland GST18i3 3-way male
23200-3 30 4249 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23200-340 30 4249 4000 80 600x600 HB Wago Winsta 3-way male
23200-402 27 3824 4000 80 600x600 HB DALI/Phase-pulse Yes
23200-519 30 4249 4000 80 600x600 HB Ensto 3-way male
23200-520 27 3824 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23200-528 27 3824 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23200-529 27 3824 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23203 44 3863 3000 90 300x1200 VTB
23203-111 44 3863 3000 90 300x1200 VTB Wieland GST18i3 3-way male
23203-3 44 3863 3000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23203-340 44 3863 3000 90 300x1200 VTB Wago Winsta 3-way male
23203-402 40 3477 3000 90 300x1200 VTB DALI/Phase-pulse Yes
23203-519 44 3863 3000 90 300x1200 VTB Ensto 3-way male
23203-520 40 3477 3000 90 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23203-528 40 3477 3000 90 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23203-529 40 3477 3000 90 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23204 44 4154 4000 90 300x1200 VTB
23204-111 44 4154 4000 90 300x1200 VTB Wieland GST18i3 3-way male
23204-3 44 4154 4000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23204-340 44 4154 4000 90 300x1200 VTB Wago Winsta 3-way male
23204-402 40 3739 4000 90 300x1200 VTB DALI/Phase-pulse Yes
23204-519 44 4154 4000 90 300x1200 VTB Ensto 3-way male
23204-520 40 3739 4000 90 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23204-528 40 3739 4000 90 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23204-529 40 3739 4000 90 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23207 38 3959 3000 90 600x600 HB
23207-111 38 3959 3000 90 600x600 HB Wieland GST18i3 3-way male
23207-3 38 3959 3000 90 600x600 HB Connection cable with plug, L=2.5 m
23207-340 38 3959 3000 90 600x600 HB Wago Winsta 3-way male
23207-402 35 3563 3000 90 600x600 HB DALI/Phase-pulse Yes
23207-519 38 3959 3000 90 600x600 HB Ensto 3-way male
23207-520 35 3563 3000 90 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23207-528 35 3563 3000 90 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23207-529 35 3563 3000 90 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23208 38 4257 4000 90 600x600 HB
23208-111 38 4257 4000 90 600x600 HB Wieland GST18i3 3-way male
23208-3 38 4257 4000 90 600x600 HB Connection cable with plug, L=2.5 m
23208-340 38 4257 4000 90 600x600 HB Wago Winsta 3-way male
23208-402 35 3831 4000 90 600x600 HB DALI/Phase-pulse Yes
23208-519 38 4257 4000 90 600x600 HB Ensto 3-way male
23208-520 35 3831 4000 90 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23208-528 35 3831 4000 90 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23208-529 35 3831 4000 90 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23217 32 3359 3000 90 600x600 VTB
23217-111 32 3359 3000 90 600x600 VTB Wieland GST18i3 3-way male
23217-3 32 3359 3000 90 600x600 VTB Connection cable with plug, L=2.5 m
23217-340 32 3359 3000 90 600x600 VTB Wago Winsta 3-way male
23217-402 32 3359 3000 90 600x600 VTB DALI/Phase-pulse Yes
23217-519 32 3359 3000 90 600x600 VTB Ensto 3-way male
23217-520 32 3359 3000 90 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23217-528 32 3359 3000 90 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23217-529 32 3359 3000 90 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23218 32 3612 4000 90 600x600 VTB
23218-111 32 3612 4000 90 600x600 VTB Wieland GST18i3 3-way male
23218-3 32 3612 4000 90 600x600 VTB Connection cable with plug, L=2.5 m
23218-340 32 3612 4000 90 600x600 VTB Wago Winsta 3-way male
23218-402 32 3612 4000 90 600x600 VTB DALI/Phase-pulse Yes
23218-519 32 3612 4000 90 600x600 VTB Ensto 3-way male
23218-520 32 3612 4000 90 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23218-528 32 3612 4000 90 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23218-529 32 3612 4000 90 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23400 24 2308 3000 90 300x1200 VTB
23400-111 24 2308 3000 90 300x1200 VTB Wieland GST18i3 3-way male
23400-3 24 2308 3000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23400-340 24 2308 3000 90 300x1200 VTB Wago Winsta 3-way male
23400-402 22 2077 3000 90 300x1200 VTB DALI/Phase-pulse Yes
23400-519 24 2308 3000 90 300x1200 VTB Ensto 3-way male
23400-520 22 2077 3000 90 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23400-528 22 2077 3000 90 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23400-529 22 2077 3000 90 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23401 24 2482 4000 90 300x1200 VTB
23401-111 24 2482 4000 90 300x1200 VTB Wieland GST18i3 3-way male
23401-3 24 2482 4000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23401-340 24 2482 4000 90 300x1200 VTB Wago Winsta 3-way male
23401-402 22 2234 4000 90 300x1200 VTB DALI/Phase-pulse Yes
23401-519 24 2482 4000 90 300x1200 VTB Ensto 3-way male
23401-520 22 2234 4000 90 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23401-528 22 2234 4000 90 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23401-529 22 2234 4000 90 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23404 24 2676 3000 90 600x600 HB
23404-111 24 2676 3000 90 600x600 HB Wieland GST18i3 3-way male
23404-3 24 2676 3000 90 600x600 HB Connection cable with plug, L=2.5 m
23404-340 24 2676 3000 90 600x600 HB Wago Winsta 3-way male
23404-402 22 2408 3000 90 600x600 HB DALI/Phase-pulse Yes
23404-519 24 2676 3000 90 600x600 HB Ensto 3-way male
23404-520 22 2408 3000 90 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23404-528 22 2408 3000 90 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23404-529 22 2408 3000 90 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23405 24 2877 4000 90 600x600 HB
23405-111 24 2877 4000 90 600x600 HB Wieland GST18i3 3-way male
23405-3 24 2877 4000 90 600x600 HB Connection cable with plug, L=2.5 m
23405-340 24 2877 4000 90 600x600 HB Wago Winsta 3-way male
23405-402 22 2589 4000 90 600x600 HB DALI/Phase-pulse Yes
23405-519 24 2877 4000 90 600x600 HB Ensto 3-way male
23405-520 22 2589 4000 90 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23405-528 22 2589 4000 90 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23405-529 22 2589 4000 90 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23487 23 2664 3000 80 300x1200 VTB
23487-111 23 2664 3000 80 300x1200 VTB Wieland GST18i3 3-way male
23487-3 23 2664 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23487-340 23 2664 3000 80 300x1200 VTB Wago Winsta 3-way male
23487-402 21 2398 3000 80 300x1200 VTB DALI/Phase-pulse Yes
23487-519 23 2664 3000 80 300x1200 VTB Ensto 3-way male
23487-520 21 2398 3000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23487-528 21 2398 3000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23487-529 21 2398 3000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23488 23 2804 4000 80 300x1200 VTB
23488-111 23 2804 4000 80 300x1200 VTB Wieland GST18i3 3-way male
23488-3 23 2804 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23488-340 23 2804 4000 80 300x1200 VTB Wago Winsta 3-way male
23488-402 21 2524 4000 80 300x1200 VTB DALI/Phase-pulse Yes
23488-519 23 2804 4000 80 300x1200 VTB Ensto 3-way male
23488-520 21 2524 4000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23488-528 21 2524 4000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23488-529 21 2524 4000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23491 21 2847 3000 80 600x600 HB
23491-111 21 2847 3000 80 600x600 HB Wieland GST18i3 3-way male
23491-3 21 2847 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23491-340 21 2847 3000 80 600x600 HB Wago Winsta 3-way male
23491-402 19 2562 3000 80 600x600 HB DALI/Phase-pulse Yes
23491-519 21 2847 3000 80 600x600 HB Ensto 3-way male
23491-520 19 2562 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23491-528 19 2562 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23491-529 19 2562 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23492 21 2997 4000 80 600x600 HB
23492-111 21 2997 4000 80 600x600 HB Wieland GST18i3 3-way male
23492-3 21 2997 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23492-340 21 2997 4000 80 600x600 HB Wago Winsta 3-way male
23492-402 19 2697 4000 80 600x600 HB DALI/Phase-pulse Yes
23492-519 21 2997 4000 80 600x600 HB Ensto 3-way male
23492-520 19 2697 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23492-528 19 2697 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23492-529 19 2697 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23505 32 4290 3000 80 600x600 VTB
23505-111 32 4290 3000 80 600x600 VTB Wieland GST18i3 3-way male
23505-3 32 4290 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23505-340 32 4290 3000 80 600x600 VTB Wago Winsta 3-way male
23505-402 32 4290 3000 80 600x600 VTB DALI/Phase-pulse Yes
23505-519 32 4290 3000 80 600x600 VTB Ensto 3-way male
23505-520 32 4290 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23505-528 32 4290 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23505-529 32 4290 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23506 32 4405 4000 80 600x600 VTB
23506-111 32 4405 4000 80 600x600 VTB Wieland GST18i3 3-way male
23506-3 32 4405 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23506-340 32 4405 4000 80 600x600 VTB Wago Winsta 3-way male
23506-402 32 4405 4000 80 600x600 VTB DALI/Phase-pulse Yes
23506-519 32 4405 4000 80 600x600 VTB Ensto 3-way male
23506-520 32 4405 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23506-528 32 4405 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23506-529 32 4405 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23510 22 3106 3000 80 600x600 VTB
23510-111 22 3106 3000 80 600x600 VTB Wieland GST18i3 3-way male
23510-3 22 3106 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23510-340 22 3106 3000 80 600x600 VTB Wago Winsta 3-way male
23510-402 20 2795 3000 80 600x600 VTB DALI/Phase-pulse Yes
23510-519 22 3106 3000 80 600x600 VTB Ensto 3-way male
23510-520 20 2795 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23510-528 20 2795 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23510-529 20 2795 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23511 22 3189 4000 80 600x600 VTB
23511-111 22 3189 4000 80 600x600 VTB Wieland GST18i3 3-way male
23511-3 22 3189 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23511-340 22 3189 4000 80 600x600 VTB Wago Winsta 3-way male
23511-402 20 2870 4000 80 600x600 VTB DALI/Phase-pulse Yes
23511-519 22 3189 4000 80 600x600 VTB Ensto 3-way male
23511-520 20 2870 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23511-528 20 2870 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23511-529 20 2870 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes

Filter

Name Description Art.no.
Name Description Art.no.
Frame for surface mountingFrame for surface mounting, H=60 (600x600), only standard and DALI.41028
Wieland T-connectorWieland 5-way T-connector91026
Wieland T-connectorWieland 3-way T-connector91025
Décor plate, circularMultilume Flat/Multilume Slim décor plate, circular (only VTB)41793
Frame for surface mountingFrame for surface mounting, H=60 (300x1200 VTB). Fits Multilume Slim. 41029
WAGO connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.91244
WAGO connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.91243
Wieland connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.92793
WAGO T-connectorWAGO T-Connector, 3-way, white91067
WAGO T-connectorWAGO T-connector, 5-way, 2 locking levers, blue88228
Wieland connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.92799
