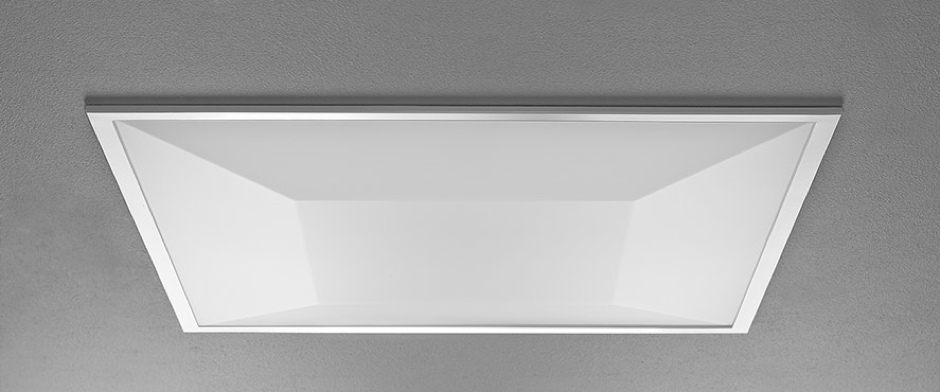

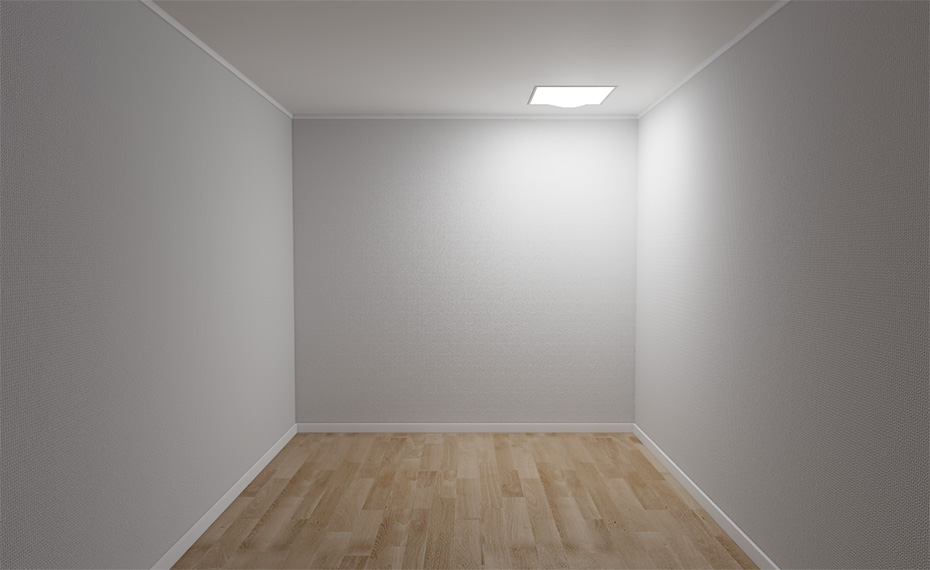

A recessed luminaire for most types of suspended ceilings. The opal louvre lowers the suspended ceiling's surface and creates ambient light on the ceiling.
Recessed mounting in ventilated or unventilated suspended ceilings.Two optional designs.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm.
HB – for suspended ceiling with concealed T-bars/D-edge, symmetrical attachment of ceiling boards (20–22 mm thick). Supplement with fixing brackets for fixed suspended ceiling, see Accessories.
Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector.The luminaire housing and driver are connected via a Quick Connection System.
Luminaire body in white enamelled sheet steel (RAL 9016).
Opal – Opal plate in frosted acrylic (PMMA).
Enclosure class IP 44 under suspended ceilings and IP 20 above suspended ceilings.
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.
Multilume is Fagerhult’s extensive family of LED luminaires for recessed mounting. Multilume’s balanced work and general lighting delivers excellent light ergonomics, constantly updated with the latest in LED technology....More about the family Multilume
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
|Wieland T-connector||Wieland 5-way T-connector||91026|
|Wieland T-connector||Wieland 3-way T-connector||91025|
|Fixing brackets||Fixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body).||91279|
|Frame for surface mounting||Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim with Organic Response.||41026|
|WAGO connection cables, 3-way||Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.||91244|
|WAGO connection cables, 5-way||Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.||91243|
|Wieland connection cables, 3-way||Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.||92793|
|WAGO T-connector||WAGO T-Connector, 3-way, white||91067|
|WAGO T-connector||WAGO T-connector, 5-way, 2 locking levers, blue||88228|
|Wieland connection cables, 5-way||Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.||92799|
|Recessed frame||Recessed frame to Multilume Flat 600x600 VTB body for installation in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm).||41038|
|Ensto connection cables, 5-way||Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.||92786|
|Ensto connection cables, 3-way||Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.||92785|
|Ensto power cable||Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free.||92788|
|Ensto T-connector||Ensto T-connector 3-way, white||92783|
|Ensto T-connector||Ensto T-connector 5-way, grey||92784|
|Ensto power cable||Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free.||92787|
|Fence||Fence 600x600 white.||41252|
|Fence||Fence 600x600 champagne.||41254|
|Fence||Fence 600x600 black.||41253|
|Sky frame||Sky frame for ceiling window effect 600x600, White.||41245|
