Multilume Flat Delta

A recessed workplace luminaire in various sizes for most types of suspended ceilings. Delta louvres provide efficiency and optimal lighting comfort.

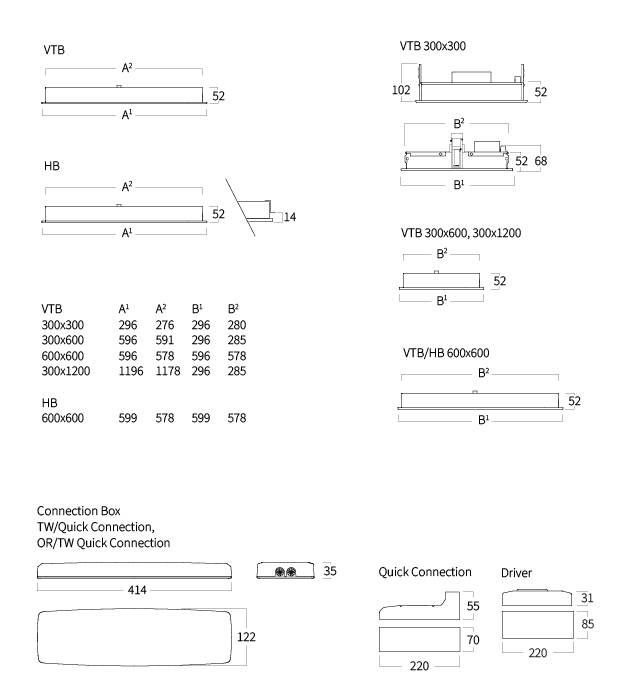

Installation

Recessed mounting in ventilated or unventilated suspended ceilings. Two optional designs.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm. 300x300 also for fixed suspended ceilings.

HB – for suspended ceiling with concealed T-bars/D-edge, symmetrical attachment of ceiling boards (20–22 mm thick). Supplement with fixing brackets for fixed suspended ceiling, see Accessories.

Connection

Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible (not 300x300). 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.

Design

Luminaire body in white enamelled sheet steel (RAL 9016).

Louvre

Delta – microprism louvre in acrylic (PMMA) with a thin opal diffuser (acrylic/PMMA) on the inside (PMMA).

Dimming

e-Sense Organic G3 – PIR sensor with presence and daylight control. All luminaires have master/slave functionality with IR communications.
e-Sense Tune – PIR sensor with presence, daylight control. Tunable White and dynamic light. Controlled with Bluetooth unit. RF communications for slaves.
Tunable white luminaries can also be equipped​ with e-Sense Tune or e-Sense Organic upon request.

Miscellaneous

Enclosure class IP 44 under suspended ceilings and IP 20 above suspended ceilings.
Luminaires with Tunable White (2700-6500 K) are equipped with DALI device Type 8 driver.

Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.


CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Luminaire with integrated e-Sense Organic sensor node.

Multilume

Multilume is Fagerhult’s extensive family of LED luminaires for recessed mounting. Multilume’s balanced work and general lighting delivers excellent light ergonomics, constantly updated with the latest in LED technology....

More about the family Multilume

Document

Specification

Luminaires with Tunable White are listed with values for 4000 K.

Filter

Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on Miscellaneous
23164 19 1634 3000 90 300x600 VTB
23164-111 19 1634 3000 90 300x600 VTB Wieland GST18i3 3-way male
23164-3 19 1634 3000 90 300x600 VTB Connection cable with plug, L=2.5 m
23164-340 19 1634 3000 90 300x600 VTB Wago Winsta 3-way male
23164-402 18 1471 3000 90 300x600 VTB DALI/Phase-pulse Yes
23164-519 19 1634 3000 90 300x600 VTB Ensto 3-way male
23164-520 18 1471 3000 90 300x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23164-528 18 1471 3000 90 300x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23164-529 18 1471 3000 90 300x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23165 19 1757 4000 90 300x600 VTB
23165-111 19 1757 4000 90 300x600 VTB Wieland GST18i3 3-way male
23165-3 19 1757 4000 90 300x600 VTB Connection cable with plug, L=2.5 m
23165-340 19 1757 4000 90 300x600 VTB Wago Winsta 3-way male
23165-402 18 1581 4000 90 300x600 VTB DALI/Phase-pulse Yes
23165-519 19 1757 4000 90 300x600 VTB Ensto 3-way male
23165-520 18 1581 4000 90 300x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23165-528 18 1581 4000 90 300x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23165-529 18 1581 4000 90 300x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23720 36 3408 3000 90 300x1200 VTB
23720-111 36 3408 3000 90 300x1200 VTB Wieland GST18i3 3-way male
23720-3 36 3408 3000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23720-340 36 3408 3000 90 300x1200 VTB Wago Winsta 3-way male
23720-402 33 3067 3000 90 300x1200 VTB DALI/Phase-pulse Yes
23720-519 36 3408 3000 90 300x1200 VTB Ensto 3-way male
23720-520 33 3067 3000 90 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23720-528 33 3067 3000 90 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23720-529 33 3067 3000 90 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23721 36 3665 4000 90 300x1200 VTB
23721-111 36 3665 4000 90 300x1200 VTB Wieland GST18i3 3-way male
23721-3 36 3665 4000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23721-340 36 3665 4000 90 300x1200 VTB Wago Winsta 3-way male
23721-402 33 3299 4000 90 300x1200 VTB DALI/Phase-pulse Yes
23721-519 36 3665 4000 90 300x1200 VTB Ensto 3-way male
23721-520 33 3299 4000 90 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23721-528 33 3299 4000 90 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23721-529 33 3299 4000 90 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23783 36 3537 3000 90 600x600 VTB
23783-111 36 3537 3000 90 600x600 VTB Wieland GST18i3 3-way male
23783-3 36 3537 3000 90 600x600 VTB Connection cable with plug, L=2.5 m
23783-340 36 3537 3000 90 600x600 VTB Wago Winsta 3-way male
23783-402 33 3183 3000 90 600x600 VTB DALI/Phase-pulse Yes
23783-519 36 3537 3000 90 600x600 VTB Ensto 3-way male
23783-520 33 3183 3000 90 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23783-528 33 3183 3000 90 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23783-529 33 3183 3000 90 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23784 36 3804 4000 90 600x600 VTB
23784-111 36 3804 4000 90 600x600 VTB Wieland GST18i3 3-way male
23784-3 36 3804 4000 90 600x600 VTB Connection cable with plug, L=2.5 m
23784-340 36 3804 4000 90 600x600 VTB Wago Winsta 3-way male
23784-402 33 3424 4000 90 600x600 VTB DALI/Phase-pulse Yes
23784-519 36 3804 4000 90 600x600 VTB Ensto 3-way male
23784-520 33 3424 4000 90 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23784-528 33 3424 4000 90 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23784-529 33 3424 4000 90 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23786 24 2915 3000 80 600x600 VTB
23786-111 24 2915 3000 80 600x600 VTB Wieland GST18i3 3-way male
23786-3 24 2915 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23786-340 24 2915 3000 80 600x600 VTB Wago Winsta 3-way male
23786-402 22 2624 3000 80 600x600 VTB DALI/Phase-pulse Yes
23786-519 24 2915 3000 80 600x600 VTB Ensto 3-way male
23786-520 22 2624 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23786-528 22 2624 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23786-529 22 2624 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23788 24 2915 3000 80 600x600 HB
23788-111 24 2915 3000 80 600x600 HB Wieland GST18i3 3-way male
23788-3 24 2915 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23788-340 24 2915 3000 80 600x600 HB Wago Winsta 3-way male
23788-402 22 2624 3000 80 600x600 HB DALI/Phase-pulse Yes
23788-519 24 2915 3000 80 600x600 HB Ensto 3-way male
23788-520 22 2624 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23788-528 22 2624 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23788-529 22 2624 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23790 24 3068 4000 80 600x600 VTB
23790-111 24 3068 4000 80 600x600 VTB Wieland GST18i3 3-way male
23790-3 24 3068 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23790-340 24 3068 4000 80 600x600 VTB Wago Winsta 3-way male
23790-402 22 2761 4000 80 600x600 VTB DALI/Phase-pulse Yes
23790-519 24 3068 4000 80 600x600 VTB Ensto 3-way male
23790-520 22 2761 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23790-528 22 2761 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23790-529 22 2761 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23792 24 3068 4000 80 600x600 HB
23792-111 24 3068 4000 80 600x600 HB Wieland GST18i3 3-way male
23792-3 24 3068 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23792-340 24 3068 4000 80 600x600 HB Wago Winsta 3-way male
23792-402 22 2761 4000 80 600x600 HB DALI/Phase-pulse Yes
23792-519 24 3068 4000 80 600x600 HB Ensto 3-way male
23792-520 22 2761 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23792-528 22 2761 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23792-529 22 2761 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23801 24 2304 90 300x600 Yes Tunable White
23804 44 4739 4000 90 600x600 Yes Tunable White
23804-477 45 4739 4000 90 600x600 e-Sense Tune master Yes Tunable White
23804-478 45 4739 4000 90 600x600 VTB e-Sense Tune slave Yes Tunable White
23806 36 4407 3000 80 600x600 VTB
23806-111 36 4407 3000 80 600x600 VTB Wieland GST18i3 3-way male
23806-3 36 4407 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23806-340 36 4407 3000 80 600x600 VTB Wago Winsta 3-way male
23806-402 33 3966 3000 80 600x600 VTB DALI/Phase-pulse Yes
23806-519 36 4407 3000 80 600x600 VTB Ensto 3-way male
23806-520 33 3966 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23806-528 33 3966 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23806-529 33 3966 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23806-533 36 4407 3000 80 600x600 VTB e-Sense Organic
23808 36 4407 3000 80 600x600 HB
23808-111 36 4407 3000 80 600x600 HB Wieland GST18i3 3-way male
23808-3 36 4407 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23808-340 36 4407 3000 80 600x600 HB Wago Winsta 3-way male
23808-402 33 3966 3000 80 600x600 HB DALI/Phase-pulse Yes
23808-519 36 4407 3000 80 600x600 HB Ensto 3-way male
23808-520 33 3966 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23808-528 33 3966 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23808-529 33 3966 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23810 36 4639 4000 80 600x600 VTB
23810-111 36 4639 4000 80 600x600 VTB Wieland GST18i3 3-way male
23810-3 36 4639 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23810-340 36 4639 4000 80 600x600 VTB Wago Winsta 3-way male
23810-402 33 4175 4000 80 600x600 VTB DALI/Phase-pulse Yes
23810-519 36 4639 4000 80 600x600 VTB Ensto 3-way male
23810-520 33 4175 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23810-528 33 4175 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23810-529 33 4175 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23810-533 36 4639 4000 80 600x600 VTB e-Sense Organic
23812 36 4639 4000 80 600x600 HB
23812-111 36 4639 4000 80 600x600 HB Wieland GST18i3 3-way male
23812-3 36 4639 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23812-340 36 4639 4000 80 600x600 HB Wago Winsta 3-way male
23812-402 33 4175 4000 80 600x600 HB DALI/Phase-pulse Yes
23812-519 36 4639 4000 80 600x600 HB Ensto 3-way male
23812-520 33 4175 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23812-528 33 4175 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23812-529 33 4175 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23837 9 1006 3000 80 300x300 VTB
23837-3 9 1006 3000 80 300x300 VTB Connection cable with plug, L=2.5 m
23837-402 9 1006 3000 80 300x300 VTB DALI/Phase-pulse Yes
23839 9 1056 4000 80 300x300 VTB
23839-3 9 1056 4000 80 300x300 VTB Connection cable with plug, L=2.5 m
23839-402 9 1056 4000 80 300x300 VTB DALI/Phase-pulse Yes
23868 31 3851 3000 80 600x600 VTB
23868-111 31 3851 3000 80 600x600 VTB Wieland GST18i3 3-way male
23868-3 31 3851 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23868-340 31 3851 3000 80 600x600 VTB Wago Winsta 3-way male
23868-402 28 3466 3000 80 600x600 VTB DALI/Phase-pulse Yes
23868-519 31 3851 3000 80 600x600 VTB Ensto 3-way male
23868-520 28 3466 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23868-528 28 3466 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23868-529 28 3466 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23870 31 3851 3000 80 600x600 HB
23870-111 31 3851 3000 80 600x600 HB Wieland GST18i3 3-way male
23870-3 31 3851 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23870-340 31 3851 3000 80 600x600 HB Wago Winsta 3-way male
23870-402 28 3466 3000 80 600x600 HB DALI/Phase-pulse Yes
23870-519 31 3851 3000 80 600x600 HB Ensto 3-way male
23870-520 28 3466 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23870-528 28 3466 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23870-529 28 3466 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23872 31 4054 4000 80 600x600 VTB
23872-111 31 4054 4000 80 600x600 VTB Wieland GST18i3 3-way male
23872-3 31 4054 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23872-340 31 4054 4000 80 600x600 VTB Wago Winsta 3-way male
23872-402 28 3649 4000 80 600x600 VTB DALI/Phase-pulse Yes
23872-519 31 4054 4000 80 600x600 VTB Ensto 3-way male
23872-520 28 3649 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23872-528 28 3649 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23872-529 28 3649 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23874 31 4054 4000 80 600x600 HB
23874-111 31 4054 4000 80 600x600 HB Wieland GST18i3 3-way male
23874-3 31 4054 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23874-340 31 4054 4000 80 600x600 HB Wago Winsta 3-way male
23874-402 28 3649 4000 80 600x600 HB DALI/Phase-pulse Yes
23874-519 31 4054 4000 80 600x600 HB Ensto 3-way male
23874-520 28 3649 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23874-528 28 3649 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23874-529 28 3649 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23911 24 2769 3000 80 300x1200 VTB
23911-111 24 2769 3000 80 300x1200 VTB Wieland GST18i3 3-way male
23911-3 24 2769 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23911-340 24 2769 3000 80 300x1200 VTB Wago Winsta 3-way male
23911-402 22 2492 3000 80 300x1200 VTB DALI/Phase-pulse Yes
23911-519 24 2769 3000 80 300x1200 VTB Ensto 3-way male
23911-520 22 2492 3000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23911-528 22 2492 3000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23911-529 22 2492 3000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23912 24 2914 4000 80 300x1200 VTB
23912-111 24 2914 4000 80 300x1200 VTB Wieland GST18i3 3-way male
23912-3 24 2914 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23912-340 24 2914 4000 80 300x1200 VTB Wago Winsta 3-way male
23912-402 22 2623 4000 80 300x1200 VTB DALI/Phase-pulse Yes
23912-519 24 2914 4000 80 300x1200 VTB Ensto 3-way male
23912-520 22 2623 4000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23912-528 22 2623 4000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23912-529 22 2623 4000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23913 31 3691 3000 80 300x1200 VTB
23913-111 31 3691 3000 80 300x1200 VTB Wieland GST18i3 3-way male
23913-3 31 3691 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23913-340 31 3691 3000 80 300x1200 VTB Wago Winsta 3-way male
23913-402 28 3322 3000 80 300x1200 VTB DALI/Phase-pulse Yes
23913-519 31 3691 3000 80 300x1200 VTB Ensto 3-way male
23913-520 28 3322 3000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23913-528 28 3322 3000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23913-529 28 3322 3000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23914 31 3886 4000 80 300x1200 VTB
23914-111 31 3886 4000 80 300x1200 VTB Wieland GST18i3 3-way male
23914-3 31 3886 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23914-340 31 3886 4000 80 300x1200 VTB Wago Winsta 3-way male
23914-402 28 3497 4000 80 300x1200 VTB DALI/Phase-pulse Yes
23914-519 31 3886 4000 80 300x1200 VTB Ensto 3-way male
23914-520 28 3497 4000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23914-528 28 3497 4000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23914-529 28 3497 4000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23915 36 4246 3000 80 300x1200 VTB
23915-111 36 4246 3000 80 300x1200 VTB Wieland GST18i3 3-way male
23915-3 36 4246 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23915-340 36 4246 3000 80 300x1200 VTB Wago Winsta 3-way male
23915-402 33 3821 3000 80 300x1200 VTB DALI/Phase-pulse Yes
23915-519 36 4246 3000 80 300x1200 VTB Ensto 3-way male
23915-520 33 3821 3000 80 300x1200 VTB DALI/Phase-pulse Ensto 5-way male Yes
23915-528 33 3821 3000 80 300x1200 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23915-529 33 3821 3000 80 300x1200 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23916 36 4469 4000 80 300x1200 VTB
23916-111 36 4469 4000 80 300x1200 VTB Wieland GST18i3 3-way male
23916-3 36 4469 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23916-340 36 4469 4000 80 300x1200 VTB Wago Winsta 3-way male
23916-402 33 4022 4000 80 300x1200 VTB DALI/Phase-pulse Yes
