19481-533 Lento LED

Documents

Specification

Technical data

Installation

Start/Single

Protection class

1

IP rating

20

Min. ambient temperature, °C

0

Max. ambient temperature, °C

-25

Light control

e-Sense Organic

Brand of driver

Philips

Design

Louvre

Line prism

Colour

White

Weight, kg

5

Length, mm

2113

Width, mm

66

Height, mm

85

Module

2000

Electrical data

MCB B10A

11

MCB B16A

18

MCB C10A

18

MCB C16A

30

AM

Yes

Power on last level

Yes

Stand by W

0.3

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Effect, W

43

Power factor, 100 %

0.96

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

THD, %

13

No of Dali Addresses

1

Lighting data

Light distribution

Direct asymmetrical

Lumen output

5400

lm/W

126

Lumen maintenance L70 B50, h

60 000

Lumen maintenance L80 B50, h

35 000

Lumen maintenance L90 B50, h

15 000

Lumen maintenance 50 000 h

L74

Lumen maintenance 75 000 h

L64

Lumen maintenance 100 000 h

L55

Lumen maintenance at 50 000 h

0.74

LED driver, h/max failure %

100000/10

SDCM

3

CRI

80

CCT, K

3000

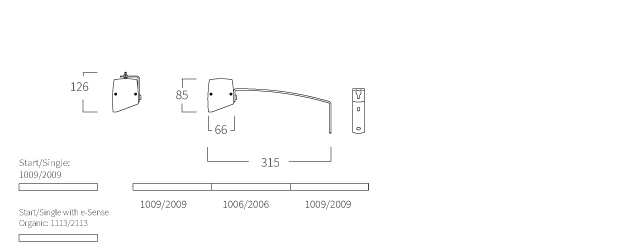

Dimensions

Light distribution

Lento LED

An advanced lens solution in combination with a mechanical louvre ensures pupils and audience members never need run the risk of being dazzled by the bright LED modules. Lento LED has a very controlled light pattern with a soft...

Read more about the family Lento LED
