Kaskad Fixed

A small, recessed downlight with two different light distributions, three colour temperatures and different outputs. Kaskad is an elegant general-lighting solution for communication areas or corridors.

Installation

Recessed mounting in unventilated or ventilated suspended ceilings. Assembly springs for quick assembly included. Separate ballast box for flexible installation. An assembly plate must be used when mounting on soft tile ceilings Do not cover with insulation. For detailed information, please refer to the installation instructions.

Connection

Connections are made to the independent LED driver. The luminaire is delivered with interconnecting cable.

Design

Luminaire body and visible edge ring of sheet steel in white (RAL 9016) structured enamel. Heatsink in black enamelled aluminium.

Louvre

Specular reflector in anodised aluminium. Diffusing frosted glass raised in the reflector above structured enamelled black baffle.

Miscellaneous

IP 44 under suspended ceiling, IP 20 above suspended ceilings.
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.
For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.

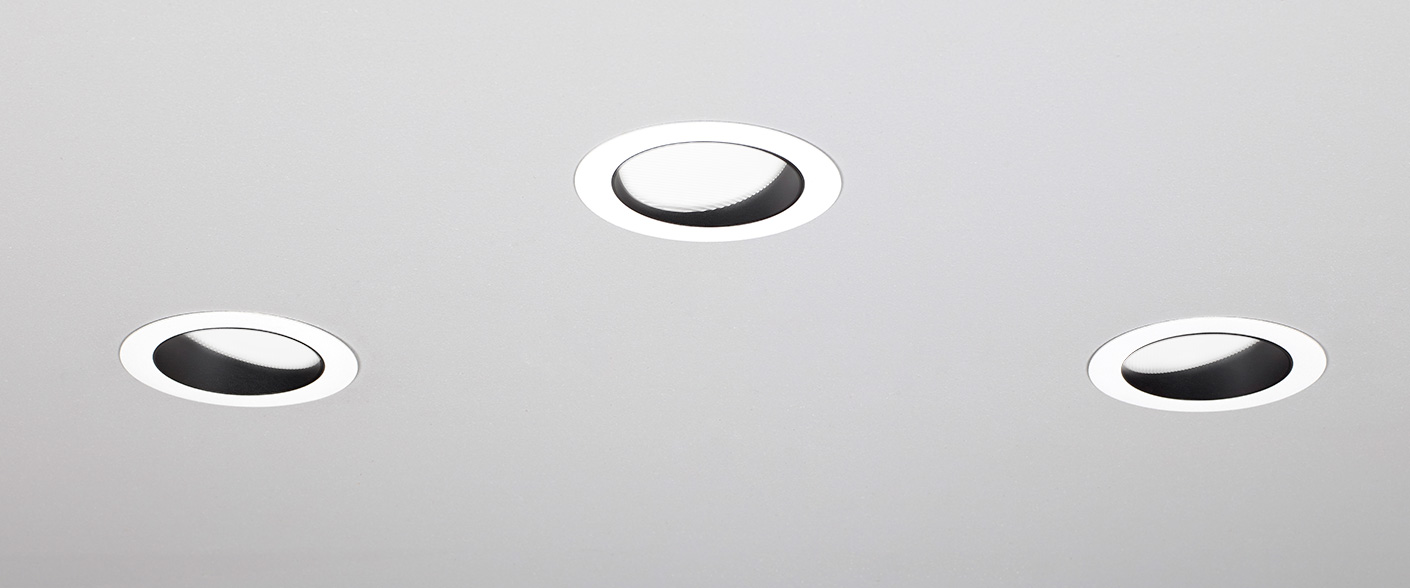

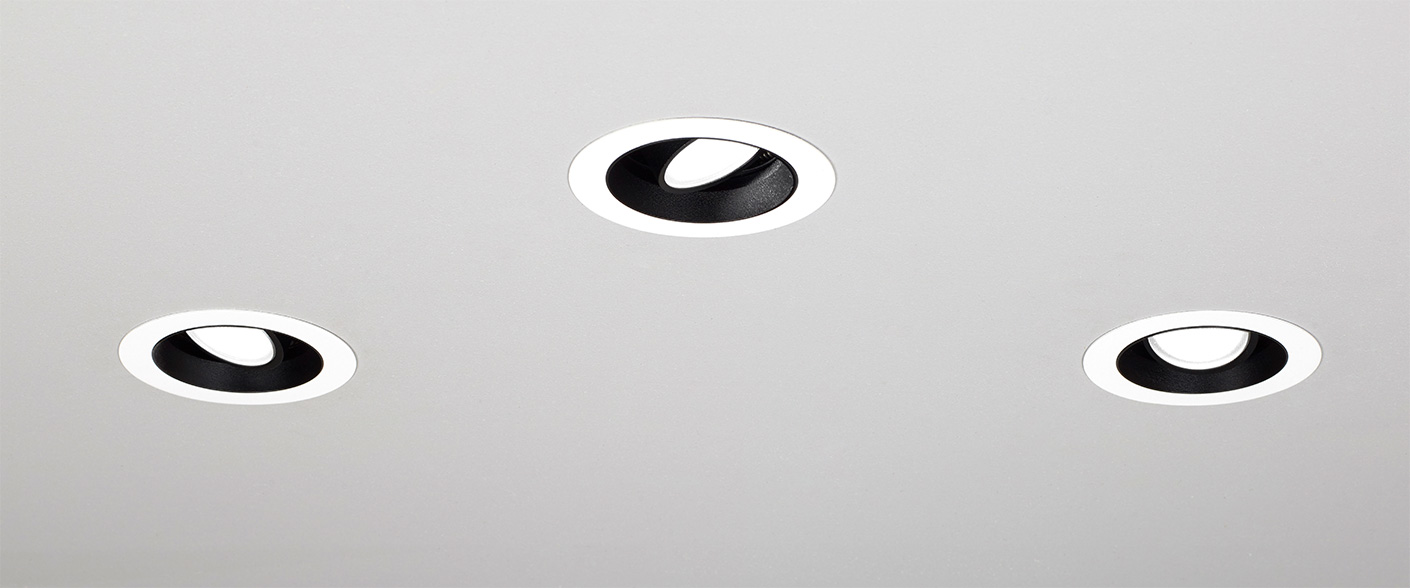

Kaskad

Kaskad is an elegant lighting solution ideal for front-of-house environments such as lounges, hotel lobbies and entrance halls. The distinct trim ring, combined with the black baffle, creates an architecturally exciting solution...

More about the family Kaskad

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Diameter, mm Colour Light distribution Light control Connection SDCM Miscellaneous
Art.no. Effect, W Lumen output CCT, K Diameter, mm Colour Light distribution Light control Connection SDCM Miscellaneous

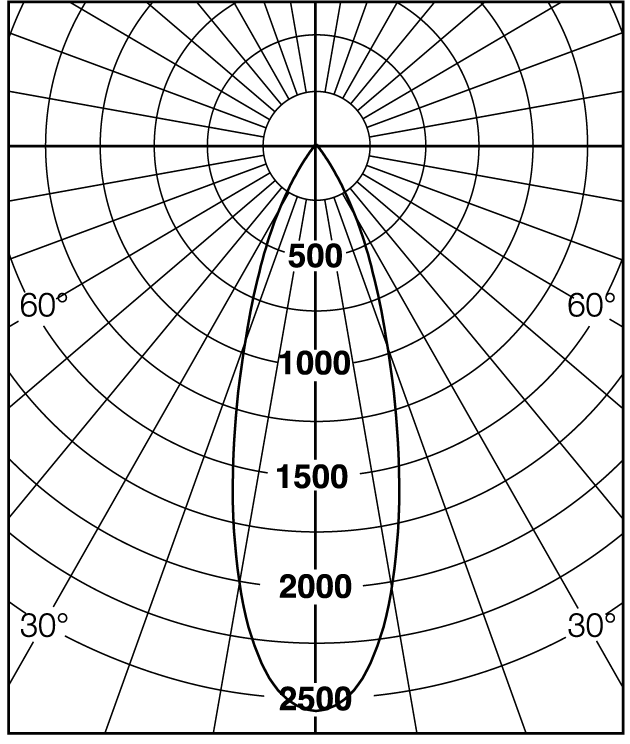

76537 12 832 2700 110 White Medium Beam, 32° 2 Medium Beam 32°, SDCM 2
76537-3 12 832 2700 110 White Medium Beam, 32° Connection cable with plug, L=2.5 m 2 Medium Beam, SDCM 2
76537-402 12 832 2700 110 White Medium Beam, 32° DALI/Phase-pulse 2 Medium Beam 32°, SDCM 2
76538 20 1454 2700 110 White Medium Beam, 32° 2 Medium Beam 32°, SDCM 2
76538-3 20 1454 2700 110 White Medium Beam, 32° Connection cable with plug, L=2.5 m 2 Medium Beam 32°, SDCM 2
76538-402 20 1454 2700 110 White Medium Beam, 32° DALI/Phase-pulse 2 Medium Beam 32°, SDCM 2
76539 12 990 3000 110 White Medium Beam, 32° 3 Medium Beam 32°, SDCM 3
76539-3 12 990 3000 110 White Medium Beam, 32° Connection cable with plug, L=2.5 m 3 Medium Beam, SDCM 3
76539-402 12 990 3000 110 White Medium Beam, 32° DALI/Phase-pulse 3 Medium Beam 32°, SDCM 3
76540 20 1731 3000 110 White Medium Beam, 32° 3 Medium Beam 32°, SDCM 3
76540-3 20 1731 3000 110 White Medium Beam, 32° Connection cable with plug, L=2.5 m 3 Medium Beam 32°, SDCM 3
76540-402 20 1731 3000 110 White Medium Beam, 32° DALI/Phase-pulse 3 Medium Beam 32°, SDCM 3
76541 12 990 4000 110 White Medium Beam, 32° 3 Medium Beam 32°, SDCM 3
76541-3 12 990 4000 110 White Medium Beam, 32° Connection cable with plug, L=2.5 m 3 Medium Beam 32°, SDCM 3
76541-402 12 990 4000 110 White Medium Beam, 32° DALI/Phase-pulse 3 Medium Beam 32°, SDCM 3
76542 20 1731 4000 110 White Medium Beam, 32° 3 Medium Beam 32°, SDCM 3
76542-3 20 1731 4000 110 White Medium Beam, 32° Connection cable with plug, L=2.5 m 3 Medium Beam 32°, SDCM 3
76542-402 20 1731 4000 110 White Medium Beam, 32° DALI/Phase-pulse 3 Medium Beam 32°, SDCM 3

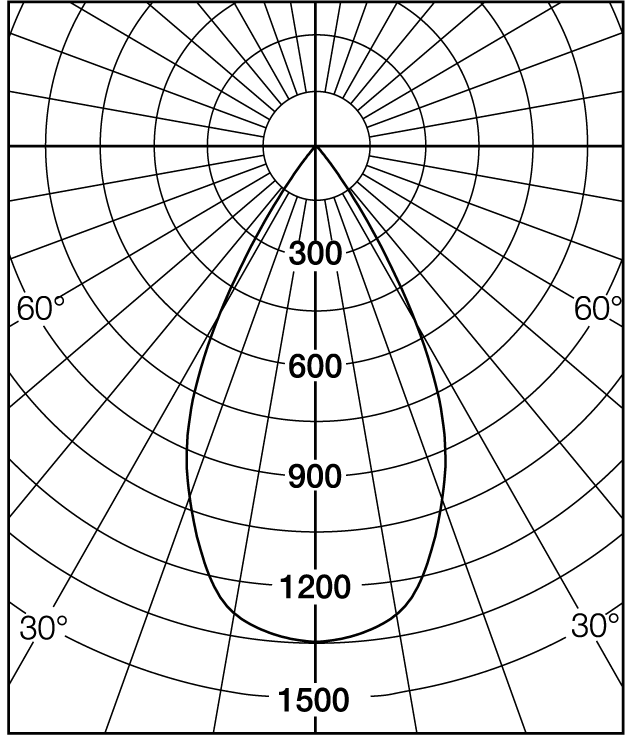

76543 12 804 2700 110 White Wide Beam, 50° 2 Wide Beam 50°, SDCM 3
76543-3 12 804 2700 110 White Wide Beam, 50° Connection cable with plug, L=2.5 m 2 Wide Beam 50°, SDCM 3
76543-402 12 804 2700 110 White Wide Beam, 50° DALI/Phase-pulse 2 Wide Beam 50°, SDCM 3
76544 20 1407 2700 110 White Wide Beam, 50° 2 Wide Beam 50°, SDCM 3
76544-3 20 1407 2700 110 White Wide Beam, 50° Connection cable with plug, L=2.5 m 2 Wide Beam 50°, SDCM 3
76544-402 20 1407 2700 110 White Wide Beam, 50° DALI/Phase-pulse 2 Wide Beam 50°, SDCM 3
76545 12 957 3000 110 White Wide Beam, 50° 3 Wide Beam 50°, SDCM 3
76545-3 12 957 3000 110 White Wide Beam, 50° Connection cable with plug, L=2.5 m 3 Wide Beam 50°, SDCM 3
76545-402 12 957 3000 110 White Wide Beam, 50° DALI/Phase-pulse 3 Wide Beam 50°, SDCM 3
76546 20 1675 3000 110 White Wide Beam, 50° 3 Wide Beam 50°, SDCM 3
76546-3 20 1675 3000 110 White Wide Beam, 50° Connection cable with plug, L=2.5 m 3 Wide Beam 50°, SDCM 3
76546-402 20 1675 3000 110 White Wide Beam, 50° DALI/Phase-pulse 3 Wide Beam 50°, SDCM 3
76547 12 957 4000 110 White Wide Beam, 50° 3 Wide Beam 50°, SDCM 3
76547-3 12 957 4000 110 White Wide Beam, 50° Connection cable with plug, L=2.5 m 3 Wide Beam 50°, SDCM 3
76547-402 12 957 4000 110 White Wide Beam, 50° DALI/Phase-pulse 3 Wide Beam 50°, SDCM 3
76549 20 1675 4000 110 White Wide Beam, 50° 3 Wide Beam 50°, SDCM 3
76549-3 20 1675 4000 110 White Wide Beam, 50° Connection cable with plug, L=2.5 m 3 Wide Beam 50°, SDCM 3
76549-402 20 1675 4000 110 White Wide Beam, 50° DALI/Phase-pulse 3 Wide Beam 50°, SDCM 3

Filter

Name Description Art.no.
Name Description Art.no.
Assembly plateMounting plate for soft tile ceiling, Ø 11041964
