iTrack Track system
11669 iTrack 11669
Controllable, highly flexible track system. A full range of luminaires and emergency lighting in one slim, aluminium profile. Compatible with 3-phase and iTrack adaptor.
Installation
Surface mounted with a ceiling bracket or suspended from a wire pendant bracket, see the installation accessories.
Connection
In a connection unit, see coupling accessories.
Design
White finished extruded aluminium (RAL 9016) or black (9004) with polycarbonate isolation profile. All conductors and earth conductor of 2.5 mm copper. 400 V, 3x16 A.
Dimming
iTrack can easily be equipped with a multi-sensor for constant light, occupancy detection and receiver for a remote control (IR), see Accessories. The functionality requires luminaires with DALI (-368) and a connected power supply unit.
Adapter
Luminaires connected to the track require iTrack’s special adapter. Luminaires are mechanically locked to the track via a fastener on the adapter. Adapters are also equipped with a phase selector for phase 1, 2 or 3. Luminaires supplied with a phase selector are set to phase 1. Spotlights with Multi-adapter XTSA 68 can be connected.
Media
The track is installed via a ceiling bracket 78248.
Connection unit 78220 is fitted to the end of the track.
iTrack

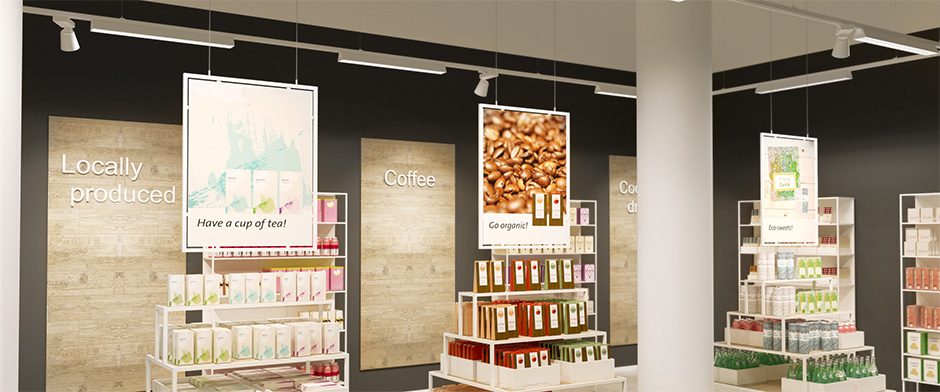

iTrack is a highly flexible, energy efficient track system which combines controls, a full range of luminaires and emergency lighting in one slim, aluminium profile. Developed for easy and logical installation, iTrack helps...
More about the family iTrackDocument
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
| Pendant bracket | Pendant bracket, white | 78249 |
 | Pendant bracket | Pendant bracket, adjustable center, white | 78245 |
 | Pendant bracket | Pendant bracket, adjustable center, black | 78254 |
 | Flexible coupler | Flexible coupler | 78227 |
 | L-coupler | L-coupler, (a) | 78222 |
 | L-coupler | L-coupler, (b), black | 78233 |
|
| L-coupler | L-coupler, (b) | 78223 |
|
| L-coupler | L-coupler, (a), black | 78232 |
 | Ceiling bracket | Ceiling bracket, black | 78252 |
 | Ceiling bracket | Ceiling bracket, white | 78248 |
 | X-coupler | X-coupler, black | 78236 |
 | Sensor unit | iTrack Sensor | 34955 |
 | X-coupler | X-coupler | 78226 |
 | iTrack luminaire fixing | iTrack luminaire fixing (pair), white | 78257 |
 | Emergency lighting unit | iTrack emLED centralised (for connection to E1/E2), white | 34952 |
 | T-coupler | T-coupler, (a), white | 78224 |
 | T-coupler | T-coupler, (b), black | 78235 |
|
| T-coupler | T-coupler, (b), white | 78225 |
|
| T-coupler | T-coupler, (a), black | 78234 |
 | Connection device | Connection devices, (a), white | 78220 |
 | Connection device | Connection devices, (b), black | 78239 |
 | Supply Coupler Support | White | 78255 |
|
| Connection device | Connection devices, (a), black | 78230 |
|
| Connection device | Connection devices, (b), white | 78229 |
 | Supply Coupler Support | Black | 78256 |
 | Wire package | Wire package for track 10 m, aluminium | 97909 |
 | I-coupler | I-coupler, black | 78231 |
 | I-coupler | I-coupler, white | 78221 |
 | End-cap | End-cap, black | 78238 |
 | End-cap | End-cap, white | 78228 |
 | Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
 | Emergency lighting unit | iTrack emLED centralised (for connection to E1/E2), black | 34972 |
 | Emergency lighting unit | iTrack emLED potential-free decentralised (for connection to UL). Self test as standard to EN 62034, black | 34970 |
|
| Emergency lighting unit | iTrack emLED decentralised (DALI) (for connection to UL and C1/C2 or X1/X2), black | 34971 |
 | iTrack connector, pendant | Connector, pendant with 2,5 m cable, white | 78244 |
 | Emergency lighting unit | iTrack exit sign adapter, exLED Viva G2, exLED 4 | 34960 |
 | iTrack connector, pendant | Connector, pendant with 2,5 m cable, black | 78274 |
 | Emergency lighting unit | iTrack emLED decentralised (DALI) (for connection to UL and C1/C2 or X1/X2), white | 34951 |
|
| Pendant bracket | Pendant bracket itrack, 4m black, including ceiling bracket, black | 78264 |
|
| Pendant bracket | Pendant package for iTrack, 4m incl.bracket, white. | 78263 |
 | Wall socket for iTrack. Distance from wall to track center: 80mm | Wall bracket black for iTrack | 78296 |
 | Wall socket for iTrack. Distance from wall to track center: 80mm | Wall bracket white for iTrack | 78295 |
 | Remote control, Helvar | DIGIDIM 303 – IR remote control. | 86121 |
 | Power supply unit, Helvar | DIGIDIM 402 – Supplies max. 250 mA to control circuit. | 86123 |
 | Wire package | Wire package for track 4 m, aluminium. 10 pieces. | 97953 |
 | Wire for track 8 m | Wire package for track 8 m, aluminium. 10 pieces. | 97954 |
 | Wire package | Wire package for track 4 m, black. 10 pieces. | 97955 |
|
| Track cover | Lighting track pro cover 2000 mm, white | 46890 |
|
| Track cover | Lighting track pro cover 2000 mm, black | 46891 |
