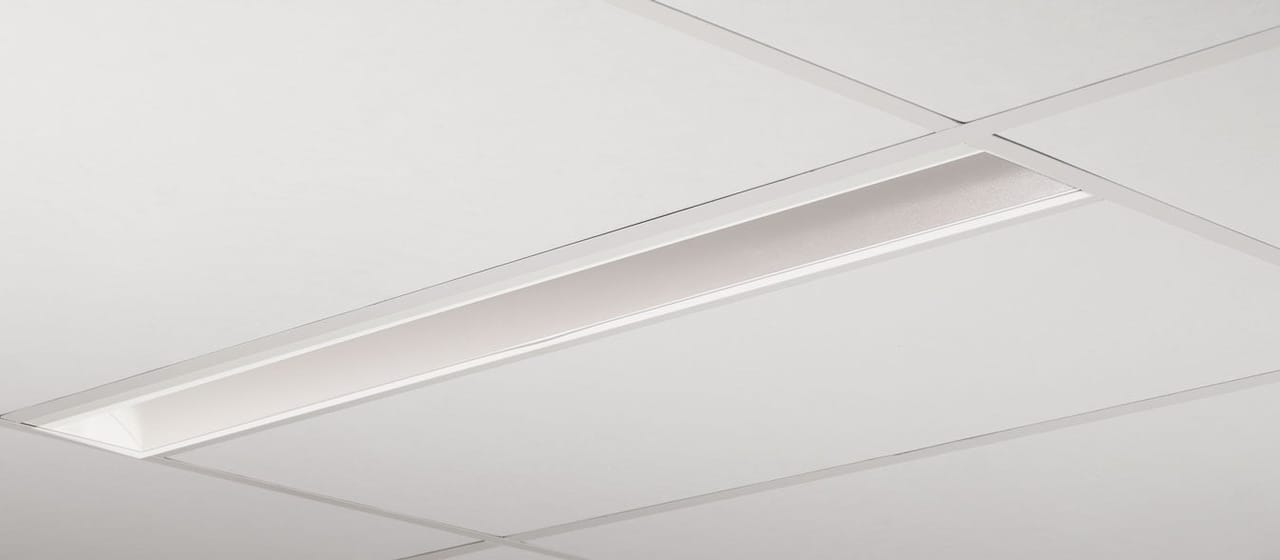

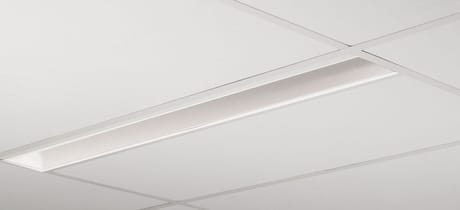

17489-402 Gondol LED
Documents
Specification
50Design
Module
1200
Light distribution
Asymmetrical
Colour
White
RAL
9016
Light data & performance
Lumen output
2702
CLO function active
Yes
CLO time, h
50000
lm/W
152
CCT, K
4000
CRI
80
SDCM
3
Melanopic DER
0.600
Lumen maintenance 50 000 h
L100
Lumen maintenance 75 000 h
L86
Lumen maintenance 100 000 h
L82
Lumen maintenance L100 B50, h
50000
LED driver, h/max failure %
100000/10
Energy class, LED module
C
Controls & connectivity
Light control
DALI/Phase-pulse
Driver brand
Tridonic
Power on last level
Yes
Corridor function
Yes
Switch control, max no.
25
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
Start W
18
End W
20
Average W
19
Stand by W
0.15
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
13
MCB B16A
22
MCB C10A
21
MCB C16A
36
THD, %
13
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.9
Dimensions
Length, mm
1192
Width, mm
142
Height, mm
50
Weight, kg
2.8
Dimensions
Light distribution
Gondol

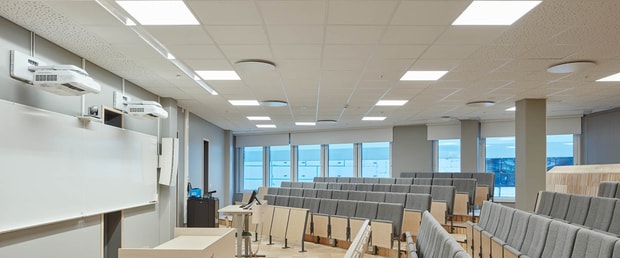

Gondol LED has been designed to light walls and other vertical surfaces. The luminaire creates even, glare-free, vertical lighting to achieve good visual comfort in accordance with the recommendations specified in EN 12464–1.
As ...
