Combilume Direct

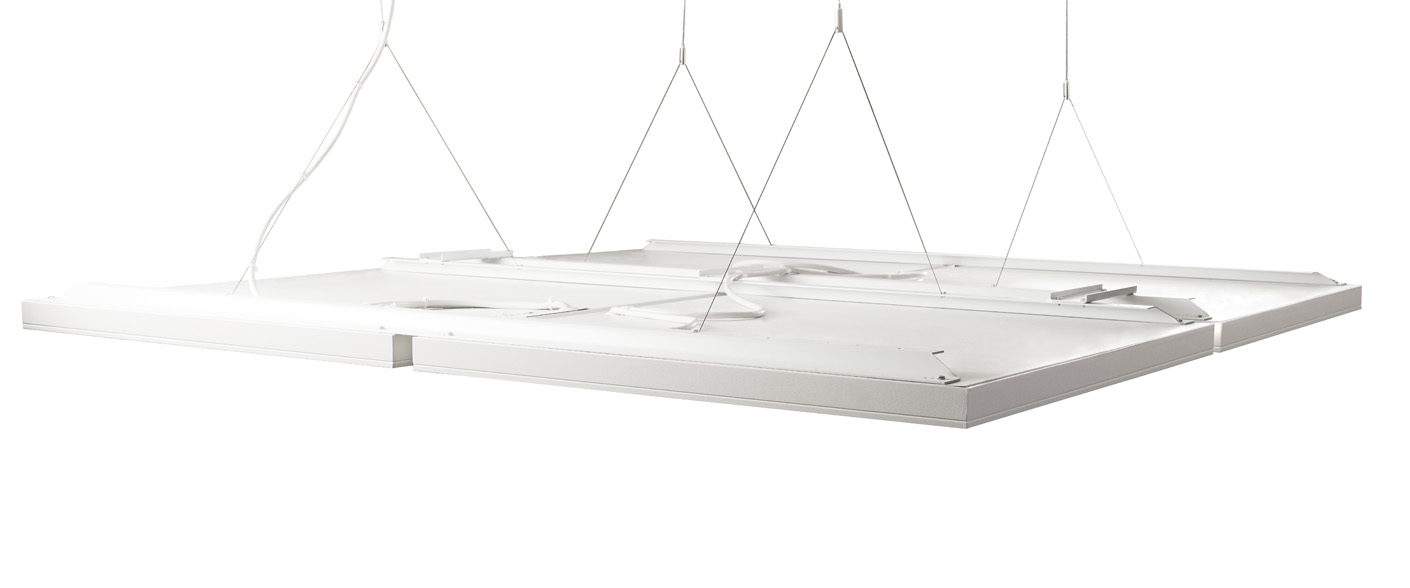

A suspended workplace luminaire with Opal or Delta louvres and side-emitting LEDs that produce direct light.

Installation

Wire suspended via friction locks secured to the luminaire. Wire suspension ordered separately, see Accessories.

Connection

Connections are made at the end of the luminaire, see the dimensional drawing. 5-way snap-in terminal block at one end of the luminaire, 1-phase through-wiring possible.

Design

Luminaire body of extruded aluminium in white (RAL 9016) or alu-grey (RAL 9006) textured enamel.

Louvre

Delta – microprism louvre in acrylic (PMMA) with good optical characteristics.
Opal – plate in frosted acrylic (PMMA).

Dimming

DALI/phase-pulse control as standard.

Miscellaneous

Combilume uses side emitting LED technology for a glare-free light.

Media

The luminaire's position can be easily adjusted via friction locks.

Combilume can be continuously mounted.

Combilume

Combilume is an inventive family of large surface area luminaires designed so you can develop imaginative light settings. Combilume is available in wall, ceiling or pendent versions, with direct or indirect light, in a number of...

More about the family Combilume

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light control
Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light control
12051-402 42 4520 4000 White 1218 Opal DALI/Phase-pulse
12052-402 44 4570 4000 White 660 Opal DALI/Phase-pulse
12054-402 45 4590 4000 White 1218 Delta DALI/Phase-pulse
12064-402 42 4520 4000 Alu grey 1218 Opal DALI/Phase-pulse
12065-402 44 4570 4000 Alu grey 660 Opal DALI/Phase-pulse
12067-402 45 4590 4000 Alu grey 1218 Delta DALI/Phase-pulse
12074-402 42 4430 3000 White 1218 Opal DALI/Phase-pulse
12075-402 44 4490 3000 White 660 Opal DALI/Phase-pulse
12077-402 45 4500 3000 White 1218 Delta DALI/Phase-pulse
12081-402 42 4430 3000 Alu grey 1218 Opal DALI/Phase-pulse
12082-402 44 4490 3000 Alu grey 660 Opal DALI/Phase-pulse
12084-402 45 4500 3000 Alu grey 1218 Delta DALI/Phase-pulse

Filter

Name Description Art.no.
Name Description Art.No.
Ceiling bracket in chrome with wireWire suspension with ceiling bracket in chrome, L=1.5 m/pair91696
Cluster connectorCluster connection for 4 pcs 600x600 luminaire91137
Continuous mounting couplerContinuous mounting coupler91136
CuttersCutters, each94248
Support rail (cat. no./pairL=600 mm, T-bars: 25/15, max load: 75 N/pair90017
Support rail (cat. no./pair)L=600/650, section: 15, max. load: 75N/pair90015
Support rail (cat. no./pair)L=200/1250, section: 15, max. load: 120/30N/pair90016
Support rail (cat. no./pair)L=600/625, section: 25, max. load: 75N/pair94067
Support rail (cat. no./pair)L=1200/1250, section: 25, max. load: 120/30N/pair94068
Wire suspension for continuous installation Small square ceiling cup/each96370
Wire suspension for continuous installation Large square ceiling cup/each96371
Wire suspension for continuous installation Small square ceiling cup for T-bars 25 mm/each96372
Wire suspension for continuous installation Large square ceiling cup for T-bars 25 mm/each96373
Wire suspension for continuous installation Small round ceiling cup/each96382
Wire suspension for continuous installation Large round ceiling cup/each96383
Wire suspension for continuous installation Small round ceiling cup for T-bars 25 mm/each96384
Wire suspension for continuous installation Large round ceiling cup for T-bars 25 mm/each96385
Wire suspension for continuous installation, 3x1.0 mm²Large square ceiling cup, white mains cable/each96374
Wire suspension for continuous installation, 3x1.0 mm²Large square ceiling cup for T-bars 25 mm, white mains cable/each96376
Wire suspension for continuous installation, 3x1.0 mm²Large square ceiling cup, transparent mains cable/each96378
Wire suspension for continuous installation, 3x1.0 mm²Large square ceiling cup for T-bars 25 mm, transparent mains cable/each96379
Wire suspension for continuous installation, 3x1.0 mm²Large round ceiling cup, white mains cable/each96386
Wire suspension for continuous installation, 3x1.0 mm²Large round ceiling cup for T-bars 25 mm, white mains cable/each96388
Wire suspension for continuous installation, 3x1.0 mm²Large round ceiling cup, transparent mains cable/each96390
Wire suspension for continuous installation, 3x1.0 mm²Large round ceiling cup for T-bars 25 mm, transparent mains cable/each96391
Wire suspension for continuous installation, 5x1.0 mm²Large square ceiling cup, white mains cable/each96375
Wire suspension for continuous installation, 5x1.0 mm²Large square ceiling cup for T-bars 25 mm, white mains cable/each96377
Wire suspension for continuous installation, 5x1.0 mm²Large square ceiling cup, transparent mains cable/each96380
Wire suspension for continuous installation, 5x1.0 mm²Large square ceiling cup for T-bars 25 mm, transparent mains cable/each96381
Wire suspension for continuous installation, 5x1.0 mm²Large round ceiling cup, white mains cable/each96387
Wire suspension for continuous installation, 5x1.0 mm²Large round ceiling cup for T-bars 25 mm, white mains cable/each96389
Wire suspension for continuous installation, 5x1.0 mm²Large round ceiling cup, transparent mains cable/each96392
Wire suspension for continuous installation, 5x1.0 mm²Large round ceiling cup for T-bars 25 mm, transparent mains cable/each96393
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – large, white mains cable (96383+96386)95350
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – large, transparent mains cable (96383+96390)95351
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388)95352
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391)95353
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – small + large, white mains cable (96382+96386)95354
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – small + large, transparent mains cable (96382+96390)95355
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388)95356
Wire suspension for single installation, 3x1.0 mm² Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391)95357
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – large, white mains cable (96371+96374)95358
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – large, transparent mains cable (96371+96378)95359
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376)95360
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379)95361
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – small + large, white mains cable (96370+96374)95362
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – small + large, transparent mains cable (96370+96378)95363
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376)95364
Wire suspension for single installation, 3x1.0 mm² Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379)95365
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – large, white mains cable (96383+96387)95366
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – large, transparent mains cable (96383+96392)95367
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389)95368
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393)95369
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – small + large, white mains cable (96382+96387)95370
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – small + large, transparent mains cable (96382+96392)95371
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389)95372
Wire suspension for single installation, 5x1.0 mm²Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393)95373
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – large, white mains cable (96371+96375)95374
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – large, transparent mains cable (96371+96380)95375
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377)95376
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381)95377
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – small + large, white mains cable (96370+96375)95378
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – small + large, transparent mains cable (96370+96380)95379
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377)95380
Wire suspension for single installation, 5x1.0 mm²Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381)95381
Wire suspension for support railsWire suspension for support rails 90015, 90016, 90017, 94052, 94067, 9406891426
