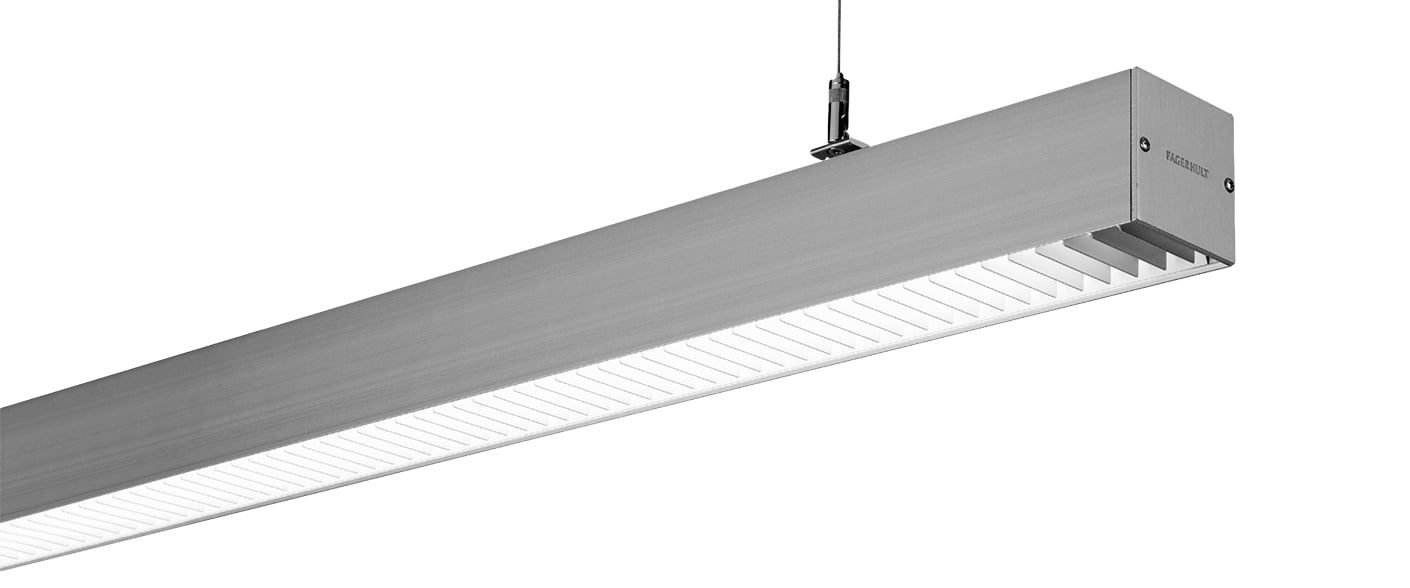

Notor T5 Direct Lamell

Installation
Designed for single or continuous installation using wire pendant and special loops that give flexible c/c spacing. Can also be wall mounted with special brackets, see Accessories.

Connection
The single luminaire is equipped with 2.4 m connection cable 3x1.5 mm². The luminaire unit is equipped with through-wiring cable (5x1.5 mm²) and a snap-in terminal block at each end. Luminaires for dimming, suffix -436 and -368, are delivered with 5-core. In a continuous installation the luminaire row should always begin with a start luminaire.

Design
Luminaire body in natural anodised, extruded aluminium finish.

Louvre
Lamell – lamell louvre in grey enamelled sheet steel.

Reflector
Lamell – reflector of metallised aluminium.

Light distribution
Symmetrical.

Emergency lighting
There is a unit with integrated emLED available for Notor T5, see Accessories.

Dimming
Most models can also be equipped with other ballasts for dimming.

Accessories
Installation fittings and supplementary details, see Accessories.

Designed by
Vesa Honkonen och Julle Oksanen.

Environment images


Детали


Single/connection luminaire.

Single/connection luminaire.

Wire suspension permits flexible c/c spacing within the length of the luminaire unit.

Wire suspension permits flexible c/c spacing within the length of the luminaire unit.

Выгрузить список продуктов

Документ добавлен

Документы

Text som beskriver tabellen
W Weight, kg Art.No.
FDH
Continuous
1x20/24 1.7 26912
1x21 2.0 26911
1x25/28 2.3 26913
1x32/35 2.6 26914
1x39 2.0 26915
1x45/49 2.6 26772
1x50/54 2.3 26916
1x73/80 2.6 26917
2x1x21 3.7 26931
2x1x25/28 4.3 26933
2x1x32/35 4.9 26934
2x1x39 3.7 26935
2x1x45/49 4.9 26773
2x1x50/54 4.3 26936
2x1x73/80 4.9 26937
Start/Single
1x20/24 1.7 26902
1x21 2.0 26901
1x25/28 2.3 26903
1x32/35 2.6 26904
1x39 2.0 26905
1x45/49 2.6 26770
1x50/54 2.3 26906
1x73/80 2.6 26907
2x1x21 3.7 26921
2x1x25/28 4.3 26923
2x1x32/35 4.9 26924
2x1x39 3.7 26925
2x1x45/49 4.9 26771
2x1x50/54 4.3 26926
2x1x73/80 4.9 26927
Text som beskriver tabellen
W Weight, kg Art.No.
FDH
Continuous
1x20/24 1.7 26912-368
1x21 2.0 26911-368
1x25/28 2.3 26913-368
1x32/35 2.6 26914-368
1x39 2.0 26915-368
1x45/49 2.6 26772-368
1x50/54 2.3 26916-368
1x73/80 2.6 26917-368
2x1x21 3.7 26931-368
2x1x25/28 4.3 26933-368
2x1x32/35 4.9 26934-368
2x1x39 3.7 26935-368
2x1x45/49 4.9 26773-368
2x1x50/54 4.3 26936-368
2x1x73/80 4.9 26937-368
Start/Single
1x20/24 1.7 26902-368
1x21 2.0 26901-368
1x25/28 2.3 26903-368
1x32/35 2.6 26904-368
1x39 2.0 26905-368
1x45/49 2.6 26770-368
1x50/54 2.3 26906-368
1x73/80 2.6 26907-368
2x1x21 3.7 26921-368
2x1x25/28 4.3 26923-368
2x1x32/35 4.9 26924-368
2x1x39 3.7 26925-368
2x1x45/49 4.9 26771-368
2x1x50/54 4.3 26926-368
2x1x73/80 4.9 26927-368
Text som beskriver tabellen
W Weight, kg Art.No.
FDH
Continuous
1x20/24 1.7 26912-436
1x21 2.0 26911-436
1x25/28 2.3 26913-436
1x32/35 2.6 26914-436
1x39 2.0 26915-436
1x45/49 2.6 26772-436
1x50/54 2.3 26916-436
1x73/80 2.6 26917-436
2x1x21 3.7 26931-436
2x1x25/28 4.3 26933-436
2x1x32/35 4.9 26934-436
2x1x39 3.7 26935-436
2x1x45/49 4.9 26773-436
2x1x50/54 4.3 26936-436
2x1x73/80 4.9 26937-436
Start/Single
1x20/24 1.7 26902-436
1x21 2.0 26901-436
1x25/28 2.3 26903-436
1x32/35 2.6 26904-436
1x39 2.0 26905-436
1x45/49 2.6 26770-436
1x50/54 2.3 26906-436
1x73/80 2.6 26907-436
2x1x21 3.7 26921-436
2x1x25/28 4.3 26923-436
2x1x32/35 4.9 26924-436
2x1x39 3.7 26925-436
2x1x45/49 4.9 26771-436
2x1x50/54 4.3 26926-436
2x1x73/80 4.9 26927-436

Alternating unit

Changes between direct and indirect luminaire.

Art.No.
Alternating unit, L=120 mm 92450

emLED-unit

emLED-unit, only in combination with HF-standard.

Art.No.
emLED-unit for direct lighting luminaire, L=210 mm 92466

End-cap

End-cap.

Art.No.
End-cap/each 92464

L-coupler

L-coupler for direct- and direct/indirect lighting luminaire, incl. wire lock

Art.No.
L-coupler left direct, direct/indirect 92453
L-coupler right direct, direct/indirect 92454

T-coupler for direct- and direct/indirect lighting luminaire

T-coupler for direct- and direct/indirect lighting luminaire, incl. wire lock

Art.No.
T-coupler connecting left direct 92457
T-coupler connecting right direct 92458
T-coupler connecting centre direct 92459

Wall bracket

Wall bracket for direct lighting luminaire. Used in combination with continuous luminaires. End-caps included.

Art.No.
Wall bracket with connection part (to the left) 92467
Wall bracket 92468

Wall socket

Art.No.
Wall socket 91962

Wire suspension bracket

Wire suspension bracket incl. wire lock (excl. wire).

Art.No.
Anodised / pair 91960

Wire suspension with bracket

Wire suspension with wire bracket L=1.5m with plastic ceiling cups Ø 57 mm

Art.No.
Wire suspension with alu wire bracket L=1.5 m, small ceiling cup, white/pair 91980
Wire suspension with alu wire bracket L=1.5 m, small ceiling cup for T-bars 25 mm, white/pair 91981
Wire suspension with alu wire bracket L=1.5 m, small ceiling cup, grey/pair 91982
Wire suspension with alu wire bracket L=1.5 m, small ceiling cup for T-bars 25 mm, grey/pair 91983

X-coupler

X-coupler for direct- and direct/indirect lighting luminaire, incl. wire lock

Art.No.
X-coupler for direct lighting luminaire 92451
Dimensions picture
Lamell

Lamell
