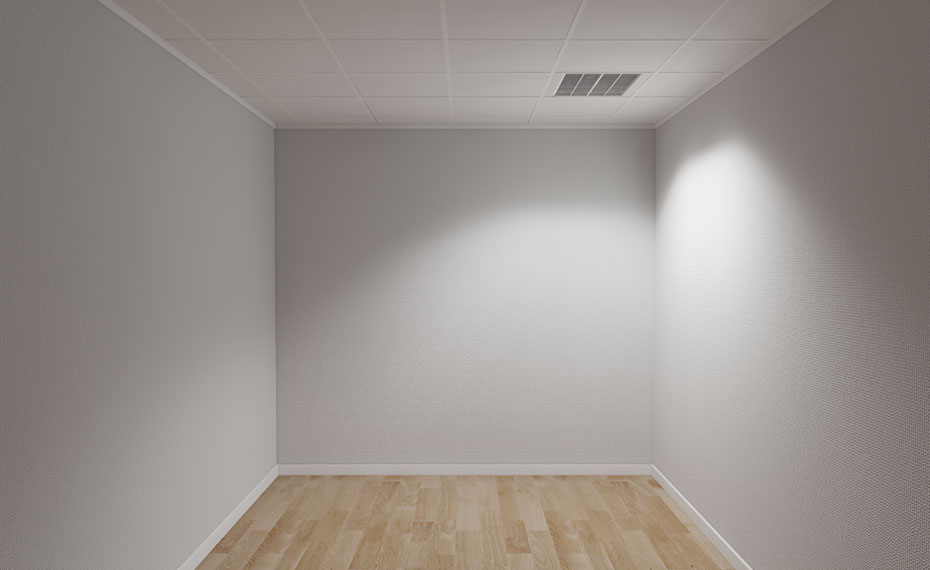

Recesso Beta Opti

A recessed luminaire for suspended ceilings with visible T-bars. Beta Opti louvres provide high efficiency and optimal lighting comfort.

Installation

Recessed mounting in suspended ceilings. Only for suspended ceilings with visible T-bars (15 or 25 mm).

Connection

Connection to snap-in terminal block 3-way or 5-way, 2,5 mm2. Can also be supplied with mains cable and earthed plug. Can also be equipped with the Wieland or Wago connection system.

Design

Body of white enamelled (RAL 9016) sheet steel. Openings along the entire body, outside the edge of the louvre for flow-through ventilation.

Louvre

Beta Opti – double parabolic side and cross reflectors in satin matt, metallized aluminium with ex-cellent reflective properties (>92 %), integrated into a single unit. Integrated in the unit, an acrylic (PMMA) diffuser film to create optimised light technology properties.The louvre in its standard design is equipped with protective foil over the light opening. The protective foil is easily removed after final cleaning/installation.

Recesso

Simplicity is not easy. Frequently it is the standard solutions that have to satisfy the most stringent requirements on economy and flexibility. Recesso has been optimised for recess mounting in suspended ceilings with visible...

More about the family Recesso

Document

Specification

Filter

Art.no. Lumen output CCT, K CRI Module Installation Connection Light control Miscellaneous
Art.no. Lumen output CCT, K CRI Module Installation Connection Light control Miscellaneous
25712 3850 3000 80 150x1200 VTB 1-cell
25712-111 3850 3000 80 150x1200 VTB Wieland GST18i3, 1 connector 1-cell
25712-3 3850 3000 80 150x1200 VTB Connection cable with plug, L=2.5 m 1-cell
25712-340 3850 3000 80 150x1200 VTB Wago Winsta, 1 connector 1-cell
25712-402 3850 3000 80 150x1200 VTB DALI/Phase-pulse 1-cell
25712-454 3850 3000 80 150x1200 VTB Wago Winsta, 1 connector DALI 1-cell
25712-456 3850 3000 80 150x1200 VTB Wieland GST18i5, 1 connector DALI 1-cell
25713 3940 4000 80 150x1200 VTB 1-cell
25713-111 3940 4000 80 150x1200 VTB Wieland GST18i3, 1 connector 1-cell
25713-3 3940 4000 80 150x1200 VTB Connection cable with plug, L=2.5 m 1-cell
25713-340 3940 4000 80 150x1200 VTB Wago Winsta, 1 connector 1-cell
25713-402 3940 4000 80 150x1200 VTB DALI/Phase-pulse 1-cell
25713-454 3940 4000 80 150x1200 VTB Wago Winsta, 1 connector DALI 1-cell
25713-456 3940 4000 80 150x1200 VTB Wieland GST18i5, 1 connector DALI 1-cell
25714 3850 3000 80 300x1200 VTB 1-cell
25714-111 3850 3000 80 300x1200 VTB Wieland GST18i3, 1 connector 1-cell
25714-3 3850 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m 1-cell
25714-340 3850 3000 80 300x1200 VTB Wago Winsta, 1 connector 1-cell
25714-402 3850 3000 80 300x1200 VTB DALI/Phase-pulse 1-cell
25714-454 3850 3000 80 300x1200 VTB Wago Winsta, 1 connector DALI 1-cell
25714-456 3850 3000 80 300x1200 VTB Wieland GST18i5, 1 connector DALI 1-cell
25715 3940 4000 80 300x1200 VTB 1-cell
25715-111 3940 4000 80 300x1200 VTB Wieland GST18i3, 1 connector 1-cell
25715-3 3940 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m 1-cell
25715-340 3940 4000 80 300x1200 VTB Wago Winsta, 1 connector 1-cell
25715-402 3940 4000 80 300x1200 VTB DALI/Phase-pulse 1-cell
25715-454 3940 4000 80 300x1200 VTB Wago Winsta, 1 connector DALI 1-cell
25715-456 3940 4000 80 300x1200 VTB Wieland GST18i5, 1 connector DALI 1-cell
25786 2940 3000 80 600x600 VTB 2-cell
25786-111 2940 3000 80 600x600 VTB Wieland GST18i3, 1 connector 2-cell
25786-3 2940 3000 80 600x600 VTB Connection cable with plug, L=2.5 m 2-cell
25786-340 2940 3000 80 600x600 VTB Wago Winsta, 1 connector 2-cell
25786-402 2940 3000 80 600x600 VTB DALI/Phase-pulse 2-cell
25786-454 2940 3000 80 600x600 VTB Wago Winsta, 1 connector DALI 2-cell
25786-456 2940 3000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 2-cell
25788 3001 4000 80 600x600 VTB 2-cell
25788-111 3001 4000 80 600x600 VTB Wieland GST18i3, 1 connector 2-cell
25788-3 3001 4000 80 600x600 VTB Connection cable with plug, L=2.5 m 2-cell
25788-340 3001 4000 80 600x600 VTB Wago Winsta, 1 connector 2-cell
25788-402 3001 4000 80 600x600 VTB DALI/Phase-pulse 2-cell
25788-454 3001 4000 80 600x600 VTB Wago Winsta, 1 connector DALI 2-cell
25788-456 3001 4000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 2-cell
25789 3900 3000 80 600x600 VTB 4-cell
25789-111 3900 3000 80 600x600 VTB Wieland GST18i3, 1 connector 4-cell
25789-3 3900 3000 80 600x600 VTB Connection cable with plug, L=2.5 m 4-cell
25789-340 3900 3000 80 600x600 VTB Wago Winsta, 1 connector 4-cell
25789-402 3900 3000 80 600x600 VTB DALI/Phase-pulse 4-cell
25789-454 3900 3000 80 600x600 VTB Wago Winsta, 1 connector DALI 4-cell
25789-456 3900 3000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 4-cell
25791 3950 4000 80 600x600 VTB 4-cell
25791-111 3950 4000 80 600x600 VTB Wieland GST18i3, 1 connector 4-cell
25791-3 3950 4000 80 600x600 VTB Connection cable with plug, L=2.5 m 4-cell
25791-340 3950 4000 80 600x600 VTB Wago Winsta, 1 connector 4-cell
25791-402 3950 4000 80 600x600 VTB DALI/Phase-pulse 4-cell
25791-454 3950 4000 80 600x600 VTB Wago Winsta, 1 connector DALI 4-cell
25791-456 3950 4000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 4-cell
25815 3851 3000 80 600x600 VTB 2-cell
25815-111 3851 3000 80 600x600 VTB Wieland GST18i3, 1 connector 2-cell
25815-3 3851 3000 80 600x600 VTB Connection cable with plug, L=2.5 m 2-cell
25815-340 3851 3000 80 600x600 VTB Wago Winsta, 1 connector 2-cell
25815-402 3851 3000 80 600x600 VTB DALI/Phase-pulse 2-cell
25815-454 3851 3000 80 600x600 VTB Wago Winsta, 1 connector DALI 2-cell
25815-456 3851 3000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 2-cell
25816 3931 4000 80 600x600 VTB 2-cell
25816-111 3931 4000 80 600x600 VTB Wieland GST18i3, 1 connector 2-cell
25816-3 3931 4000 80 600x600 VTB Connection cable with plug, L=2.5 m 2-cell
25816-340 3931 4000 80 600x600 VTB Wago Winsta, 1 connector 2-cell
25816-402 3931 4000 80 600x600 VTB DALI/Phase-pulse 2-cell
25816-454 3931 4000 80 600x600 VTB Wago Winsta, 1 connector DALI 2-cell
25816-456 3931 4000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 2-cell
25817 5442 3000 80 600x600 VTB 4-cell
25817-111 5442 3000 80 600x600 VTB Wieland GST18i3, 1 connector 4-cell
25817-3 5442 3000 80 600x600 VTB Connection cable with plug, L=2.5 m 4-cell
25817-340 5442 3000 80 600x600 VTB Wago Winsta, 1 connector 4-cell
25817-402 5442 3000 80 600x600 VTB DALI/Phase-pulse 4-cell
25817-454 5442 3000 80 600x600 VTB Wago Winsta, 1 connector DALI 4-cell
25817-456 5442 3000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 4-cell
25818 5512 4000 80 600x600 VTB 4-cell
25818-111 5512 4000 80 600x600 VTB Wieland GST18i3, 1 connector 4-cell
25818-3 5512 4000 80 600x600 VTB Connection cable with plug, L=2.5 m 4-cell
25818-340 5512 4000 80 600x600 VTB Wago Winsta, 1 connector 4-cell
25818-402 5512 4000 80 600x600 VTB DALI/Phase-pulse 4-cell
25818-454 5512 4000 80 600x600 VTB Wago Winsta, 1 connector DALI 4-cell
25818-456 5512 4000 80 600x600 VTB Wieland GST18i5, 1 connector DALI 4-cell

Filter

Name Description Art.No.
Name Description Art.No.
Connection cables, quick connection systemThrough wiring L=1.0 m with female and male connectors91791
Connection cables, quick connection systemThrough wiring L=3.0 m with female and male connectors91793
Wieland T-connectorWieland 3-way T-connector91025
Wieland T-connectorWieland 5-way T-connector91026

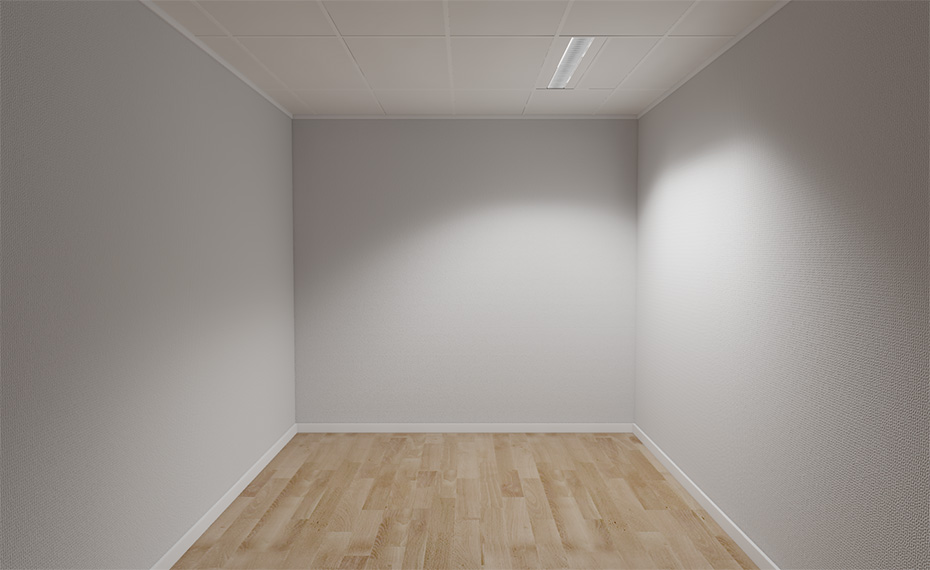

1-cell – 150x1200, 300x1200

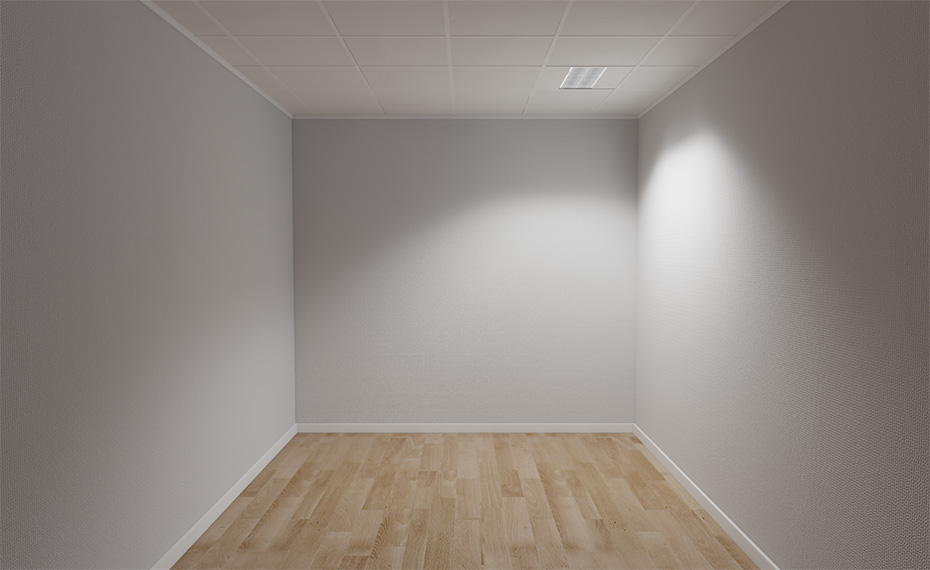

2-cells, 600x600

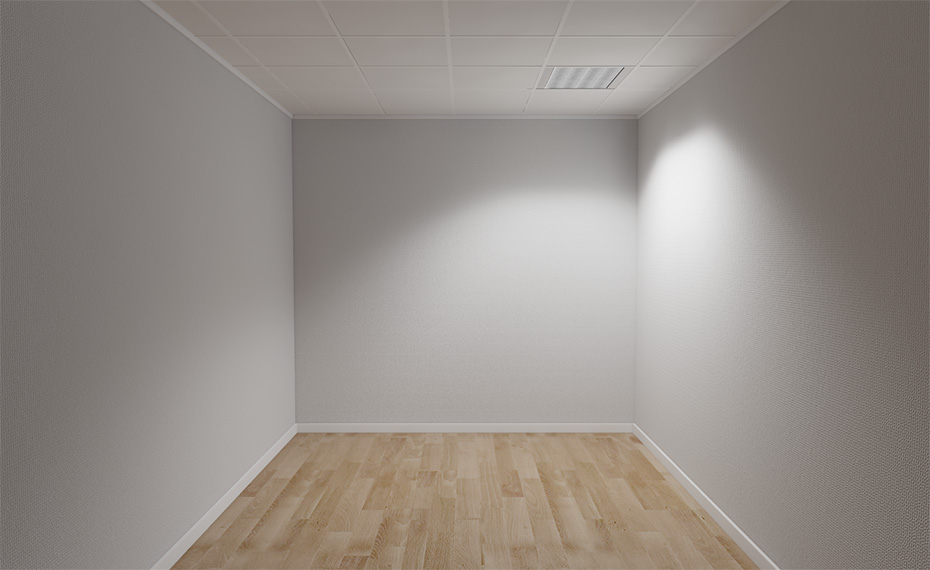

4 louvre cells, 600x600
