Lumiline

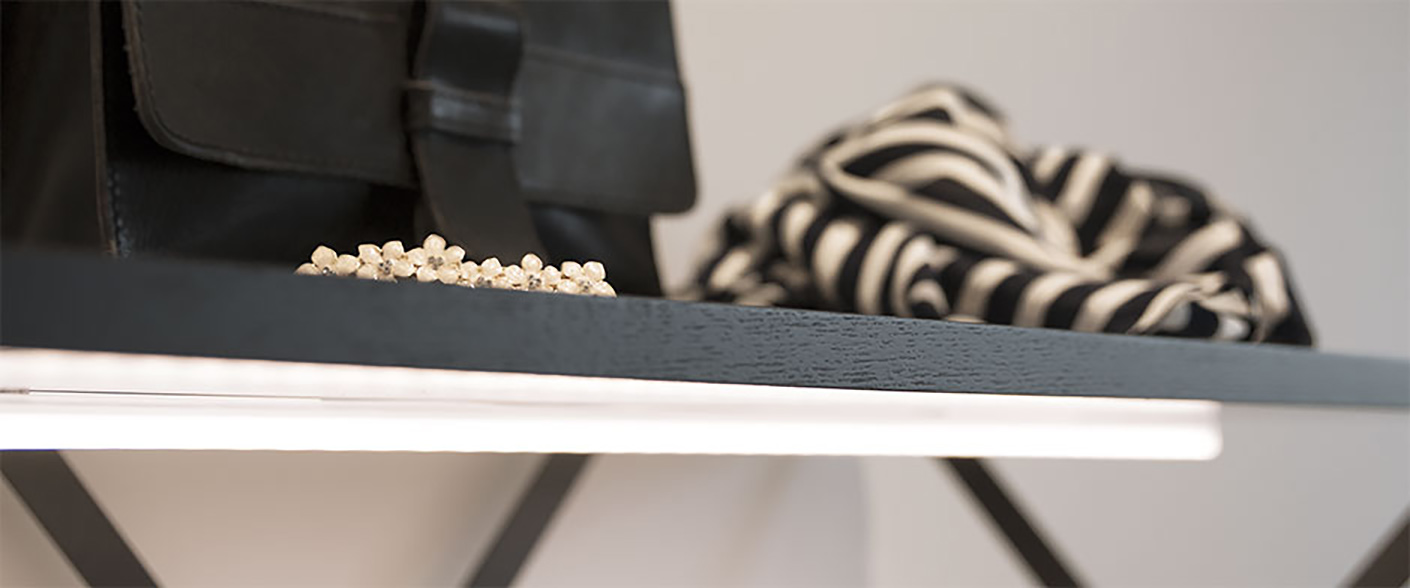

Let the light create the outline in the architecture. Lumiline is a discreet linear LED strip that opens up for a variety of imaginative lighting solutions – integrated in shelves, mirrors, stairs, corridors, wall interior or as a cove light giving atmosphere.

Installation

Luminaire with fixed installation with brackets. Wall, ground, ceiling. 3 pcs brackets (97932)/luminaire recommended.

Connection

Connection in remote LED driver 24V. Start cable 2,5 m connects in 6-way splitter on LED driver. Linking is possible via direct connector or 48 mm linking cable.

Design

Extruded aluminium profile with opalized diffusor.

Dimming

DALI driver available.

LED-information

3000 K and 4000 K: CRI 80, L70 50 000 h, MacAdam 3 SDCM.

Media

Choose between different lengths.

Lumiline

Let the light create the outline in the architecture. Lumiline is a discreet linear LED strip that opens up for a variety of imaginative lighting solutions – integrated in shelves, mirrors, stairs, corridors, wall interior or as...

More about the family Lumiline

Document

Specification

Filter

Art.no. Lumen output CCT, K Length, mm Colour Light distribution
Art.no. Lumen output CCT, K Length, mm Colour Light distribution
68340 466 3000 500 Opal/aluminium Flood
68341 708 3000 750 Opal/aluminium Flood
68342 931 3000 1000 Opal/aluminium Flood
68343 1170 3000 1250 Opal/aluminium Flood
68344 1395 3000 1500 Opal/aluminium Flood
68345 545 4000 500 Opal/aluminium Flood
68346 806 4000 750 Opal/aluminium Flood
68347 1083 4000 1000 Opal/aluminium Flood
68348 1364 4000 1250 Opal/aluminium Flood
68349 1618 4000 1500 Opal/aluminium Flood

Filter

Name Description Art.No.
Name Description Art.No.
Linking cableLinking cable 500mm96736
Linking cableLinking cable 48 mm97935
Quick connectorQuick connector (one-piece)97934
Starter cableStarter cable 2500 mm88866

750 mm, 3500 K
