Multilume Flat Delta

A recessed workplace luminaire in various sizes for most types of suspended ceilings. Delta louvres provide efficiency and optimal lighting comfort.

Installation

Recessed mounting in ventilated or unventilated suspended ceilings. Two optional designs.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm. 300x300 also for fixed suspended ceilings.

HB – for suspended ceiling with concealed T-bars/D-edge, symmetrical attachment of ceiling boards (20–22 mm thick). Supplement with fixing brackets for fixed suspended ceiling, see Accessories.

Connection

Connection in driver box. The driver box can be positioned next to the luminaire. Snap-in terminal block 3x1,5 mm² (5x1,5 mm² where dimming is required). Through-wiring possible (not 300x300).

Design

Luminaire body in white enamelled sheet steel (RAL 9016).

Louvre

Delta – microprism louvre in acrylic (PMMA) with a thin opal diffuser (acrylic/PMMA) on the inside (PMMA).

Dimming

e-Sense Organic – PIR sensor with presence and daylight control. All luminaires have master/slave functionality with IR communications.
e-Sense Tune – PIR sensor with presence, daylight control. Tunable White and dynamic light. Controlled with Bluetooth unit. RF communications for slaves.

Tunable white luminaries can also be equipped​ with e-Sense Tune or e-Sense Organic upon request.

Miscellaneous

Enclosure class IP 44 under suspended ceilings and IP 20 above suspended ceilings.
Luminaires with Tunable White (2700-6500 K) are equipped with DALI device Type 8 driver.

Class III applies to the luminaire body only. The supplied driver is Class II but should be connected to a functional Earth.

Media

Luminaire with integrated e-Sense Organic sensor node.

Multilume

Multilume is Fagerhult’s extensive family of LED luminaires for recessed mounting. Multilume’s balanced work and general lighting delivers excellent light ergonomics, constantly updated with the latest in LED technology....

More about the family Multilume

Document

Specification

Luminaires with Tunable White are listed with values for 4000 K.

Filter

Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection Miscellaneous
Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection Miscellaneous
23164 19 1634 3000 90 300x600 VTB
23164-3 19 1634 3000 90 300x600 VTB Connection cable with plug, L=2.5 m
23164-402 19 1634 3000 90 300x600 VTB DALI/Phase-pulse
23165 19 1757 4000 90 300x600 VTB
23165-3 19 1757 4000 90 300x600 VTB Connection cable with plug, L=2.5 m
23165-402 19 1757 4000 90 300x600 VTB DALI/Phase-pulse
23720 36 3408 3000 90 300x1200 VTB
23720-3 36 3408 3000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23720-402 36 3408 3000 90 300x1200 VTB DALI/Phase-pulse
23721 36 3665 4000 90 300x1200 VTB
23721-3 36 3665 4000 90 300x1200 VTB Connection cable with plug, L=2.5 m
23721-402 36 3665 4000 90 300x1200 VTB DALI/Phase-pulse
23783 36 3537 3000 90 600x600 VTB
23783-3 36 3537 3000 90 600x600 VTB Connection cable with plug, L=2.5 m
23783-402 36 3537 3000 90 600x600 VTB DALI/Phase-pulse
23784 36 3804 4000 90 600x600 VTB
23784-3 36 3804 4000 90 600x600 VTB Connection cable with plug, L=2.5 m
23784-402 36 3804 4000 90 600x600 VTB DALI/Phase-pulse
23786 24 2915 3000 80 600x600 VTB
23786-3 24 2915 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23786-402 24 2915 3000 80 600x600 VTB DALI/Phase-pulse
23788 24 2915 3000 80 600x600 HB
23788-3 24 2915 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23788-402 24 2915 3000 80 600x600 HB DALI/Phase-pulse
23790 24 3068 4000 80 600x600 VTB
23790-3 24 3068 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23790-402 24 3068 4000 80 600x600 VTB DALI/Phase-pulse
23792 24 3068 4000 80 600x600 HB
23792-3 24 3068 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23792-402 24 3068 4000 80 600x600 HB DALI/Phase-pulse
23803 55 4238 4000 80 600x600 VTB Tunable White
23803-477 55 4238 4000 80 600x600 VTB e-Sense Tune master Tunable White
23803-478 55 4238 4000 80 600x600 VTB e-Sense Tune slave Tunable White
23806 36 4407 3000 80 600x600 VTB
23806-3 36 4407 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23806-402 36 4407 3000 80 600x600 VTB DALI/Phase-pulse
23806-492 36 4407 3000 80 600x600 VTB e-Sense Organic
23808 36 4407 3000 80 600x600 HB
23808-3 36 4407 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23808-402 36 4407 3000 80 600x600 HB DALI/Phase-pulse
23810 36 4639 4000 80 600x600 VTB
23810-3 36 4639 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23810-402 36 4639 4000 80 600x600 VTB DALI/Phase-pulse
23810-492 36 4639 4000 80 600x600 VTB e-Sense Organic
23812 36 4639 4000 80 600x600 HB
23812-3 36 4639 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23812-402 36 4639 4000 80 600x600 HB DALI/Phase-pulse
23837 9 1006 3000 80 300x300 VTB
23837-3 9 1006 3000 80 300x300 VTB Connection cable with plug, L=2.5 m
23837-402 9 1006 3000 80 300x300 VTB DALI/Phase-pulse
23839 9 1056 4000 80 300x300 VTB
23839-3 9 1056 4000 80 300x300 VTB Connection cable with plug, L=2.5 m
23839-402 9 1056 4000 80 300x300 VTB DALI/Phase-pulse
23868 31 3851 3000 80 600x600 VTB
23868-3 31 3851 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23868-402 31 3851 3000 80 600x600 VTB DALI/Phase-pulse
23870 31 3851 3000 80 600x600 HB
23870-3 31 3851 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23870-402 31 3851 3000 80 600x600 HB DALI/Phase-pulse
23872 31 4054 4000 80 600x600 VTB
23872-3 31 4054 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23872-402 31 4054 4000 80 600x600 VTB DALI/Phase-pulse
23874 31 4054 4000 80 600x600 HB
23874-3 31 4054 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23874-402 31 4054 4000 80 600x600 HB DALI/Phase-pulse
23911 24 2769 3000 80 300x1200 VTB
23911-3 24 2769 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23911-402 24 2769 3000 80 300x1200 VTB DALI/Phase-pulse
23912 24 2914 4000 80 300x1200 VTB
23912-3 24 2914 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23912-402 24 2914 4000 80 300x1200 VTB DALI/Phase-pulse
23913 31 3667 3000 80 300x1200 VTB
23913-3 31 3667 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23913-402 31 3667 3000 80 300x1200 VTB DALI/Phase-pulse
23914 31 3886 4000 80 300x1200 VTB
23914-3 31 3886 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23914-402 31 3886 4000 80 300x1200 VTB DALI/Phase-pulse
23915 36 4246 3000 80 300x1200 VTB
23915-3 36 4246 3000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23915-402 36 4246 3000 80 300x1200 VTB DALI/Phase-pulse
23916 36 4469 4000 80 300x1200 VTB
23916-3 36 4469 4000 80 300x1200 VTB Connection cable with plug, L=2.5 m
23916-402 36 4469 4000 80 300x1200 VTB DALI/Phase-pulse
23919 19 2041 3000 80 300x600 VTB
23919-3 19 2041 3000 80 300x600 VTB Connection cable with plug, L=2.5 m
23919-402 19 2041 3000 80 300x600 VTB DALI/Phase-pulse
23921 19 2143 4000 80 300x600 VTB
23921-3 19 2143 4000 80 300x600 VTB Connection cable with plug, L=2.5 m
23921-402 19 2143 4000 80 300x600 VTB DALI/Phase-pulse

Filter

Nazwa Opis Art.no.
Name Description Art.No.
Control panels, LunatoneDALI Switch Cross86354
Décor plate, circularMultilume Flat/Multilume Slim décor plate, circular (only VTB)41793
e-Sense Organic Ethernet Gateway Kite-Sense Organic Ethernet Gateway Kit86285
e-Sense Organic Sensor Node Link Kite-Sense Organic Sensor Node Link Kit86286

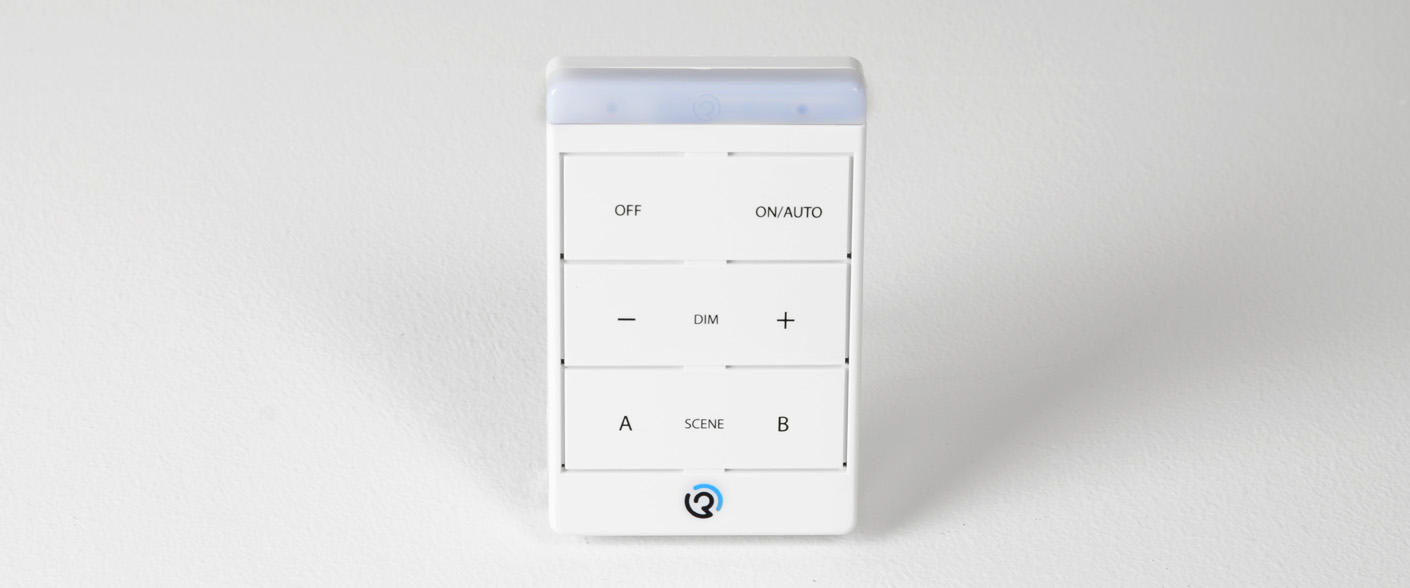

e-Sense Organic wall switch 2e-Sense Organic Wall Switch 2 (6 button)86284
External sensor incl. controller e-Sense OrganicExternal sensor incl. controller, recessed, 1 m cable86361
External sensor incl. controller e-Sense OrganicExternal sensor incl. controller, recessed, 3.2 m cable86362
External sensor incl. controller e-Sense OrganicExternal sensor incl. controller, suspended, 1 m cable86363
External sensor incl. controller e-Sense OrganicExternal sensor incl. controller, suspended, 3.2 m cable86364
External sensor incl. controller e-Sense OrganicExternal sensor incl. controller, tube installation 1 m cable86365
External sensor incl. controller e-Sense OrganicExternal sensor incl. controller, tube installation 3.2 m cable86366
Fixing bracketsFixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body). 91279
Input unit, TridonicDALI XC86132
Mounting plate Multilume FlatMounting plate (300x300)41949
