AllFive LED

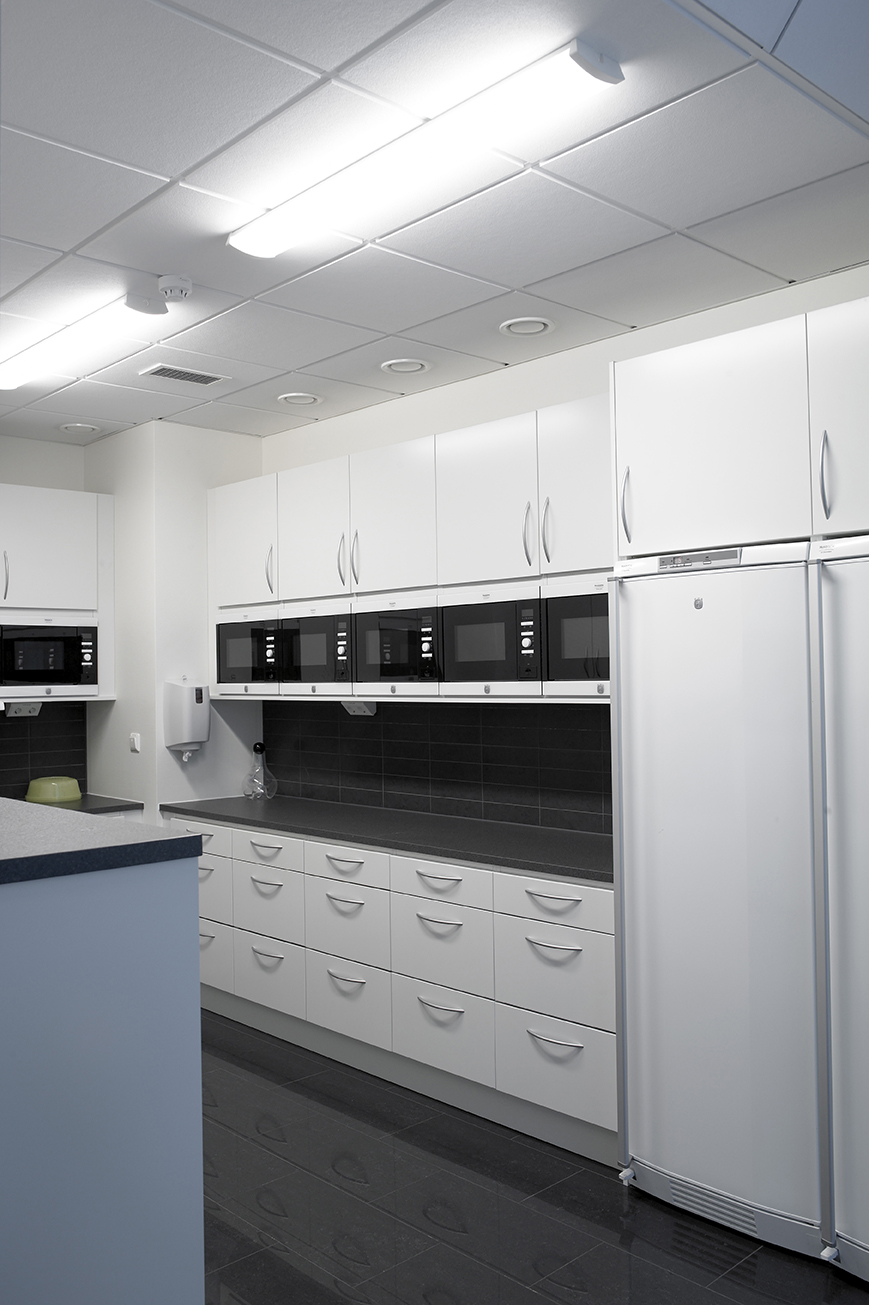

A universal luminaire, developed for industrial use with IP 44 to withstand moisture and mechanical stress. AllFive is just as suitable for garages and culverts as laundry rooms and kitchens.

Installation

Surface mounted, cable wire, wire suspension or on a wall. Installation using the seal supplied with the luminaire provides protection classification IP 44. With wall mounting or installation without seals the luminaire is classified IP 40.

Connection

Connects via 230 V, built-in LED driver. Four Ø 19 mm access holes with blanking grommets on top of the luminaire and one Ø 16 mm knock-out in each end. The centrally positioned snap-in terminal block 5x2.5 mm² provides through-wiring. The luminaire is also available with 5x1.5 mm² through-wiring and snap-in terminal blocks at each end (-34).

Design

Body in white enamelled, corrosion resistant aluzinc (RAL 9016). End-caps of ASA plastic.

Louvre

Clear cover of extruded acrylic plastic with prismatic underside and lined sides. Opal diffuser available as an accessory to place in clear cover, not suitable with additional number -219.

Dimming

e-Sense BrightSwitch – PIR sensors with lux threshold. Presence control on/off, alternatively absence dimming high/low.
e-Sense Detect – microwave sensors with lux threshold. Presence control on/off via relay or high/low, alternatively high/low/off via DALI.

e-Sense Move – microwave sensors with lux threshold. Presence control high/low/off. All luminaires have master/slave functionality with RF communications.

Miscellaneous

Luminaire 1200 mm has a switch for high/low flow. Always delivered set at low flow and need to be adjusted for high flow.

Media

Opal diffuser is available as an accessory to supplement the clear cover.

AllFive

AllFive is a universal luminaire which is just as suitable for garages and conduits as laundry rooms and kitchens. The neat and carefully thought-out design hides the fact that this is a luminaire which has been developed for...

More about the family AllFive

Document

Specification

Luminaire with opal diffuser provides approx. 15 % lower efficiency and luminous flux.

Filter

Art.no. Lumen output CCT, K Length, mm Colour Light control Miscellaneous
Art.no. Lumen output CCT, K Length, mm Colour Light control Miscellaneous
33506 4289 3000 1200 White
33506-34 4289 3000 1200 White Through-wiring 5x1.5 mm²
33506-402 4289 3000 1200 White DALI/Phase-pulse
33506-469 4289 3000 1200 White e-Sense Detect on/off
33506-495 4289 3000 1200 White e-Sense Detect DALI absence
33506-496 4289 3000 1200 White e-Sense Move DALI absence
33506-515 4289 3000 1200 White e-Sense BrightSwitch on/off
33507 4375 4000 1200 White
33507-34 4375 4000 1200 White Through-wiring 5x1.5 mm²
33507-402 4375 4000 1200 White DALI/Phase-pulse
33507-469 4375 4000 1200 White e-Sense Detect on/off
33507-495 4375 4000 1200 White e-Sense Detect DALI absence
33507-496 4375 4000 1200 White e-Sense Move DALI absence
33507-515 4375 4000 1200 White e-Sense BrightSwitch on/off
33508 6075 3000 1200 White
33508-34 6075 3000 1200 White Through-wiring 5x1.5 mm²
33508-402 6075 3000 1200 White DALI/Phase-pulse
33508-469 6075 3000 1200 White e-Sense Detect on/off
33508-495 6075 3000 1200 White e-Sense Detect DALI absence
33508-496 6075 3000 1200 White e-Sense Move DALI absence
33508-515 6075 3000 1200 White e-Sense BrightSwitch on/off
33509 6196 4000 1200 White
33509-34 6196 4000 1200 White Through-wiring 5x1.5 mm²
33509-402 6196 4000 1200 White DALI/Phase-pulse
33509-469 6196 4000 1200 White e-Sense Detect on/off
33509-495 6196 4000 1200 White e-Sense Detect DALI absence
33509-496 6196 4000 1200 White e-Sense Move DALI absence
33509-515 6196 4000 1200 White e-Sense BrightSwitch on/off
33511 2887 3000 600 White
33511-402 2887 3000 600 White DALI/Phase-pulse
33511-469 2887 3000 600 White e-Sense Detect on/off
33512 2946 4000 600 White
33512-402 2946 4000 600 White DALI/Phase-pulse
33512-469 2946 4000 600 White e-Sense Detect on/off

Filter

Name Description Art.No.
Name Description Art.No.

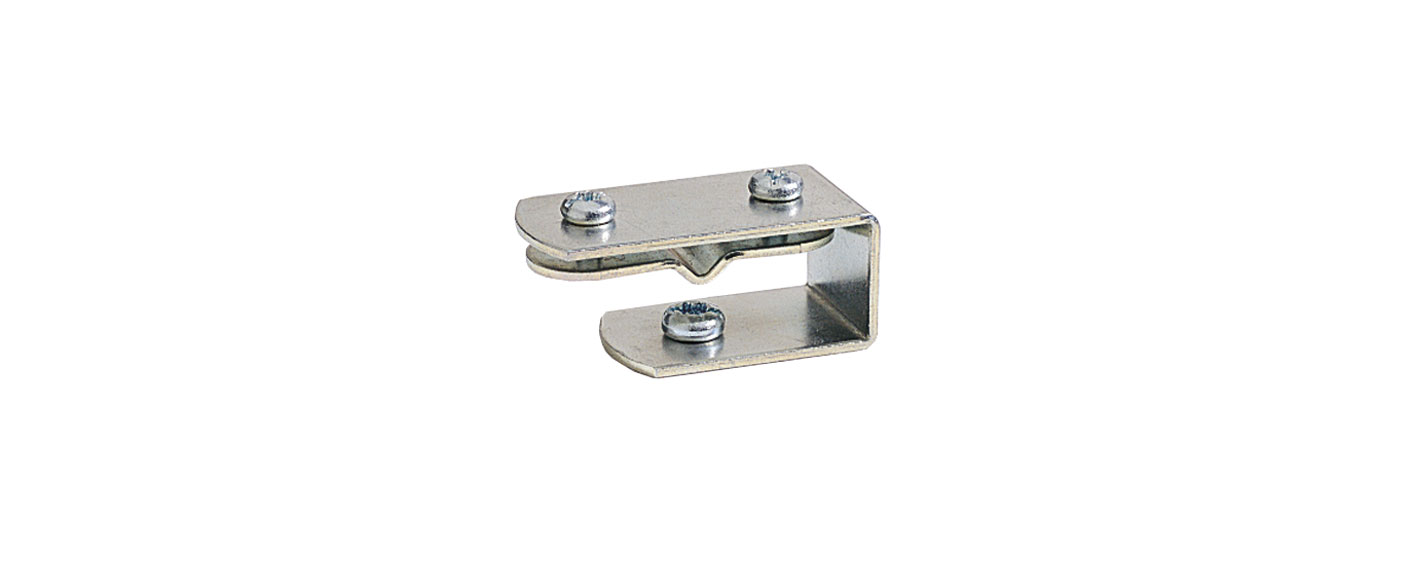

Cable wireCable wire bracket/pair91334
Opal diffuser AllFive LEDOpal diffuser 600 mm90308
Opal diffuser AllFive LEDOpal diffuser 1200 mm90309
Remote control e-Sense BrightSwitchRemote control86359

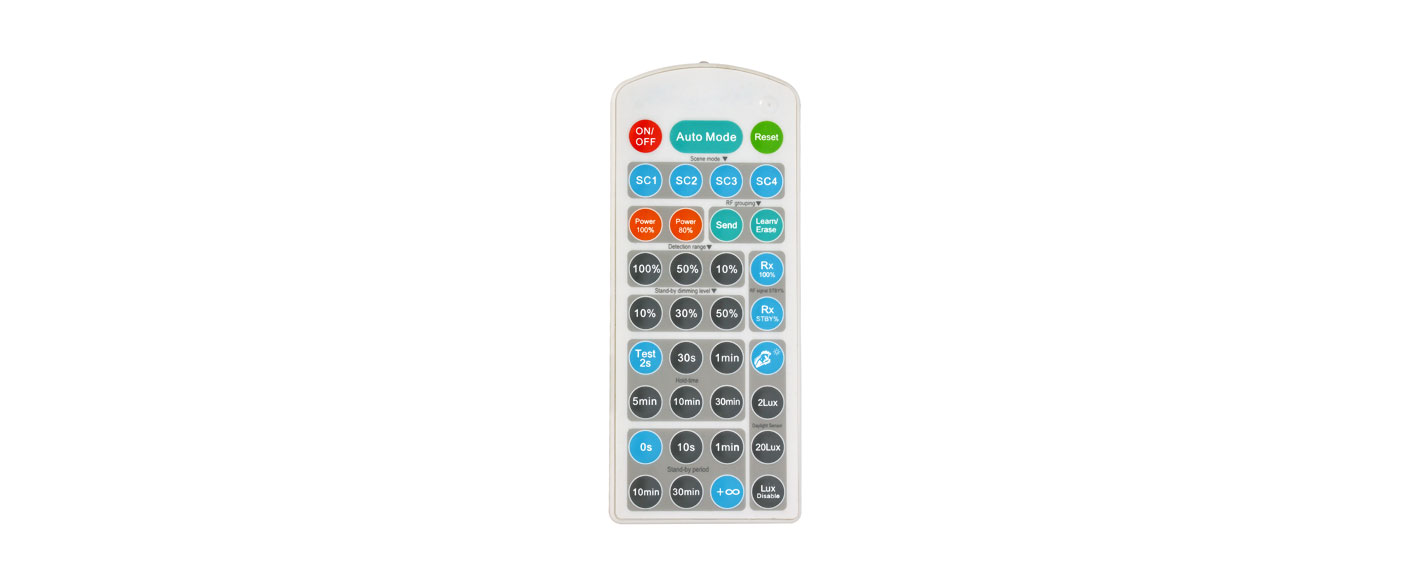

Remote control e-Sense Move DALIRemote control e-Sense Move DALI86305
Spare coverSpare cover 600 mm, AllFive LED90318
Spare coverSpare cover 1200 mm, AllFive LED90319
Wall bracketL=150 mm (apiece)91508
Wire suspensionWire suspension parallel wires incl. friction locks/pair 90305
