Zone Evo I Recessed G2

Montage

Encastré

Connexion

Driver fournis

Design

Corps en fonte d'aluminium, peinture poudrée noir (RAL 9017) ou blanc (RAL 9016). Bague frontale en plastique

Réflecteur

Réflecteur à lamelle en aluminium Miro, Spot, Medium et flood.

Modulation de l’éclairage

DALI, phase pulse control. 100-1 %.

Informations LED

3000 K: CRI 80 or 90, L80 B50 75 000 h, MacAdam 3 SDCM.
4000 K: CRI 80, L80 B50 75 000 h, MacAdam 3 SDCM.
Driver life-time up to 50 000 h/10 % (max failure).

Divers

Refroidissement passif pour toutes les versions

Media

Zone Evo G2

L'évolution change la perception des choses, et la famille Zone a évolué en plusieurs modèles. La nouvelle évolution "G2" est équipé avec un module LED jusqu'à 50 % plus efficace que le précèdent. Ce qui permet d'importantes...

Plus sur la famille Zone Evo G2

Document

Descriptif

Filtre

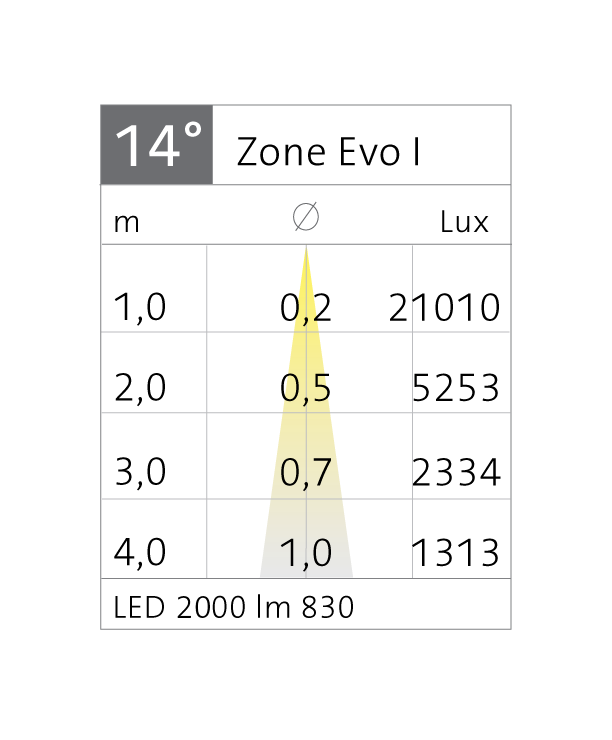

Code article W lm CCT, K CRI Couleur Distribution lumineuse Modulation de l’éclairage Montage Autres caractéristiques
Code article W lm CCT, K CRI Couleur Distribution lumineuse Modulation de l’éclairage Montage Autres caractéristiques
58123 12 1126 3000 80 Noir Spot, 14° DALI Encastré Including mounted standard/DALi driver
58123-3 12 1126 3000 80 Noir Spot, 14° DALI Encastré including mounted standard/DALi driver
58124 13 1457 3000 80 Noir Medium, 18° DALI Encastré including mounted standard/DALi driver
58125 13 1347 3000 80 Noir Flood, 31° DALI Encastré including mounted standard/DALi driver
58129 16 1147 3000 90 Noir Spot, 13° DALI Encastré including mounted standard/DALi driver
58129-3 16 1147 3000 90 Noir Spot, 13° DALI Encastré including mounted standard/DALi driver
58130 16 1109 3000 90 Noir Medium, 16° DALI Encastré including mounted standard/DALi driver
58130-3 16 1109 3000 90 Noir Medium, 16° DALI Encastré including mounted standard/DALi driver
58131 16 1067 3000 90 Noir Flood, 31° DALI Encastré including mounted standard/DALi driver
58131-3 16 1067 3000 90 Noir Flood, 31° DALI Encastré including mounted standard/DALi driver
58135 12 1219 4000 80 Noir Spot, 14° DALI Encastré including mounted standard/DALi driver
58135-3 12 1219 4000 80 Noir Spot, 14° DALI Encastré including mounted standard/DALi driver
58136 13 1274 4000 80 Noir Medium, 16° DALI Encastré including mounted standard/DALi driver
58136-3 13 1274 4000 80 Noir Medium, 16° DALI Encastré including mounted standard/DALi driver
58137 13 1217 4000 80 Noir Flood, 30° DALI Encastré including mounted standard/DALi driver
58137-3 13 1217 4000 80 Noir Flood, 30° DALI Encastré including mounted standard/DALi driver
58141 21 1900 3000 80 Noir Spot, 14° DALI Encastré including mounted DALI driver
58141-3 21 1900 3000 80 Noir Spot, 14° DALI Encastré including mounted DALI driver
58142 22 2324 3000 90 Noir Medium, 29° DALI Encastré including mounted DALI driver
58142-3 22 2324 3000 90 Noir Medium, 29° DALI Encastré including mounted DALI driver
58143 22 2269 3000 90 Noir Flood, 55° DALI Encastré including mounted DALI driver
58143-3 22 2269 3000 90 Noir Flood, 55° DALI Encastré including mounted DALI driver
58147 21 1834 3000 90 Noir Spot, 18° DALI Encastré including mounted DALI driver
58148 21 1820 3000 90 Noir Medium, 28° DALI Encastré including mounted DALI driver
58148-3 21 1820 3000 90 Noir Medium, 28° DALI Encastré including mounted DALI driver
58149 21 1755 3000 90 Noir Flood, 55° DALI Encastré including mounted DALI driver
58149-3 21 1755 3000 90 Noir Flood, 55° DALI Encastré including mounted DALI driver
58153 21 2041 4000 80 Noir Spot, 14° DALI Encastré including mounted DALI driver
58153-3 21 2041 4000 80 Noir Spot, 14° DALI Encastré including mounted DALI driver
58154 16 1803 4000 80 Noir Medium, 29° DALI Encastré including mounted DALI driver
58154-3 16 1803 4000 80 Noir Medium, 29° DALI Encastré including mounted DALI driver
58155 16 1722 4000 80 Noir Flood, 55° DALI Encastré including mounted DALI driver
58155-3 16 1722 4000 80 Noir Flood, 55° DALI Encastré including mounted DALI driver
58201 21 1900 3000 90 Noir Spot, 14° DALI Encastré including mounted standard driver
58201-3 21 1900 3000 90 Noir Spot, 14° DALI Encastré including mounted standard driver
58202 22 2324 3000 90 Noir Medium, 29° DALI Encastré including mounted standard driver
58202-3 22 2324 3000 90 Noir Medium, 29° DALI Encastré including mounted standard driver
58203 22 2269 3000 90 Noir Flood, 55° DALI Encastré including mounted standard driver
58203-3 16 1741 3000 90 Noir Flood, 55° DALI Encastré including mounted standard driver
58207 21 1834 3000 90 Noir Spot, 18° DALI Encastré including mounted standard driver
58208 21 1820 3000 90 Noir Medium, 28° DALI Encastré including mounted standard driver
58208-3 21 1820 3000 90 Noir Medium, 28° DALI Encastré including mounted standard driver
58209 21 1755 3000 90 Noir Flood, 55° DALI Encastré including mounted standard driver
58209-3 21 1755 3000 90 Noir Flood, 55° DALI Encastré including mounted standard driver
58210-3 21 2041 4000 80 Blanc Spot, 14° DALI Encastré including mounted standard driver
58213 21 2041 4000 80 Noir Spot, 14° DALI Encastré including mounted standard driver
58213-3 21 2041 4000 80 Noir Spot, 14° DALI Encastré including mounted standard driver
58214 16 1803 4000 80 Noir Medium, 29° DALI Encastré including mounted standard driver
58214-3 16 1803 4000 80 Noir Medium, 29° DALI Encastré including mounted standard driver
58215 16 1722 4000 80 Noir Flood, 55° DALI Encastré including mounted standard driver
58215-3 16 1722 4000 80 Noir Flood, 55° DALI Encastré including mounted standard driver

Filtre

Nom Description Art.no.
Name Description Art.No.
Baffle (enceinte acoustique)Baffle ring59937
Baffle (enceinte acoustique)Baffle ring 59938
BarndoorsBarndoors96864
BarndoorsBarndoors97225
Cap coneCap cone83546
Cap coneCap cone, white with inside in black96866-1000
Grille en nid d'abeilleHoneycomb, white ring, black grid96699
Plaque de montagePlaque de montage, double97135
Plaque décorativeDecor plate square 1 unit59933
Plaque décorativeDecor plate square 1 unit59934
Plaque décorativeDecor plate rectangular 2 units59935
Plaque décorativeDecor plate rectangular 2 units59936
