Supply ducting

Intended for supply of electricity and gas to hospital room panels. Aluminium channel supplied in requested lengths. White finish, inside and out.

Supply ducting provides the electricity and gas to Fagerhult’s hospital bedhead units. The ducting is designed in aluminium and can be supplied in the required lengths. As standard, the ducting is enamelled both internally and externally in white (RAL 9010). Supply ducting 17445 has three separate areas which are separated by fixed walls. Supply ducting 17446 and 17448 has two separate areas which are separated by fixed walls. For 17446 each area can be divided with inserts into three or four separate areas. For 17448 one of the areas can be divided with inserts into three separate areas. Supply ducting 17449 consists of just one channel. The cover is equipped with a cable for earthing between the cover and the bottom of the profile. There are accessories for the supply ducting, such as ends, spacers and 90° corners.

Media

17446

17449

Supply ducting

Supply ducting are intended for the supply of electricity and gas to Fagerhult’s hospital bedhead units. The ducting is designed in aluminium and can be supplied in the required lengths.

More about the family Supply ducting

Document

Specification

Filter

Art.no. Description
Art.no. Description

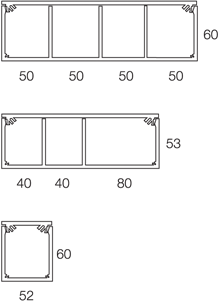

17445 3-gang, 160x53
17446 4-gang, 200x60
17448 3-gang, 160x40
17449 1-gang, 60x60
