Shine

A wall-mounted luminaire for lighting of among other things, mirrors in hygiene rooms or cloakrooms.

Installation

Horizontally on walls.

Connection

Connects with 230 V, built-in LED ballast. Connection via 2 blanking grommets Ø 16 mm at the rear of the luminaire or with surface mounted cables from above. Snap-in terminal block 3 x 2.5 mm².

Design

Cast-metal end caps and luminaire body of extruded aluminium in silver finish. Edge-lit clear prismatic acrylic diffuser (PMMA).

Dimming

e-Sense BrightSwitch – PIR sensors with lux threshold. Presence control on/off, alternatively absence dimming high/low.
NOTE! IP 21 with sensor.

Media

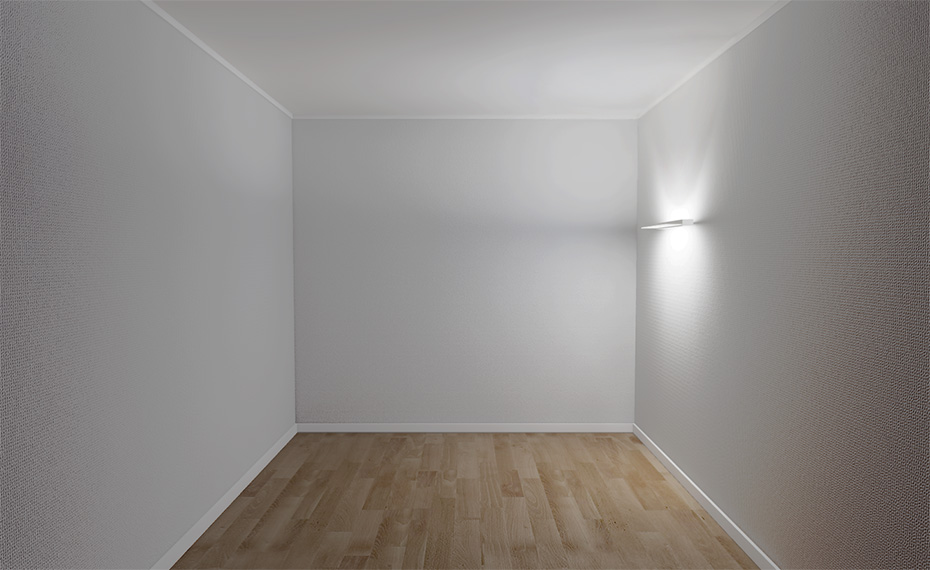

Transparent edge-lit diffuser that distributes the light in a pleasant manner.

Shine

Shine is a bathroom luminaire with a clean and neat design without visible screws. Placed over the bathroom mirror, Shine gives the impression of a neat bright disc that is almost growing out of the wall.  When the luminaire is...

More about the family Shine

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Length, mm Light control
Art.no. Effect, W Lumen output CCT, K Length, mm Light control
17300 15 925 3000 600
17300-515 15 925 3000 600 e-Sense BrightSwitch on/off
17301 15 1000 4000 600
17301-515 15 1000 4000 600 e-Sense BrightSwitch on/off
17302 23 1350 3000 900
17302-515 23 1350 3000 900 e-Sense BrightSwitch on/off
17303 23 1500 4000 900
17303-515 23 1500 4000 900 e-Sense BrightSwitch on/off

Filter

Name Description Art.no.
Name Description Art.No.
Remote control e-Sense BrightSwitchRemote control86359
