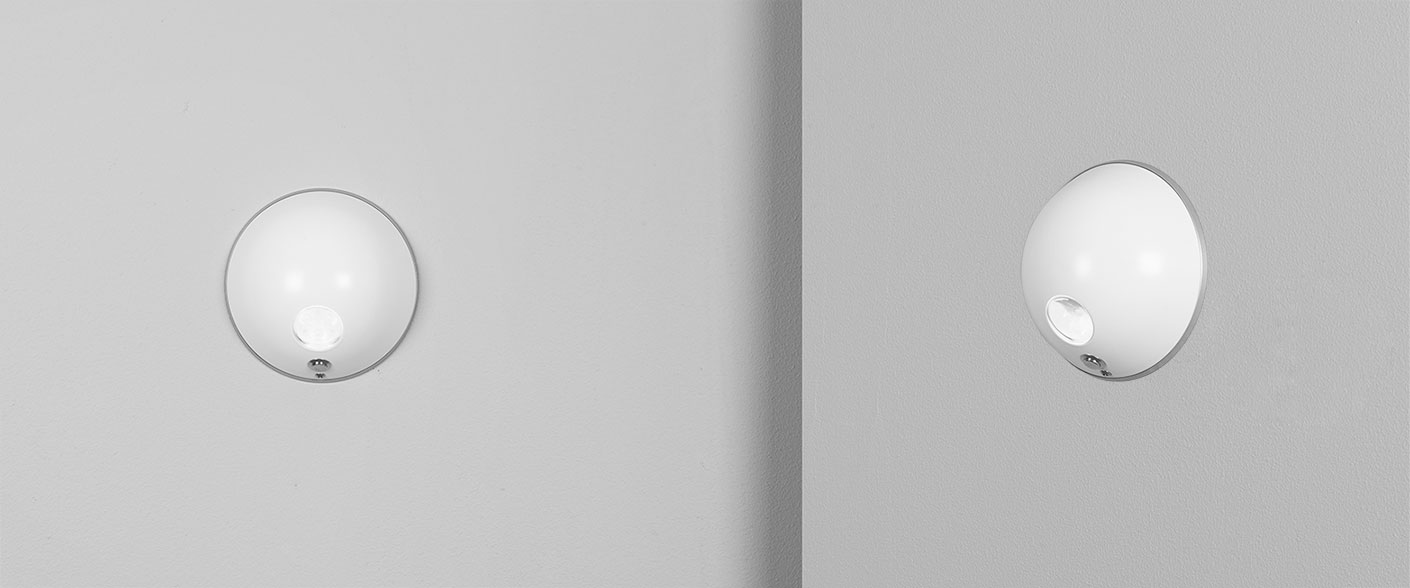

Robust reading luminaire LED

Cell bed luminaire LED is a security luminaire for exposed environments.

Installation
Luminaire for wall installation.

Connection
Connects with 230 V, built-in LED driver. Snap-in terminal block 3x2.5 mm².

Design
Natural anodised body in extruded aluminium. Casing of 1 mm white enamelled (RAL9016) aluminium. Pushbutton for off/on, safe against damage.

Optics
Curved lens in acrylic. Direction of light 45° downwards. Adjustable 30° in both directions.

Designed by
AART Designers

LED-information
2700 K: Ra (CRI) min. 85, L70 50 000 h, MacAdam 4 SDCM.

Environment images


Details


. Pushbutton for off/on, safe against damage.

. Pushbutton for off/on, safe against damage.

Adjustable 30° in both directions.

Adjustable 30° in both directions.

Marking of product sheet

Document added to your cart

Documents

Text som beskriver tabellen
W Weight, kg CCT (K) lm lm/W Art.No.
LED (system)
5 0.6 2700 257 51 56932
Dimensions picture
Polar diagram

Polar diagram
