PoleLITE

Installation
Luminaire for assembly on a post.

Connection
Supplied with 5 m connection cable (H05RN-F), 2x1 mm². Class II. DALI on request.

Design
Body of cast aluminium with high corrossion resistance. Clear safety glass, 8 mm. Stainless steel details. Silicone gaskets. UV- and weather resistant polyester powder paint.

Standard Colour
Alugrey (RAL 9006) -236. Anthracite grey (Gris 900 Sablé).

LED-information
3000/4000 K: Ra (CRI) min. 80. L70B20 50.000 h

Miscellaneous
PoleLITE is equipped with heat protection and is shut down at surrounding temperature reaching 110 °C.

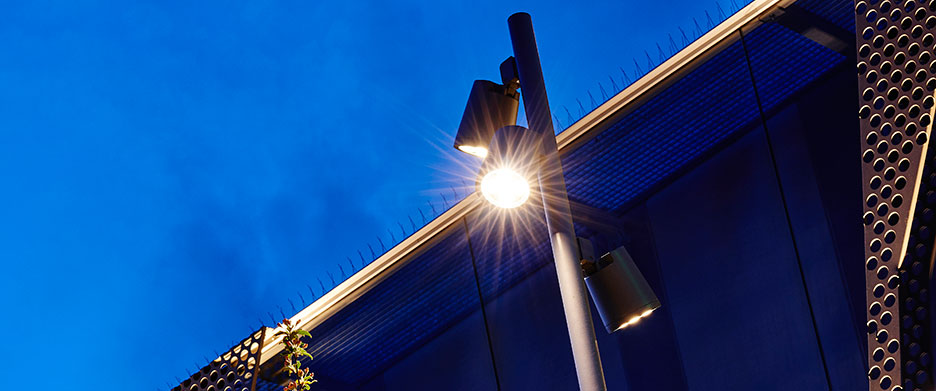

Environment images


Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Kg Length (mm) Colour CCT (K) Degrees (°) lm lm/W Art.No.
LED
16.7 2.3 153 Alu grey 3000 8 1033 62 305001-236
16.7 2.3 153 Anthracite grey 3000 8 1033 62 305001-329
16.7 2.3 153 Alu grey 4000 8 1033 62 305002-236
16.7 2.3 153 Anthracite grey 4000 8 1033 62 305002-329
16.7 2.3 153 Alu grey 3000 29 972 58 305003-236
16.7 2.3 153 Anthracite grey 3000 29 972 58 305003-329
16.7 2.3 153 Alu grey 4000 29 972 58 305004-236
16.7 2.3 153 Anthracite grey 4000 29 972 58 305004-329
16.7 2.3 153 Alu grey 3000 61 978 59 305005-236
16.7 2.3 153 Anthracite grey 3000 61 978 59 305005-329
16.7 2.3 153 Alu grey 4000 61 978 59 305006-236
16.7 2.3 153 Anthracite grey 4000 61 978 59 305006-329

Anti-glare shield PoleLITE

Art.No.
305000
Dimensions picture
61°

61°

8°

29°

29°
