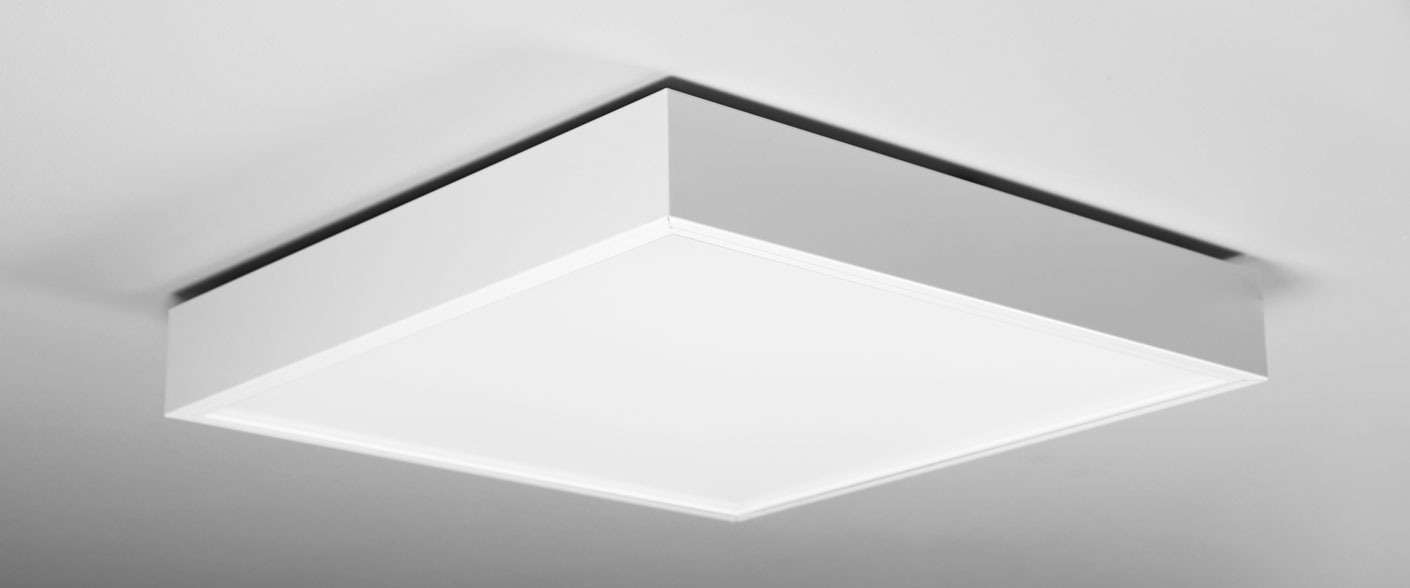

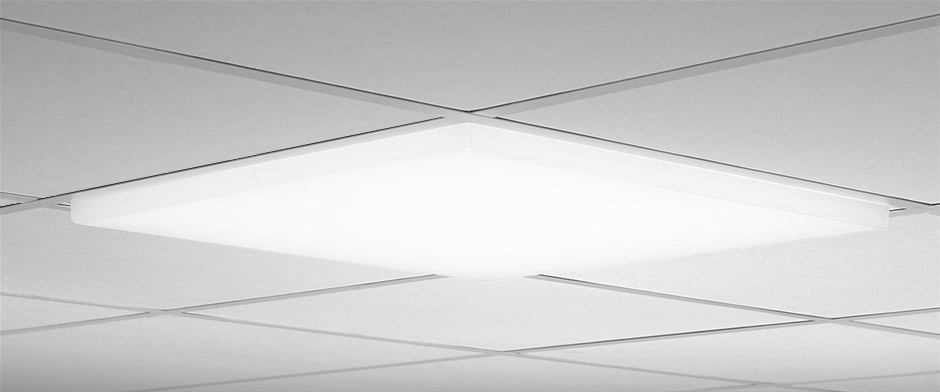

Multilume Edge

Installation

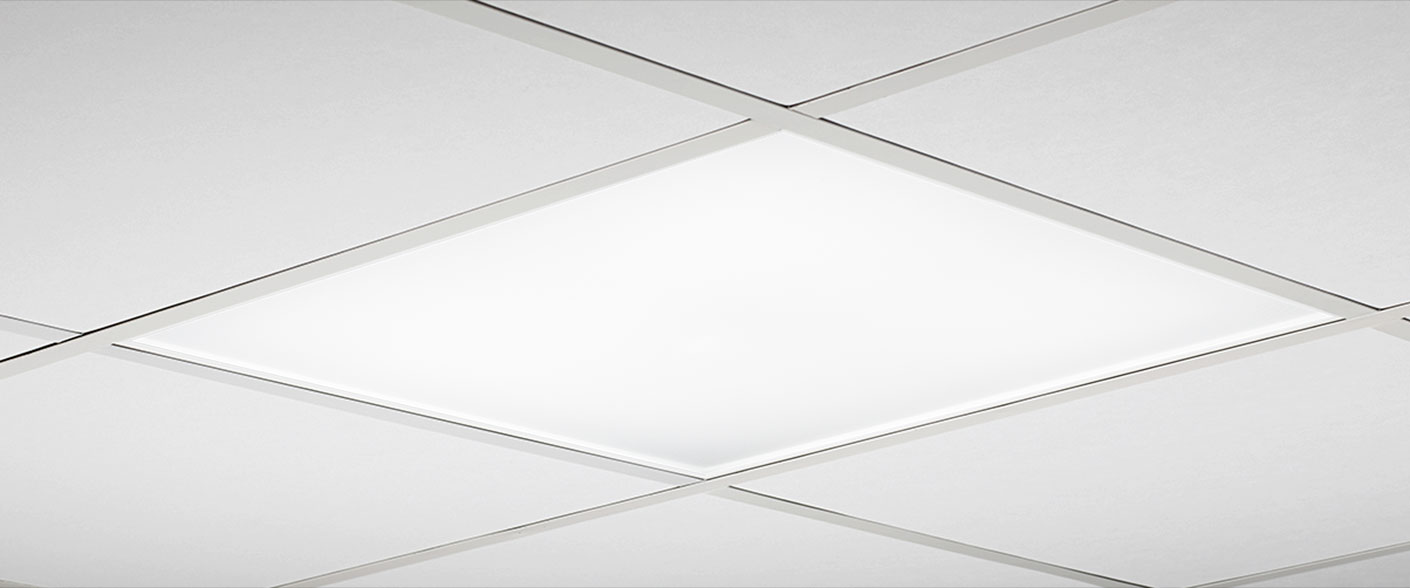

Recessed mounting in ventilated or unventilated suspended ceilings. Two optional designs.

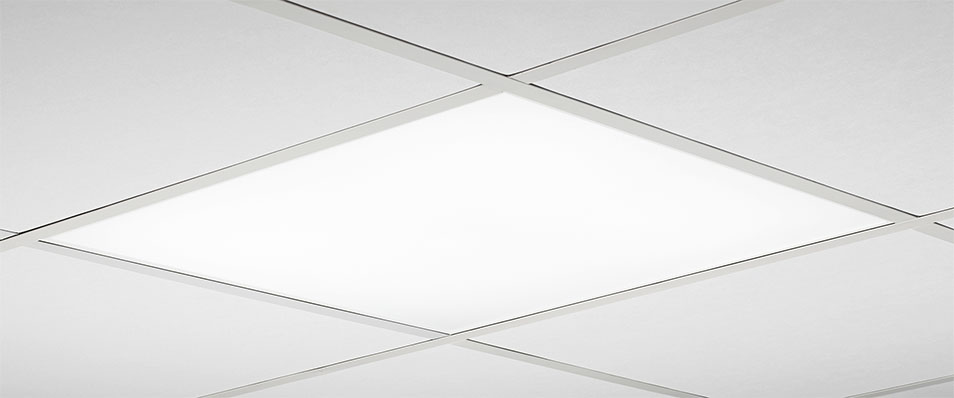

VTB – for suspended ceilings with visible T-bars 25 mm.
HB – for suspended ceiling with concealed T-bars. Supplement with fixing brackets for fixed suspended ceiling, see Accessories.

The luminaire must not be covered with insulation. For further details please refer to the assembly instructions on our website

Connection
nection in driver box. The driver box can be positioned next to the luminaire. Snap-in terminal block 3x1,5 mm² (5x1,5 mm² where dimming is required). Through-wiring possible.

Design
Luminaire body in white enamelled sheet steel (RAL 9016).

Louvre
Opal plate in frosted acrylic (PMMA).

LED-information
3000 K/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
Enclosure class IP 44 under suspended ceilings and IP 20 above suspended ceilings.

Environment images


Details


Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Module Weight, kg CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
24 600x600 5.0 3000 3418 142 L90B10 50.000 h 23859
24 600x600 5.0 4000 3598 150 L90B10 50.000 h 23861
31 600x600 5.0 3000 4557 147 L90B10 50.000 h 23895
31 600x600 5.0 4000 4797 155 L90B10 50.000 h 23897
36 600x600 5.0 3000 5241 146 L90B10 50.000 h 23863
36 600x600 5.0 4000 5517 153 L90B10 50.000 h 23865
Visible T-bars (VTB)
24 600x600 5.0 3000 3418 142 L90B10 50.000 h 23858
24 600x600 5.0 4000 3598 150 L90B10 50.000 h 23860
31 600x600 5.0 3000 4557 147 L90B10 50.000 h 23894
31 600x600 5.0 4000 4797 155 L90B10 50.000 h 23896
36 600x600 5.0 3000 5241 146 L90B10 50.000 h 23862
36 600x600 5.0 4000 5517 153 L90B10 50.000 h 23864
Text som beskriver tabellen
W Module Weight, kg CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
24 600x600 5.0 3000 3418 142 L90B10 50.000 h 23859-402
24 600x600 5.0 4000 3598 150 L90B10 50.000 h 23861-402
31 600x600 5.0 3000 4557 147 L90B10 50.000 h 23895-402
31 600x600 5.0 4000 4797 155 L90B10 50.000 h 23897-402
36 600x600 5.0 3000 5241 146 L90B10 50.000 h 23863-402
36 600x600 5.0 4000 5517 153 L90B10 50.000 h 23865-402
Visible T-bars (VTB)
24 600x600 5.0 3000 3418 142 L90B10 50.000 h 23858-402
24 600x600 5.0 4000 3598 150 L90B10 50.000 h 23860-402
31 600x600 5.0 3000 4557 147 L90B10 50.000 h 23894-402
31 600x600 5.0 4000 4797 155 L90B10 50.000 h 23896-402
36 600x600 5.0 3000 5241 146 L90B10 50.000 h 23862-402
36 600x600 5.0 4000 5517 153 L90B10 50.000 h 23864-402
Text som beskriver tabellen
W Module Weight, kg CCT (K) lm lm/W Useful life Art.No.
LED (system)
Concealed T-bars (HB)/D-edge, symmetrical attachment of ceiling boards
24 600x600 5.0 3000 3418 142 L90B10 50.000 h 23859-3
24 600x600 5.0 4000 3598 150 L90B10 50.000 h 23861-3
31 600x600 5.0 3000 4557 147 L90B10 50.000 h 23895-3
31 600x600 5.0 4000 4797 155 L90B10 50.000 h 23897-3
36 600x600 5.0 3000 5241 146 L90B10 50.000 h 23863-3
36 600x600 5.0 4000 5517 153 L90B10 50.000 h 23865-3
Visible T-bars (VTB)
24 600x600 5.0 3000 3418 142 L90B10 50.000 h 23858-3
24 600x600 5.0 4000 3598 150 L90B10 50.000 h 23860-3
31 600x600 5.0 3000 4557 147 L90B10 50.000 h 23894-3
31 600x600 5.0 4000 4797 155 L90B10 50.000 h 23896-3
36 600x600 5.0 3000 5241 146 L90B10 50.000 h 23862-3
36 600x600 5.0 4000 5517 153 L90B10 50.000 h 23864-3

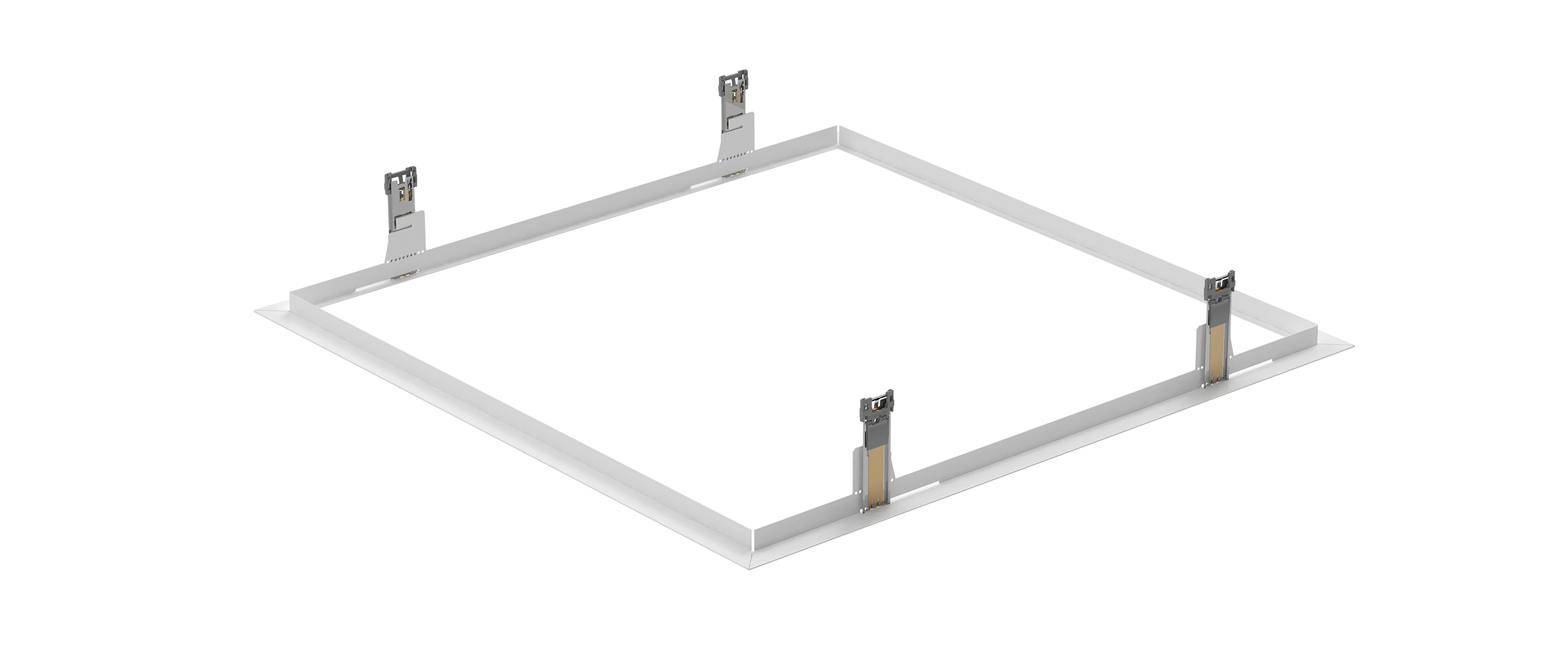

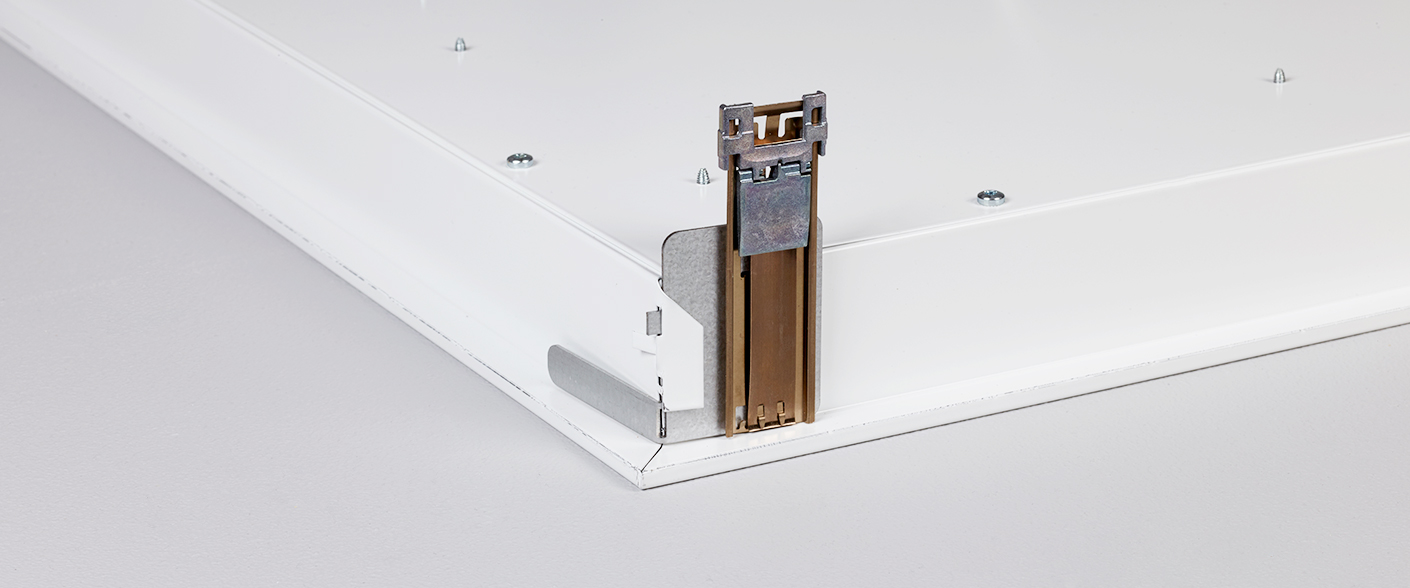

Fixing brackets

Art.No.
Fixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body). 91279
