Aqua

Aqua is a decorative luminaire for lighting, among others mirrors. Perfectly suited in hygienic areas, for example, at the office or in a hotel as well as in a cloakroom or corridor.

Installation
Horizontally or vertically mounted on a wall. Luminaire with socket outlet only for horizontal installation. Outlet module can be placed on the right or left-hand side.

Connection
Cable entries for recessed and surface mounted installation fitted with blanking grommets. Positioning see dimension chart. 3-way terminal block. LED luminaire connects via 230 V, built-in LED driver.

Design
Body of white finished polycarbonate. Self-closing cover on the outlet module.

Louvre
Diffuser of opal acrylic plastic. The diffuser can be fitted and removed without the use of tools.

Dimming
(-219) available with integrated e-Sense smartSWITCH sensor for occupancy detection on/off. Luminaire with sensor can power a further 1 luminaire. Note: IP 21 with sensor.

LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 4 SDCM.
Driver life-time: up to 50.000 h/10 % (max failure).

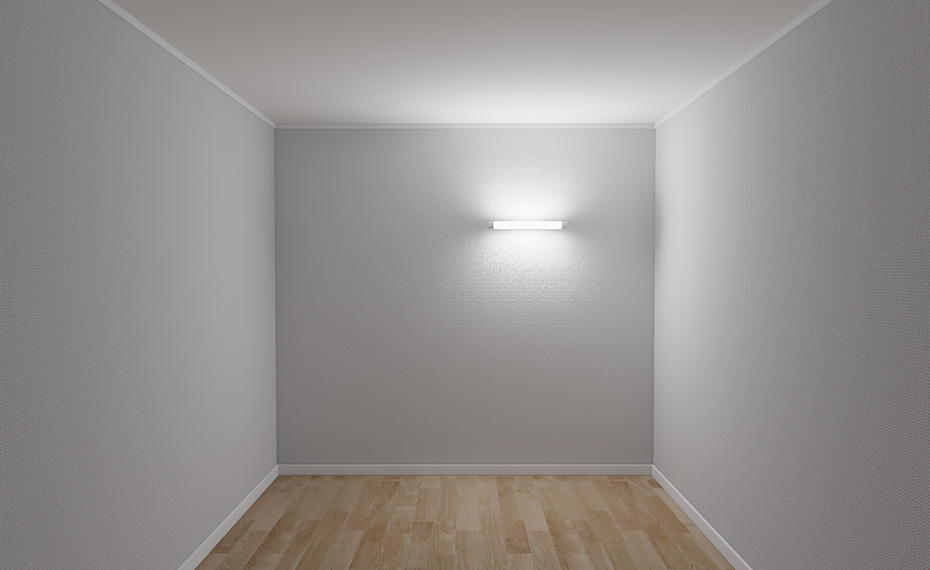

Environment images


Details


Aqua with an outlet socket.

Aqua with an outlet socket.

LED luminaire diffuser.

LED luminaire diffuser.

The diffuser is held in place by a sliding catch.

The diffuser is held in place by a sliding catch.

Available with integrated e-Sense smartSWITCH sensor for occupancy detection on/off.

Available with integrated e-Sense smartSWITCH sensor for occupancy detection on/off.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg CCT (K) lm lm/W Useful life Art.No.
LED (system)
With outlet socket
13 0.8 3000 1135 89 L70B50 75.000 h 17842
13 0.8 4000 1158 91 L70B50 75.000 h 17843
Without outlet socket
13 0.8 3000 1135 89 L70B50 75.000 h 17840
13 0.8 4000 1158 91 L70B50 75.000 h 17841
Text som beskriver tabellen
W Weight, kg CCT (K) lm lm/W Useful life Art.No.
LED (system)
Without outlet socket
13 0.8 3000 1135 89 L70B50 75.000 h 17840-402
13 0.8 4000 1158 91 L70B50 75.000 h 17841-402
Text som beskriver tabellen
W Weight, kg CCT (K) lm lm/W Useful life Art.No.
LED (system)
With outlet socket
13 0.8 3000 1135 89 L70B50 75.000 h 17842-219
13 0.8 4000 1158 91 L70B50 75.000 h 17843-219
Without outlet socket
13 0.8 3000 1135 89 L70B50 75.000 h 17840-219
13 0.8 4000 1158 91 L70B50 75.000 h 17841-219

Spare diffuser

Spare diffuser

Art.No.
Spare diffuser 94497
Dimensions picture
Light distribution

Application area
