AllFive LED

AllFive LED is an excellent choice for kitchens, bathrooms and other general areas and has been especially developed to withstand the damp.

Installation
Surface mounted, cable wire, wire suspension or on a wall. Installation using the seal supplied with the luminaire provides protection classification IP 44. With wall mounting or installation without seals the luminaire is classified IP40.

Connection
Connects via 230 V, built-in LED driver. Four Ø 19 mm access holes with blanking grommets on top of the luminaire and one Ø 16 mm knock-out in each end. The centrally positioned snap-in terminal block 5x2.5 mm² provides through-wiring. The luminaire is also available with 5x1.5 mm² through-wiring and snap-in terminal blocks at each end (-34).

Design
Body in white enamelled, corrosion resistant aluzinc (RAL 9016). End-caps of ASA plastic.

Louvre
Clear cover of extruded acrylic plastic with prismatic underside and lined sides. Opal diffuser available as an accessory to place in clear cover, not suitable with additional number -219.

Efficiency and luminous flux for luminaire with opal diffuser is shown in brackets in the article table.

Dimming
e-Sense Detect – microwave sensor for on/off function, or absence dimming with the option of switch-off function.

LED-information
3000 K/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
Luminaire 1200 mm has a switch for high/low flow. Always delivered set at low flow and need to be adjusted for high flow.

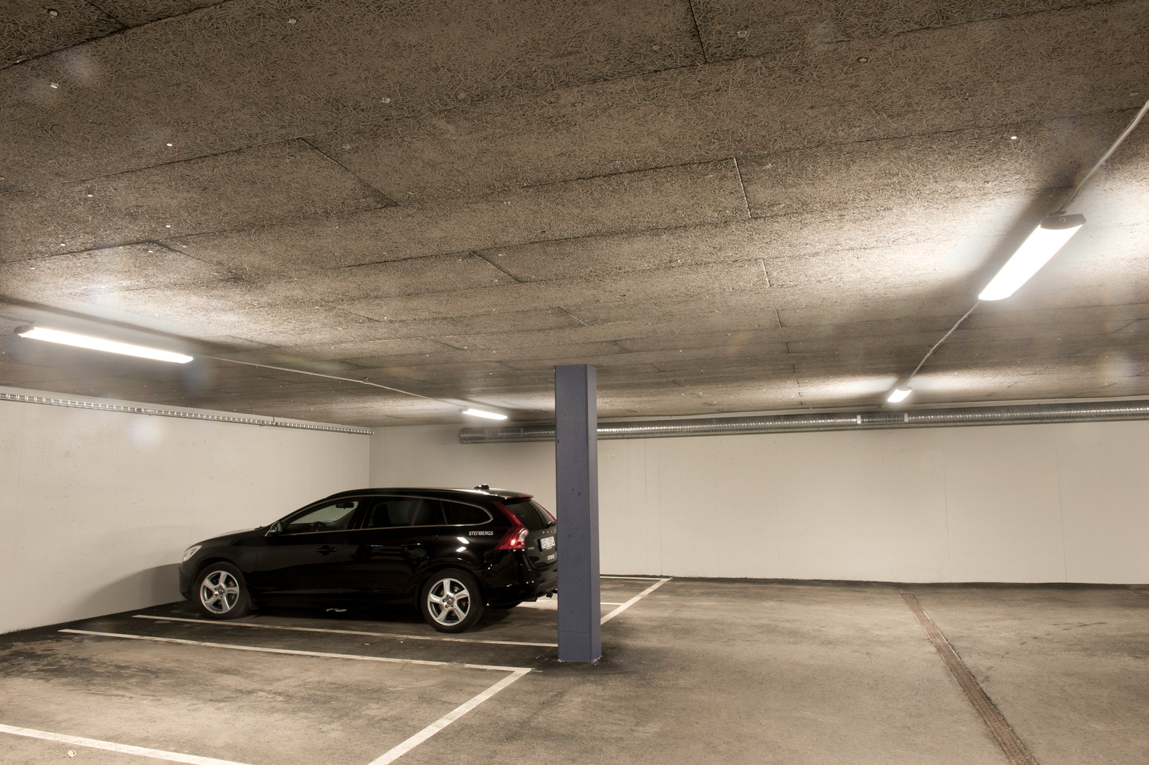

Environment images


Details


Opal diffuser is available as an accessory to supplement the clear cover.

Opal diffuser is available as an accessory to supplement the clear cover.

Opal diffuser.

Opal diffuser.

Marking of product sheet

Document added to your cart

Reference images



Kaubamaja – Food Department

Fewer luminaries – same light level


Spar, Sundvollen

Finding everyday items at Spar in Sundvollen

Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
23 1.3 600 3000 2887(2427) 126 (106) L80B50 100.000h 33511
23 1.3 600 4000 2946 (2477) 128 (108) L80B50 100.000h 33512
31 2.3 1200 3000 4289 (3740) 138 (121) L80B10 100.000h 33506
31 2.3 1200 4000 4375 (3815) 141 (123) L80B10 100.000h 33507
44 2.3 1200 3000 6075 (5288) 138 (120) L80B50 100.000h 33508
45 2.3 1200 4000 6196 (5393) 138 (120) L80B50 100.000h 33509
Through-wiring 5x1.5 mm²
31 2.3 1200 3000 4289 (3740) 138 (121) L80B10 100.000h 33506-34
31 2.3 1200 4000 4375 (3815) 141 (123) L80B10 100.000h 33507-34
44 2.3 1200 3000 6075 (5288) 138 (120) L80B50 100.000h 33508-34
45 2.3 1200 4000 6196 (5393) 138 (120) L80B50 100.000h 33509-34
Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
23 1.3 600 3000 2887(2427) 126 (106) L80B50 100.000h 33511-402
23 1.3 600 4000 2946 (2477) 128 (108) L80B50 100.000h 33512-402
31 2.3 1200 3000 4289 (3740) 138 (121) L80B10 100.000h 33506-402
31 2.3 1200 4000 4375 (3815) 141 (123) L80B10 100.000h 33507-402
44 2.3 1200 3000 6075 (5288) 138 (120) L80B50 100.000h 33508-402
45 2.3 1200 4000 6196 (5393) 138 (120) L80B50 100.000h 33509-402
Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
31 2.3 1200 3000 4289 (3740) 138 (121) L80B10 100.000h 33506-473
44 2.3 1200 3000 6075 (5288) 138 (120) L80B50 100.000h 33508-473
Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
31 2.3 1200 4000 4375 (3815) 141 (123) L80B10 100.000h 33507-495
45 2.3 1200 4000 6196 (5393) 138 (120) L80B50 100.000h 33509-495
Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
23 1.3 600 3000 2887(2427) 126 (106) L80B50 100.000h 33511-469
23 1.3 600 4000 2946 (2477) 128 (108) L80B50 100.000h 33512-469
31 2.3 1200 3000 4289 (3740) 138 (121) L80B10 100.000h 33506-469
31 2.3 1200 4000 4375 (3815) 141 (123) L80B10 100.000h 33507-469
44 2.3 1200 3000 6075 (5288) 138 (120) L80B50 100.000h 33508-469
45 2.3 1200 4000 6196 (5393) 138 (120) L80B50 100.000h 33509-469
Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
31 2.3 1200 3000 4289 (3740) 138 (121) L80B10 100.000h 33506-496
31 2.3 1200 4000 4375 (3815) 141 (123) L80B10 100.000h 33507-496
44 2.3 1200 3000 6075 (5288) 138 (120) L80B50 100.000h 33508-496
45 2.3 1200 4000 6196 (5393) 138 (120) L80B50 100.000h 33509-496
Text som beskriver tabellen
W Weight, kg Length, mm CCT (K) lm lm/W Useful life Art.No.
LED (system)
31 2.3 1200 3000 4289 (3740) 138 (121) L80B10 100.000h 33506-219
31 2.3 1200 4000 4375 (3815) 141 (123) L80B10 100.000h 33507-219
44 2.3 1200 3000 6075 (5288) 138 (120) L80B50 100.000h 33508-219
45 2.3 1200 4000 6196 (5393) 138 (120) L80B50 100.000h 33509-219

Cable wire

Cable wire. Made of zinc coated sheet steel.

Art.No.
Cable wire bracket/pair 91334

Ceiling bracket

Ceiling bracket, flexible c/c/pair

Art.No.
91213

iTrack connector, pendant

Art.No.
iTrack connector, pendant with 2,5 m cable, white 78244
Art.No.
78257

Opal diffuser AllFive LED

Art.No.
Opal diffuser 600 mm 90308
Opal diffuser 1200 mm 90309

Shelter bracket

Shelter bracket

Art.No.
91210

Spare cover

Spare cover

Art.No.
Spare cover 600 mm, AllFive LED 90318
Spare cover 1200 mm, AllFive LED 90319

Wall bracket

Wall bracket. White enamelled wall bracket 90°.

Art.No.
L=150 mm (apiece) 91508

Wire suspension

Wire suspension parallel wires incl. friction locks.

Art.No.
Wire suspension parallel wires incl. friction locks/pair 90305
Dimensions picture
Light distribution
Clear cover.

Clear cover.
