Challenge the norm – dare to use more light

Lighting is essential for visual tasks and helps maintain attention levels. By using luminaires that combine direct light on the work surfaces with an indirect light aimed towards the ceiling, a varying and appropriate concentration of light is distributed throughout the room.

This solution for classrooms is among the best – and is still an excellent choice. The room has a well-balanced combination of direct light at the work surface and ambient light against the walls and ceiling. The pendant luminaires efficiently distributes the light without glare.

To get high enough light levels, several luminaires in a row is recommended in the classroom. By having several daylight sensors, we can ensure that all students in the room gets enough light – while at the same time reducing energy consumption. To facilitate the teachers work the board is equipped with a separate lighting and the room can be equipped with pre programmed light scenarios.

Products

DTI type 2 Beta

Go to product

Lento

Whiteboard lighting adapted to meet modern demands on lighting. Compact size and with a design that makes Lento compatible with various furnishing styles.

Go to product

This lighting solution was used in our study in Helsingborg, and is the one that our research results are based on. The luminaires Indira Wallwasher and Indira Indirekt Wallwasher were mounted on an iTrack system which ran along the room’s four walls.

Indira Wallwasher provides vertical light directed at the front wall. Indira Indirekt Wallwasher is used along the room’s long sides where the luminaires distribute both vertical light on the walls and light up on the ceiling. If the furniture in the room is changed around regularly or it is used for practical-oriented teaching involving photography or handicrafts, Indira Wallwasher can also be mounted along the back wall to make the room “directionally independent”.

Feel free to compare the rendering with the traditional T5 solution above, which will show that Indira provides a much brighter room.

Products

Indira Indirect

A luminaire with an uplight function where the light is directed at the ceiling. Used as a supplement or mounted in a T solution for smaller classrooms. Using indirect light distribution, the whole room can be lit with no glare.

Go to product

Indira Indirect/Wallwasher

A luminaire with combined wallwasher and uplight function. Mounted in connection with the classroom’s side walls. Using indirect light distribution, the whole room can be lit with no glare.

Go to product

Indira Wallwasher

A luminaire where the light is directed at the wall. Mounted in connection with the classroom’s front and back walls. Using indirect light distribution, the whole room can be lit with no glare.

Go to product

Smaller classrooms up to six metres wide can be illuminated using Indira in a T solution. The iTrack rail mounted in a T formation using Indira Wallwasher directed at the front wall and Indira Indirekt in the middle. Indira Wallwasher provides vertical light on the front wall while Indira Indirekt lights the ceiling.

Products

Indira Indirect

A luminaire with an uplight function where the light is directed at the ceiling. Used as a supplement or mounted in a T solution for smaller classrooms. Using indirect light distribution, the whole room can be lit with no glare.

Go to product

Indira Wallwasher

A luminaire where the light is directed at the wall. Mounted in connection with the classroom’s front and back walls. Using indirect light distribution, the whole room can be lit with no glare.

Go to product

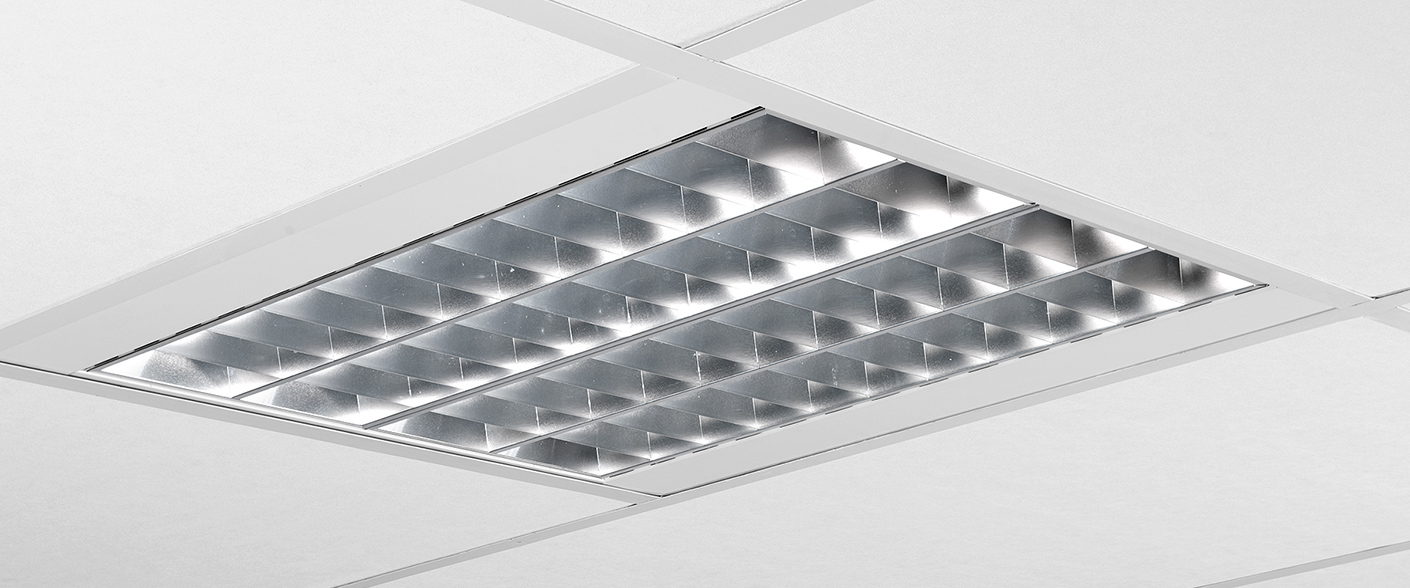

If you wish a ceiling with a cleaner look you can work with a recessed solution. Worth thinking about is that you should move out of the fixtures further out towards the walls to get more light on the walls. Even in this solution, it is important to supply board lighting without glare.

A recessed solution should also have installed lighting controls, such as an e-Sense solution to control the various rows of luminaire separately and also create different lighting scenes for different applications or AV light. Just as in all work areas a fitting without glare is recommended.

Tips

The standard EN 12464-1 now sets requirements in terms of lighting of ceilings and walls. At Fagerhult we believe this is a step in the right direction. But if you want to get the full benefit of light’s positive effects, you need more light than what the legislation requires.

Higher levels of ambient light increase alertness and improve performance

Lighting is essential for visual tasks and helps maintain attention levels. Few pupils spend their day staring down at the desk; frequent interaction with the teacher, fellow students and the teaching surface (whiteboard, chalkboard or interactive screen) mean that their gaze is moving around the room and their focus constantly changing. Often the contrasts between the lighting of the work surfaces, walls and the ceiling tire or strain the eye.

Read about the research

More light on ceiling and walls

By using luminaires that combine direct light on the work surfaces with an indirect light aimed towards the ceiling, a varying and appropriate concentration of light is distributed throughout the room. Vertical light on the wall, 300 lx, provides good ambient light. Indirect light on the ceiling, 300 lx, also provides good ambient light and students who are more alert and perform better.

Light on the work surface

Direct light from the luminaires always gives 500 lx on the table, to make the visual task easier. For reading, uniformity of light is important whereas practical and intricate tasks require high levels of light.

Lighting of the whiteboard

To ensure what is written or displayed on the whiteboard is easy to read, the standard requires a minimum illuminance of 500 lux. The lighting shall be adjustable.

Cylindrical illuminance (in rooms with demands of good visual communication)

Cylindrical illuminance especially affects visual communication and the ability to interpret faces, events and objects. The standard requires a minimum illuminance of 150 lx in rooms with demands of good visual communication.

Adjust lighting after task

The colour rendering properties of the light source are significant when working with design and colour. The colour rendering in general should be at least Ra 80, although for photography this value may need to rise to Ra 90.

Avoid glare

The luminaires must be suitable for work at monitors, and avoid glare and veiling reflections. Young people need less light than older people in order to perform the same tasks. As we age, our sensitivity to glare also increases, therefore more light may be needed for adult education classrooms.

Light control

Fagerhult’s wireless e-Sense Connect lighting control system has been developed for professional installation in educational establishments. The installation and user functions focus on simplicity.

Read more about e-Sense Connect

A daylight and presence detector in every row of luminaires adjusts the lighting for all areas of the space. When everyone has left the room, the light switches off and is reset automatically.
