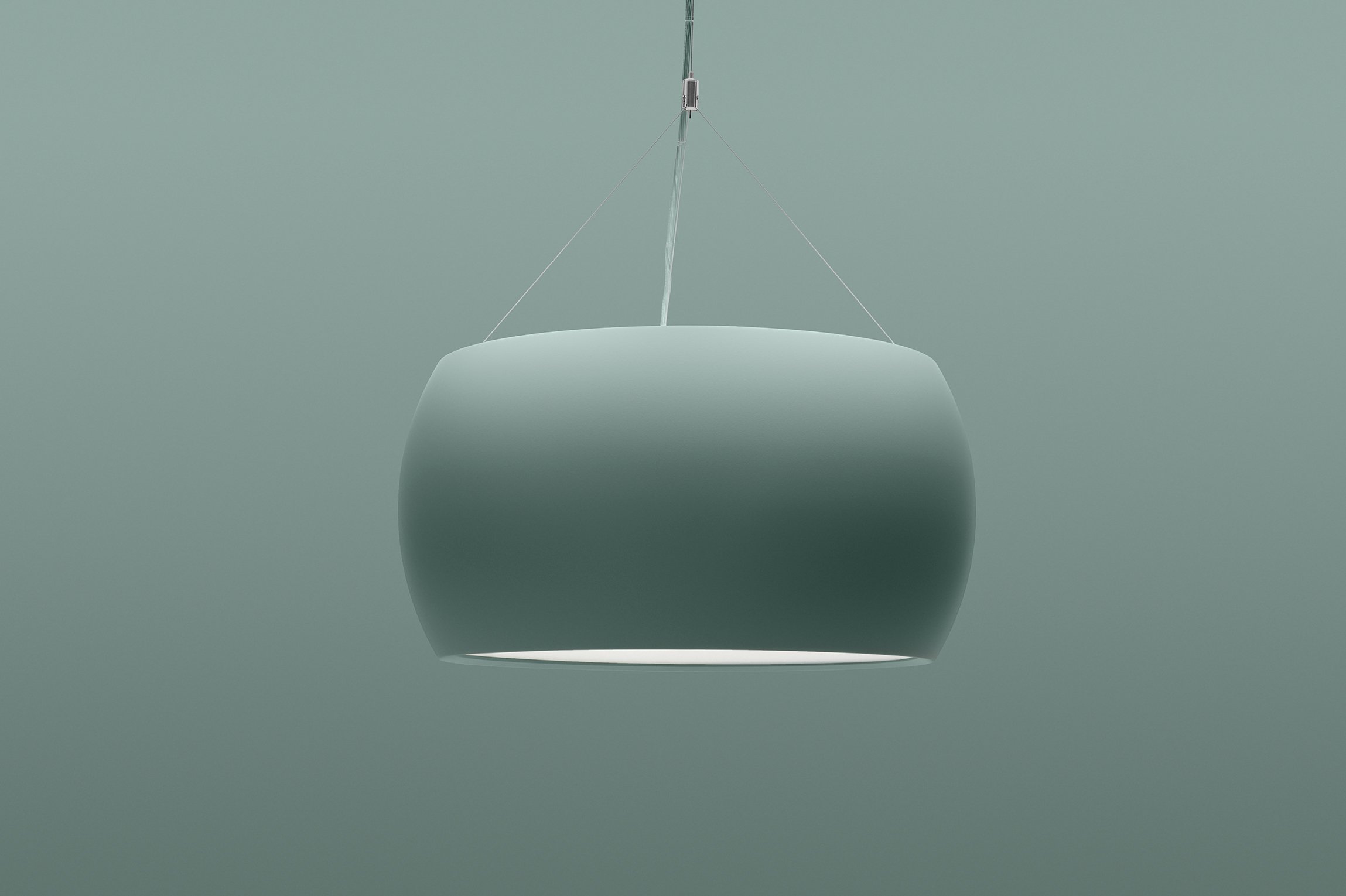

Sweep

Designed as a cut-off sphere, Sweep provides a contemporary lighting solution for modern offices, today as well as tomorrow. Sweep Ø 700 will be available inQ1 2017.

Installation
Two point suspension c/c 48 mm.

Connection
For permanent connection with 230 V; built-in LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°.

Design

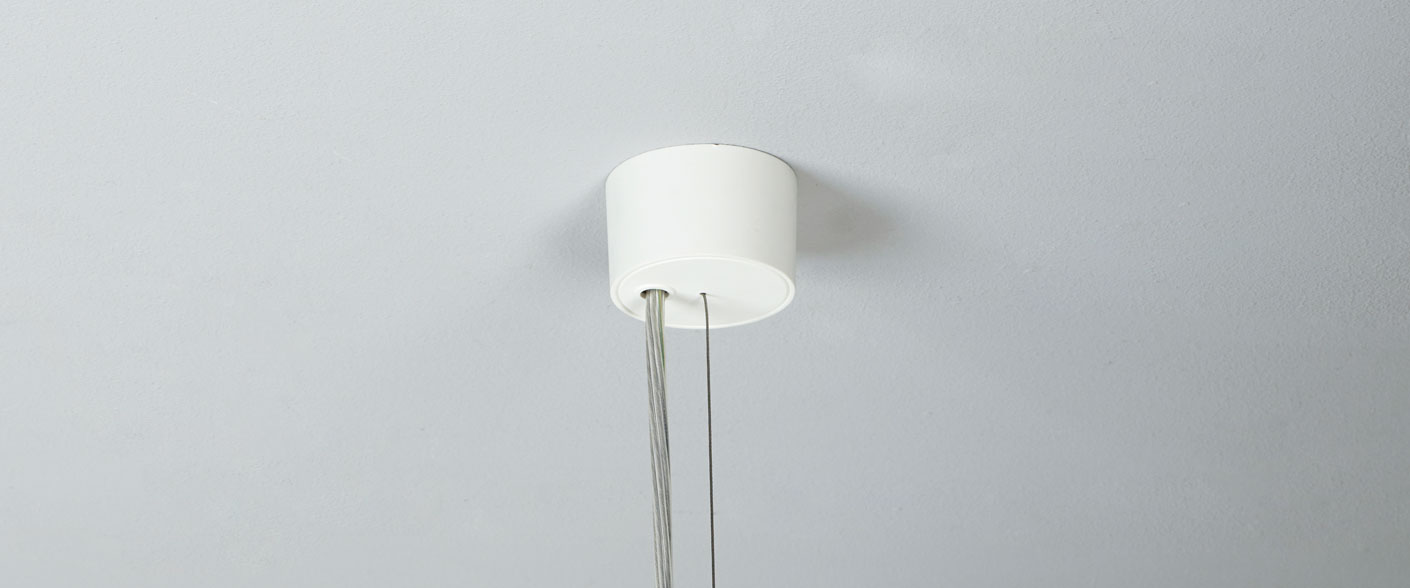

Luminaire body in plastic lacquered in various colours. Supplied with 3  m wire, 2,2 m transparent cable and white, plastic ceiling cup. Height adjustment is done on the luminaire using a friction lock. The ceiling cup handles inclined ceilings up to 20°.

Louvre
Opal - opal acrylic diffuser.
Delta – microprism louvre in acrylic (PMMA).

Light distribution
Delta/Opal Ø 500 – Direct/indirect 55/45.
Delta Ø 700 – Direct/indirect 60/40.
Opal Ø 700 – Direkt/indirekt 65/35.

Dimming
DALI/phase-pulse control as standard. Tunable White and e-Sense Tune on request.

Designed by
PetterssonRudberg.

LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM. Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
For a surface mounted mains cable, a cut-out is made in the ceiling cup using cutters 94248.

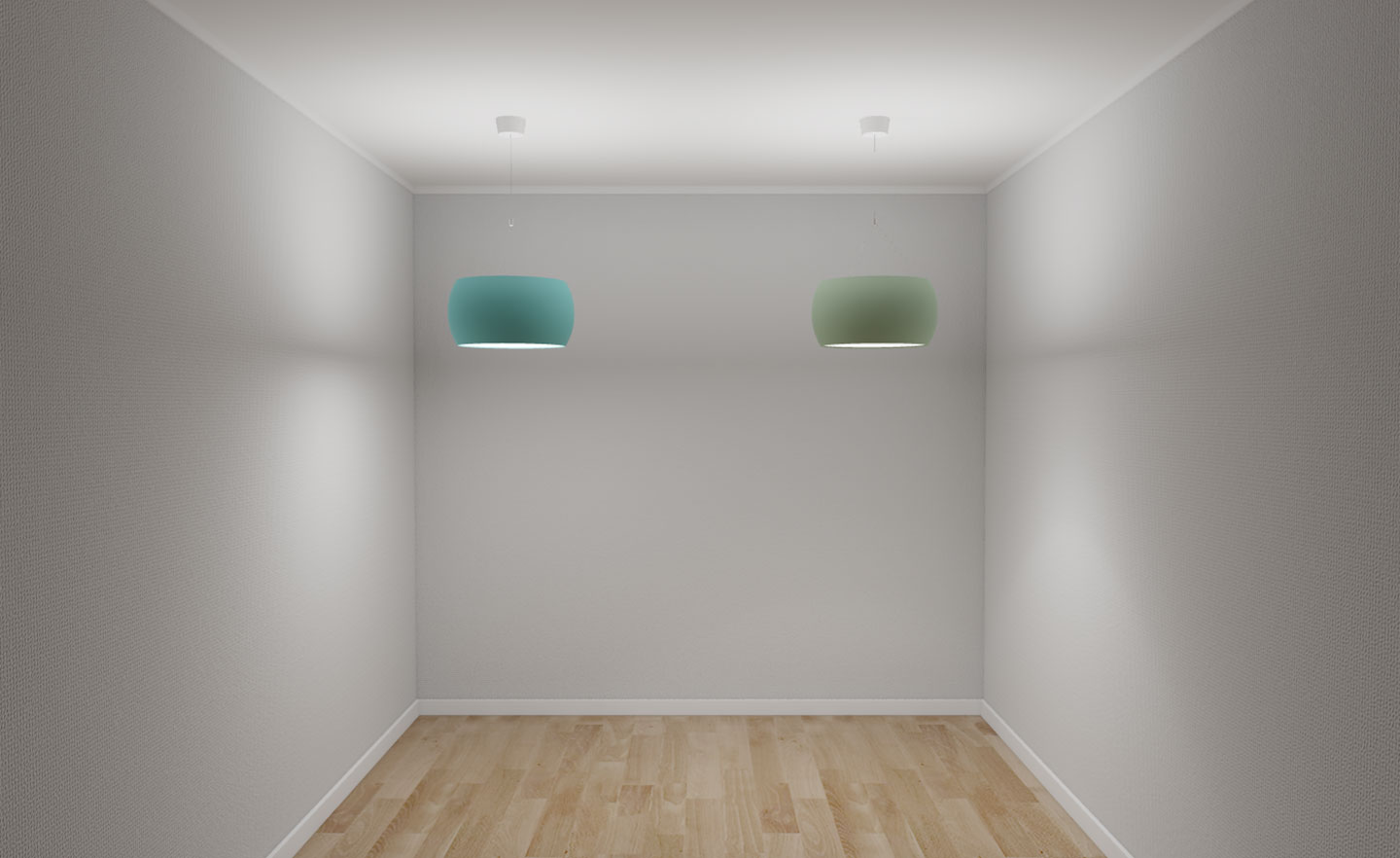

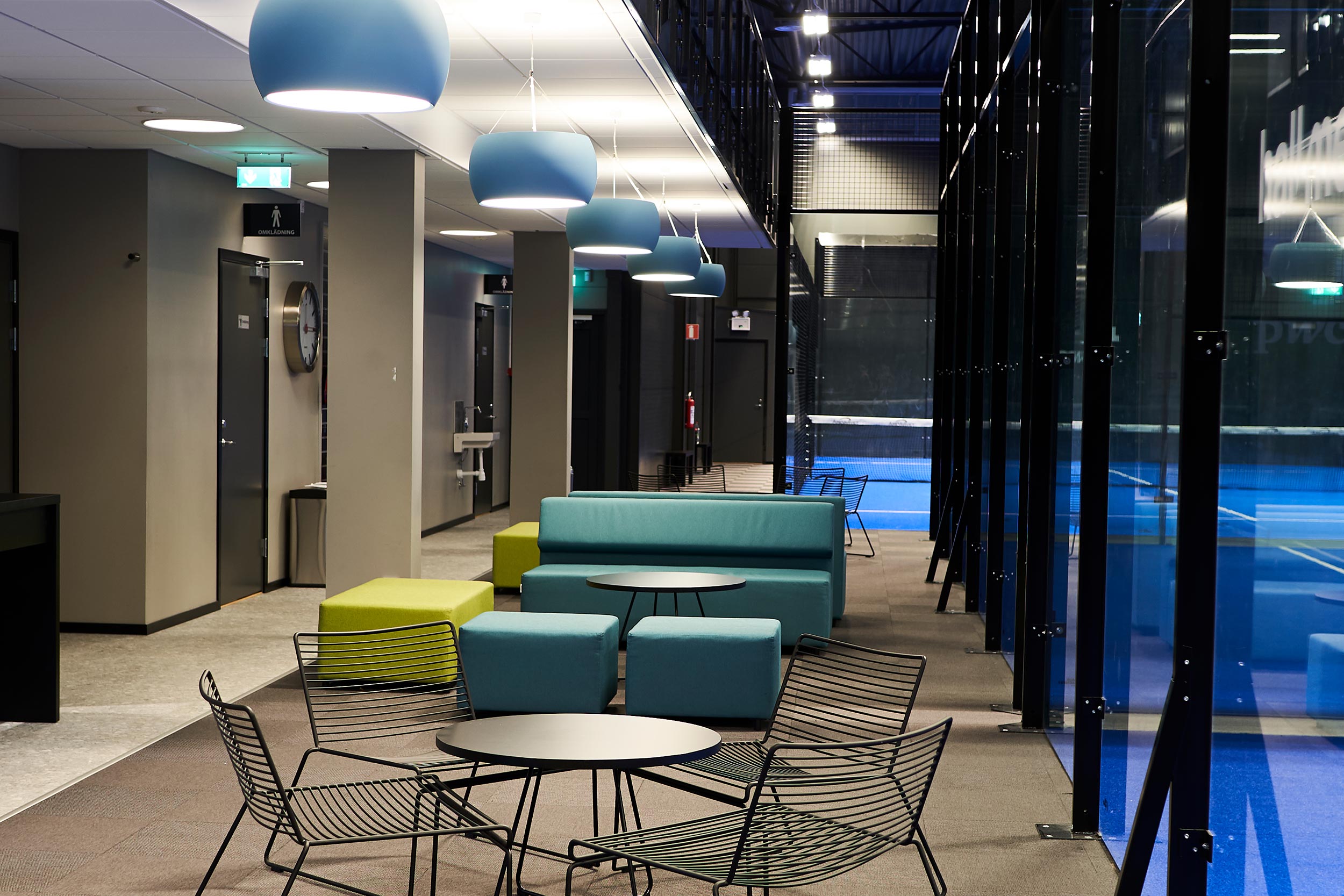

Environment images


Details


Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg Diameter, mm Colour CCT (K) lm lm/W Useful life Art.No.
LED
Delta
31 5.0 500 Black 4000 3980 129 L90B50 60.000 h 54915-402
31 5.0 500 White 4000 3980 129 L90B50 60.000 h 54916-402
31 5.0 500 Green 4000 3980 129 L90B50 60.000 h 54917-402
31 5.0 500 Blue 4000 3980 129 L90B50 60.000 h 54918-402
31 5.0 500 Light coral 4000 3980 129 L90B50 60.000 h 54919-402
34 5.0 500 Black 3000 4200 124 L90B50 60.000 h 54910-402
34 5.0 500 White 3000 4200 124 L90B50 60.000 h 54911-402
34 5.0 500 Green 3000 4200 124 L90B50 60.000 h 54912-402
34 5.0 500 Blue 3000 4200 124 L90B50 60.000 h 54913-402
34 5.0 500 Light coral 3000 4200 124 L90B50 60.000 h 54914-402
64 8.0 700 Black 3000 7215 113 L80B10 55.000 h 54930-402
64 8.0 700 White 3000 7215 113 L80B10 55.000 h 54931-402
64 8.0 700 Green 3000 7215 113 L80B10 55.000 h 54932-402
64 8.0 700 Blue 3000 7215 113 L80B10 55.000 h 54933-402
64 8.0 700 Light coral 3000 7215 113 L80B10 55.000 h 54934-402
64 8.0 700 Black 4000 7360 115 L80B10 55.000 h 54935-402
64 8.0 700 White 4000 7360 115 L80B10 55.000 h 54936-402
64 8.0 700 Green 4000 7360 115 L80B10 55.000 h 54937-402
64 8.0 700 Blue 4000 7360 115 L80B10 55.000 h 54938-402
64 8.0 700 Light coral 4000 7360 115 L80B10 55.000 h 54939-402
Opal
34 5.0 500 Black 3000 4300 126 L90B50 60.000 h 54900-402
34 5.0 500 White 3000 4300 126 L90B50 60.000 h 54901-402
34 5.0 500 Green 3000 4380 129 L90B50 60.000 h 54902-402
34 5.0 500 Blue 3000 4380 129 L90B50 60.000 h 54903-402
34 5.0 500 Light coral 3000 4380 129 L90B50 60.000 h 54904-402
34 5.0 500 Black 4000 4380 129 L90B50 60.000 h 54905-402
34 5.0 500 White 4000 4380 129 L90B50 60.000 h 54906-402
34 5.0 500 Green 4000 4300 126 L90B50 60.000 h 54907-402
34 5.0 500 Blue 4000 4300 126 L90B50 60.000 h 54908-402
34 5.0 500 Light coral 4000 4300 126 L90B50 60.000 h 54909-402
64 8.0 700 Black 3000 7730 121 L80B10 55.000 h 54920-402
64 8.0 700 White 3000 7730 121 L80B10 55.000 h 54921-402
64 8.0 700 Green 3000 7730 121 L80B10 55.000 h 54922-402
64 8.0 700 Blue 3000 7730 121 L80B10 55.000 h 54923-402
64 8.0 700 Light coral 3000 7730 121 L80B10 55.000 h 54924-402
64 8.0 700 Black 4000 7880 123 L80B10 55.000 h 54925-402
64 8.0 700 White 4000 7880 123 L80B10 55.000 h 54926-402
64 8.0 700 Green 4000 7880 123 L80B10 55.000 h 54927-402
64 8.0 700 Blue 4000 7880 123 L80B10 55.000 h 54928-402
64 8.0 700 Light coral 4000 7880 123 L80B10 55.000 h 54929-402

Cutters

Cutters for outlet in ceiling cups with surface mounted mains cable.

Art.No.
Cutters, each 94248
Ø500 Opal

Ø500 Opal

Ø500 Delta

Ø500 Delta

Ø700 Delta

Ø700 Delta
