Scoot

Installation
Two point suspension c/c 48 mm.

Connection
For permanent connection with 230 V; built-in LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°.

Design
Luminaire body in plastic lacquered in various colours. Supplied with 3  m wire, 2,2 m transparent cable and white, plastic ceiling cup. Height adjustment is done on the luminaire using a friction lock. The ceiling cup handles inclined ceilings up to 20°.

Louvre
Opal - opal acrylic diffuser.
Delta – microprism louvre in acrylic (PMMA).

Light distribution
Delta Ø 450 – Direct/indirect 65/35.
Opal Ø 450 – Direkt/indirekt 70/30.

Dimming
DALI/phase-pulse control as standard. Tunable White and e-Sense Tune on request.

Designed by
PetterssonRudberg.

LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM. Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
For a surface mounted mains cable, a cut-out is made in the ceiling cup using cutters 94248.

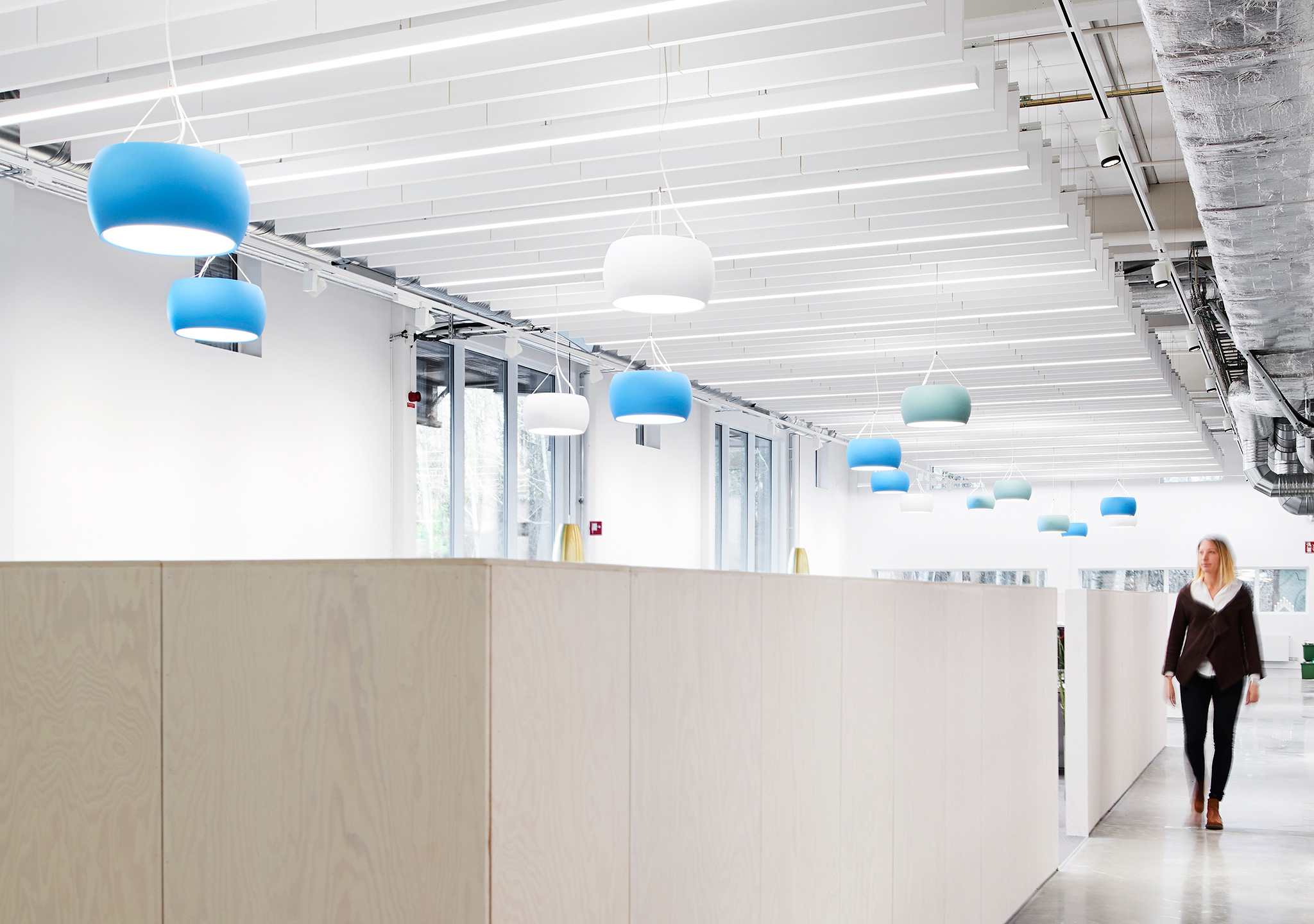

Environment images


Details


Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg Diameter, mm Colour CCT (K) lm lm/W Useful life Art.No.
LED
Delta
29 5.0 450 Black 3000 3100 107 L90B50 60.000 h 54950-402
29 5.0 450 White 3000 3100 107 L90B50 60.000 h 54951-402
29 5.0 450 Green 3000 3100 107 L90B50 60.000 h 54952-402
29 5.0 450 Blue 3000 3100 107 L90B50 60.000 h 54953-402
29 5.0 450 Light coral 3000 3100 107 L90B50 60.000 h 54954-402
29 5.0 450 Black 4000 3150 109 L90B50 60.000 h 54955-402
29 5.0 450 White 4000 3150 109 L90B50 60.000 h 54956-402
29 5.0 450 Green 4000 3150 109 L90B50 60.000 h 54957-402
29 5.0 450 Blue 4000 3150 109 L90B50 60.000 h 54958-402
29 5.0 450 Light coral 4000 3150 109 L90B50 60.000 h 54959-402
Opal
29 5.0 450 Black 3000 3250 112 L90B50 60.000 h 54940-402
29 5.0 450 White 3000 3250 112 L90B50 60.000 h 54941-402
29 5.0 450 Green 3000 3250 112 L90B50 60.000 h 54942-402
29 5.0 450 Blue 3000 3250 112 L90B50 60.000 h 54943-402
29 5.0 450 Light coral 3000 3250 112 L90B50 60.000 h 54944-402
29 5.0 450 Black 4000 3320 115 L90B50 60.000 h 54945-402
29 5.0 450 White 4000 3320 115 L90B50 60.000 h 54946-402
29 5.0 450 Green 4000 3320 115 L90B50 60.000 h 54947-402
29 5.0 450 Blue 4000 3320 115 L90B50 60.000 h 54948-402
29 5.0 450 Light coral 4000 3320 115 L90B50 60.000 h 54949-402

Cutters

Cutters for outlet in ceiling cups with surface mounted mains cable.

Art.No.
Cutters, each 94248
Opal

Opal

Delta

Delta
