Relay Spot G2

The minimalistic spotlight Relay Spot G2 illuminates the small details. Its integrated accent lighting enhances the interior, creates attention and gives a sense of space, even in the smallest inaccessible spaces.

Installation

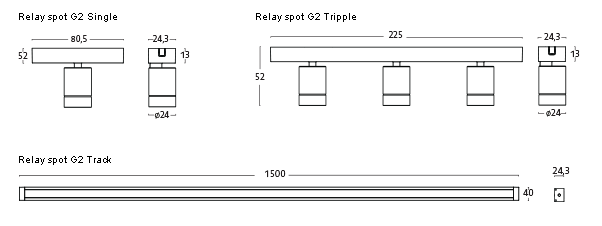

Fixed installation in ceiling, wall or ground. Direct installation or with accessory track.

Connection

Connection in remote LED driver constant current 700mA. Connection cable 1,5 m premounted in luminaire. Connects in serial.

Design

Aluminium housing, carrier and joint in plastic. Standard colour black (RAL 9017) and white (RAL 9016).

Dimming

DALI driver available.

LED-information

3000 and 4000 K: CRI 80, L70 50 000 h, MacAdam 3 SDCM. Driver 50 000 h/10 %.

Miscellaneous

External standard driver or DALI driver as accessory.

Media

Relay Spot G2 with accessorie white Cap cone

Relay

The minimalistic spotlight Relay Spot G2 illuminates the small details. Its integrated accent lighting enhances the interior, creates attention and gives a sense of space, even in the smallest inaccessible spaces. Up and down, in ...

More about the family Relay

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K CRI Colour Light distribution Miscellaneous
Art.no. Effect, W Lumen output CCT, K CRI Colour Light distribution Miscellaneous
58050 2.3 202 3000 80 White Spot, 17° Single
58051 2.3 202 3000 80 Black Spot, 17° Single
58052 2.3 182 3000 80 White Medium, 32° Single
58053 2.3 182 3000 80 Black Medium, 32° Singel
58054 6.9 606 3000 80 White Spot, 17° Trippel
58055 6.9 606 3000 80 Black Spot, 17° Trippel
58056 6.9 546 3000 80 White Medium, 32° Trippel
58057 6.9 546 3000 80 Black Medium, 32° Trippel
58058 2.3 202 4000 80 White Spot, 17° Singel
58059 2.3 202 4000 80 Black Spot, 17° Singel
58060 2.3 182 4000 80 White Medium, 32° Singel
58061 2.3 182 4000 80 Black Medium, 32° Singel
58062 6.9 606 4000 80 White Spot, 17° Trippel
58063 6.9 606 4000 80 Black Spot, 17° Trippel
58064 6.9 546 4000 80 White Medium, 32° Trippel
58065 6.9 546 4000 80 Black Medium, 32° Trippel

Filter

Name Description Art.no.
Name Description Art.No.
Cap coneCap cone, white exterior with black interior96640
Cap coneCap cone, black exterior with black interior96641
Cover for trackCover for track white97849
Cover for trackCover for track black97850
Fixing bracketFixing bracket black97855
Fixing bracketFixing bracket white97856
Relay accessoriesClip white for T-bar 25 mm for wire97147
Relay accessoriesStandard driver for 1-2 LED, TCI 500mA 6W97827
Relay accessoriesDriver DALI for 4-9 LED, Helvar LC1x30-E-DA97845
Relay accessoriesDriver DALI for 7-18 LED, Helvar LL1x40-E-DA-350-70097846
Relay accessoriesDriver standard for 2-5 LED, Helvar LL1x12-E-CC-70097857
Relay accessoriesDriver standard for 4-9 LED, Helvar LC1x30-E-CC97858
Relay accessoriesDriver standard for 7-18 LED, Helvar LL1x40-E-CC97859
TrackTrack 1500 mm white97847
TrackTrack 1500 mm black97848
Wire susp.Wire susp. Black97853
Wire susp.Wire susp. White97854
