Opalume Post

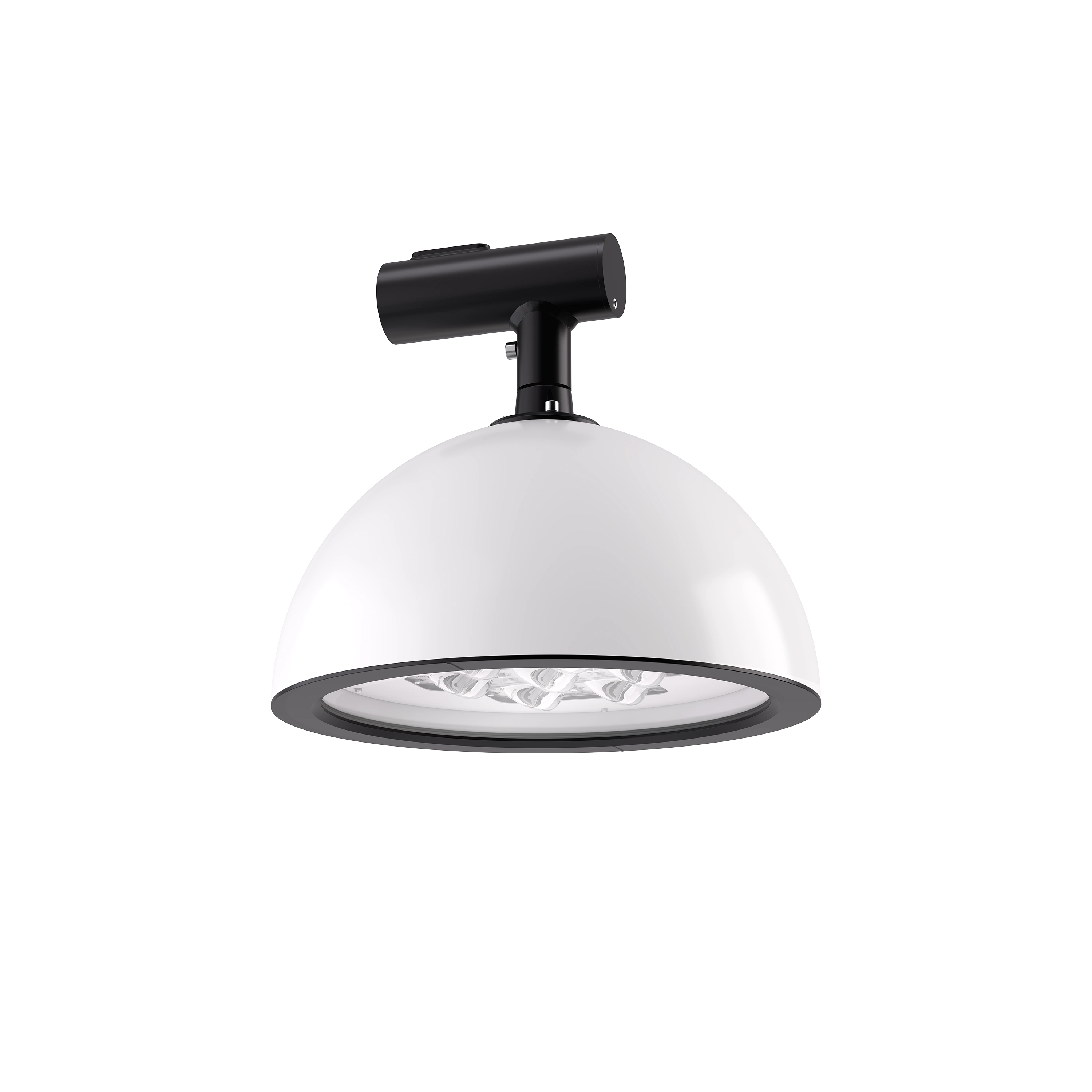

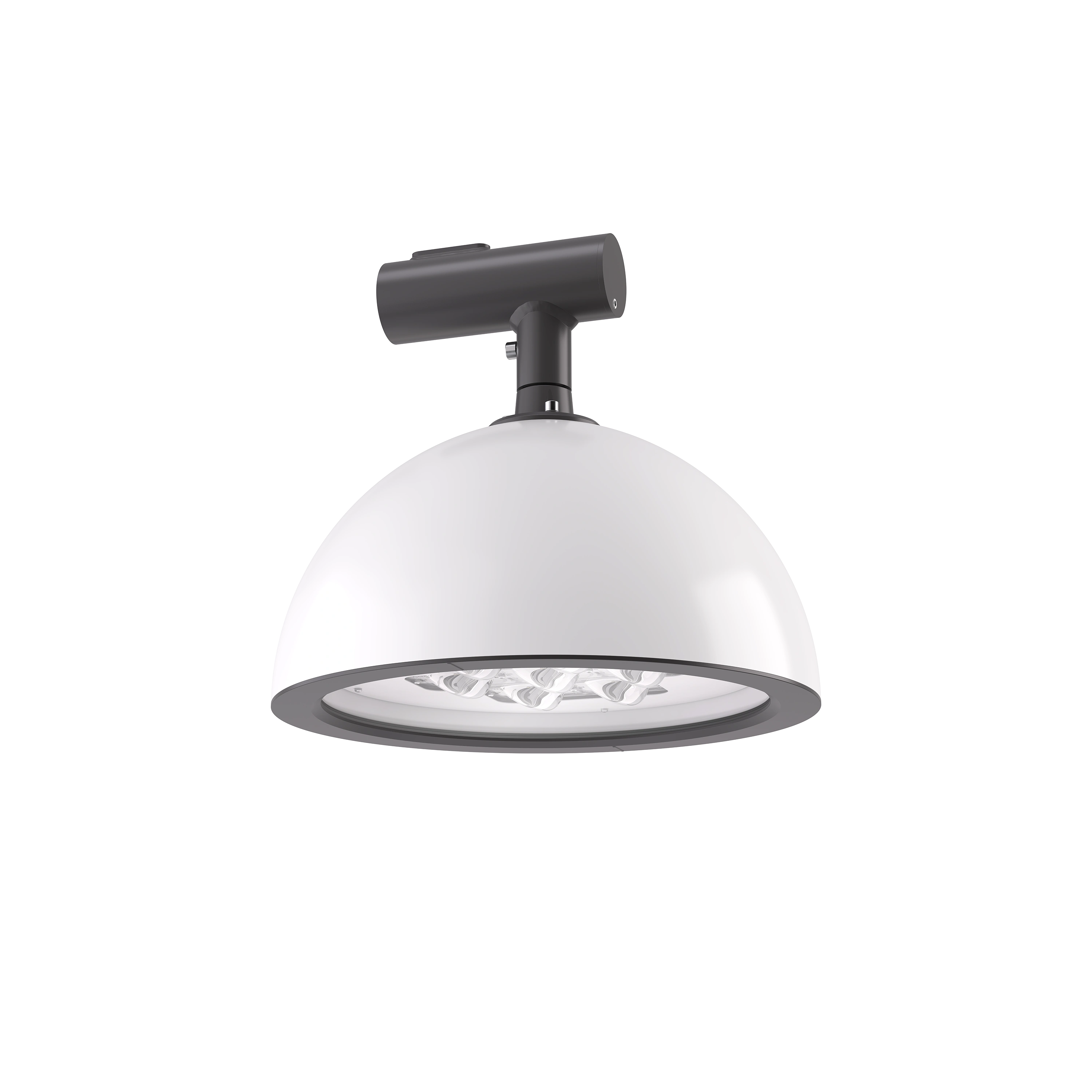

Post luminaire with high performance and light comfort and CLO for an even output. Available in two different designs, conical and spherical, with the possibility of RGBW. Optimised light pattern with AGC lenses developed for road lighting.

Installation

Luminaire for mounting on arm, Ø48 mm and Ø60 mm. For mounting top of the post or wall via wall bracket, see Accessories

Connection

Connecting cable is selectable in Configure.

Design

Diffuser of opal acrylic or spun aluminium in standard colors. Any color on request. Steel post bracket. Hardened flat glass. Fastener of A4 quality with zinc coating. Other details in die-cast aluminium.

Optics

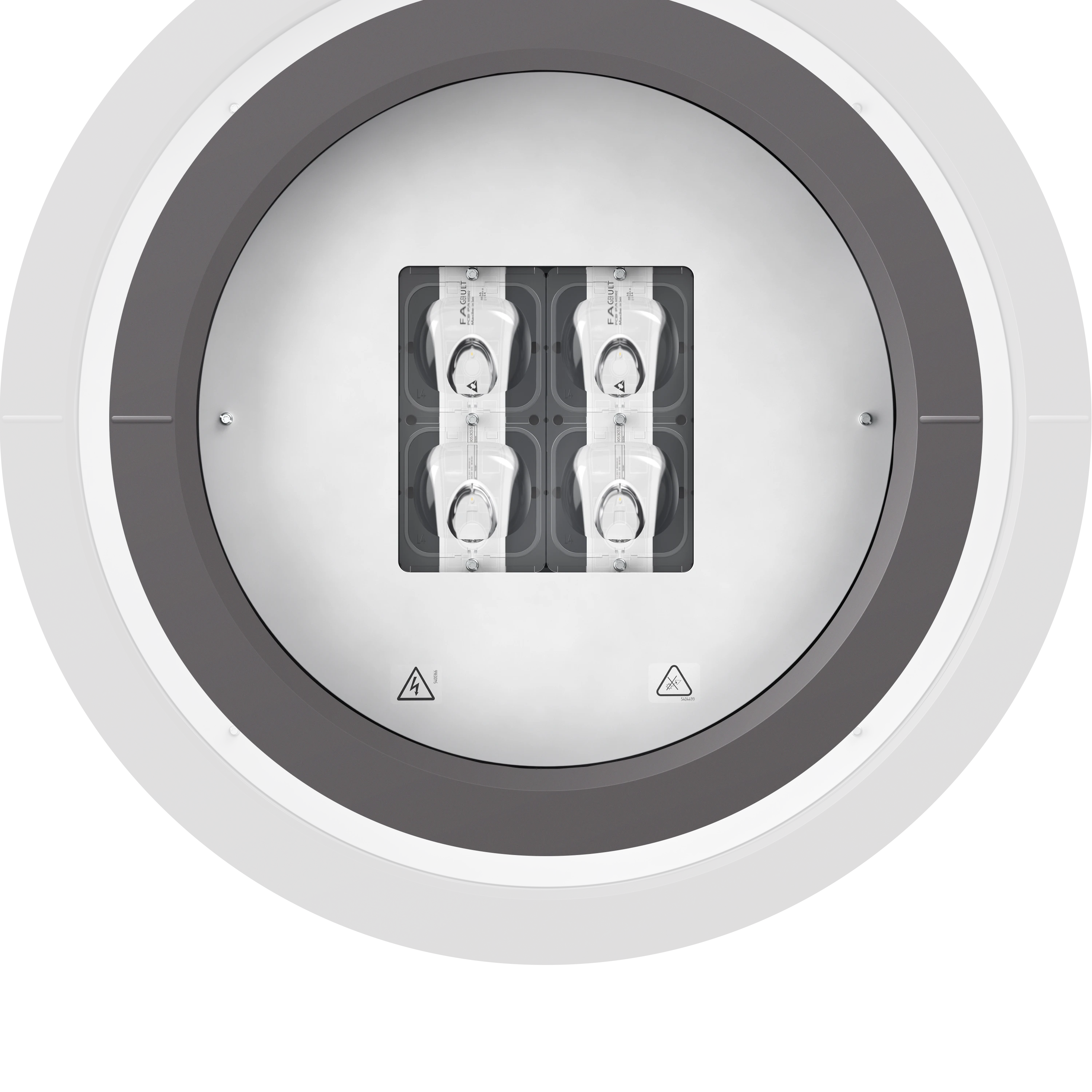

AGC lenses (Advanced Glare Control). The E-lenses are designed with a focus on illuminance. L lenses are the choice if the luminance from the roadway is in focus.

Dimming

DALI variant, night-time dimming and Airglow RGBW control can all be added in Fagerhult Configure.
Citygrid for luminaires with Zhaga base. For Citygrid Zhaga products, see accessories.
Quick start guide for Airglow; see document below.
Can be supplied pre-configured for Philips CityTouch control system on request.

LED-information

Driver with integrated surge protection, CM 8kV, DM 6kV. Extra surge protection of 10 kV on request.

Miscellaneous

Available in class I and II.

Zhaga or NEMA socket on request.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Opalume

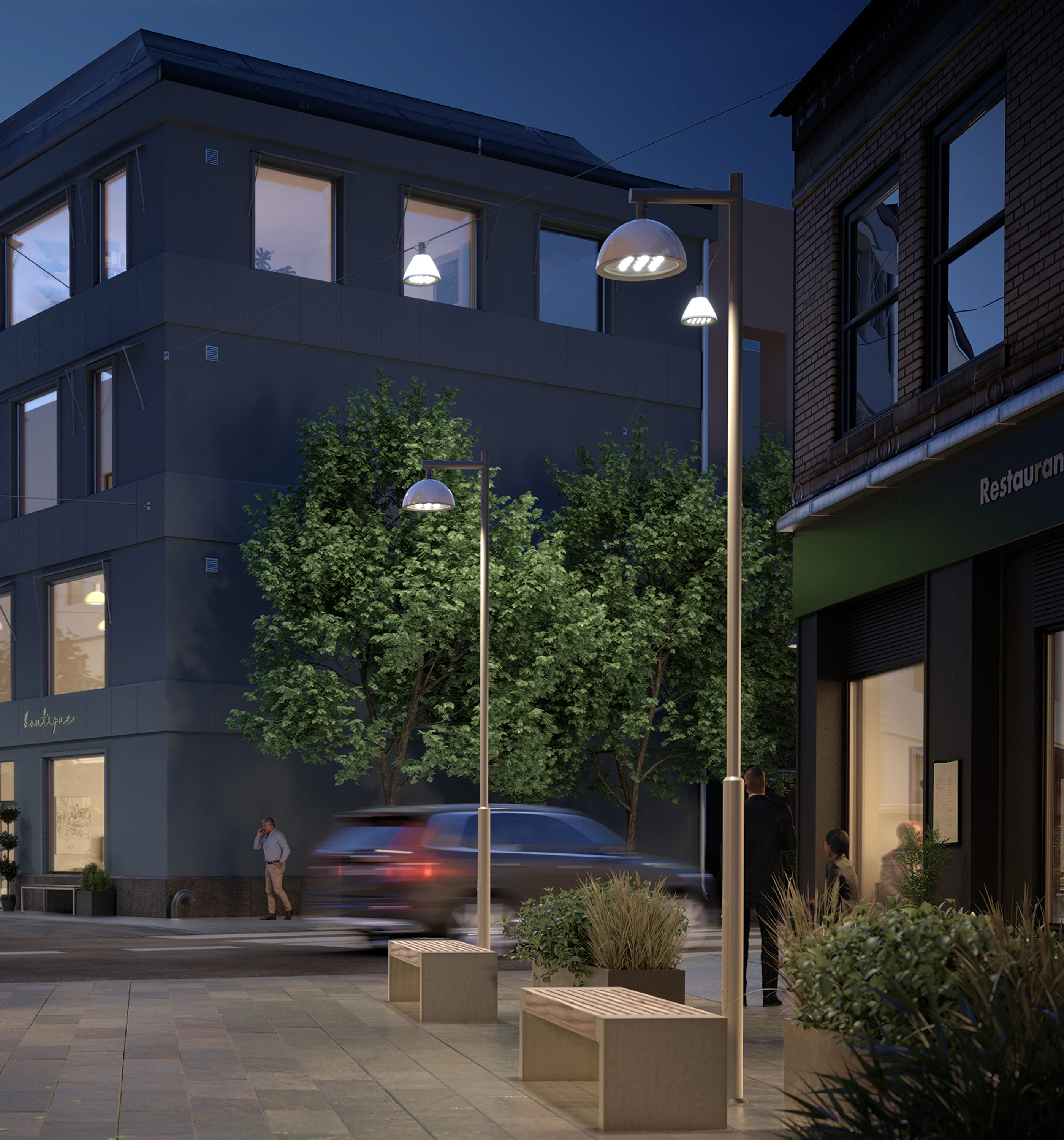

Opalume is a range of weatherproof luminaires for streets and roads, combining high performance with excellent light comfort. Opalume is available in three shapes; spherical, conical and half ellipse. The carefully balanced...

More about the family Opalume

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Post-top bracket to Opalume Bracket for Ø 60 mm post top. Alu-grey. 309910
Post-top bracket to Opalume Bracket radius 90° for Ø 48 mm post top. Alu-grey. 309909
Glare Shield Glare Shield 4 LED 303541
Glare Shield Glare Shield 7 LED 303543
Glare Shield Glare Shield 9 LED 303545
Post-top bracket to Opalume Bracket radius 90° for Ø 60 mm post top. Alu-grey (RAL 9006). 309912
Wall bracket for Vialume and Opalume Wall bracket arm Ø 48 (standard). 303677-235
Double post-top bracket for Oplaume Double post-top bracket for Ø 60 mm post top. Black (RAL 9005 G70). 303675-224
Double post-top bracket for Oplaume Double post-top bracket for Ø 60 mm post top. Black (RAL 9005 texture). 303675-230
Double post-top bracket for Oplaume Double post-top bracket for Ø 60 mm post top. Alu-grey (RAL 9006 G70). 303675-235
Double post-top bracket for Oplaume Double post-top bracket for Ø 60 mm post top. Anthracite (Gris 900). 303675-329
Double post-top bracket for Oplaume Double post-top bracket for Ø 60 mm post top. Traffic grey (RAL 7042 G70). 303675-548
Double post-top bracket for Oplaume Double post-top bracket for Ø 60 mm post top. Graphite grey (RAL 7024 G70). 303675-549
Double post-top bracket for Oplaume Double post-top bracket for Ø 60 mm post top. Green (RAL 6009 G70). 303675-552
Citygrid dongle Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. 86490
Citygrid Zhaga with sensor Citygrid Zhaga with sensor is an all-in-one device that instantly provides a luminaire with smart and motion-controlled operation. 86491
Citygrid On Pole The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. 86492
Citygrid Zhaga Controller The Citygrid Zhaga Controller is the intelligent device that transforms a luminaire into a smart luminaire. 86493
Citygrid sensor DALI Zhaga 40 The Citygrid Dali sensor integrates seamlessly with outdoor luminaires, enabling true adaptive lighting control, in combination with the Citygrid Zhaga Controller. 86494
Citygrid Gateway Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. 86495
Citygrid On Pole mounting kit for gateway Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. 86496
