Opalume Catenary

Fagerhult Configure See items

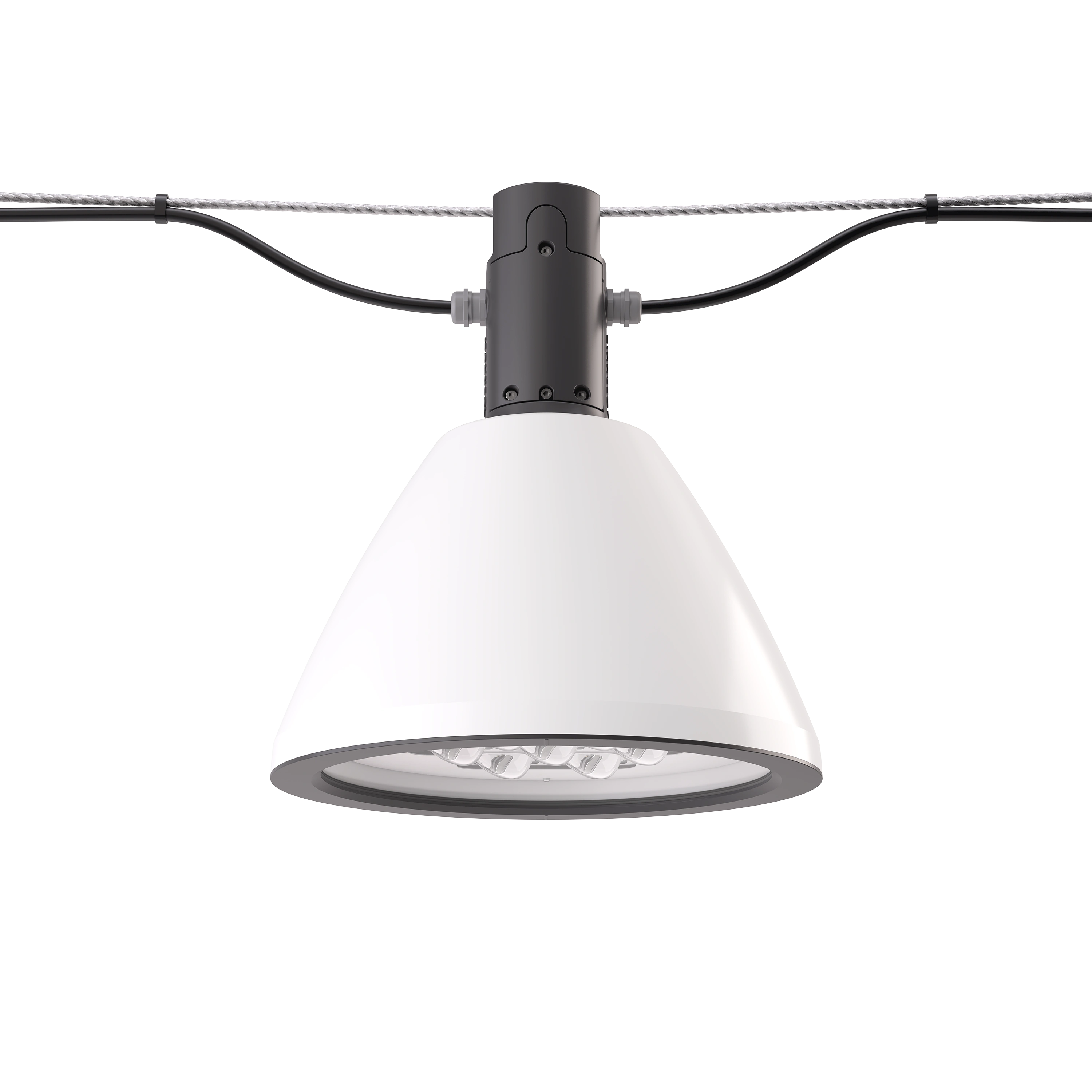

Suspended luminaire with high performance and light comfort and CLO for an even output. Available in two different designs, conical and spherical, with the possibility of RGBW. Its specifically optimised light pattern with AGC lenses have been developed for road lighting. Its innovative and smart suspension design ensures efficient installation.

Installation

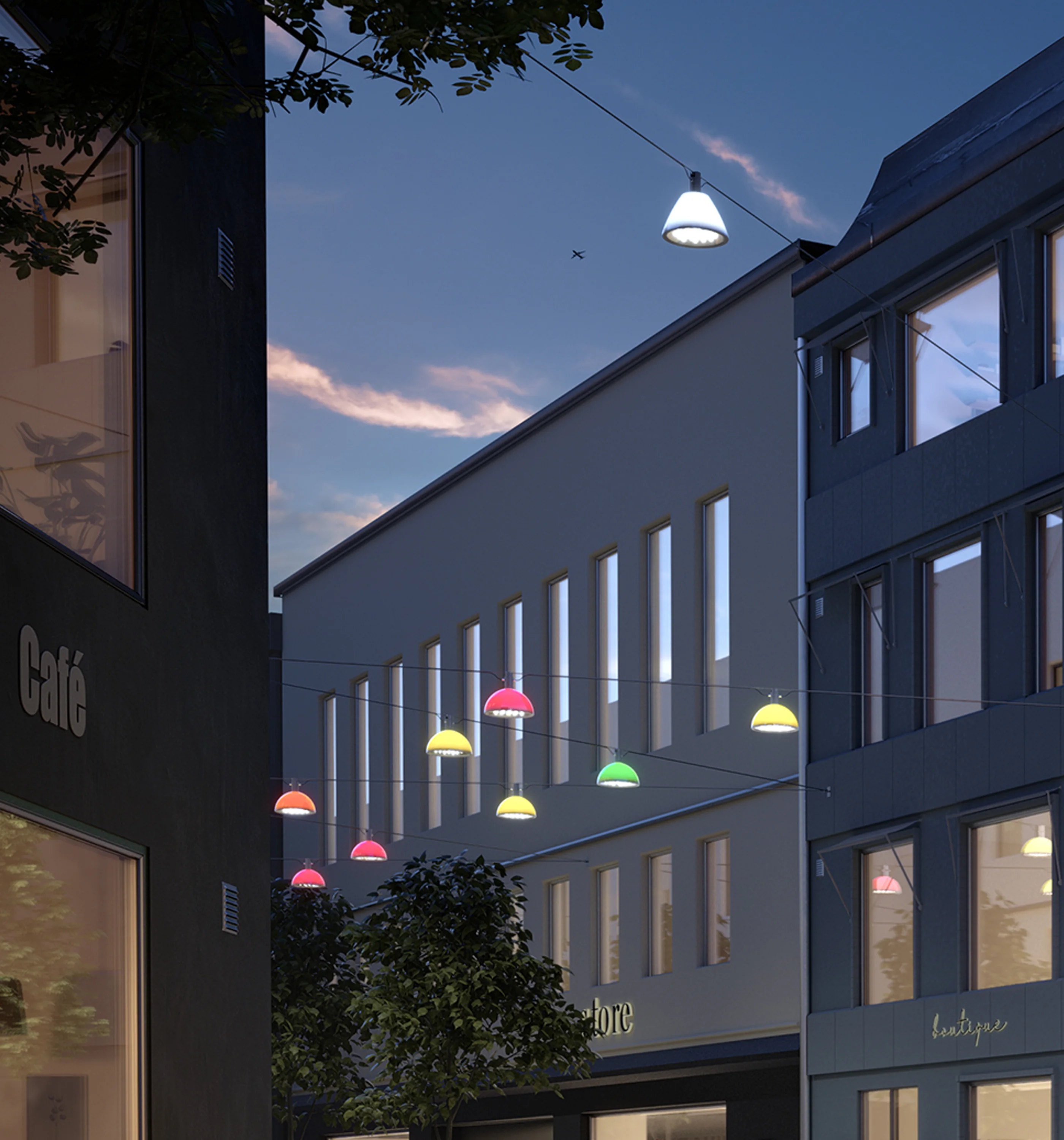

Luminaire for wire installation, Ø 6-12 mm. The luminaire can be angled ±25°, in instances where the wire is not suspended horizontally over the roadway, and rotated ±130°, where the wire is not suspended perpendicular to the roadway.

Connection

Supplied without connecting cable but with prevision for a cable with an external diameter up to Ø 14 mm. Through-wiring possible. Luminaires can be supplied with a cable upon request.

Design

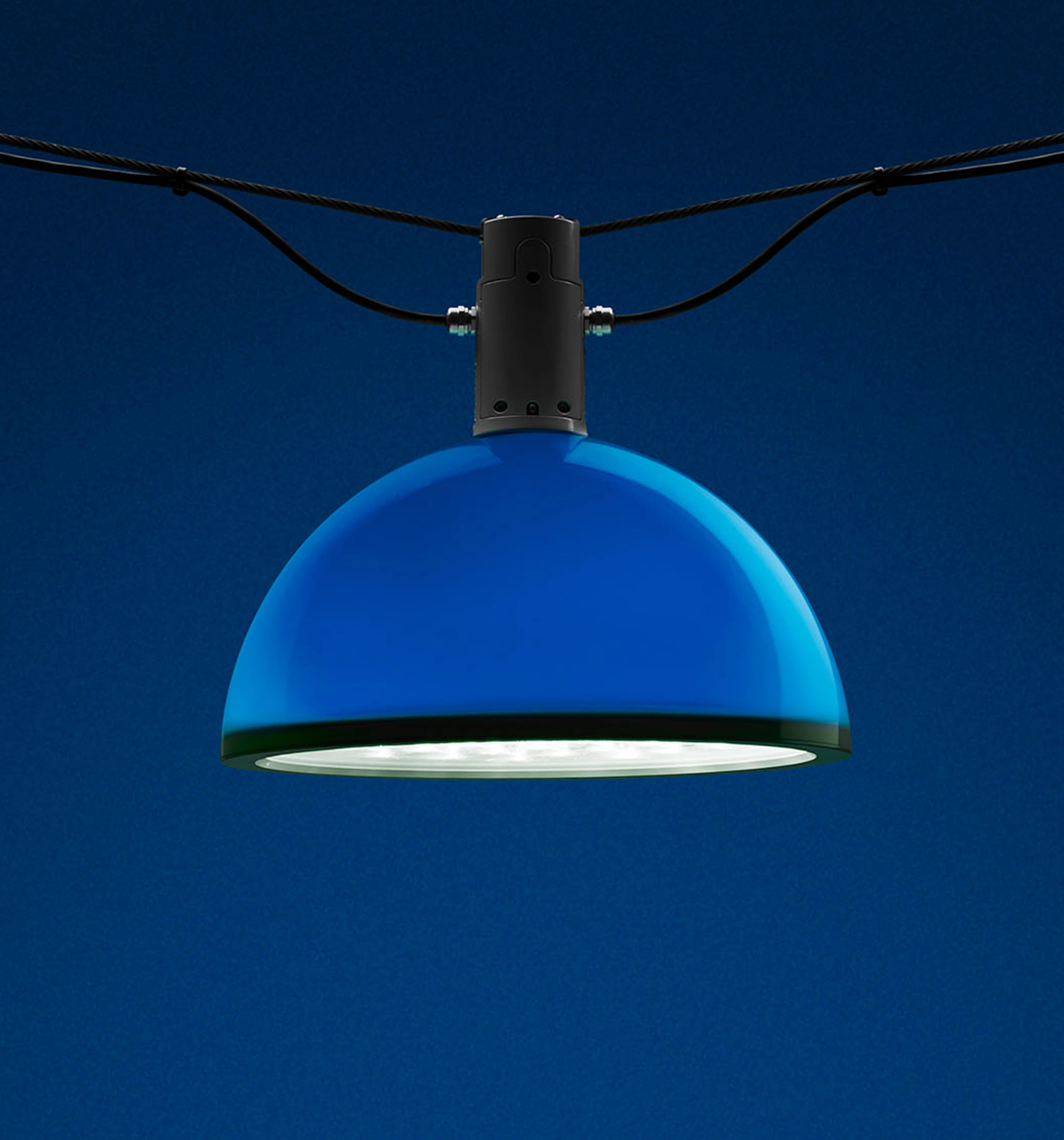

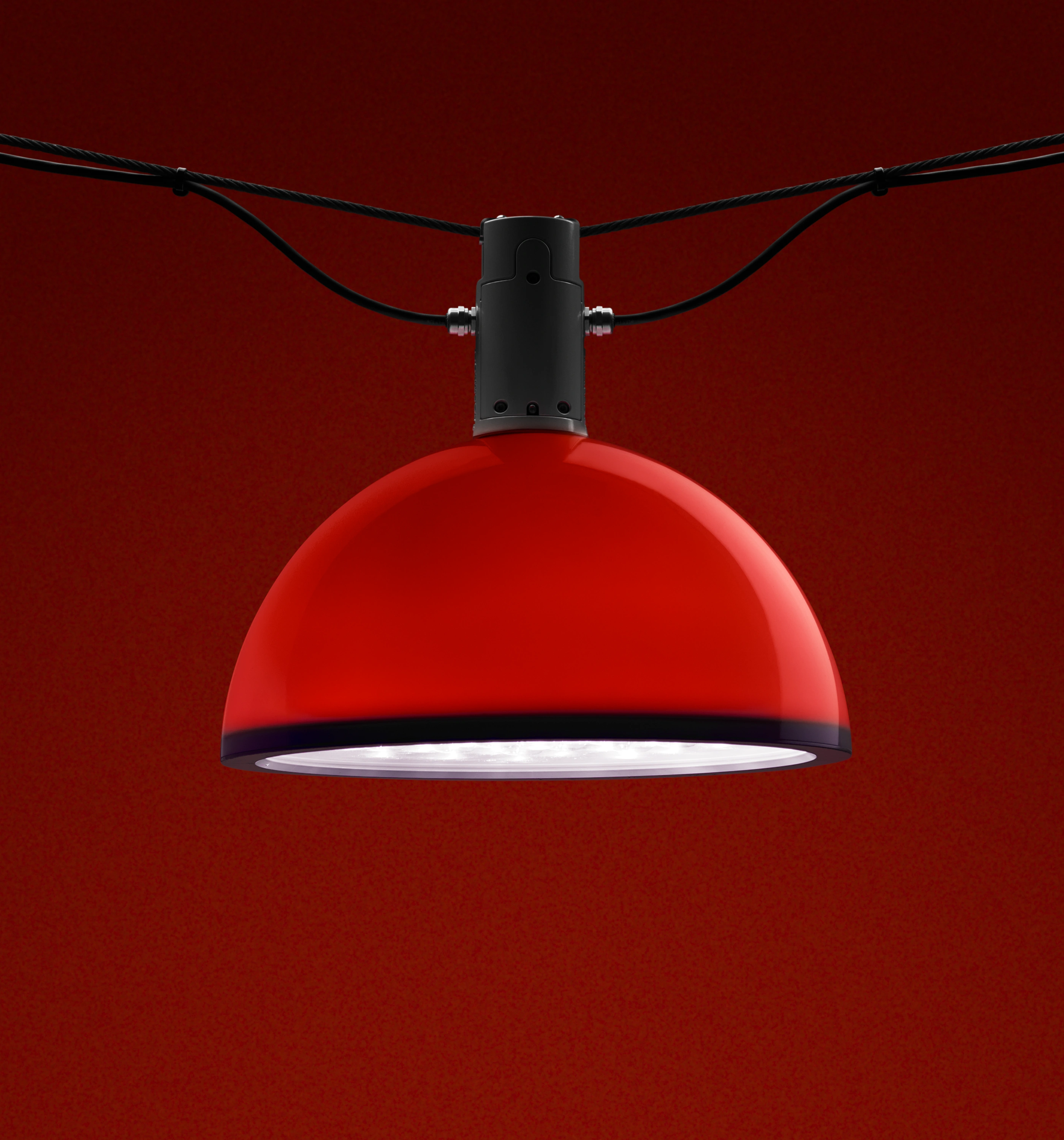

Diffuser of opal acrylic or spun aluminium in standard colors. Any color on request. Wire fastening in stainless steel. Heatsink and the rest of the wire mount are made of die-cast aluminium. Hardened flat glass. Fastener of A4 quality with zinc coating.

Optics

Specially developed L-lenses for installation in the middle of the road. The luminaire is also available with a rotationally symmetrical E-lens and other AGC (Advanced Glare Control) lenses if necessary.

Dimming

DALI variant, night-time dimming and Airglow RGBW control can all be added in Fagerhult Configure.
Citygrid for luminaires with Zhaga base. For Citygrid Zhaga products, see accessories.
Quick start guide for Airglow; see document below.
Can be supplied pre-configured for Philips CityTouch control system on request.

LED-information

Driver with integrated surge protection, CM 8kV, DM 6kV. Extra surge protection of 10 kV on request.

Miscellaneous

Available in class I and II.

Zhaga or NEMA socket on request.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Opalume – Installation

Opalume

Opalume is a range of weatherproof luminaires for streets and roads, combining high performance with excellent light comfort. Opalume is available in three shapes; spherical, conical and half ellipse. The carefully balanced...

More about the family Opalume

Other products

Document

Instruction for use

Overview Opalume

Quick guide Airglow

Max

3Ds

DWG

FBX

Revit

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Citygrid dongle Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. 86490
Citygrid Zhaga with sensor Citygrid Zhaga with sensor is an all-in-one device that instantly provides a luminaire with smart and motion-controlled operation. 86491
Citygrid On Pole The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. 86492
Citygrid Zhaga Controller The Citygrid Zhaga Controller is the intelligent device that transforms a luminaire into a smart luminaire. 86493
Citygrid sensor DALI Zhaga 40 The Citygrid Dali sensor integrates seamlessly with outdoor luminaires, enabling true adaptive lighting control, in combination with the Citygrid Zhaga Controller. 86494
Citygrid Gateway Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. 86495
Citygrid On Pole mounting kit for gateway Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. 86496
