Notor 65 Control Track Unit
19766 Notor 19766Notor 65 Control Track Unit is a unit with recessed Control Track for mounting spotlights with 3-phase adapter (on/off), Euro standard plus adapter (DALI) or 3-phase adapter for wireless control (Casambi).
Installation
Continuous installation via wire suspension or surface mounted. Installation via wire suspension requires wire brackets which provide flexible c/c, see accessories.
Connection
The luminaire unit is equipped with a through-wiring cable (5x1.5 mm²) and a snap-in connection in each end-cap. In a continuous installation, the luminaire row should always begin with a Notor 65 start luminaire.
Design
Luminaire body enameled in white (RAL 9016) alternatively black (RAL 9005) or natural anodised extruded aluminium finish. End caps are not included.
Dimming
DALI as standard.
Accessories
Assembly fittings and supplementary components, see Accessories.
Media
Notor
Fagerhult’s classic interior luminaire Notor is available in several versions for suspended, surface mounted or recessed installation. Notor is an obvious choice in circumstances when there is a desire to create long, unbroken...
More about the family Notor
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 |
|
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup for T-bars 25 mm/each | 96385 |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup for T-bars 25 mm/each | 96373 |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup/each | 96371 |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup/each | 96383 |
|

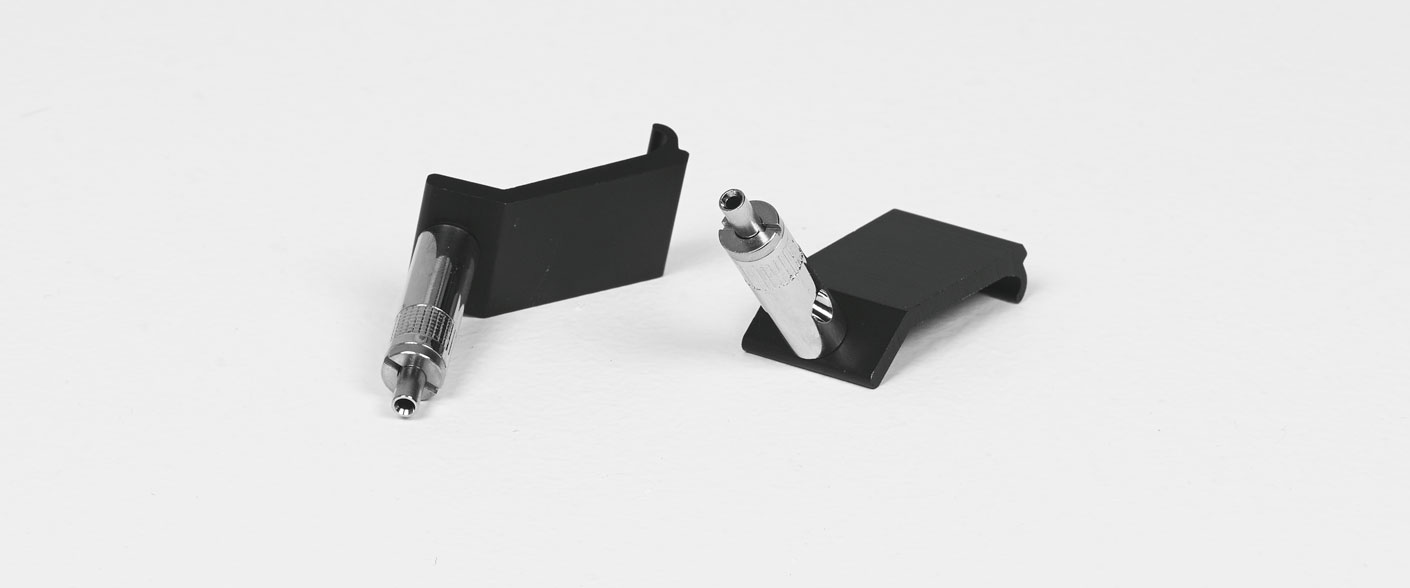

Wire bracket incl. friction locks | Wire bracket/pair | 92684 |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92683 |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92682 |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
