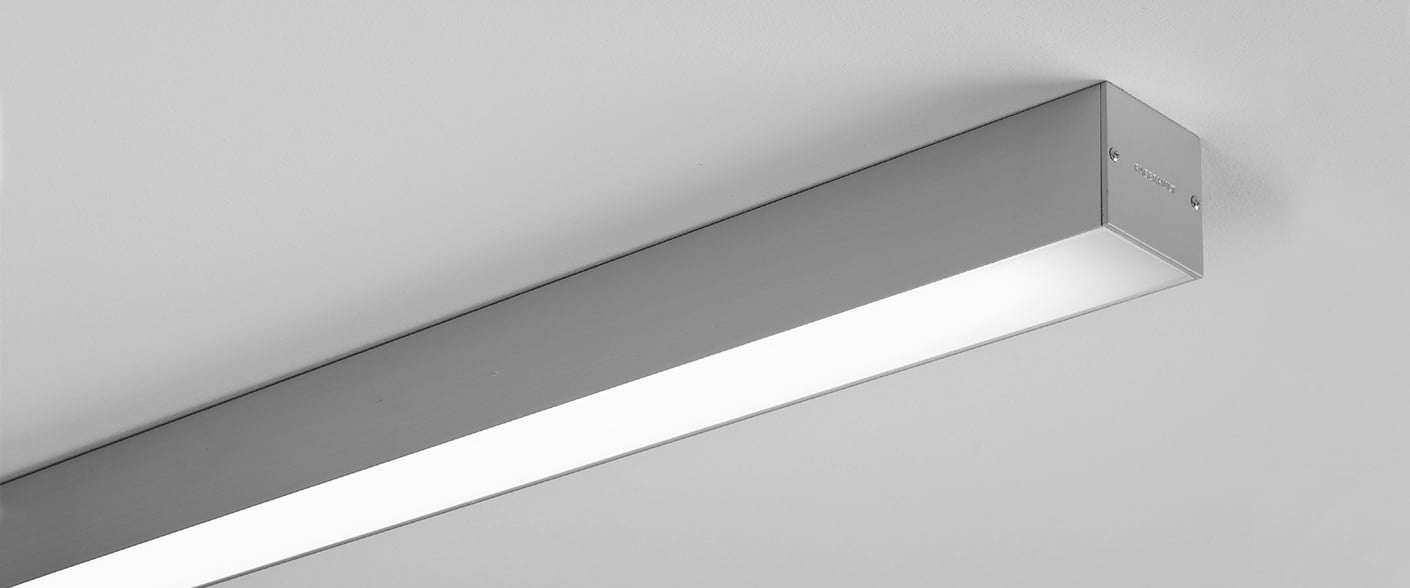

Notor T5 Ceiling Opal

Installation
Surface mounted.

Connection
Cable entries fitted with blanking grommets on top. A special short end with cable entry is used for a surface mounted mains cable, see Accessories. The luminaire unit is equipped with through-wiring cable (5x1.5 mm²) and a snap-in terminal block at each end. In a continuous installation the luminaire row should always begin with a start luminaire.

Design
Luminaire body in natural anodised, extruded aluminium finish.

Louvre
Opal – opal acrylic diffuser (PMMA).

Reflector
Opal – reflector of white enamelled sheet steel.

Emergency lighting
There is a unit with integrated emLED available for Notor T5, see Accessories.

Dimming
Most models can also be equipped with other ballasts for dimming.

Accessories
Installation fittings and supplementary details, see Accessories.

Designed by
Vesa Honkonen och Julle Oksanen.

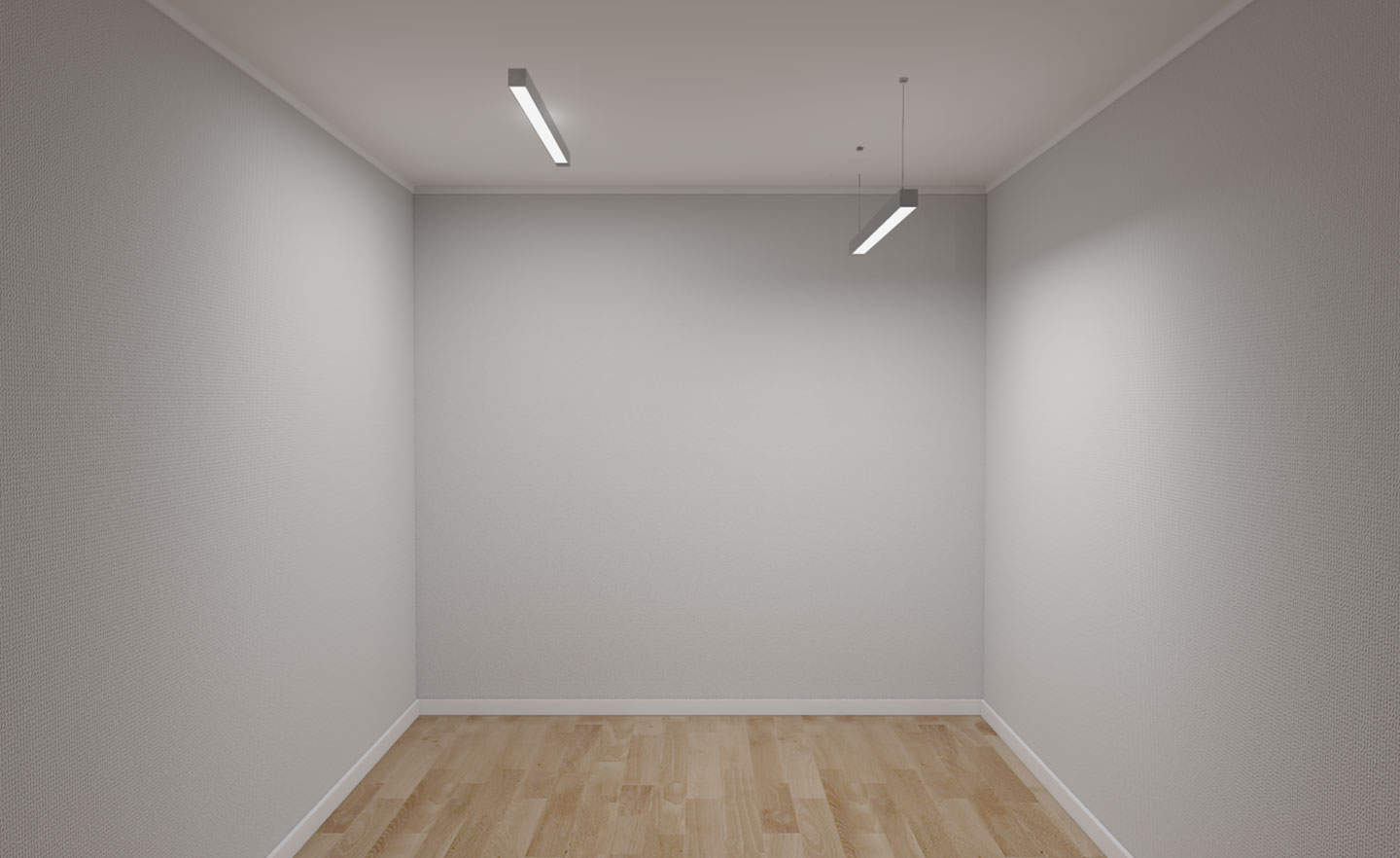

Environment images


Details


Unbroken light opening in continuous installation.

Unbroken light opening in continuous installation.

The ceiling luminaire is equipped with keyhole slots for easy installation.

The ceiling luminaire is equipped with keyhole slots for easy installation.

Marking of product sheet

Document added to your cart

References



Skatteetaten

Complete office project

Text som beskriver tabellen
W Weight, kg Art.No.
FDH
Continuous
1x21 2.0 26899
1x25/28 2.3 26839
1x32/35 2.6 26849
1x45/49 2.6 26788
2x1x21 3.7 26859
2x1x25/28 4.3 26869
2x1x32/35 4.9 26879
2x1x45/49 4.9 26789
Start/Single
1x21 2.0 26898
1x25/28 2.3 26838
1x32/35 2.6 26848
1x45/49 2.6 26786
2x1x21 3.7 26858
2x1x25/28 4.3 26868
2x1x32/35 4.9 26878
2x1x45/49 4.9 26787
Text som beskriver tabellen
W Weight, kg Art.No.
FDH
Continuous
1x21 2.0 26899-368
1x25/28 2.3 26839-368
1x32/35 2.6 26849-368
1x45/49 2.6 26788-368
2x1x21 3.7 26859-368
2x1x25/28 4.3 26869-368
2x1x32/35 4.9 26879-368
2x1x45/49 4.9 26789-368
Start/Single
1x21 2.0 26898-368
1x25/28 2.3 26838-368
1x32/35 2.6 26848-368
1x45/49 2.6 26786-368
2x1x21 3.7 26858-368
2x1x25/28 4.3 26868-368
2x1x32/35 4.9 26878-368
2x1x45/49 4.9 26787-368
Text som beskriver tabellen
W Weight, kg Art.No.
FDH
Continuous
1x21 2.0 26899-436
1x25/28 2.3 26839-436
1x32/35 2.6 26849-436
1x45/49 2.6 26788-436
2x1x21 3.7 26859-436
2x1x25/28 4.3 26869-436
2x1x32/35 4.9 26879-436
2x1x45/49 4.9 26789-436
Start/Single
1x21 2.0 26898-436
1x25/28 2.3 26838-436
1x32/35 2.6 26848-436
1x45/49 2.6 26786-436
2x1x21 3.7 26858-436
2x1x25/28 4.3 26868-436
2x1x32/35 4.9 26878-436
2x1x45/49 4.9 26787-436

emLED-unit

emLED-unit, only in combination with HF-standard.

Art.No.
emLED-unit for direct lighting luminaire, L=210 mm 92466

End-cap

End-cap.

Art.No.
End-cap with hole for surface mounted cable to ceiling luminaire/each 92465

Fluorescent lamp T5, FDH

Art.No.
21, 4000, G5, Ra>80, 1900, 100 81348
28, 4000, G5, Ra>80, 2600, 104 81349
35, 4000, G5, Ra>80, 3300, 104 81350
21, 3000, G5, Ra>80, 1900, 100 81353
28, 3000, G5, Ra>80, 2600, 104 81355
35, 3000, G5, Ra>80, 3300, 104 81357
49, 3000, G5, Ra>80, 4300, 99 81359
49, 4000, G5, Ra>80, 4300, 99 81362

L-coupler for luminaire surface mounted

L-coupler for luminaire surface mounted, incl. wire lock.

Art.No.
L-coupler left surface mounted 92448
L-coupler right surface mounted 92449

T5 Eco, FDH

Art.No.
25, 3000, G5, 2450, 114 81629
25, 4000, G5, 2450, 114 81630
32, 3000, G5, 3100, 114 81631
32, 4000, G5, 3100, 114 81632
45, 3000, G5, 4100, 109 81633
45, 4000, G5, 4100, 109 81634
Dimensions picture
Light distribution
