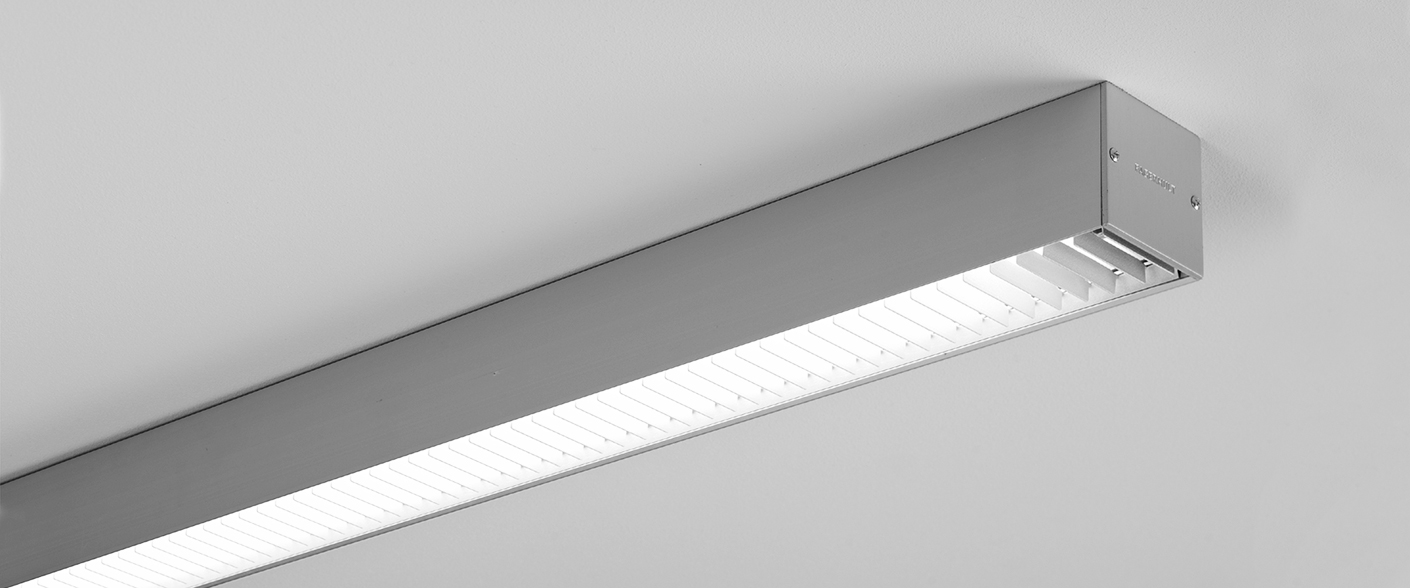

Notor T5 Ceiling Lamell

Ceiling-mounted T5 luminaire with Lamell louvres. Single or continuous installation.

Installation

Surface mounted.

Connection

Cable entries fitted with blanking grommets on top. A special short end with cable entry is used for a surface mounted mains cable, see Accessories. The luminaire unit is equipped with through-wiring cable (5x1.5 mm²) and a snap-in terminal block at each end. In a continuous installation the luminaire row should always begin with a start luminaire.

Design

Luminaire body in natural anodised, extruded aluminium finish.

Louvre

Lamell – lamell louvre in grey enamelled sheet steel.

Reflector

Lamell – reflector of metallised aluminium.

Emergency lighting

There is a unit with integrated emLED available for Notor T5, see Accessories.

Dimming

Most models can also be equipped with other ballasts for dimming.

Accessories

Installation fittings and supplementary details, see Accessories.

Designed by

Vesa Honkonen och Julle Oksanen.

Notor T5

Fagerhult’s classic interior luminaire Notor is available in several versions for suspended, surface mounted or recessed installation. Notor is an obvious choice when there is a desire to create long, unbroken lines of light....

More about the family Notor T5

Document

Specification

Filter

Art.no. Effect, W Module Installation Light control Light source
Art.no. Effect, W Module Installation Light control Light source
26782 1x45/49 1500 Start FDH
26782-368 1x45/49 1500 Start DALI/Phase-pulse FDH
26782-436 1x45/49 1500 Start DALI/DSI/switchDIM FDH
26783 2x1x45/49 3000 Start FDH
26783-368 2x1x45/49 3000 Start DALI/Phase-pulse FDH
26783-436 2x1x45/49 3000 Start DALI/DSI/switchDIM FDH
26784 1x45/49 1500 Continuous FDH
26784-368 1x45/49 1500 Continuous DALI/Phase-pulse FDH
26784-436 1x45/49 1500 Continuous DALI/DSI/switchDIM FDH
26785 2x1x45/49 3000 Continuous FDH
26785-368 2x1x45/49 3000 Continuous DALI/Phase-pulse FDH
26785-436 2x1x45/49 3000 Continuous DALI/DSI/switchDIM FDH
26941 1x21 900 Start FDH
26941-368 1x21 900 Start DALI/Phase-pulse FDH
26941-436 1x21 900 Start DALI/DSI/switchDIM FDH
26942 1x20/24 600 Start FDH
26942-368 1x20/24 600 Start DALI/Phase-pulse FDH
26942-436 1x20/24 600 Start DALI/DSI/switchDIM FDH
26943 1x25/28 1200 Start FDH
26943-368 1x25/28 1200 Start DALI/Phase-pulse FDH
26943-436 1x25/28 1200 Start DALI/DSI/switchDIM FDH
26944 1x32/35 1500 Start FDH
26944-368 1x32/35 1500 Start DALI/Phase-pulse FDH
26944-436 1x32/35 1500 Start DALI/DSI/switchDIM FDH
26945 1x39 900 Start FDH
26945-368 1x39 900 Start DALI/Phase-pulse FDH
26945-436 1x39 900 Start DALI/DSI/switchDIM FDH
26946 1x50/54 1200 Start FDH
26946-368 1x50/54 1200 Start DALI/Phase-pulse FDH
26946-436 1x50/54 1200 Start DALI/DSI/switchDIM FDH
26947 1x73/80 1500 Start FDH
26947-368 1x73/80 1500 Start DALI/Phase-pulse FDH
26947-436 1x73/80 1500 Start DALI/DSI/switchDIM FDH
26951 1x21 900 Continuous FDH
26951-368 1x21 900 Continuous DALI/Phase-pulse FDH
26951-436 1x21 900 Continuous DALI/DSI/switchDIM FDH
26952 1x20/24 600 Continuous FDH
26952-368 1x20/24 600 Continuous DALI/Phase-pulse FDH
26952-436 1x20/24 600 Continuous DALI/DSI/switchDIM FDH
26953 1x25/28 1200 Continuous FDH
26953-368 1x25/28 1200 Continuous DALI/Phase-pulse FDH
26953-436 1x25/28 1200 Continuous DALI/DSI/switchDIM FDH
26954 1x32/35 1500 Continuous FDH
26954-368 1x32/35 1500 Continuous DALI/Phase-pulse FDH
26954-436 1x32/35 1500 Continuous DALI/DSI/switchDIM FDH
26955 1x39 900 Continuous FDH
26955-368 1x39 900 Continuous DALI/Phase-pulse FDH
26955-436 1x39 900 Continuous DALI/DSI/switchDIM FDH
26956 1x50/54 1200 Continuous FDH
26956-368 1x50/54 1200 Continuous DALI/Phase-pulse FDH
26956-436 1x50/54 1200 Continuous DALI/DSI/switchDIM FDH
26957 1x73/80 1500 Continuous FDH
26957-368 1x73/80 1500 Continuous DALI/Phase-pulse FDH
26957-436 1x73/80 1500 Continuous DALI/DSI/switchDIM FDH
26961 2x1x21 1800 Start FDH
26961-368 2x1x21 1800 Start DALI/Phase-pulse FDH
26961-436 2x1x21 1800 Start DALI/DSI/switchDIM FDH
26963 2x1x25/28 2400 Start FDH
26963-368 2x1x25/28 2400 Start DALI/Phase-pulse FDH
26963-436 2x1x25/28 2400 Start DALI/DSI/switchDIM FDH
26964 2x1x32/35 3000 Start FDH
26964-368 2x1x32/35 3000 Start DALI/Phase-pulse FDH
26964-436 2x1x32/35 3000 Start DALI/DSI/switchDIM FDH
26965 2x1x39 1800 Start FDH
26965-368 2x1x39 1800 Start DALI/Phase-pulse FDH
26965-436 2x1x39 1800 Start DALI/DSI/switchDIM FDH
26966 2x1x50/54 2400 Start FDH
26966-368 2x1x50/54 2400 Start DALI/Phase-pulse FDH
26966-436 2x1x50/54 2400 Start DALI/DSI/switchDIM FDH
26967 2x1x73/80 3000 Start FDH
26971 2x1x21 1800 Continuous FDH
26971-368 2x1x21 1800 Continuous DALI/Phase-pulse FDH
26971-436 2x1x21 1800 Continuous DALI/DSI/switchDIM FDH
26973 2x1x25/28 2400 Continuous FDH
26973-368 2x1x25/28 2400 Continuous DALI/Phase-pulse FDH
26973-436 2x1x25/28 2400 Continuous DALI/DSI/switchDIM FDH
26974 2x1x32/35 3000 Continuous FDH
26974-368 2x1x32/35 3000 Continuous DALI/Phase-pulse FDH
26974-436 2x1x32/35 3000 Continuous DALI/DSI/switchDIM FDH
26975 2x1x39 1800 Continuous FDH
26975-368 2x1x39 1800 Continuous DALI/Phase-pulse FDH
26975-436 2x1x39 1800 Continuous DALI/DSI/switchDIM FDH
26976 2x1x50/54 2400 Continuous FDH
26976-368 2x1x50/54 2400 Continuous DALI/Phase-pulse FDH
26976-436 2x1x50/54 2400 Continuous DALI/DSI/switchDIM FDH
26977 2x1x73/80 3000 Continuous FDH

Filter

Name Description Art.no.
Name Description Art.No.
emLED-unitemLED-unit for direct lighting luminaire, L=210 mm92466
End-cap Notor T5End-cap/each92464
End-cap Notor T5End-cap with hole for surface mounted cable to ceiling luminaire/each92465
Fluorescent lamp T5, FDH21 W, 4000 K, G5, Ra 80, 1900 lm, 100 lm/W81348
Fluorescent lamp T5, FDH28 W, 4000 K, G5, Ra 80, 2600 lm, 104 lm/W81349
Fluorescent lamp T5, FDH35 W, 4000 K, G5, Ra 80, 3300 lm, 104 lm/W81350
Fluorescent lamp T5, FDH21 W, 3000 K, G5, Ra 80, 1900 lm, 100 lm/W81353
Fluorescent lamp T5, FDH28 W, 3000 K, G5, Ra 80, 2600 lm, 104 lm/W81355
Fluorescent lamp T5, FDH35 W, 3000 K, G5, Ra 80, 3300 lm, 104 lm/W81357
Fluorescent lamp T5, FDH49 W, 3000 K, G5, Ra 80, 4300 lm, 99 lm/W81359
Fluorescent lamp T5, FDH49 W, 4000 K, G5, Ra 80, 4300 lm, 99 lm/W81362
Fluorescent lamp T5, FDH24 W, 3000 K, G5, Ra 80, 1750 lm, 89 lm/W81372
Fluorescent lamp T5, FDH39 W, 3000 K, G5, Ra 80, 3100 lm, 92 lm/W81373
Fluorescent lamp T5, FDH54 W, 3000 K, G5, Ra 80, 4450 lm, 93 lm/W81374
Fluorescent lamp T5, FDH80 W, 3000 K, G5, Ra 80, 6150 lm, 88 lm/W81375
Fluorescent lamp T5, FDH24 W, 4000 K, G5, Ra 80, 1750 lm, 89 lm/W81376
Fluorescent lamp T5, FDH39 W, 4000 K, G5, Ra 80, 3100 lm, 92 lm/W81377
Fluorescent lamp T5, FDH54 W, 4000 K, G5, Ra 80, 4450 lm, 93 lm/W81378
Fluorescent lamp T5, FDH80 W, 4000 K, G5, Ra 80, 6150 lm, 88 lm/W81379
L-coupler for luminaire surface mountedL-coupler left surface mounted92448
L-coupler for luminaire surface mountedL-coupler right surface mounted92449
T5 Eco, FDH20 W, 3000 K, G5, 1650 lm, 99 lm/W81627
T5 Eco, FDH20 W, 4000 K, G5, 1650 lm, 99 lm/W81628
T5 Eco, FDH25 W, 3000 K, G5, 2450 lm, 114 lm/W81629
T5 Eco, FDH25 W, 4000 K, G5, 2450 lm, 114 lm/W81630
T5 Eco, FDH32 W, 3000 K, G5, 3100 lm, 114 lm/W81631
T5 Eco, FDH32 W, 4000 K, G5, 3100 lm, 114 lm/W81632
T5 Eco, FDH45 W, 3000 K, G5, 4100 lm, 109 lm/W81633
T5 Eco, FDH45 W, 4000 K, G5, 4100 lm, 109 lm/W81634
T5 Eco, FDH50 W, 3000 K, G5, 4400 lm, 102 lm/W81635
T5 Eco, FDH50 W, 4000 K, G5, 4400 lm, 102 lm/W81636
T5 Eco, FDH73 W, 3000 K, G5, 6150 lm, 99 lm/W81637
T5 Eco, FDH73 W, 4000 K, G5, 6150 lm, 99 lm/W81638
