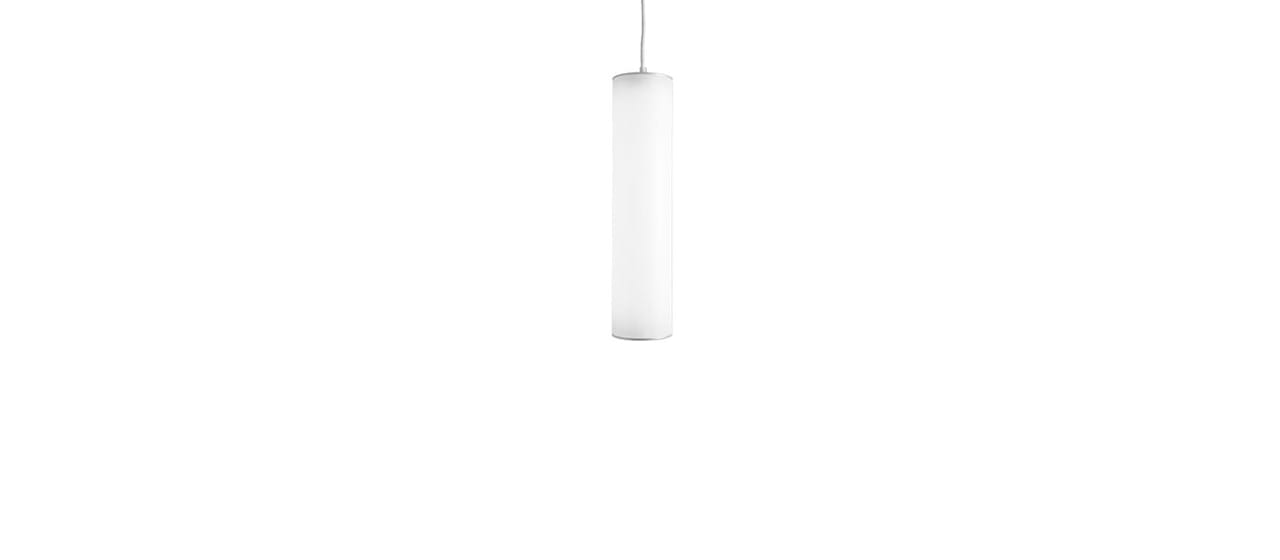

54661-402 Lepo LED
Documents
Specification
25155Design
Installation
Single
Light distribution
Round beam
Louvre
Opal
Colour
White
Light data & performance
Lumen output
2077
lm/W
117
CCT, K
4000
CRI
80
SDCM
3
Lumen maintenance 50 000 h
L94
Lumen maintenance 75 000 h
L91
Lumen maintenance 100 000 h
L89
Lumen maintenance L80 B50, h
100000
Lumen maintenance L90 B50, h
90000
LED driver, h/max failure %
100000/10
Controls & connectivity
Light control
DALI/Phase-pulse
Driver brand
Osram
No of Dali Addresses
1
Power on last level
Yes
Corridor function
Yes
Switch control, max no.
20
AM
Yes
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
System Wattage
18
Stand by W
0.1
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
33
MCB B16A
55
MCB C10A
58
MCB C16A
88
THD, %
15
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.92
Dimensions
Height, mm
680
Diamater, mm
160
Weight, kg
2.3
Dimensions
Light distribution
Lepo
Lepo is an interior design luminaire which offers a combination of energy efficiency and balanced illuminance. By combining the three different sizes it’s possible to create eye catching luminaire clusters.
The Lepo range is...
More about the family Lepo
