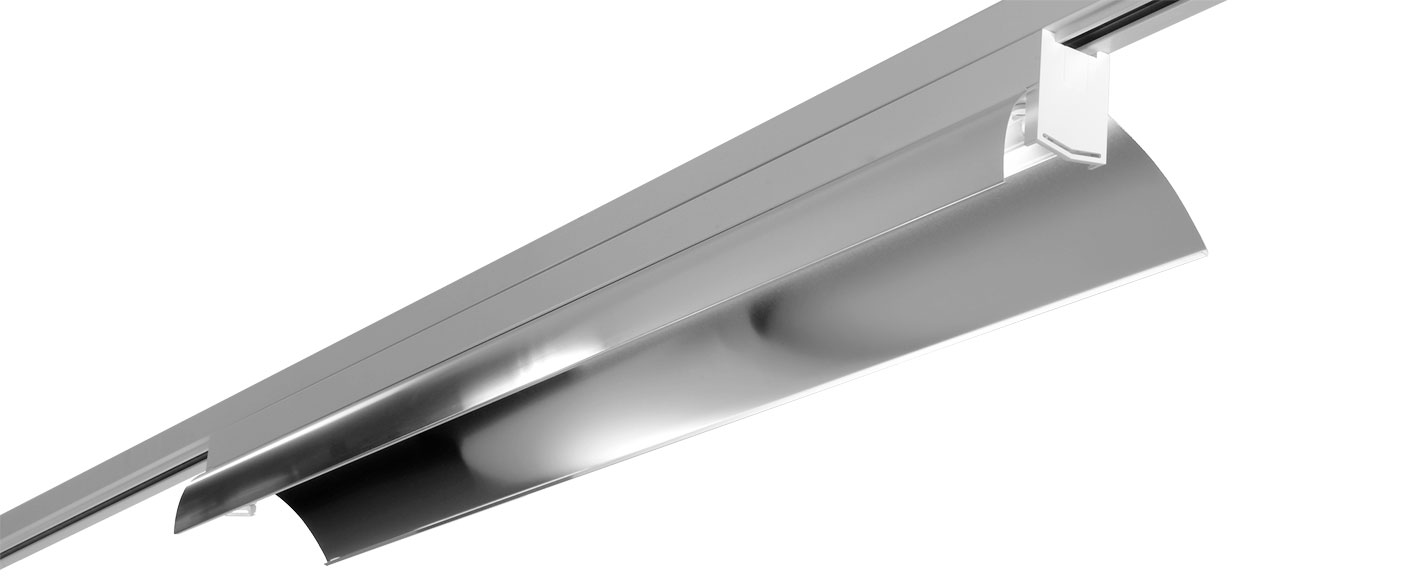

iTrack Line Asymmetrical

Installation

Connected to Fagerhult’s iTrack via a special 7-way adapter.

Design

Luminaire body of sheet steel in white enamelled finish (RAL 9016) with polycarbonate end-caps.

Louvre

Lamell – lamell louvre in white enamelled aluminium. Available in two designs, one for reflectors with end-caps and one for reflectors without end-caps.

Reflector

Asymmetrical light distribution of satin matt metallised aluminium with very good reflection characteristics (> 92 %).

Emergency lighting

Most variants can be equipped with emergency lighting (-160).

Dimming

iTrack can be equipped with a multisensor for constant light, occupancy detection and receiver for a remote control (IR), see Accessories. The functionality requires luminaires with DALI (-368). iTrack Line can be equipped with other ballasts for dimming on request.

Accessories

Reflector end-caps of polycarbonate. Joint springs for continuous installation of metallised aluminium. Installed between reflectors.

Miscellaneous

The luminaires are supplied with a phase selector set to phase 1. Some variations may require a 12-way adapter configured to suit.

Media

Optional end-caps create an elegant appearance.

iTrack

iTrack is a highly flexible, energy efficient track system which combines controls, a full range of luminaires and emergency lighting in one slim, aluminium profile. Developed for easy and logical installation, iTrack helps...

More about the family iTrack

Document

Specification

Filter

Art.no. Effect, W Light control Light source
Art.no. Effect, W Light control Light source
34880 1x25/28 FDH
34880-368 1x25/28 DALI/Phase-pulse FDH
34881 1x32/35 FDH
34881-368 1x32/35 DALI/Phase-pulse FDH
34882 1x45/49 FDH
34882-368 1x45/49 DALI/Phase-pulse FDH
34883 1x50/54 FDH
34883-368 1x50/54 DALI/Phase-pulse FDH
34884 1x73/80 FDH
34884-368 1x73/80 DALI/Phase-pulse FDH
34887 2x25/28 FDH
34887-368 2x25/28 DALI/Phase-pulse FDH
34888 2x32/35 FDH
34888-368 2x32/35 DALI/Phase-pulse FDH
34889 2x45/49 FDH
34889-368 2x45/49 DALI/Phase-pulse FDH
34890 2x50/54 FDH
34890-368 2x50/54 DALI/Phase-pulse FDH
34891 2x73/80 FDH
34891-368 2x73/80 DALI/Phase-pulse FDH

Filter

Name Description Art.no.
Name Description Art.No.
Lamell louvre for reflectors equipped with end-capLamell louvre for reflectors equipped with end-cap, 25/28/50/54 89408
Lamell louvre for reflectors equipped with end-capLamell louvre for reflectors equipped with end-cap, 32/35/45/49/73/8089410
Lamell louvre for reflectors without end-capsLamell louvre for reflectors without end-cap, 25/28/50/5489409
Lamell louvre for reflectors without end-capsLamell louvre for reflectors without end-cap, 32/35/45/49/73/8089411
Reflector end-caps, iTrackReflector end-caps/pair 92638
Reflector joint springs, iTrackReflector joint springs92633
