Hero Medium Beam

Installation
Flush-mounted, surface-mounted tandem bracket, tube bracket, wire bracket, adjustable ceiling/wall bracket and recess frame. Installation accessories are ordered separately, see accessories.

Connection
2 m connection cable (H07RN-F) with free ends. 3G1.5 mm² or 5G1.5 mm² with DALI/CLO.

Design
Luminaire body made of cast (RAL 9005) aluminium. Louvre frame made of coated sheet steel. Pressure balancing valve in side of luminaire body.

Louvre
Tempered protective glass or PMMA for higher IK classification.

Reflector
Symmetrical reflectors made of semi-gloss metallised aluminium.

Dimming
DALI control with CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its service life. Luminaires 31506-461 and 31516-461 require two DALI addresses.

LED-information
4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM. Driver life time: up to 100.000 h/10 % (max failure) at Ta25°.

Miscellaneous
Hero is certified in accordance with VDE 0710-13. Ambient temperature -30°C/40°C. Versions with higher Ta° on request. Corrosion protection class C4/15 years.

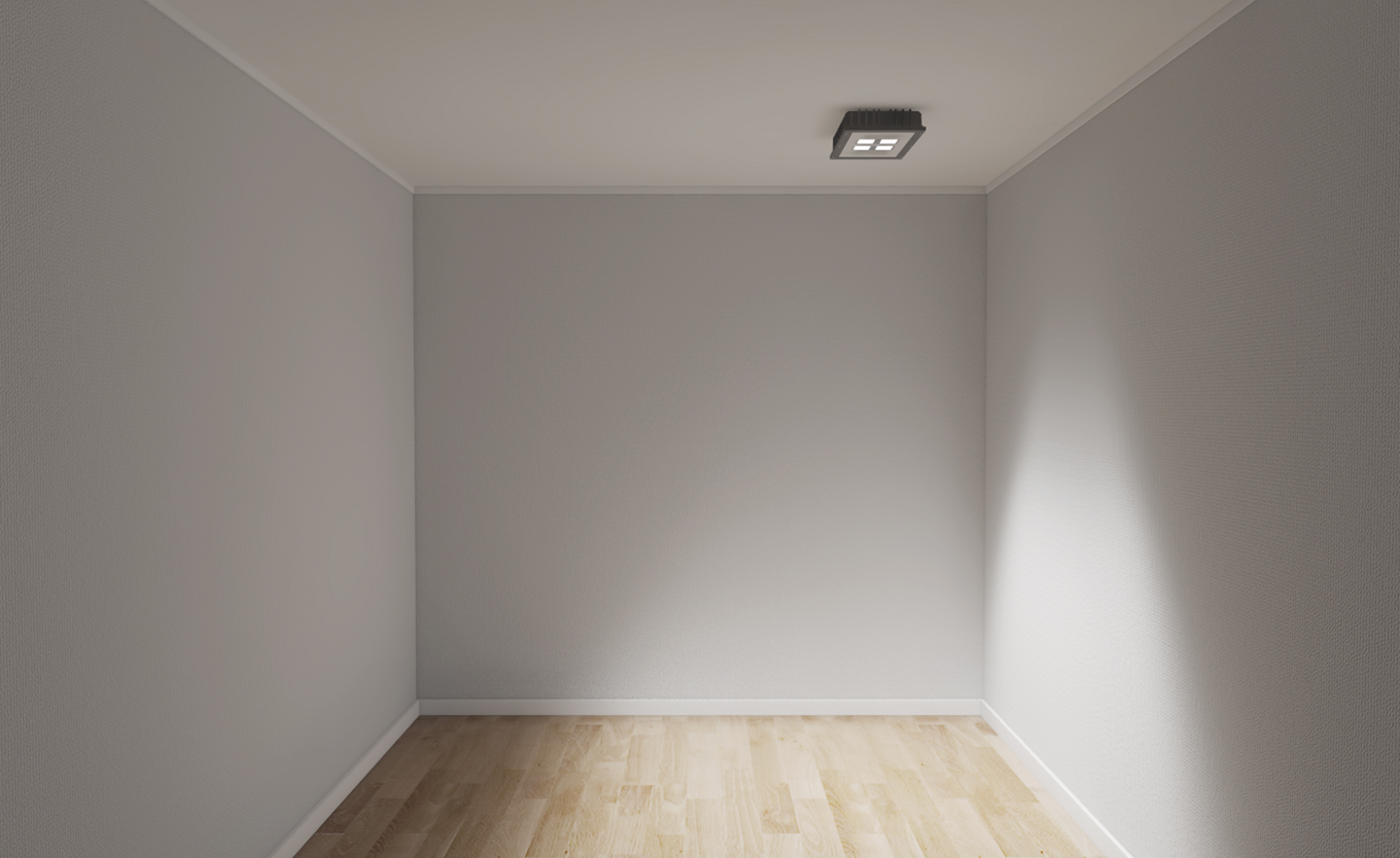

Environment images


Details


Recess frame.

Recess frame.

Wire-cable installation.

Wire-cable installation.

Tube installation.

Tube installation.

Wires suspension.

Wires suspension.

Ceiling/wall installation.

Ceiling/wall installation.

Tandem.

Tandem.

Marking of product sheet

Document added to your cart

Text som beskriver tabellen
W Weight, kg Protective glass CCT (K) Light distribution lm lm/W Useful life Art.No.
LED (system)
135 7.0 Flat glass 4000 Medium Beam 18037 134 L90B50 100.000 h 31503
135 7.0 Acrylic 4000 Medium Beam 17929 134 L90B50 100.000 h 31513
175 7.0 Flat glass 4000 Medium Beam 23872 137 L90B50 100.000 h 31506
175 7.0 Acrylic 4000 Medium Beam 23729 136 L90B50 100.000 h 31516
91 7.0 Flat glass 4000 Medium Beam 12053 133 L90B50 100.000 h 31500
91 7.0 Acrylic 4000 Medium Beam 11981 132 L90B50 100.000 h 31510
Text som beskriver tabellen
W Weight, kg Protective glass CCT (K) Light distribution lm lm/W Useful life Art.No.
LED (system)
135 7.0 Flat glass 4000 Medium Beam 18037 134 L90B50 100.000 h 31503-461
135 7.0 Acrylic 4000 Medium Beam 17929 134 L90B50 100.000 h 31513-461
175 7.0 Flat glass 4000 Medium Beam 23872 137 L90B50 100.000 h 31506-461
175 7.0 Acrylic 4000 Medium Beam 23729 136 L90B50 100.000 h 31516-461
91 7.0 Flat glass 4000 Medium Beam 12053 133 L90B50 100.000 h 31500-461
91 7.0 Acrylic 4000 Medium Beam 11981 132 L90B50 100.000 h 31510-461

Adjustable wall/ceiling bracket

Art.No.
Adjustable wall/ceiling bracket 31901

Ceiling bracket

Art.No.
Ceiling bracket 31900

Ceiling bracket tandem

Art.No.
Ceiling bracket tandem 31902

Conduit bracket/pair

Art.No.
Conduit bracket/pair 31911

Recessed frame

Art.No.
Recessed frame 31905

Wire catenary bracket

Art.No.
Wire catenary bracket 31910

Wire Suspension kit

Art.No.
Wire Suspension kit incl. 2 m wire with eye 31912
