Dino Kvarts

Installation
Two point suspension c/c 150 mm.

Connection
232 V integrated LED ballast. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°.

Design

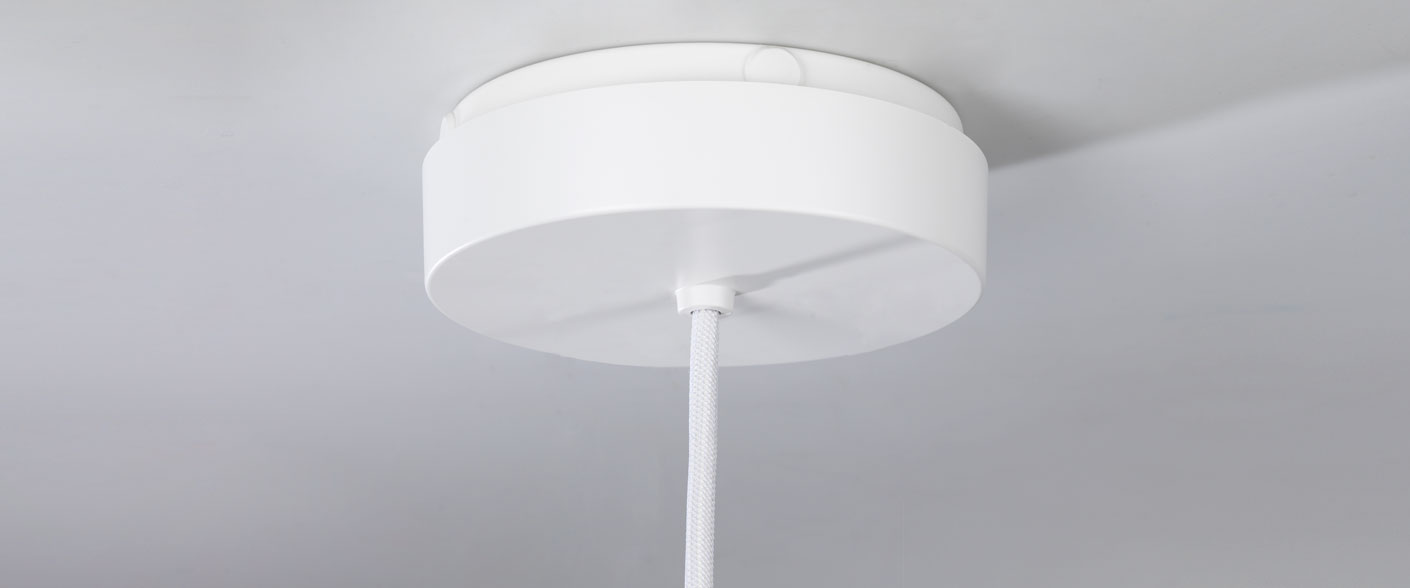

Luminaire body in aluminium lacquered in various colours. Shade in opal glass. Supplied with 3,0 m white fabric cord 5x0,75 mm² and white, plastic ceiling cup.

Dimming
DALI/phase-pulse control as standard.

Designed by
PetterssonRudberg.

LED-information
Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 100.000 h/10 % (max failure).

Miscellaneous
Luminaire has a switch for high/low flow. Always delivered set at high flow and need to be adjusted for low flow.

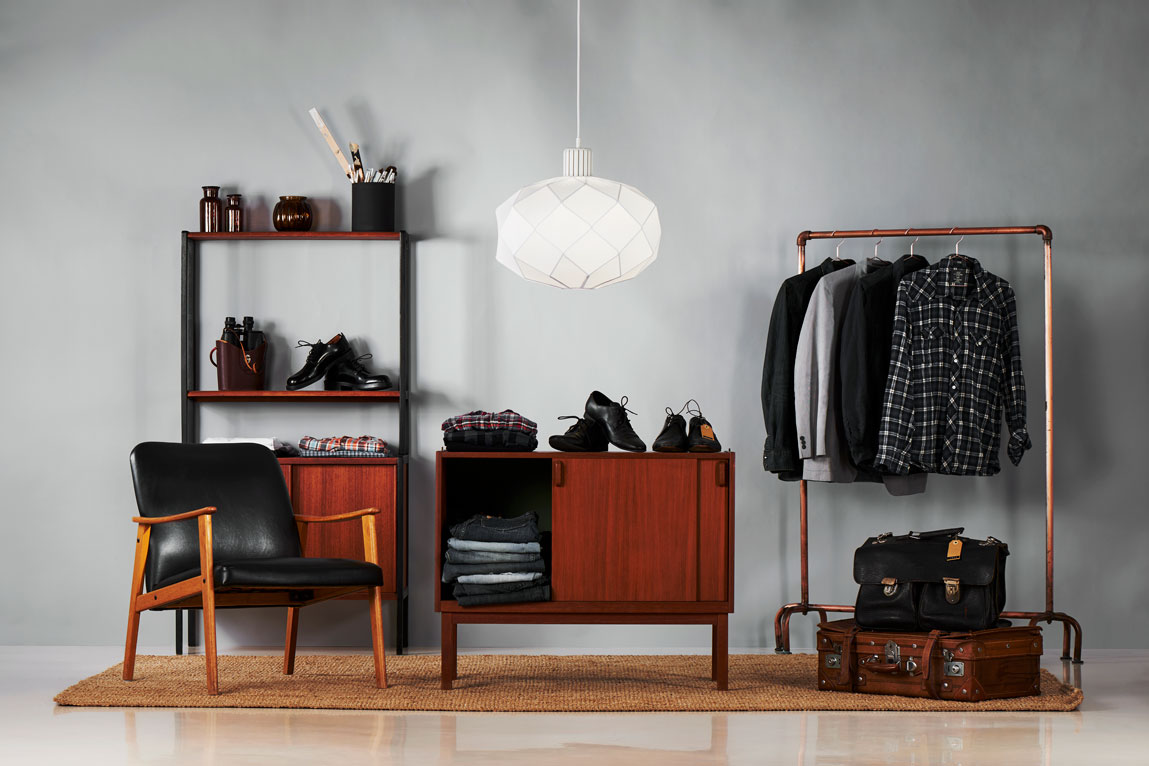

Environment images


Details


Marking of product sheet

Document added to your cart

Documents

Text som beskriver tabellen
W Weight, kg Diameter, mm Colour CCT (K) lm lm/W Useful life Art.No.
LED
8/16 2.1 190 White 3000 744/1377 93/86 L90B50 55.000 h 54011-402
8/16 2.1 190 White 4000 791/1465 99/92 L90B50 55.000 h 54012-402
8/16 2.1 190 Graphite structure 3000 744/1377 93/86 L90B50 55.000 h 54013-402
8/16 2.1 190 Graphite structure 4000 791/1465 99/92 L90B50 55.000 h 54014-402
8/16 2.1 190 Black 3000 744/1377 93/86 L90B50 55.000 h 54015-402
8/16 2.1 190 Black 4000 791/1465 99/92 L90B50 55.000 h 54016-402
8/16 2.1 190 Red 3000 744/1377 93/86 L90B50 55.000 h 54017-402
8/16 2.1 190 Red 4000 791/1465 99/92 L90B50 55.000 h 54018-402
8/16 2.1 190 Turquoise 3000 744/1377 93/86 L90B50 55.000 h 54019-402
8/16 2.1 190 Turquoise 4000 791/1465 99/92 L90B50 55.000 h 54020-402
