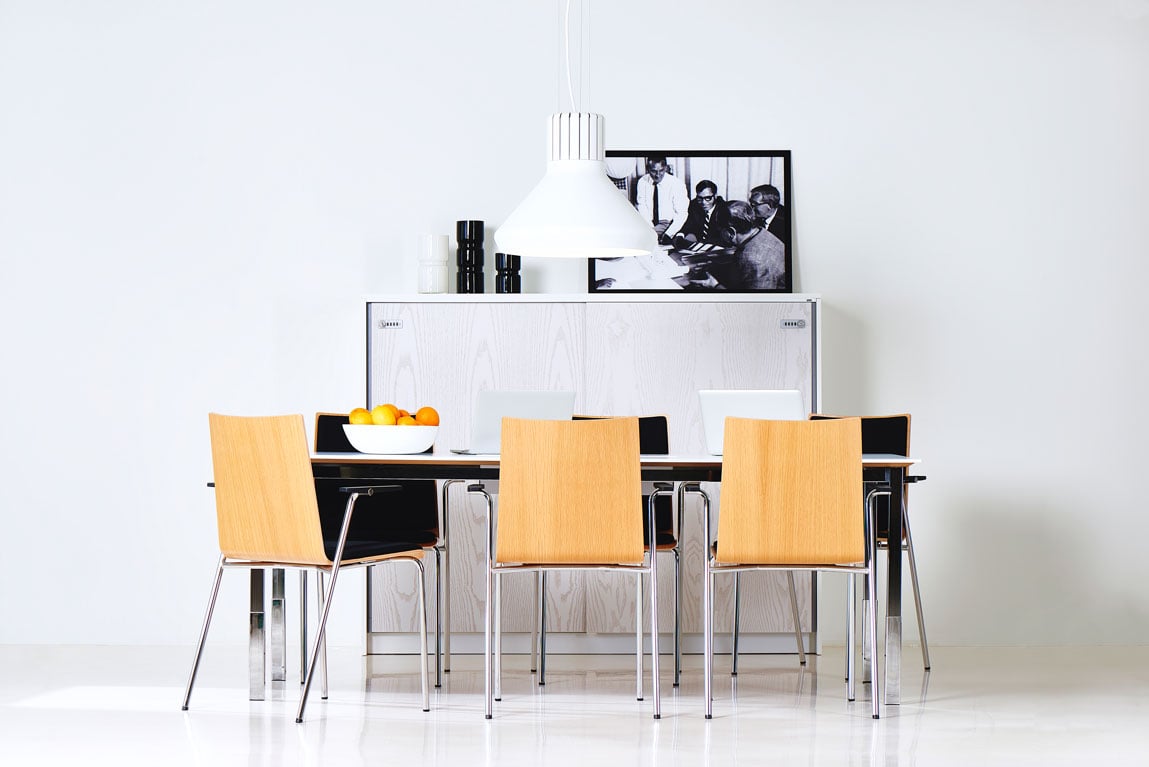

Dino Apollo

With its distinctive design, Dino Apollo takes space in a room without screaming for attention. LED driver and shade in white or graphite grey, available in two sizes.

Installation

Two point suspension c/c 150 mm.

Connection

236 V integrated LED ballast. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°.

Design

Luminaire body of aluminium in white (RAL 9016) or graphite grey textured enamel.
Ø 300 – supplied with 3,0 m white fabric cord 2x0,75 mm² and white, plastic ceiling cup.
Ø 500 – supplied with 4,0 m white fabric cord 5x0,75 mm², 4,0 m wire suspension with friction locks for height adjustment and white, plastic ceiling cup.

Dimming

DALI/phase-pulse control as standard.

Designed by

PetterssonRudberg.

Miscellaneous

Luminaire 300 mm has a switch for high/low flow. Always delivered set at high flow and need to be adjusted for low flow.

Media

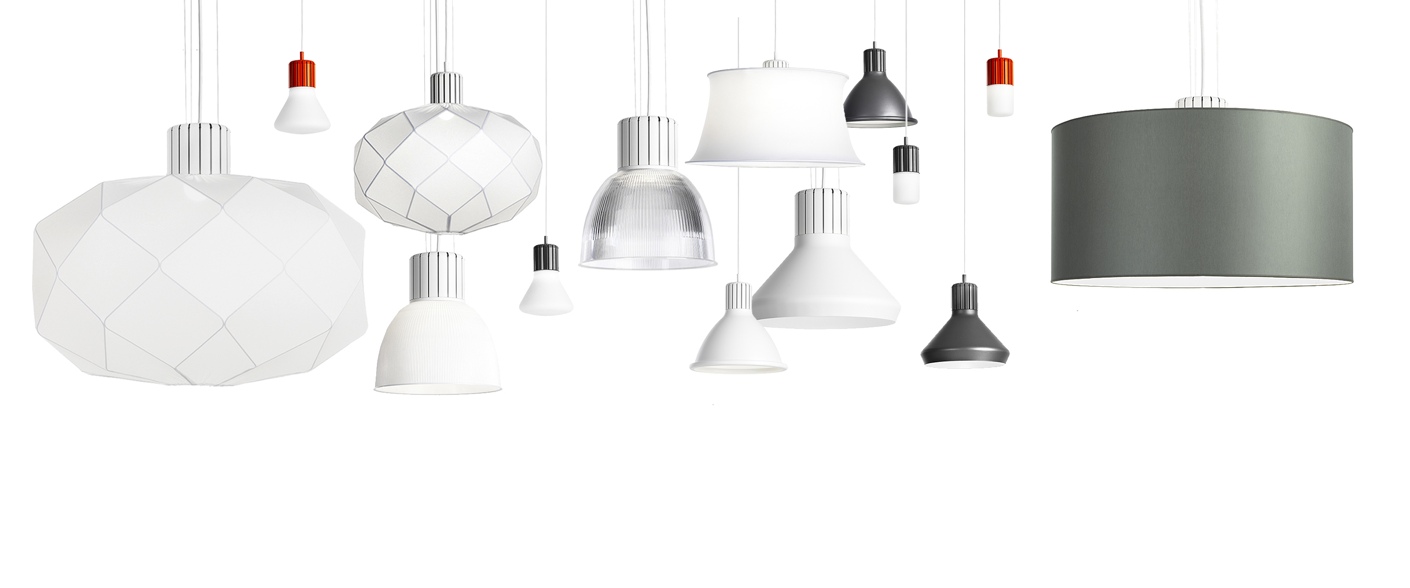

Dino

Atmospheric or functional?

You don’t have to choose between atmospheric or functional! From a cosy hotel room to a car sales area to the exclusive store to an office. Dino offers the possibility to fulfil various lighting tasks...

More about the family Dino

Document

Specification

Luminaire Ø 300 mm is always delivered set at high flow and need to be adjusted to get low flow (approx. 50 % lower system wattage and luminous flux).

Filter

Art.no. Lumen output CCT, K Diameter, mm Colour Light control
Art.no. Lumen output CCT, K Diameter, mm Colour Light control
54069-402 1214 3000 300 White DALI/Phase-pulse
54070-402 1292 4000 300 White DALI/Phase-pulse
54071-402 1214 3000 300 Graphite structure DALI/Phase-pulse
54072-402 1292 4000 300 Graphite structure DALI/Phase-pulse
54073-402 2367 3000 500 White DALI/Phase-pulse
54074-402 2518 4000 500 White DALI/Phase-pulse
54075-402 5171 3000 500 White DALI/Phase-pulse
54076-402 5501 4000 500 White DALI/Phase-pulse
54077-402 2367 3000 500 Graphite structure DALI/Phase-pulse
54078-402 2518 4000 500 Graphite structure DALI/Phase-pulse
54079-402 5171 3000 500 Graphite structure DALI/Phase-pulse
54080-402 5501 4000 500 Graphite structure DALI/Phase-pulse
